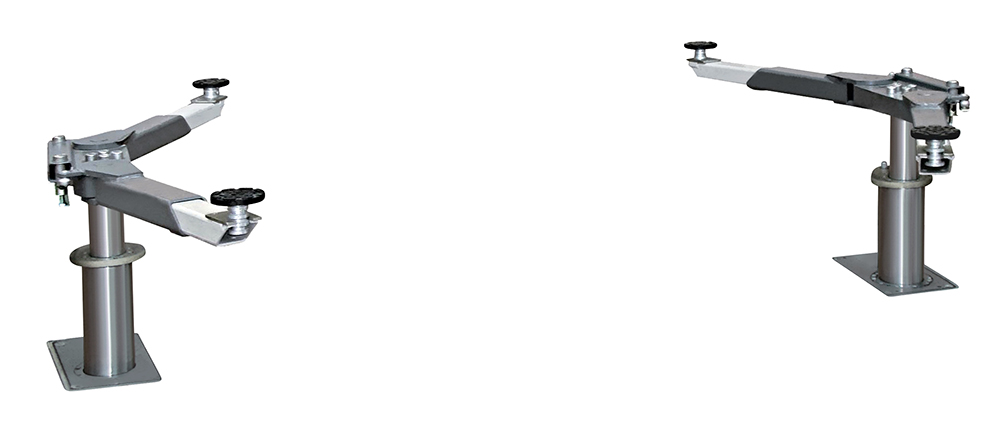

J.A. Becker & Söhne presents the TwinRam 35 S2 VH-Tele lift, a scissor-technology, fully hydraulic, two-post lifting system designed for special installation conditions and extremely low installation depths. The lift with a telescopic design and a swivel arm I-beam offers an ideal solution for retrofitting existing workshops, especially multi-story buildings, where maximum utilization of the lifting area is crucial.
This model compensates for the lack of traditional mechanical linkages with a master/slave hydraulic synchronization system, which significantly simplifies installation.
The TwinRam 35 S2 VH-Tele is not an „08/15” product; maximum flexibility and easy access were emphasized during the design phase:
Minimum Installation Depth: Thanks to its extremely low installation depth, it is ideal for sites where the floor structure has limited thickness or where the functionality of the lifting area must not be impaired.

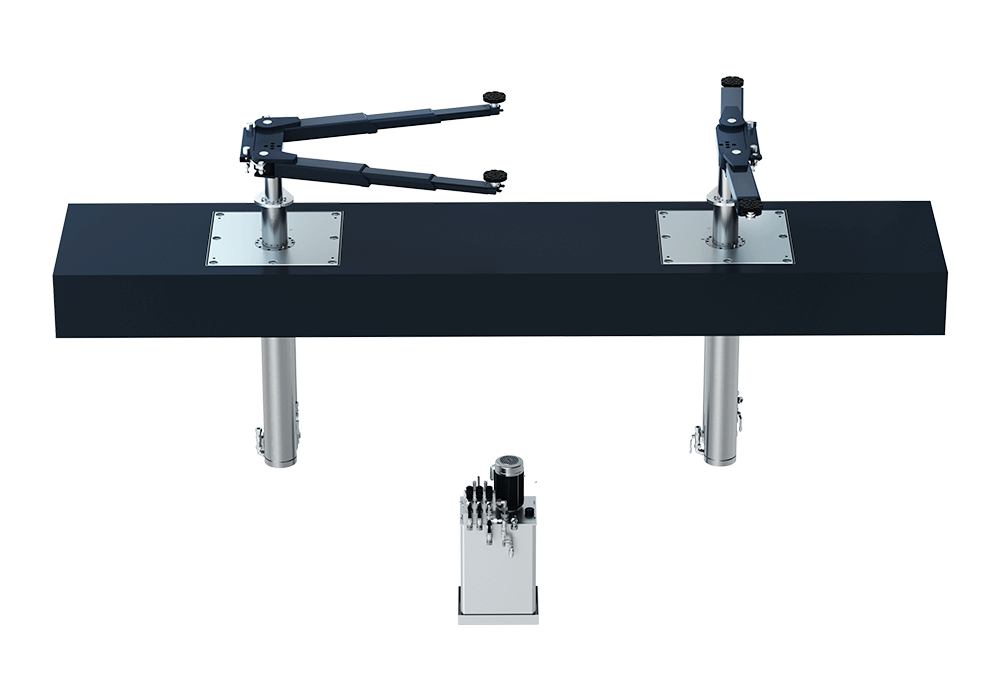

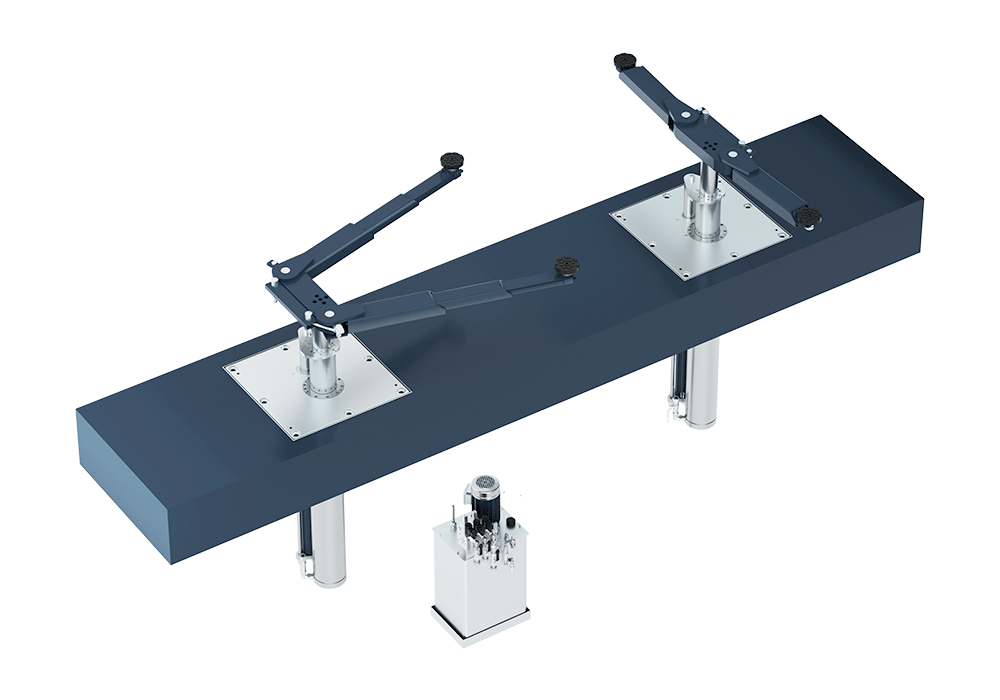

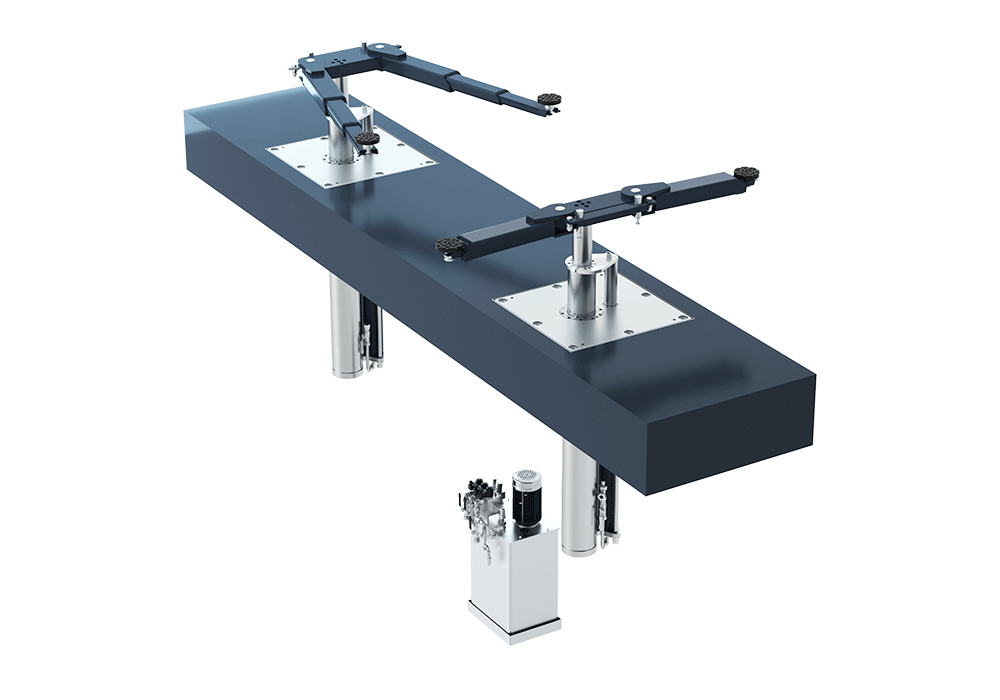

No Cross-Connection Between Towers: There is no mechanical connection between the two lifting units. Synchronization is ensured exclusively by hydraulic lines via the master/slave system. This eliminates the need for a continuous foundation pit.

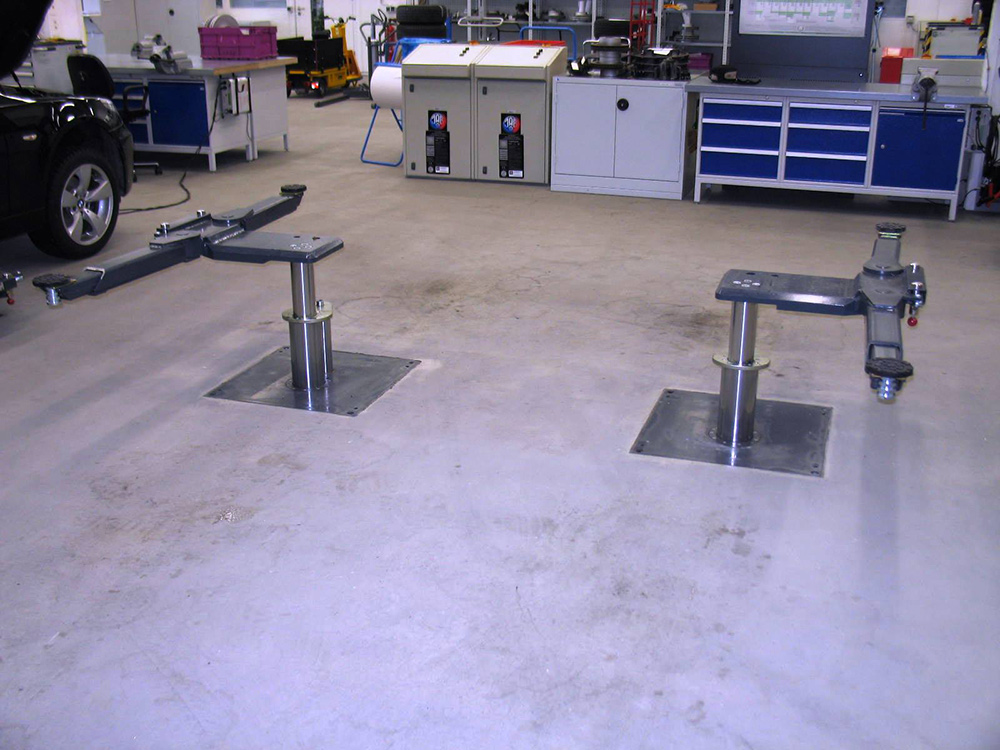

Egyszerű Telepítés: Core drill holes are sufficient for installation. Due to the low installation effort, it can be integrated quickly and with minimal disruption into existing facilities.
Full Stroke Length Controlled Anti-Tilt System: Guarantees vehicle stability and safety across the entire lifting height.
Base Frame Force Absorption: All load forces are absorbed by the base frame, which increases the service life and stability of the structure.

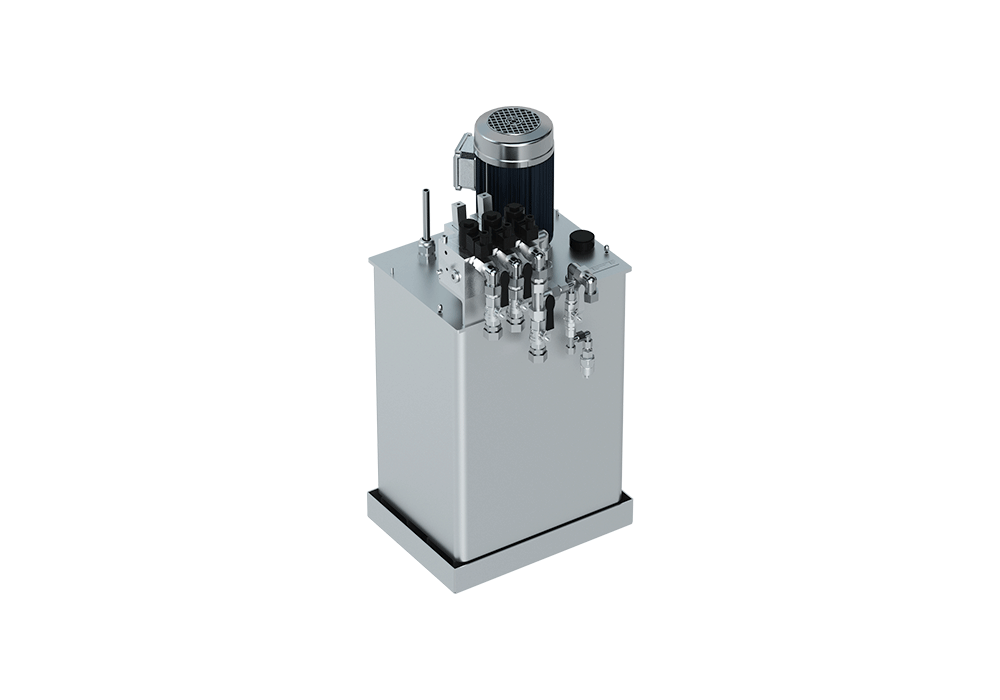

Excellent Accessibility: For easy access to the drive unit and all components for maintenance and servicing.
Optimal Access to the Undercarriage: The design allows for convenient and unobstructed access to the underside of the vehicle.
High Lifting Versatility: Wide range of lifting options for different vehicle sizes and types.
The TwinRam 35 S2 VH-Tele lift offers precise engineering solutions for high performance:
| Parameter | Value | Note |
|---|---|---|
| Load Capacity | 3,500 kg | Ideal for passenger cars and light commercial vehicles. |
| Punch distance (Punch distance) | 2,300 mm | The distance between the two lifting towers. |
| Underswing height (Underswing height) | 108 mm | An extremely low value that supports minimal installation depth. |
| Installation Depth (Installation depth) | 1,300 mm | The part of the structure sunk below the floor. |
| Oil quantity | 65 liters | The volume of fluid required for the operation of the hydraulic system. |
| Connection power | 4 kw | The electrical requirement of the drive unit. |
In the case of the TwinRam 35 S2 VH-Tele, there is no mechanical connection between the two hydraulic cylinders. Synchronization is ensured by a sophisticated master/slave system ensures via hydraulic lines. This solution makes it unnecessary to have a continuous foundation pit, as only the two lifting units need to be hydraulically connected.

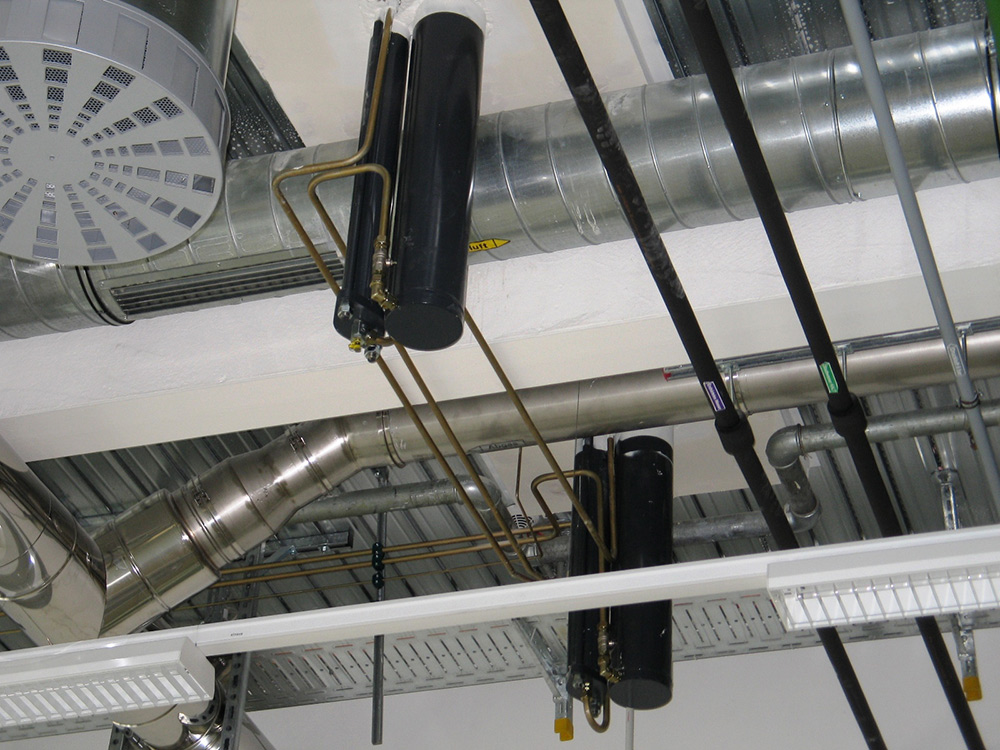

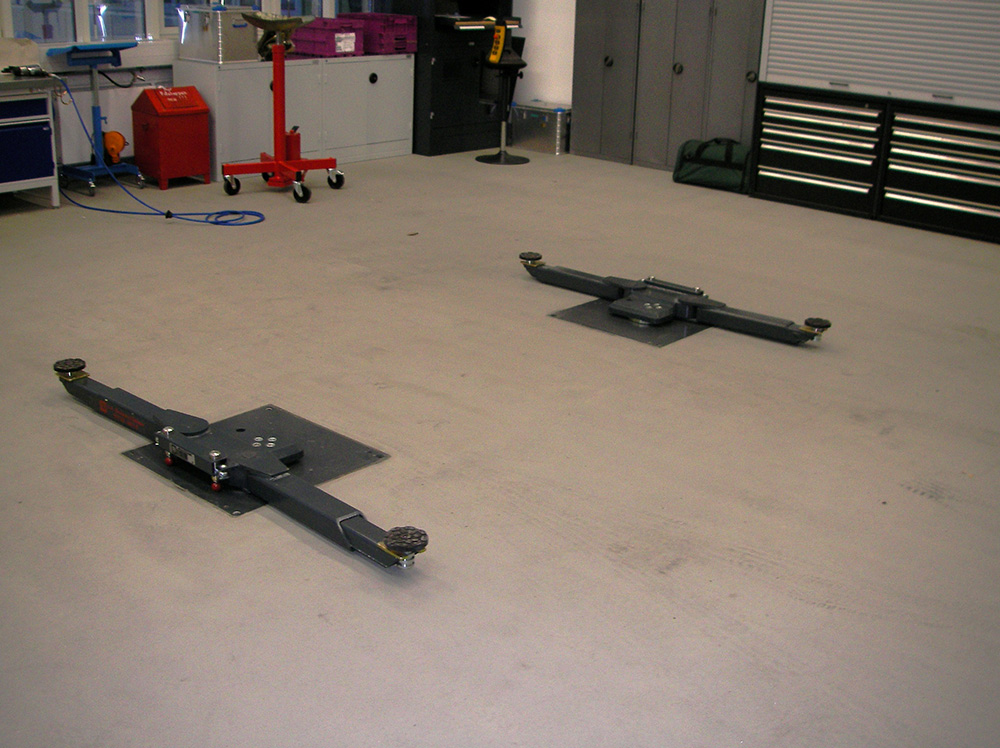

The fully hydraulic lift with a telescopic design and pivoting boom bridge is particularly suitable for retrofitting. Thanks to the extremely low installation requirement, it is an ideal choice for workshops where existing infrastructure cannot be significantly modified, especially in multi-story buildings where the functionality of the vehicle bay (e.g., use as a parking spot) must be maintained after installation.
J.A. Becker & Söhne products represent first-class quality in every aspect, ensuring long-term, reliable operation even in the most demanding workshop environments. The excellent pickup versatility guarantees that the most diverse passenger vehicles can be lifted safely.
