This product description applies to high-precision digital pressure gauges that are indispensable for the diagnosis and inspection of hydraulic systems. These instruments offer a reliable solution for modern vehicle repair shops and industrial facilities for the precise measurement and monitoring of hydraulic system pressure relationships.
The application of digital technology guarantees fast, accurate, and easily readable results, minimizing the possibility of human error that can occur with analog instruments. The device is an ideal choice for pressure testing and maintenance of complex hydraulic systems, such as those in commercial vehicles, agricultural machinery, or heavy construction equipment.
This digital measuring device is excellently suited for checking the performance and safety of hydraulic systems. Thanks to the digital display, measurements can be processed visually immediately, which significantly speeds up the diagnostic process.
High Accuracy: The digital sensors ensure outstanding measurement accuracy, which is critical for guaranteeing optimal operation of hydraulic systems.
Robust Construction: Designed to withstand the rigors of the workshop environment, including vibration and environmental factors.
Easy Readability: A high-resolution digital display ensures clear and unambiguous presentation of measurements, even in poor lighting conditions.
Wide Application Area: Suitable for numerous hydraulic applications, including brake systems, steering, and lifting systems.
Diagnostic Aid: Allows for quick identification of pressure losses, leaks, and overall system performance.
Since the source material also mentions multiple interconnected hydraulic measuring devices, the following table summarizes the most important technical parameters characteristic of digital pressure measuring devices, which fall into the categories of „Digital Pressure Measurement” and „Hydraulic Diagnostic Device Digital”.
| Parameter | Description / Value | Note |
|---|---|---|
| Measurement Range | Variable, typically 0 – 700 bar (or higher) | The exact range depends on the specific model. |
| Resolution | 0.1 bar or better | Critical for detecting subtle pressure fluctuations. |
| Pontosság | ± 0.5% FS (Full Scale) or better | Maximum error relative to the full scale. |
| Display Type | Digital LCD/LED | Large display equipped with backlighting. |
| Connection | Standard hydraulic connections (e.g., G 1/4″, NPT) | Available also with quick connectors. |
| Tápellátás | Battery (e.g., 9V block) or rechargeable battery | To ensure long operating time. |
| Temperature Range | Operating: -10°C – +60°C | Optimized for industrial and workshop environments. |
| Data Storage | Optional (Peak Hold, Min/Max capture) | Capability to capture measurements. |
| Protection Class | IP rating (e.g., IP54) | Dust and splash resistance. |
For modern workshops, digital pressure measuring devices (such as the „Hydraulic Diagnostic Device Digital”) represent a significant advancement compared to analog instruments:
Objectivity and Reproducibility: Digital values are unambiguous, making measurements easily documentable and comparable across different times or during tests performed by different technicians.
Dynamic Measurement: The high sampling rate makes it possible to record sudden pressure peaks (transients) that a slow analog indicator cannot follow. This is crucial for troubleshooting hydraulic valves or pumps.
Integrated Functions: Digital devices often have additional functions such as backlighting, unit change (bar, psi, MPa), and storage of maximum and minimum values (Peak Hold).
This type of measuring device is extremely versatile and can be used in numerous areas during the maintenance of vehicles and machinery:
Brake systems are the most critical in terms of safety. Digital pressure gauges can be used to check:
The maximum pressure generated by the master brake cylinder.
Pressure loss in the brake lines after engine shut-off (holding test).
Pressure fluctuations occurring during the operation of ABS/ESP systems.
Measuring the hydraulic pressure of the power steering is essential to ensure the proper functioning of the power steering assistance. The instrument can check the pump's performance under load.
Although separate diagnostic tools exist for automatic transmissions (such as „Gearbox Oil Diagnostic Testers”), this universal device can also be used to measure the pressure of hydraulically operated clutches and certain transmission components.
High-load hydraulic systems (e.g., loaders, lifting arms) often operate at much higher operating pressures. Digital tools with the appropriate measurement range are essential to guarantee the reliability of these systems.
The efficiency of digital pressure measuring devices is significantly increased by the accessories belonging to them, which are also mentioned in the source material:

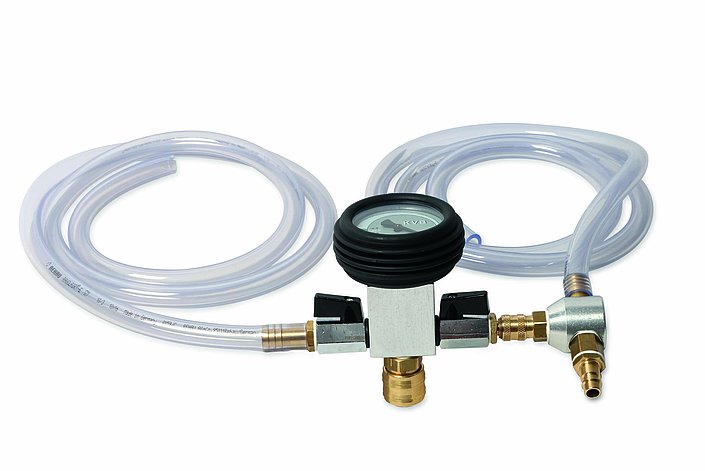

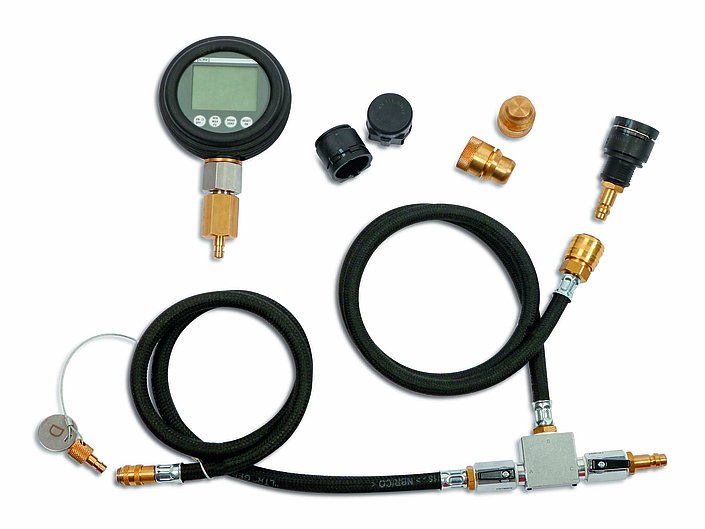

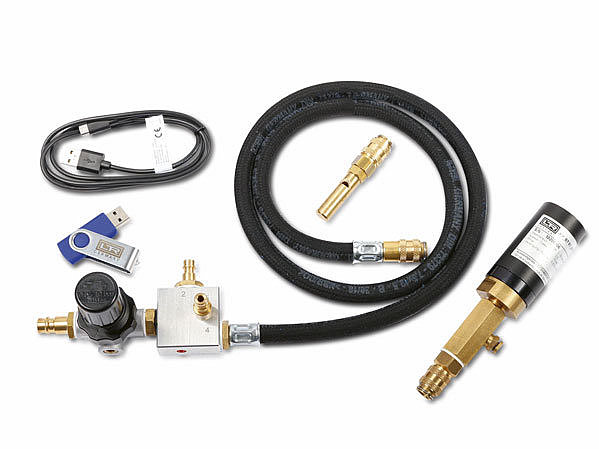

Hydraulic Test Kits (Analog and Digital): The digital measuring instrument is often part of a comprehensive test kit („Hydraulik-Test Case, Digital”), which includes the necessary adapters, hoses, and connections for quick connection to various systems.
Hydraulic Test Strips: These accessories can help in the visual or simpler, faster checking of existing pressure ratios in the system before proceeding to more complex digital measurements.

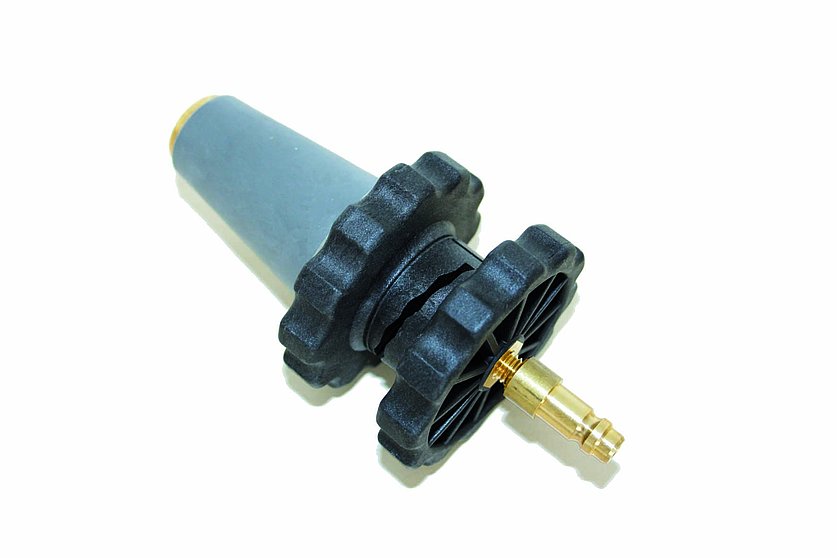

Adapters: Due to the variety of vehicle fleets, it is essential to have adapters of the appropriate size and type (similar to brake pressure measuring adapter kits, for example) so that the measuring head fits every connection point.
Digital pressure measuring devices are fundamental to modern vehicle and machinery repair. With precise, easily interpretable measurements, they support fast fault diagnosis, reduce downtime, and ensure the long-term, safe operation of hydraulic systems. The robust construction and wide measurement capability make this instrument an indispensable tool for every professional workshop.
