This detailed product description is for a puller adapter optimized for high-performance fastening tasks, designed for the Wielander + Schill XSeries professional riveting technology. This component is crucial for the precise and reliable installation of blind rivet bolts with a 5 mm RivBolt thread, compatible with the BRN 50 blind rivet nut adapter.
The puller adapter with part number 700127 is an integral part of the Wielander + Schill professional tool system, which delivers outstanding performance in the field of body repair and metal processing. This adapter ensures the optimal pulling process for blind rivet bolts equipped with a 5 mm RivBolt thread, guaranteeing a solid and durable connection.
The purpose of the product, when used in conjunction with the BRN 50 blind rivet nut adapter, is to provide a fast and efficient solution for various fastening needs where standard riveting is insufficient or a special threaded connection is required. The high-quality steel structure and precise machining ensure long service life and reliable operation even under the most intensive workshop conditions.
This adapter has been designed with professional users in mind, emphasizing reliability and compatibility:
Special Compatibility: Optimized exclusively for blind rivet bolts with a 5 mm RivBolt thread.
BRN 50 Compatibility: Perfectly fits the BRN 50 blind rivet nut adapter, ensuring seamless system operation.
Robust Material Usage: Made from high-quality steel that resists high pulling forces and wear from frequent use.
Surface treatment: The burnished surface finish increases corrosion resistance and improves service life.
Könnyű Kezelhetőség: Its compact dimensions and low weight (0.110 kg) facilitate handling and swapping between tools.
The precise technical parameters of the product ensure the quality of the tool design and the accuracy of the installation process.
| Property | Value | Note |
|---|---|---|
| Part number | 700127 | Unique Identifier |
| Compatible Thread | RivBolt | Special thread type |
| Thread Diameter (Ø) | 5.0 mm | Dimension of the screw thread length |
| Length | 90.0 mm | Total length of the adapter |
| Width | 19 mm | At the widest point |
| Höhe | 18 mm | At the highest point |
| Overall Dimensions (H x W x D) | 88 x 19 x 18 mm | Physical extent of the product |
| Material | Steel | High-strength structural material |
| Surface Treatment | Eloxated (burnished) | Wear and corrosion protection |
| Weight | 0.110 kg | Light weight for fast working speed |
| Package contents | 1 piece (1 stück, 1 piece) | Unit packaging |

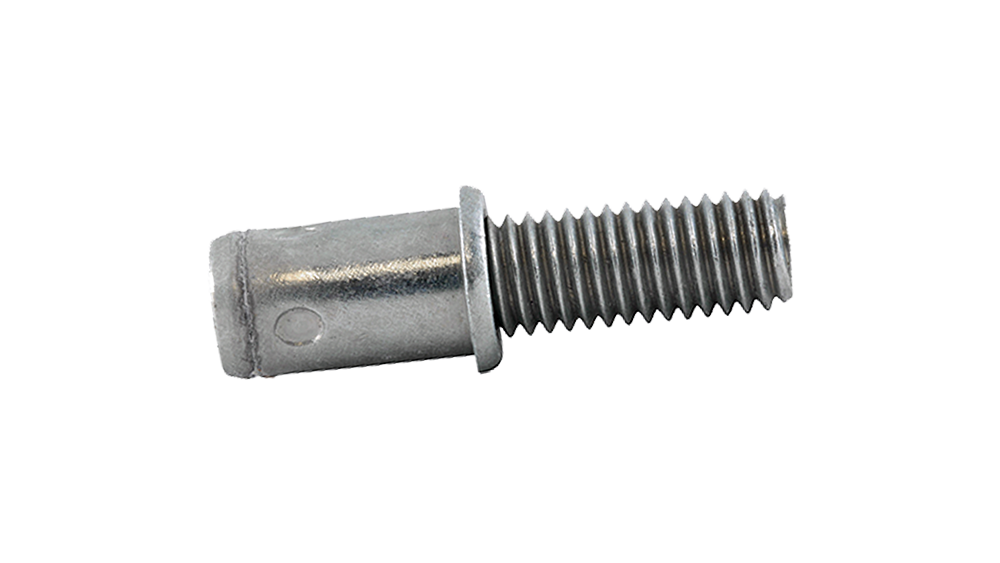

This puller adapter plays a role in the final phase of installing blind rivet bolts. Placed into the BRN 50 adapter, the tool uses the puller pin to exert the necessary force to tension the threaded part of the RivBolt screw. The 5 mm RivBolt specification means the adapter precisely fits this size, minimizing play and thread stripping.
The 90 mm length provides sufficient distance between the tool and the workpiece, which can be particularly useful in tight assembly locations or with parts featuring complex geometry. The steel material ensures the adapter can withstand continuous repetitive loading, which is essential in high-volume manufacturing or repair environments.
Wielander + Schill also offers puller adapters of various other sizes and types that are compatible with the BRN 50 adapter, thus ensuring a comprehensive solution for different fastening standards:
Blind Rivet Bolt Puller Adapter | M8 (Part No.: 700122): For blind rivet bolts with M8 thread.

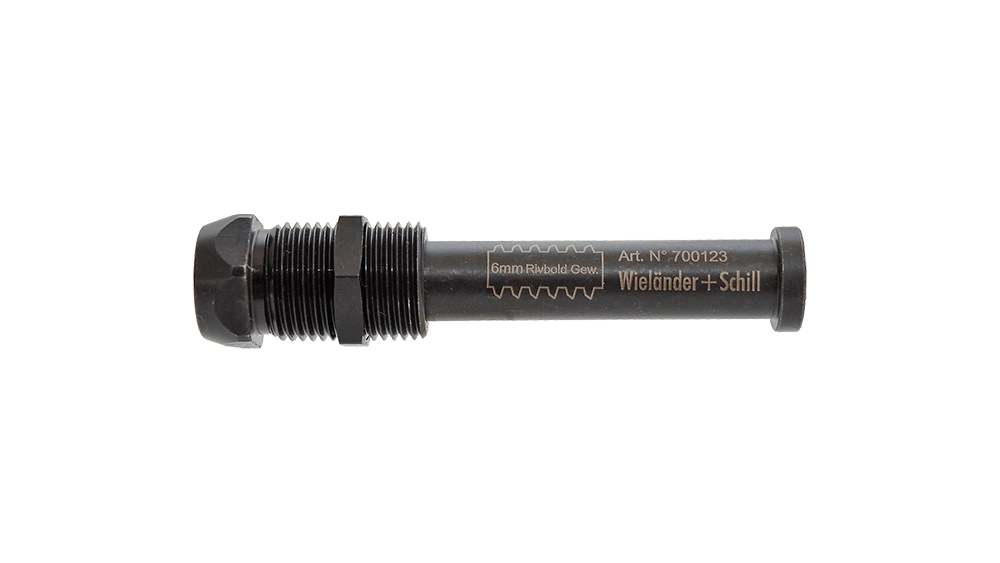

Blind Rivet Puller Adapter | 6 mm RivBolt (Item No.: 700123): For 6 mm RivBolt thread.

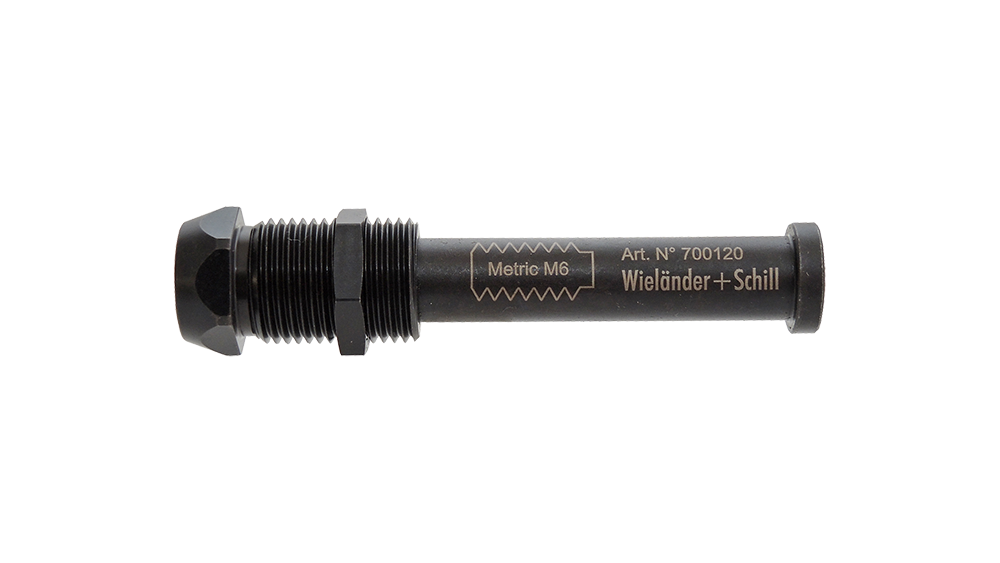

Blind Rivet Puller Adapter | M6 (Item No.: 700120): For blind rivet bolts with M6 thread.

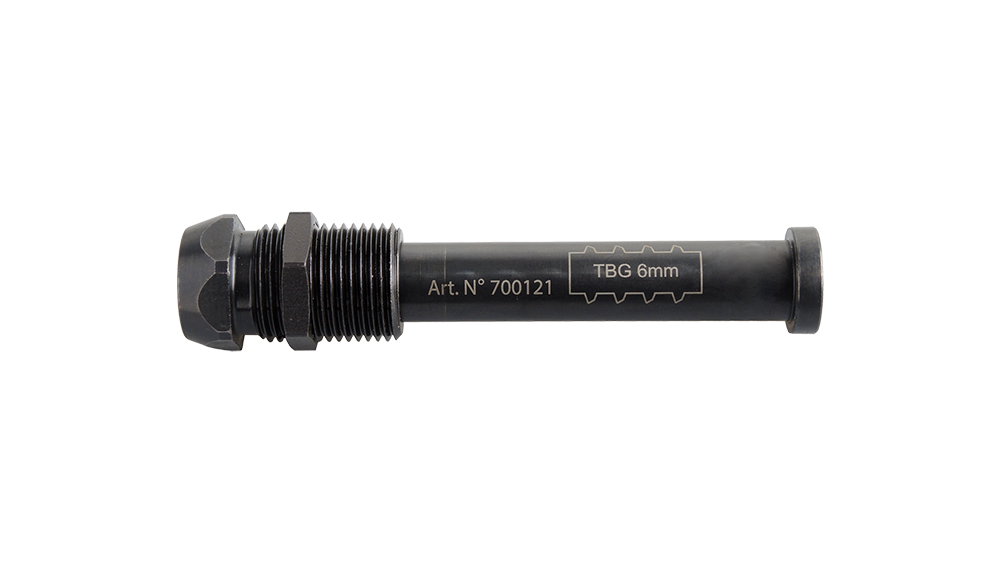

Blind Rivet Puller Adapter | 6 mm SelfLock (Item No.: 700121): For 6 mm self-locking „rivet” thread.
These accessories allow users to flexibly adapt to various OEM (Original Equipment Manufacturer) specifications and repair requirements, all within the reliable framework of XSeries technology.
This 5 mm RivBolt puller adapter is an essential tool for precision fastening, representing the quality and durability of Wielander + Schill during everyday workshop tasks.
