Product Identifier: 700120
This detailed description is intended for the Wielander + Schill XSeries professional riveting technology, specifically for the Blind Rivet Screw Pulling Adapter M6 specific version. This adapter is a crucial accessory when working with the BRN 50 type blind rivet nut puller, ensuring the precise and efficient installation of blind rivet screws with M6 threads.
The product is part of the Wielander + Schill professional riveting technology portfolio, which meets the highest industrial requirements.

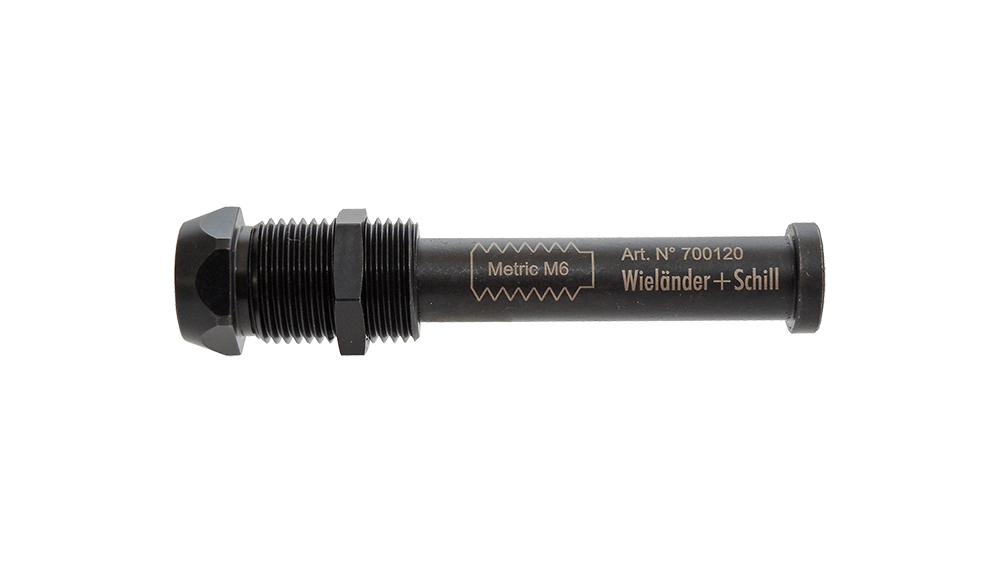

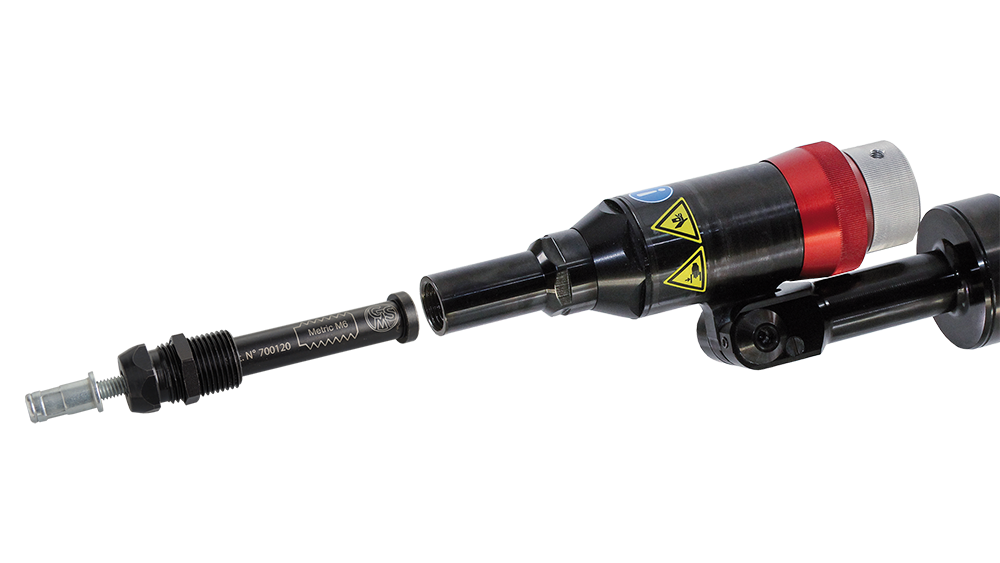

The pulling adapter with article number 700120 is a specially designed tool that enables the safe and reliable insertion of blind rivet screws equipped with M6 threads into the workpiece. The adapter is designed for use with the BRN 50 blind rivet nut puller, thus it can be integrated into existing high-performance riveting systems.
This component is essential in body construction, repair, and other precision metalworking applications where the use of high-strength, threaded fasteners is necessary. The correct fit and robust design guarantee a long service life and consistent performance.
Compatibility: Optimized exclusively for use with the BRN 50 blind rivet nut puller.
Thread size: Specifically designed for blind rivet screws with M6 threads.
Material quality: Made of high-quality steel, ensuring the necessary mechanical strength during the pulling process.
Surface treatment: The surface treatment is „burnished,” which increases corrosion resistance and reduces friction between tools.
Accuracy: Thanks to its precise design, it minimizes the risk of damaging the screw head during installation.
The table below summarizes all important technical parameters of the M6 pulling adapter, article number 700120:
| Property | Value | Note |
|---|---|---|
| Part number | 700120 | Unique Identifier |
| Product Name | Blind Rivet Screw Pulling Adapter | |
| Compatible Pulling Adapter | BRN 50 | Blind Rivet Nut Puller |
| Thread (Thread) | M6 | Metric 6 mm |
| Material | Steel | High-load structural material |
| Surface Treatment (Coating) | Burnished | Corrosion protection and friction reduction |
| Length | 90.0 mm | Total length |
| Width (Width) | 20 mm | |
| Height | 12 mm | |
| Dimensions (L x W x H) | 89 x 20 x 12 mm | The specified dimensions are approximately equal to the length data. |
| Weight | 0.105 kg | Lightweight yet robust design |
| Content (Content) | 1 piece (1 stück, 1 piece) |
This adapter integrates seamlessly into the XSeries – Professional Riveting Technology category. XSeries tools are optimized for high-demand, professional repair environments where speed, reliability, and durable fastening are essential.
The use of blind rivets (also known as threaded rivets) is particularly advantageous in locations where rear-side access is limited or where a threaded connection is required without dismantling the structure. M6 size rivets provide high retention force, which can be critical when securing structural components, such as vehicle chassis or body parts.
The 700120 adapter ensures that the pulling force is evenly distributed over the rivet head, minimizing stress concentration, which increases the lifespan of the installed fastener. The burnished surface treatment also facilitates quick replacement and tool maintenance.
Wielander + Schill also offers several other sizes and types of pulling adapters that can be used with the BRN 50 pulling adapter, adapted for different fastening elements:

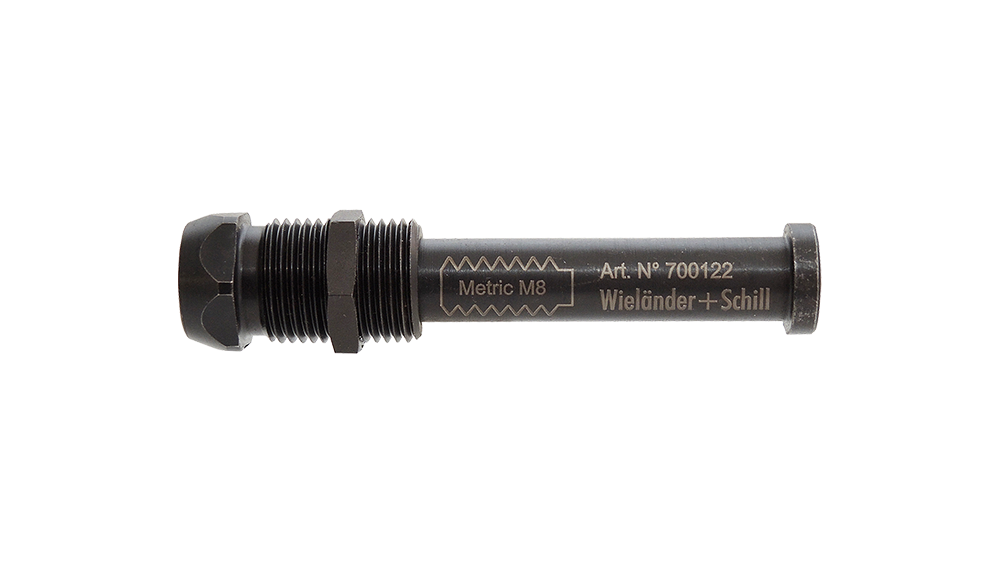

Blind Rivet Puller Adapter | M8 (Part No.: 700122): For larger blind rivets with M8 thread.

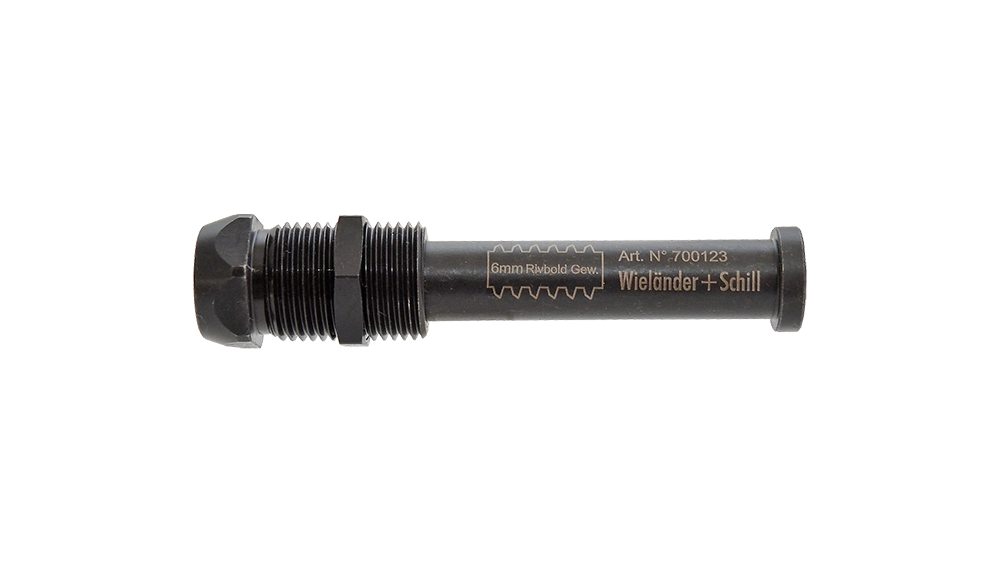

Blind Rivet Puller Adapter | 6 mm RivBolt (Part No.: 700123): Specifically for screws equipped with a 6 mm RivBolt thread.

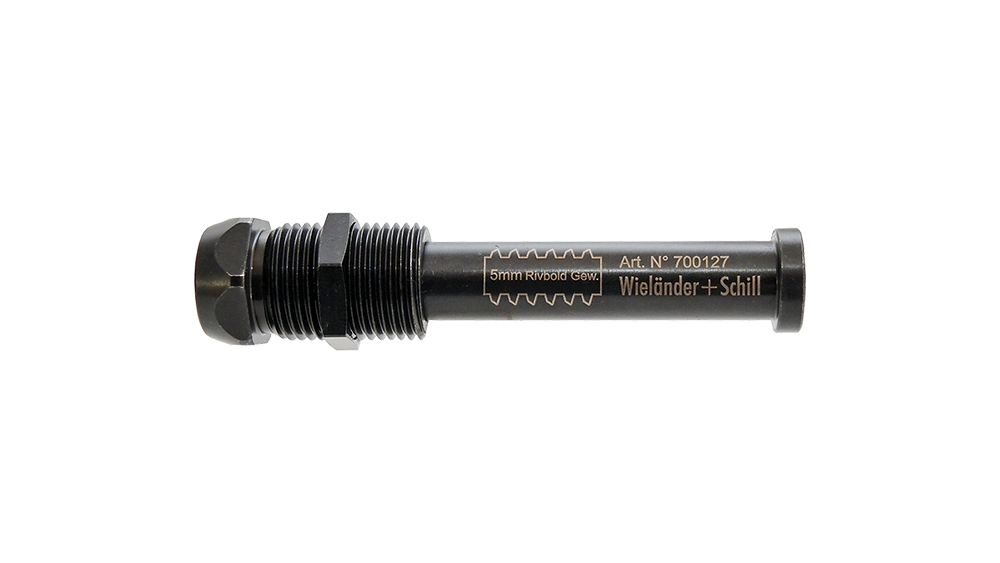

Blind Rivet Puller Adapter | 5 mm RivBolt (Part No.: 700127): For 5 mm RivBolt thread.

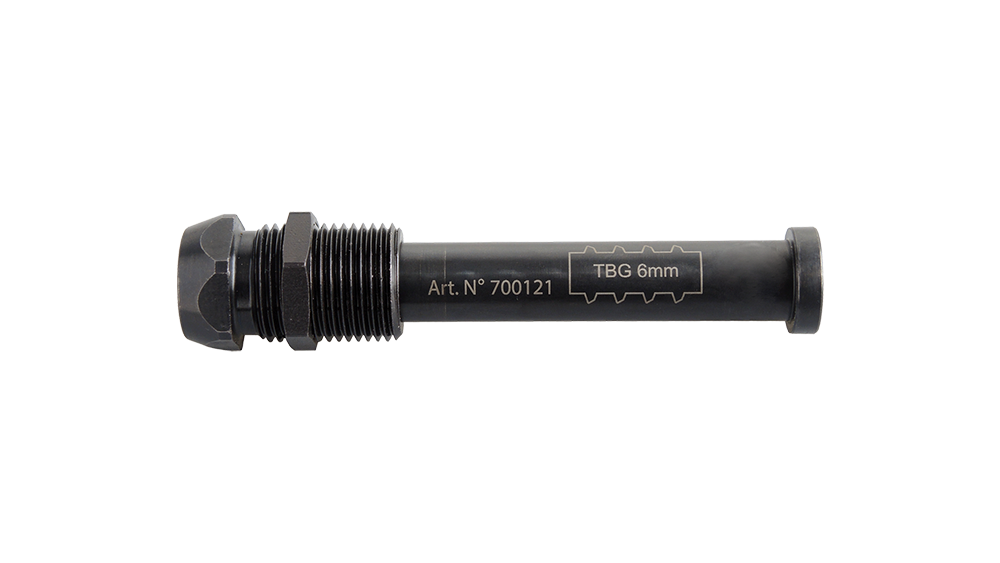

Blind Rivet Puller Adapter | 6 mm SelfLock (Part No.: 700121): For screws with a 6 mm self-locking „Christmas tree” thread (self-locking Xmas tree thread).
These accessories ensure that the user finds the appropriate tool within the BRN 50 system for the most diverse fastening tasks.
Summary:
The M6 pulling adapter, part number 700120, is a precision steel component that, in conjunction with the BRN 50 blind rivet puller adapter, guarantees the professional and durable installation of M6 threaded blind rivets. The 90 mm length and 0.105 kg weight ensure optimal handling even in the most demanding industrial environments.
