This detailed product description applies to the aluminum blind rivet, which offers an ideal solution for joining materials that are only accessible from one side. The product is part of the Wieländer+Schill XSeries professional riveting technology range, ensuring a reliable and durable connection in automotive body repair and other precision applications.
This aluminum blind rivet is excellently suited for the one-sided fastening of various materials – for example metals, plastics, or composites –. The advantage of blind rivets is that no access to the backside of the element to be fastened is required for installation, which is critically important for closed structures or hard-to-reach surfaces. The use of aluminum material guarantees low weight and excellent corrosion resistance, which is especially important in automotive and outdoor applications.
The product belongs to the category of Wieländer+Schill professional tools and accessories, which is a guarantee of quality and long service life.
The precise dimensions and material of the rivet ensure compatibility with the appropriate riveting tools and the desired mechanical strength.
| Property | Value | Note |
|---|---|---|
| Part number | 777229 | Unique identifier for kit tracking. |
| Material | Aluminum (Alu) | Excellent corrosion resistance and low weight. |
| Clamping range (Clamping range) | 1.0 – 3.0 mm | The maximum and minimum sheet metal thickness that the rivet securely joins. |
| Diameter (Ø) | 6.0 mm | The diameter of the rivet that fits into the hole. |
| Head length (Head length) | 8.0 mm | The dimension of the rivet head on the surface after fastening. |
| Overall Length (Length) | 11.55 mm | The total length of the rivet (including the head dimension). |
| Width (Width) | 11.55 mm | The dimension of the head (it is round, so the length and width are the same). |
| Height | 50 mm | This dimension most likely refers to the packaging or the total product length in the specifications, but the actual rivet dimensions are given in the lines above. |
| Package Contents | 40 pieces | The number of rivets found in the package. |
| Weight | 0.150 kg | The net weight of the packaged product. |
| Other materials (Note) | Stainless Steel, Steel | Although the rivet itself is aluminum, the description may refer to compatible materials or a broader range of manufacturing specifications. |
A clamping range between 1.0 mm and 3.0 mm means the rivet is optimally used for joining thinner sheets or materials. When the rivet is inserted, the mandrel pulls, causing the end of the rivet to spread out, securely fastening the materials within the specified thickness limits.
The use of appropriate tools is essential for effective and professional riveting. The recommended accessory for the product is the following:

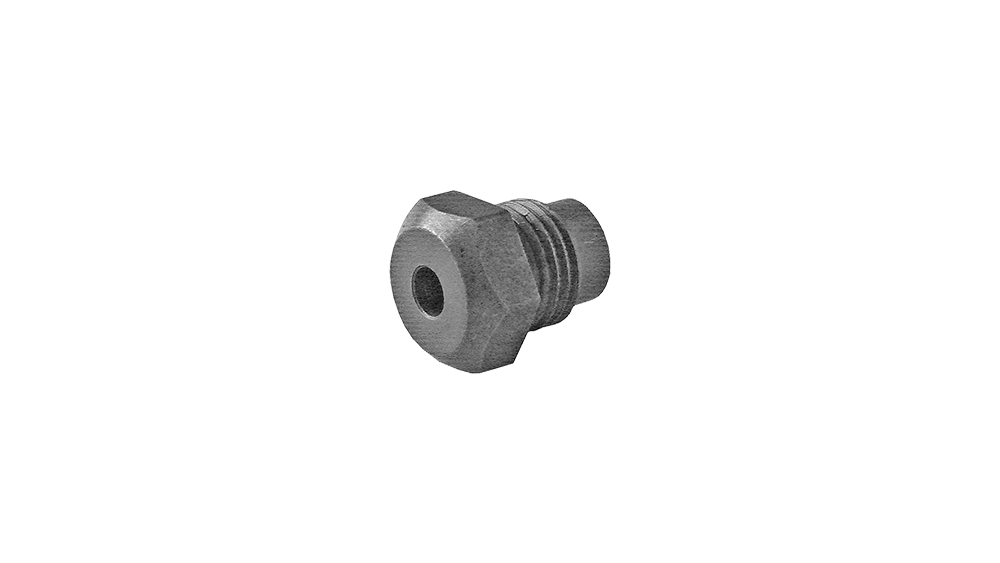

Mouthpiece 3.6A
Part number: 700519
Description: Flat head mouthpiece with a diameter of 3.6 mm.
Compatibility: Designed specifically for use with BR 20 or BR 50 type blind rivet adapters. This nozzle ensures the correct gripping of the rivet mandrel and the optimal formation of the rivet head during fastening.
Single-Sided Access: Ideal solution for areas where fastening is only possible from one side (e.g., closed profiles, internal parts of bodywork elements).
Aluminum Construction: Excellent resistance to corrosion, which increases the lifespan of the repaired structure, especially in wet or weather-exposed environments.
Professional Quality: A component belonging to the Wieländer+Schill product range, meeting strict industrial requirements.
Flexible Fastening: The 1.0–3.0 mm range allows for the precise fastening of thinner materials.
This aluminum blind rivet is an essential accessory for every professional workshop that requires reliable and durable connections during body repair, metal construction, or general structural work. The pack of 40 offers an economical solution for frequent use.
