VAS 6545A InvertaSpot GT Automatic 3 × 400 V

VAS 6545A InvertaSpot GT Automatic 3 × 400 V

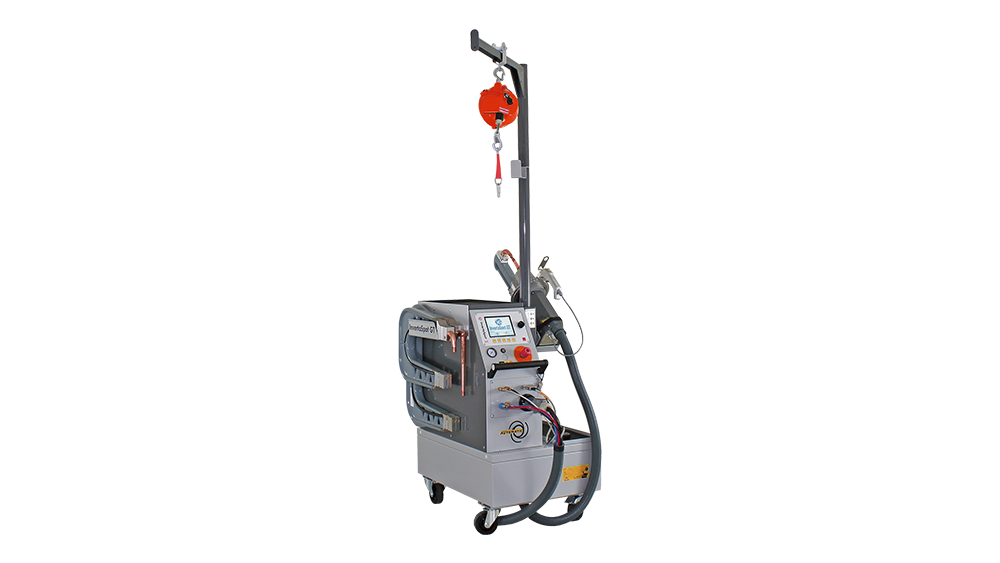

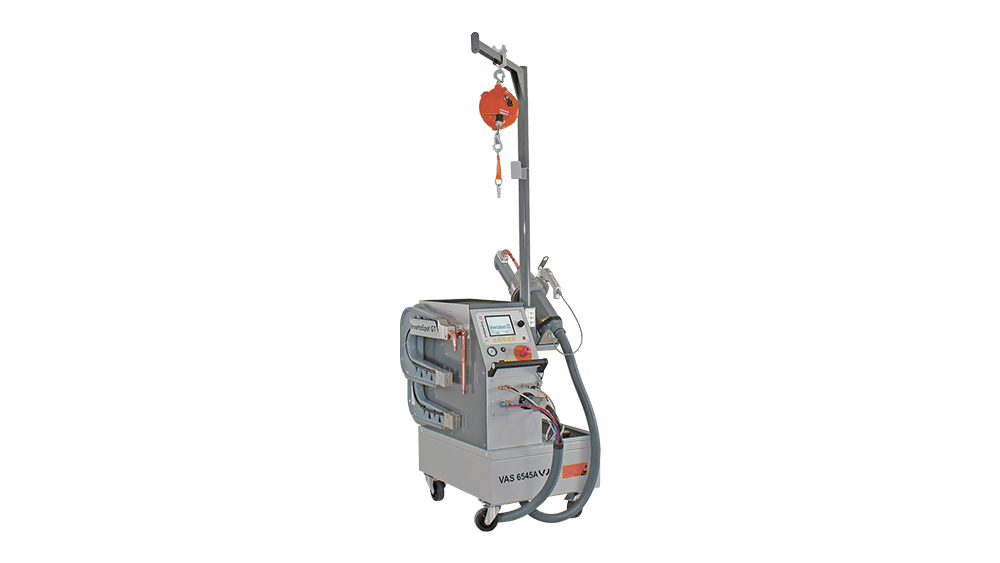

A VAS 6545A InvertaSpot GT Automatic A single-spot technology resistance spot welding machine, specifically developed for the body repair of modern vehicles, with particular attention to the efficient and reliable welding of high-strength and ultra-high-strength (HSS/UHSS) steels. This device is part of the workshop equipment recommendations from Volkswagen AG, ensuring the highest level of quality and compliance.

Key Features and Advantages

The main strength of the InvertaSpot GT-C AUTOMATIC model lies in its intelligent automation The machine is capable of:

• Weld Spot Recognition: Senses the conditions prevailing at the welding spot in real time.

• Automatic Parameter Setting: Automatically optimizes welding parameters based on the detected data for a perfect connection.

• Welding Process Monitoring: Continuously supervises the welding, guaranteeing standard-compliant quality.

This complete automation enables extremely energy-saving operation. At the same time, there is an option for experienced professionals to manual mode use, where the welding parameters can be freely modified to meet specific requirements.

The device's water-cooling system ensures stable operation under continuous, heavy load, preventing overheating of the gun and transformer.

Scope of Delivery (Standard Equipment)

The VAS 6545A InvertaSpot GT Automatic is delivered fully equipped to be immediately deployable in the workshop. The package includes the following:

• 1 pc Operating instructions

• 1 pc 474466 C-Gun | GT-V6 | 400 V | 3 m

• 1 pc 495625 C-Arm, No. 3 | 150 × 450 mm

• 1 pc 495606 Electrode Set, No. 11 | 90° angle

• 1 pc 474004 Balancer Hose GT | 630 mm | basalt grey

• 1 pc 474014 Balancer Arm GT | basalt grey

• 1 pc 478060 Balancer Roller GT

• 1 pc 498085 Spring Balancer | 9-15 kg

• 1 pc 474017 Insulation strap with carabiner

• 1 pc 474250 Allen key set GT | 2 pieces

• 1 pc 497096 Electrode Caps | Ø 16 mm | Type A-32 | Packing unit: 6 pcs

• 1 pc 474028 Holder for C-arms

• 1 pc 474085 Cable holder for InvertaSpot GT-C

• 1 pc 478041 Cable support GT | V2

• 1 pc 474007 Wheel set GT

Important note: Please do not forget to send back the registration card!

Technical Data

The following table details the critical technical parameters of the VAS 6545A InvertaSpot GT Automata:

Application Area

This welding unit is the ideal choice for all body repair shops where high demands are placed on joining strength. It is particularly suitable for repairing the latest generation of vehicles, where body parts are mostly made of high-strength steel alloys. The built-in intelligent control minimizes the possibility of user errors while ensuring weld seams that meet factory specifications.

Accessories (Zubehör)

For efficient work, several accessories are available (to be purchased separately):

1. Wheel Spreader Set GT (Part No: 932103)

This set aids in working on wider body panels.

• Contents: 1 pc Column Ram (630 mm), 1 pc Strap (650 mm), 2 pcs Panel (plate) left and right, 1 pc Screw Set (32 pieces).

2. Electrode Cap Remover (Part No: 498003)

Special tool for safely and quickly loosening stuck electrode caps.

3. Electrode Grinder | Grit Size 60 (Part No: 298298)

This abrasive material is used for cleaning electrode caps. A clean electrode surface is essential for achieving correct spot welding results.

Similar Products

If a different mains voltage is required, the following alternatives are also available:

• VAS 6545A InvertaSpot GT Automata 3 × 200 V | UL (Part No.: 932163): With the same automated technology, but with a 3 x 200 V mains connection.
• VAS 6545A InvertaSpot GT Automatic 3 × 200 V (Part No: 932161): Another 3 x 200 V version, also suitable for HSS/UHSS steels.

The VAS 6545A InvertaSpot GT Automatic 3 × 400 V is a reliable, high-performance device that guarantees the precision and efficiency of body repair work, even with the most modern steel materials.
