Product Identifier: 932013NG

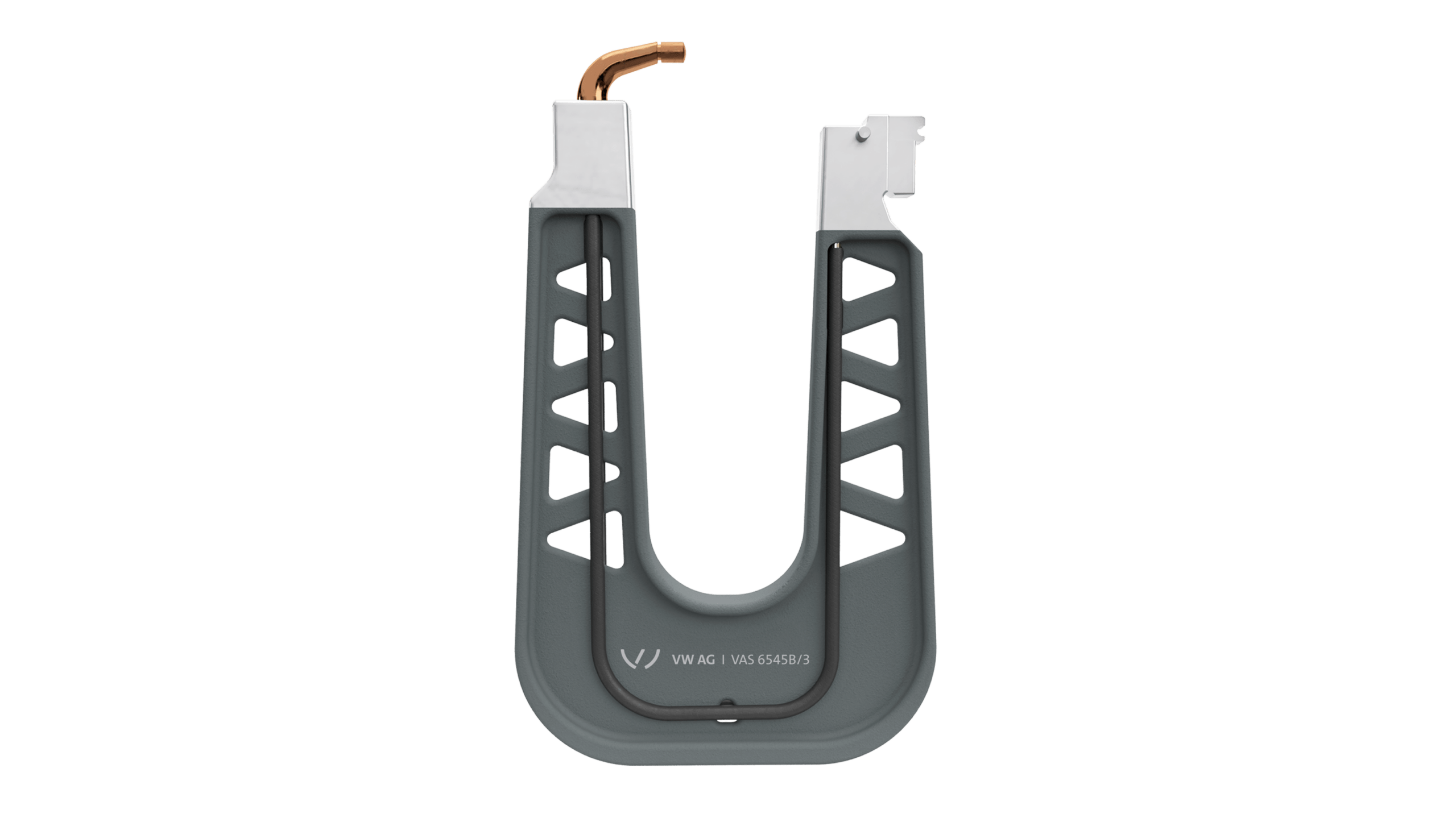

Offered by Wieländer+Schill VAS 6545B/4 C-Arm Accessory Arm (Number 4) A cooled accessory for the VAS 6545B resistance spot welding machine, specifically designed for heavy loads. This accessory arm guarantees consistently perfect welding results and maximum stability, ideally suited for the most demanding repair tasks, especially in accordance with Volkswagen AG workshop equipment standards.
This C-arm is excellently suited for welding body parts where the 350 x 450 mm working area provides optimal access. The cooling function is crucial during continuous, high-intensity work as it prevents premature wear of the welding electrode and degradation of the welding quality.
High Load Capacity: Optimized specifically for high-demand, professional body repair work.
Integrated Cooling: The built-in cooling system ensures the optimal temperature at the welding points, thereby increasing the lifespan of the electrodes and the reliability of the welding process.
Precise Working Area: The 350 x 450 mm working opening allows for precise positioning on the surfaces to be repaired.
OEM Compatibility: As a recommended part for Volkswagen AG workshop equipment, it is guaranteed to integrate into the existing VAS 6545B welding system.
Excellent Material Quality: Manufactured using durable, resistant materials for long life and reliable performance.
The table below details the technical parameters of the VAS 6545B/4 C-Arm accessory arm number 4:
| Property | Value | Note |
|---|---|---|
| Product Identifier (Part Number) | 932013NG | |
| Compatible Machine | VAS 6545B Resistance Spot Welding Machine | |
| Working Area (Length x Width) | 350 x 450 mm | |
| Length x Width x Height | 620 x 590 x 35 mm | Total Dimensions of the Arm |
| Weight | 8.02 kg | |
| Material composition | Alu, Aluminum, CuCrZr, Rubber, Stainless Steel, Steel | Multi-component, high-strength materials |
| Coating | PU (Polyurethane) | Protective Coating |
| Accessories (Accessory Scope of Delivery) | 1 pc assembled C-Arm No. 4 | |
| Included Electrode | 1 pc 495616 Electrode | 260 mm long |
| Electrode Tip End | Electrode cap with Ø 16 mm | |
| Package contents | 1 piece (stück/piece) |
When purchasing the product, the package contains the following items:

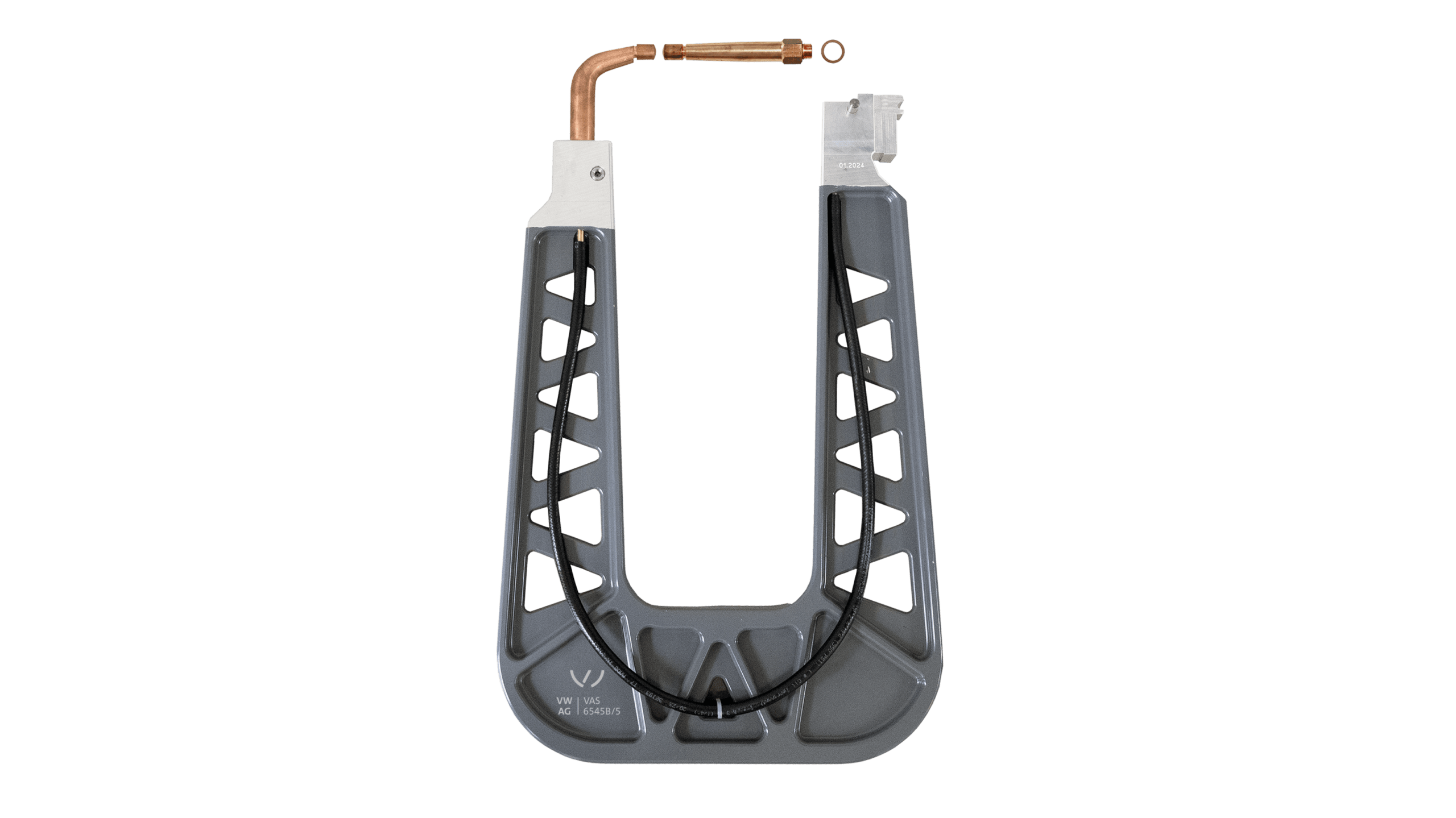

Assembled C-Arm No. 4: The cooled arm unit, ready for installation on the VAS 6545B welding machine.
Electrode (Part No.: 495616): A 260 mm long CuCrZr electrode, which already has a 16 mm diameter electrode cap mounted.
This accessory arm is part of the Wieländer+Schill professional welding technology portfolio, meeting the highest body repair requirements. The robust construction and carefully selected materials (aluminum, stainless steel, steel, CuCrZr) ensure long-term, reliable operation.
The VAS 6545B/4 C-Arm is the ideal choice:
For spot welding jobs on larger surfaces.
In areas where welding points follow each other closely, and cooling is essential.
For repairing modern high-strength steels (HSS, UHSS) and aluminum structures, where precise heat input is critical.
In workshops where the quality and technological standards prescribed by Volkswagen AG must be met.
This accessory arm increases the versatility of the VAS 6545B welding machine, enabling technicians to efficiently and precisely carry out even the most complex body repairs.
Note: For information regarding product availability and pricing, please inquire with our official distributors or your local Volkswagen importer.
