A VAS 852 011A Heat Absorber An innovative, complete system specifically designed for the professional and material-gentle detachment of glued carbon fiber reinforced plastic (CFRP) body parts. This equipment is an essential tool for modern vehicle repair, especially in cases where structural body components are made of CFRP material and traditional mechanical procedures could damage surrounding parts.
The system ensures the reliable release of glued bonds through targeted heat application. The process is extremely precise, as the temperatures of the special heating pads are monitored by integrated thermocouples, guaranteeing safe and controlled operation. Operation is intuitive, as the user receives clear text guidance through the operations via a 3/8 inch touchscreen.
Material-Gentle Detachment: The release of CFRP element adhesives is achieved through targeted heat treatment, minimizing the risk of damage to surrounding components.
Precise Temperature Control: Integrated thermocouples ensure continuous and accurate monitoring of the heating pad temperatures.
User-Friendly Operation: Intuitive operation via the 3/8” touchscreen, which provides clear text guidance.

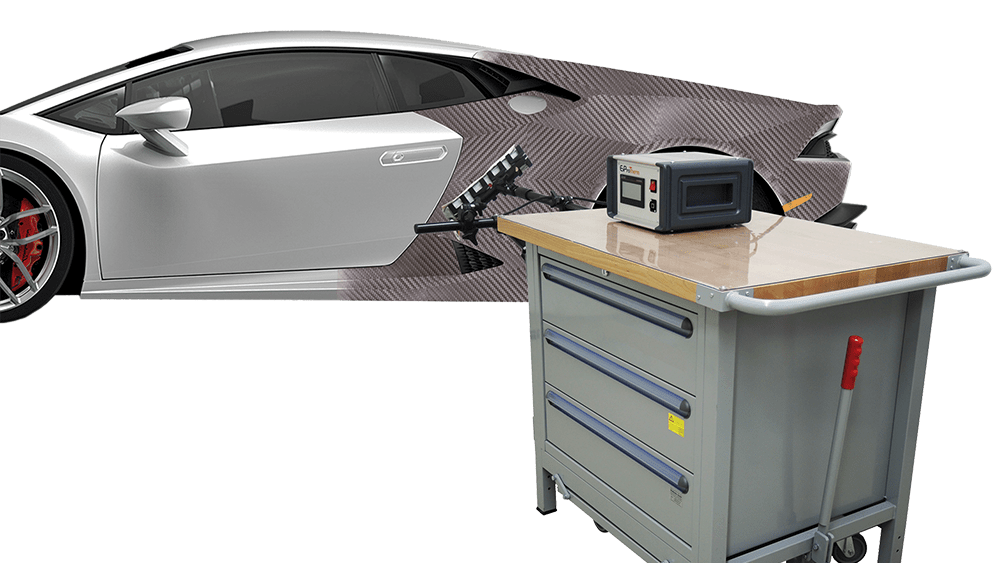

Mobile and Flexible Design: The control unit is mounted on a mobile, height-adjustable workshop cart equipped with a worktop and three drawers for maximum flexibility and easy maneuverability within the workshop.
Wide Range of Accessories: The set includes heating pads of various sizes and power ratings, as well as the corresponding pressure elements and adapters for different bonding surfaces.
The VAS 852 011A system combines performance and mobility to meet the highest workshop requirements.
| Component | Spezification | Note |
|---|---|---|
| Supply Voltage | 110 V | with UL certificate |
| Cart (with lowering function) | 1000 x 700 x 880 mm | With worktop and 3 drawers |
| Control Unit Dimensions | 285 x 180 x 295 mm | |
| Control Unit Weight | 5.4 kg | |
| Connections | 4 x Heating pad connector socket | |
| Connections | 1 x USB connector | For data transfer or updates |
| Heating pad fixing | Magnetic fixing |
The system's flexibility is ensured by heating pads of different performance levels and sizes:
| Típus | Power | Size |
|---|---|---|
| D Type | 310 W | 800 x 35 mm |
| C Type | 370 W | 375 x 75 mm |
| B Type | 105 W | 200 x 35 mm |
| E Type | 250 W | 128 x 128 mm |
The delivery package contains all components required for complete operation:
Central Components:
1 pc Heat Dissipation Control Unit
1 pc Lowerable Trolley with Positioning Device
Heating Pads (Heating Elements) and Protective Covers:
1 pc Type D Heating Element (800 x 35 mm) – with 2-piece protective cover
2 pcs Type C Heating Elements (375 x 75 mm) – with 2-piece protective cover
3 pc. Type B Heating Block (200 x 35 mm) – with 2-part protection block
1 pc. Type E Heating Block (128 x 128 mm) – with 2-part protection block
Pressing Elements and Accessories:
1 pc. Pressing Element 1 (800 x 35 mm)
2 pcs. Pressing Element 2 (375 x 75 mm)
3 pcs. Pressing Element 3 (200 x 35 mm)
1 pc. Lower Pressing Element
4 pcs. Pressing Adapter
4 pcs. Pressing Tube (500 x 30 mm, with scale)
2 pcs. Support Tube (1000 x 30 mm)
2 pcs. Pressing Element (350 mm)
6 pcs. Pressing Element (200 mm)
10 pcs. Mounting Clamp for Heating Blocks
1 pc. Wedge Set (5 pieces)
4 pcs. Tensioning Strap
1 pair Protective Glove (max. 400 °C)
You can further expand the system's functionality with the following accessories, available separately, which are specially optimized for the VAS 852 011 separator:
Part number: 932215
Contents: 2 pcs. Wood Wedge No. 1, 2 pcs. Wood Wedge No. 2.
These wedges help to carefully spread and support the separated components after heat treatment.
Part number: 932187
Application: Specifically for repairing the B-pillar of CFRP body vehicles.
Function: The precise template allows for the exact identification and marking of the glued surfaces of the B-pillar during the repair process, ensuring a perfect fit for the work. The set includes one template for the right side of the vehicle and one for the left side.
The VAS 852 011A heat separation system is part of the workshop equipment recommendations from Volkswagen AG and guarantees the highest professional standard in the repair of modern bodies made of composite materials.
