XPress 1000 SC | standard set

XPress 1000 SC | Standard Kit (Item No.: 700001SC)

The Wielander + Schill XPress 1000 SC Standard Kit is a professional, high-performance riveting system specifically designed for the removal and installation of self-piercing rivets (SPR), particularly for fasteners with a diameter of 3 mm and 5 mm. This kit is the ideal choice for body repair shops that require reliable, high-force, and precise joining technology.

The XPress 1000 SC system is part of the Wielander + Schill XSeries professional riveting technology, which guarantees the professional and durable joining of body parts.

Key Features and Advantages

The XPress 1000 SC Standard Kit prioritizes efficiency and versatility, ensuring even the most demanding repairs can be performed:

• High Performance: The system is capable of exerting a maximum force of up to 96 kN (kilonewtons), which is sufficient for the safe riveting and removal of most structural body components.

• Flexible Working Area: The maximum working opening (Work window) is 140 x 240 mm, which allows access even to hard-to-reach points.

• Compact Hydraulics: The maximum oil pressure of 1000 bar (PB max) ensures the necessary force through hydraulic operation.

• Ergonomic Design: The short-stroke (25 mm) hydraulic cylinder and C-arms ensure optimal accessibility and handling.

• Complete Set: The standard kit includes all necessary main components (PowerPack, cylinder, C-arms, toolboxes), so it is ready for immediate use.

Technical Data

The detailed technical parameters of the XPress 1000 SC Standard Kit (700001SC) are as follows:

Contents of the Standard Set (Scope of Delivery)

The XPress 1000 SC Standard Set with item number 700001SC provides a comprehensive package for professional work:

1. 700090 PowerPack | XPress 1000 SC: The hydraulic unit that supplies the energy required for the system's operation.
2. 700060 SSC 35/25 Short stroke cylinder: The short stroke hydraulic cylinder that exerts the required force with a 25 mm stroke.
3. S700070 C-Arm GC 80/40: One C-arm for standard riveting tasks.
4. 700080SC C-Arms | 4-piece set (S700071+S700072): A set of four C-arms providing additional versatility for workpieces of different geometries.

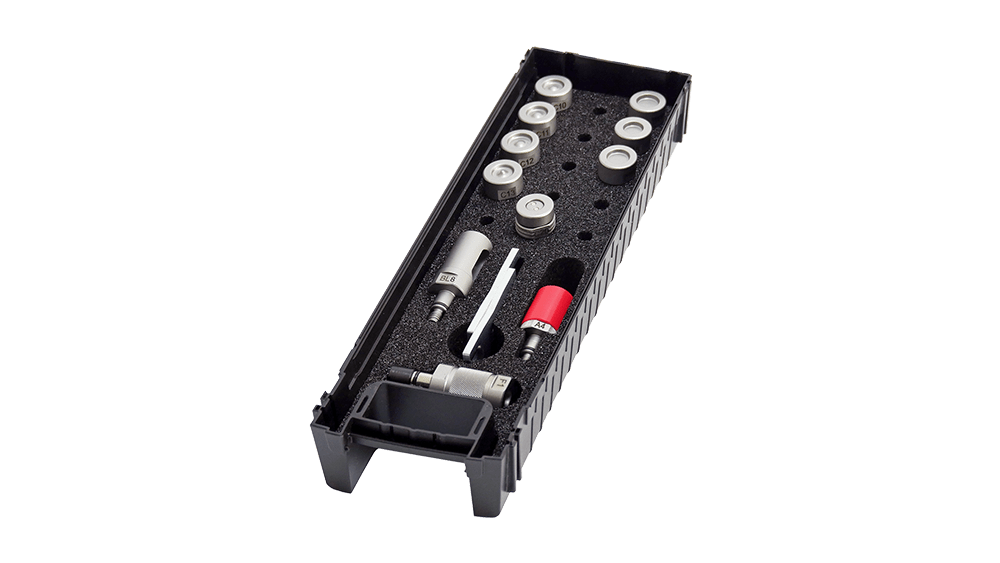

5. 700200 Tool Box RS-03 | BMW: Special tool box, likely containing BMW-specific tools and accessories.
6. 881341 Handle for Fix Magnets & C-Arms | red: Red handle for fixing magnets and C-arms, for easier handling.
7. 700801 Box for rivets/mouth pieces/small parts | empty: Empty storage box for organized storage of rivets, mouth pieces, and small parts.
8. Transport case: Robust carrying case for the safe transport and storage of the entire system.
9. Instruction manual: Detailed operating instructions for professional use.

Accessory Information and Related Products

You can further expand the performance and application range of the XPress 1000 SC system with the following accessories (non-exhaustive list, items not included in the set):

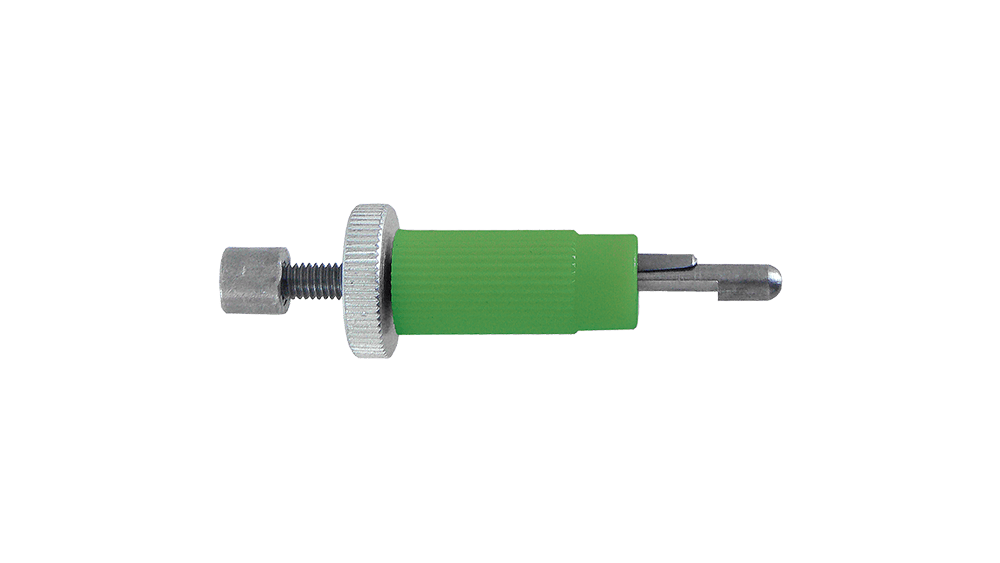

Temporary Fasteners

These fastening elements are crucial during the riveting phase of the sealing material, ensuring precise and stable fitting of the sheets:

• Temporary fastener, Ø 4.7 mm (577109): Package of 20 pieces.
• Temporary fastener, Ø 8.0 mm (577110): Package of 20 pieces.
• Temporary fastener, Ø 6.35 mm (577107): Package of 20 pieces.

Further Hydraulic Components

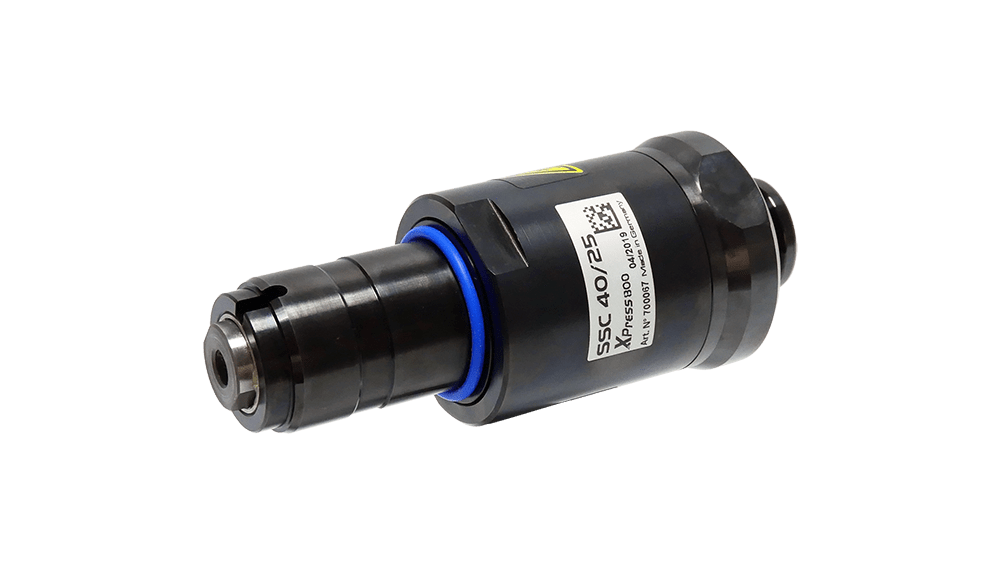

• SSC 40/25 Short stroke cylinder (700067): This cylinder has a 25 mm stroke and, when combined with the PowerPack 1000 SC, can achieve a maximum setting force of up to 101 kN, which may be required for certain applications.

Adapters & Tool Kits

To adapt to different fastening technologies, several adapters can be connected to the system:

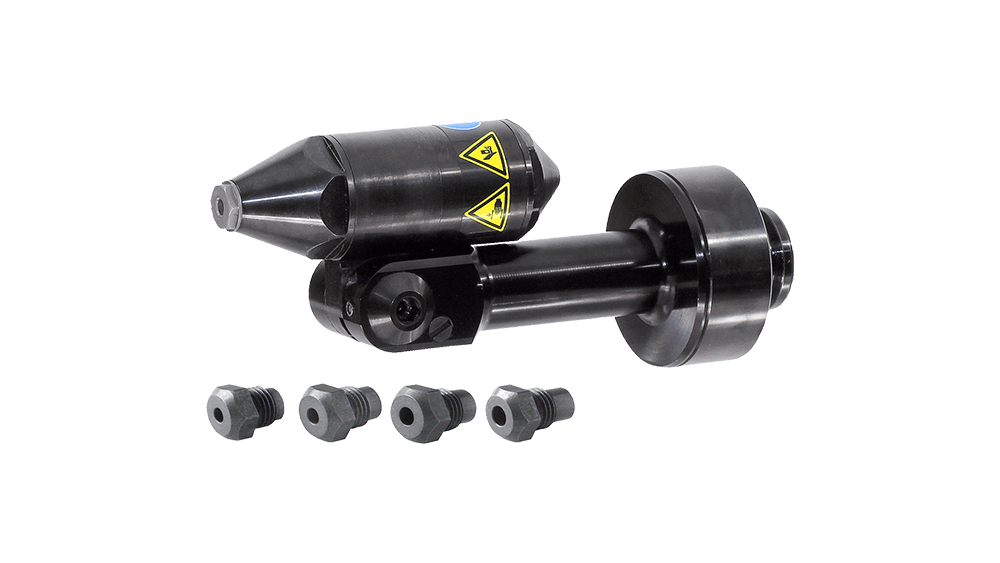

• BR 20 Blind Rivet Adapter (700100): Provides excellent accessibility. Has a pulling force of 20 kN, rotates freely, and swivels. Suitable for rivets with a mandrel diameter between 2.0 and 4.2 mm. Comes with a toolbox containing a 4-piece nosepiece set (700204).

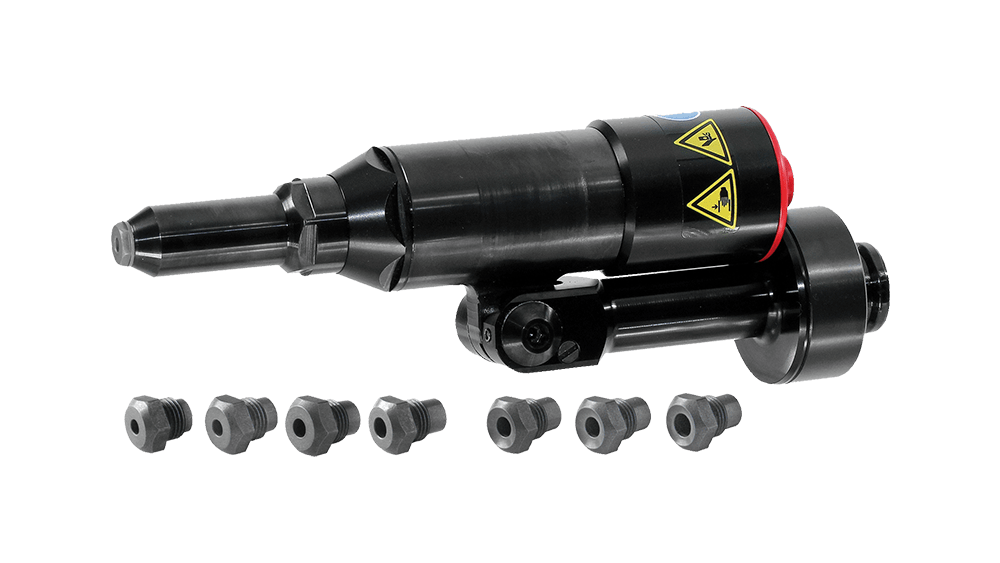

• BR 50 Blind Rivet Adapter (700101): Higher performance adapter with a pulling force of 50 kN. Compatible with rivets with a mandrel diameter between 2.0 and 5.0 mm. Comes with a toolbox containing a 7-piece nosepiece set (700215).

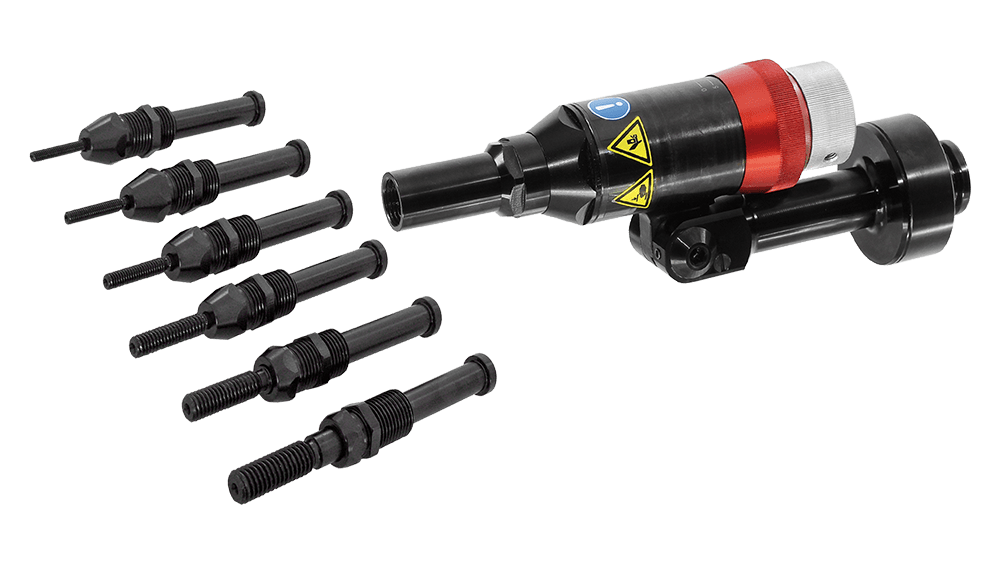

• BRN 50 Blind Rivnut Adapter & Tool Box RS-04 (700111): This set includes the BRN 50 adapter and the RS-04 toolbox, specifically optimized for installing blind rivnuts.

Maintenance and Material Kits

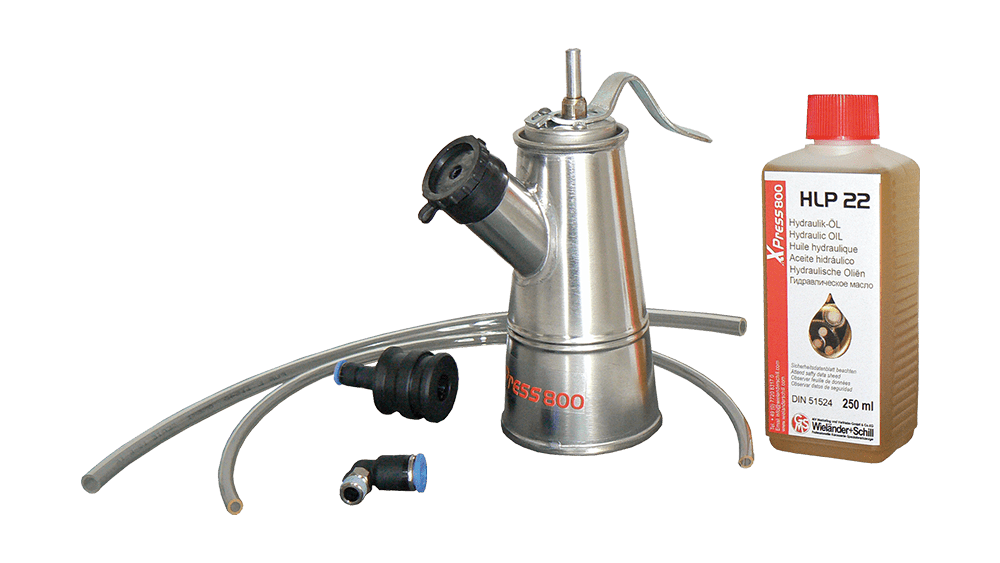

• Service Kit EB-XP 800 | Bleeding and Refilling (700334): This kit contains the necessary tools for bleeding and refilling the XPress 800 PowerPack, including a special oil pump, hoses, and HLP 22 hydraulic oil.

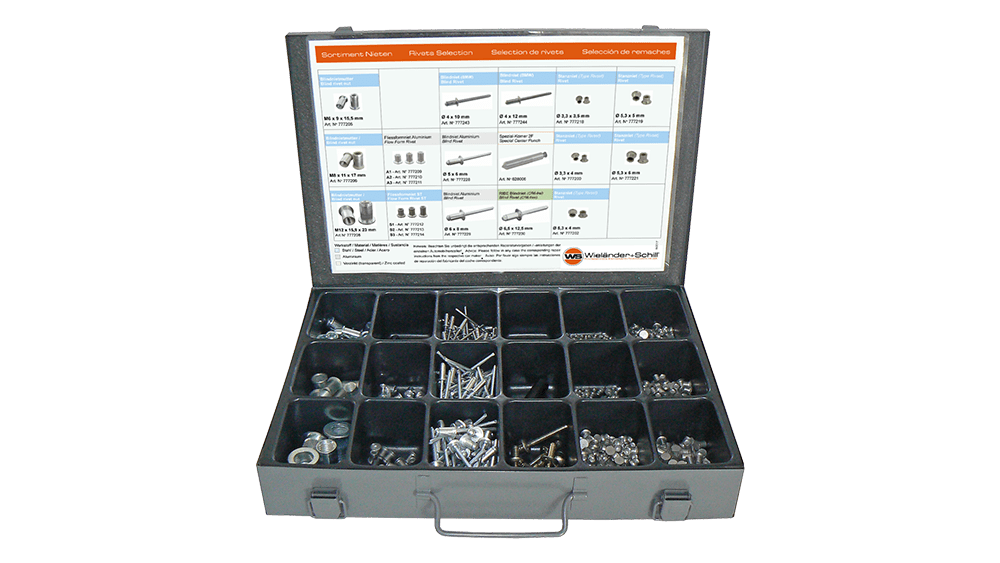

• RivBox 1 | Universal Rivet Assortment (777281): A comprehensive box containing various types of rivets: self-piercing rivets (with diameters 3.3 mm and 5.3 mm), aluminum and steel blind rivets, Flow Form rivets, and steel blind rivnuts (sizes M6 and M8). Also includes a WS special centering device (628006).

Note: This product is part of the Wielander + Schill XSeries professional technology, which focuses on optimizing body repair processes and achieving factory-quality joining results. For precise operating parameters and maintenance procedures, always refer to the included operating instructions.
