Part Number: 700058
This product is an accessory for the Wielander + Schill XPress 800 professional riveting technology system, an upgrade set specifically optimized for Jaguar Land Rover (JLR) specifications. The XPress Workstation offers the most modern pressure monitoring system, which ensures process reliability with patented XLogic technology.
The primary goal of the XPress Workstation is to guarantee maximum process safety during riveting operations. The air reservoir system integrated into the machine structure ensures complete process reliability even if the external compressed air supply is interrupted. This function is critically important in automotive applications with high quality requirements, such as on JLR production lines.
Process Reliability: The XLogic pressure monitoring and the integrated pressure reservoir guarantee a stable and controlled riveting process. Process reliability is ensured by the component found in the basic set: SSC 40/25 Short Stroke Cylinder .
Moduláris Kompatibilitás: Fully compatible with all modules of the XPress 800 system, enabling flexible expansion and customization.
JLR Specification: Includes configuration and accessories specifically tailored to the requirements of Jaguar Land Rover (e.g., specific tool storage box).
The table below details the technical parameters of the XPress Workstation JLR Upgrade Kit (700058):
| Property | Value | Note |
|---|---|---|
| Part number | 700058 | XPress Workstation JLR |
| Applied Force (Force) | 10 – 80 kN | The riveting stroke |
| Operating Pressure (Operating Pressure) | 6 – 10 bar | Compressed air inlet pressure |
| Weight | 48,000 kg | Weight of the entire unit |
| Conformity Declaration | CE | European conformity certificate |
| Materials | Alu, Aluminum, Plastic (Kunststoff), Steel (Steel) | Materials of the frame and components |
This upgrade kit includes the basic workstation and the critical cylinder, supplemented with the necessary air hose.

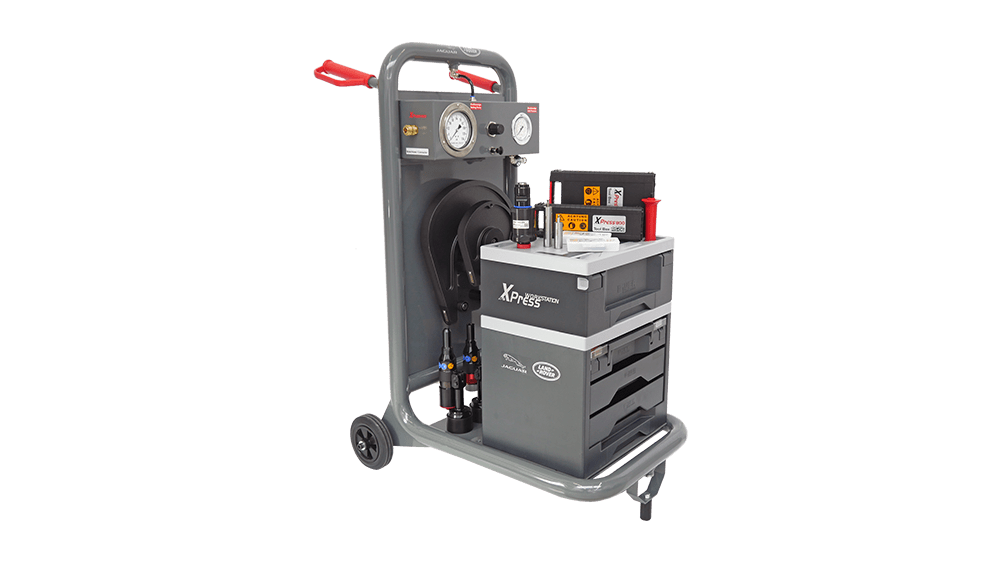

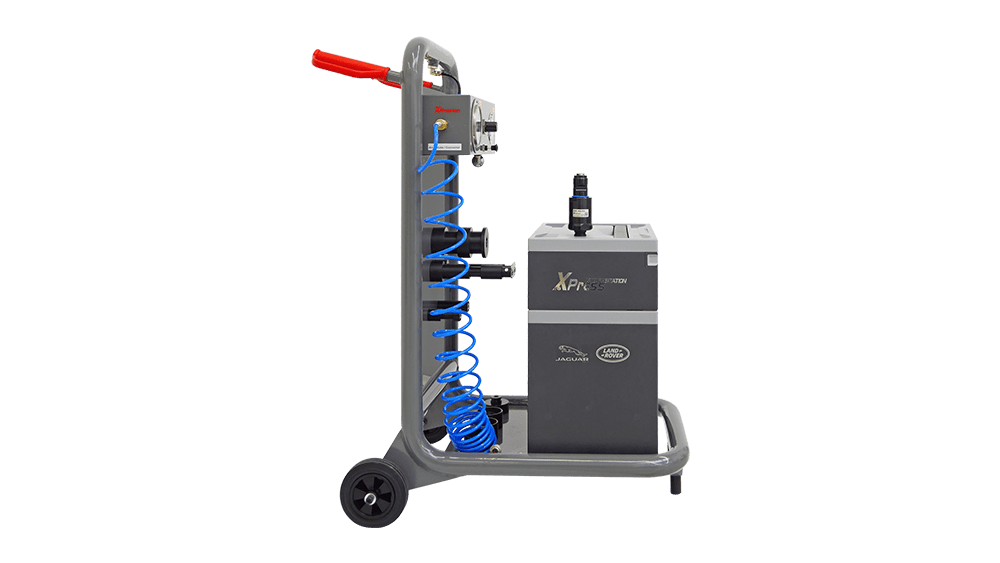

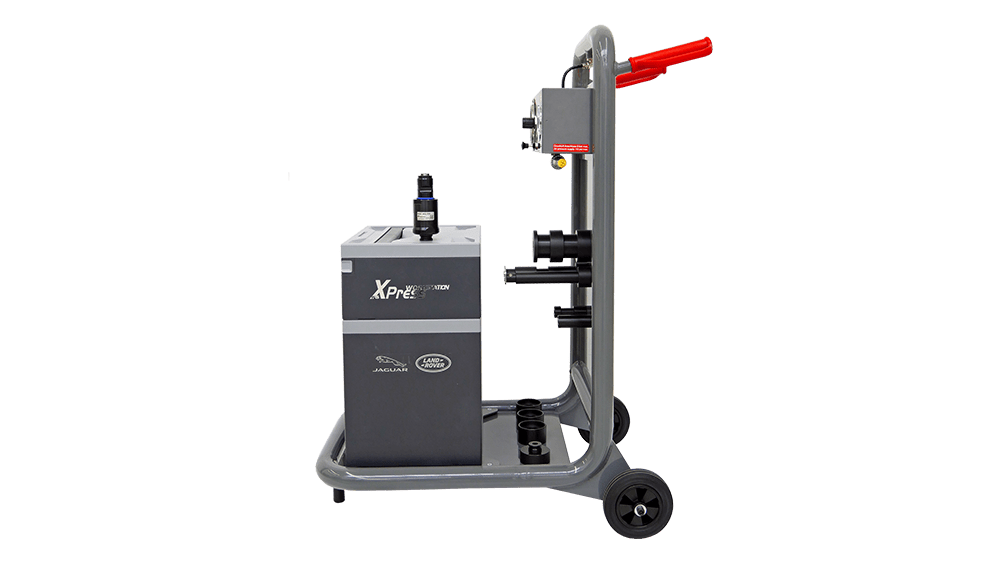

1 pc Workstation Integrated with XLogic pressure monitoring.

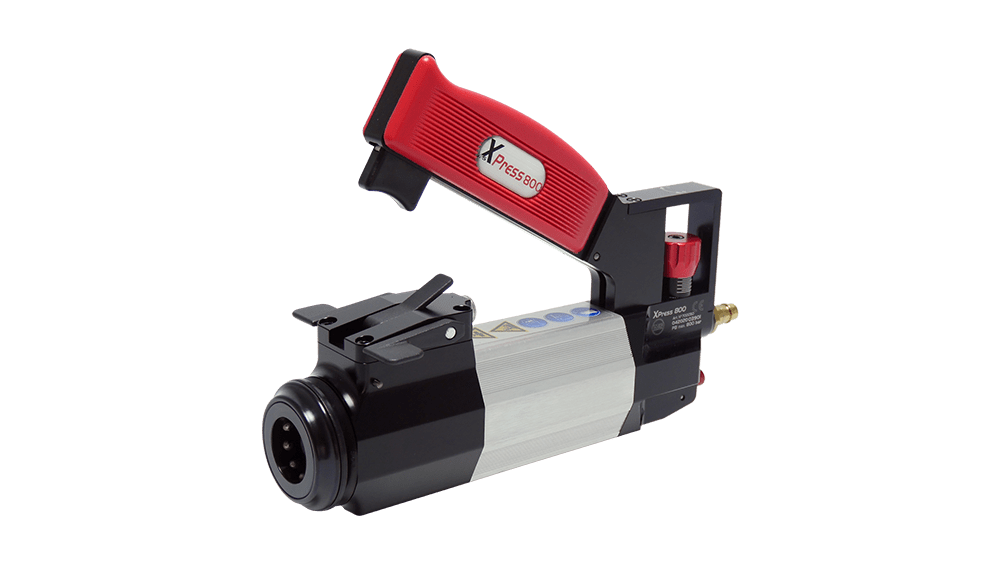

1 pc 700067 SSC 40/25 Short Stroke Cylinder (Short stroke cylinder).
1 pc Spiral compressed air hose (4 meters in length).
Leveraging the flexibility of the XPress 800 system, the update kit can be supplemented with other modules that may be necessary for building the complete JLR workstation (see Standard vs. Full Set comparison).
The Standard Set (S700058) contains additional basic elements compared to the update kit:
700050 PowerPack | XPress 800: The central unit that combines pressure generation, control, composition monitoring, and safety functions. A pneumatic-hydraulic intensifier that generates 800 bar of secondary hydraulic pressure from 6 bar of primary air pressure.
700070 C-Arm GC 80/40
700071 C-Arm GC 80/120
700072 C-Arm GC 140/240
700193 Tool Box RS-06 | Jaguar Land Rover | Version 4
The Full Set (F700058) contains all elements of the Standard Set, supplemented with a full range of riveting and rivet nut installation adapters:
700100 BR 20 Blind Rivet Adapter: With 20 kN pulling force, for rivets with a diameter of 2.0–4.2 mm.
700101 BR 50 Blind Rivet Adapter: With 50 kN pulling force, for rivets with a diameter of 2.0–5.0 mm.
700110 BRN 50 Blind Rivet Nut Adapter: With continuous stroke length adjustment.
700201 Tool Box RS-04 | BRN
Accessories that increase the efficiency of the system, available for separate purchase:
This unit is the heart of the system. A compact, pneumatically-hydraulically driven pressure booster with a two-stage high-pressure pump. Developed in compliance with safety standards, ensuring reliable execution of processes.

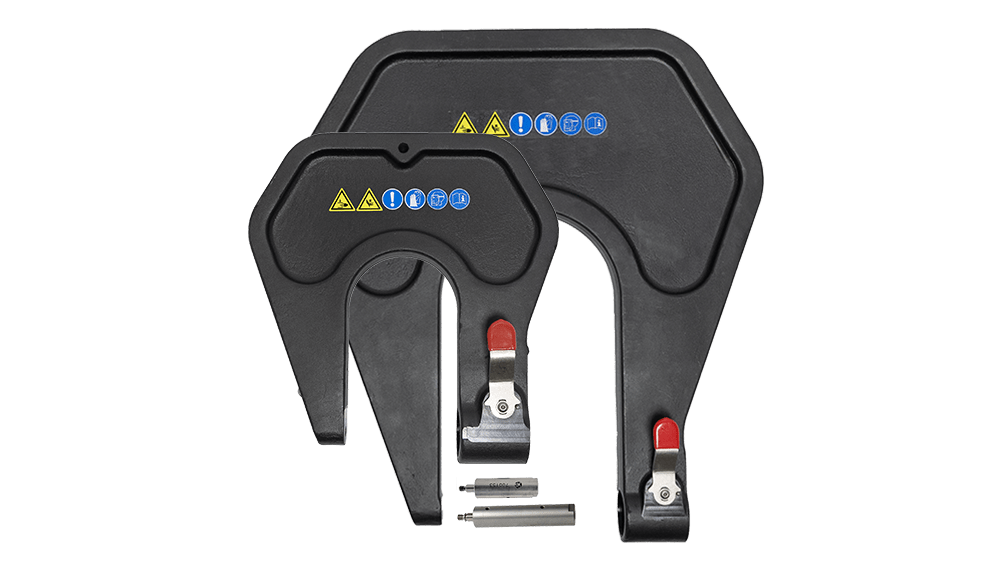

This set contains additional C-arms and accessories for the XSeries:
S700071 C-Arm GC 80/130
S700072 C-Arm GC 140/240
700153 Extension for PushPull PP 90 (60 mm)
700517 Extension for SSC 35/25 (93 mm)
Carrying case for C-arms.
Provides excellent accessibility for heavy riveting tasks.
Pulling force: 20 kN
Functionality: Freely rotating and pivoting.
Application range: For rivets with a shaft diameter between 2.0 mm and 4.2 mm.
Accessory: 700204 Tool holder nosepieces | 4-piece set.
Similar to the BR 20, but with greater performance and capacity.
Pulling force: 50 kN
Functionality: Freely rotating and pivoting.
Application range: For rivets with a shaft diameter between 2.0 mm and 5.0 mm.
Accessory: 700215 Tool holder nosepieces | 7-piece set.
This adapter specializes in setting rivet nuts, with outstanding features being the continuous stroke length adjustment capability and excellent accessibility.
(Raw text interrupted here, but based on the product description, the BRN 50 offers the high precision and adjustability required for rivet nut technology.)
