AC60-LP™ Low Profile, High Capacity Scale for Military Aircraft

AC60-LP™ Military Aircraft Ground Scales: Low Profile, High Capacity Platform Scale System

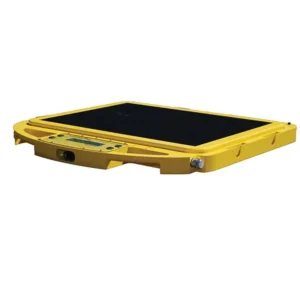

The AC60-LP™ weighing system, developed by Intercomp, is a low-profile, high-capacity platform scale specifically designed for the extremely accurate determination of military aircraft weight and center of gravity (CG). This robust and reliable solution is ideal for the most demanding military airfield and base operations where precision and rapid deployment are essential for safe operation.

The AC60-LP™ platforms excellently combine high capacity with a low profile, which facilitates the positioning of the aircraft landing gear on the weighing surface, minimizing required lift height and setup time.

Key Features and Advantages

The AC60-LP™ series is designed to meet stringent military standards while ensuring maximum flexibility and accuracy:

• Low Profile Design: The extremely low profile design facilitates the aircraft landing gear climbing onto the weighing surface, reducing the need for hydraulic lifts and speeding up the weighing process.
• High Capacity: Optimized for weighing extremely heavy military aircraft, ensuring the fulfillment of all center of gravity calculation requirements.
• Robust Military Design: The durable construction guarantees reliable operation even under extreme environmental conditions, meeting military specifications.
• High Accuracy: The high-quality load cells ensure extremely accurate weight measurement, which is critically important for determining the aircraft's center of gravity and setting safe flight parameters.
• Compatibility: Fully integrable with Intercomp ACWeigh™ or iACWeigh™ software, as well as TAC30™ touch screen indicators or RFX® wireless indicators, ensuring seamless data acquisition and processing.
• Portability: Despite having high capacity, the platforms are designed to be relatively easy to move and set up in various locations.

Technical Specifications (AC60-LP™)

The specifications for the AC60-LP™ model are as follows (exact data may vary depending on configuration, but the table below summarizes the main features):

System Integration and Software Support

The AC60-LP™ platforms are precise measuring devices on their own, but they reach their full potential when used with Intercomp's integrated systems:

Displays and Indicators

Several multi-technology displays are available for reading and recording measurements:

• TAC30™ CPU – Touchscreen Indicator: An advanced central unit that provides easy operation, center of gravity calculations, and full data management via a touchscreen interface.
• RFX® Wireless Handheld Indicator: Allows operators to monitor weight data in real-time, even away from the measurement point, thereby increasing safety and flexibility in the work area.
• RFX® Wireless AC100™ Aircraft Scale CPU: Special wireless central unit that is compatible with Jack Weigh systems but can also be used for platform scales.

Software Solutions

Documentation and analysis of measurements are crucial for adhering to military flight protocols:

• ACWeigh™ Software: This dedicated software enables the storage, analysis of measured data, and visualization of the Center of Gravity (CG) position. It allows for the quick generation of official weight and balance reports.
• iACWeigh™: A version optimized for mobile devices, enabling measurements to be taken and recorded via tablets or smartphones, increasing mobility on the apron or runway.

Application Areas in the Military Sector

The AC60-LP™ platforms are ideal for the following military applications:

1. Tactical and Transport Aircraft: Weighing large transport aircraft (e.g., C-130, C-17 category) with special consideration for cargo placement.
2. Combat Aircraft: Accurate center of gravity determination for larger combat aircraft (e.g., heavy fighters) in the interest of maximum maneuverability and safety.
3. Training Facilities: Regular maintenance and inspection weight measurements at permanent or temporary bases.
4. Rapid Deployment Operations: The low profile and relative portability allow for rapid deployment at sites without established, fixed weighing stations.

The Importance of Accuracy in Military Aircraft Weighing

In the case of military aircraft, the correct determination of weight and Center of Gravity (CG) is not just an administrative requirement, but directly affects flight safety, maneuverability, and fuel efficiency. The high accuracy provided by AC60-LP™ systems ensures that the aircraft always remains within the designed weight and balance limits, even under maximum load. The reliability of the system minimizes the risk of measurement errors, which is critically important during live deployments.

Additional Supporting Systems

Intercomp's broad product range makes it possible to build a complete military weighing infrastructure:

• Jack Weigh Kits for Military Aircraft: In addition to the AC60-LP™ platforms, Jack Weigh systems are available (e.g., Jack Weigh AC100™ Kit, Jack Weigh EZ RFX® Kit), which measure weight by lifting the landing gear, ideal for situations where platform placement is not possible.
• Calibration Systems: To maintain measurement accuracy, calibration solutions are available for AC60-LP™ systems, such as the CSM™ Manual or CSA™ Automatic Test Stands, which ensure continuous system compliance with strict military specifications.
• Weight & Balance Training: Intercomp also offers certified training for military personnel on the correct execution of aircraft weight and balance procedures, maximizing the efficiency of the acquired measuring equipment.

The AC60-LP™ is not just a scale; it is an integrated, high-performance solution for meeting the weight management needs of military aircraft, guaranteeing maximum safety and efficiency during all operations.
