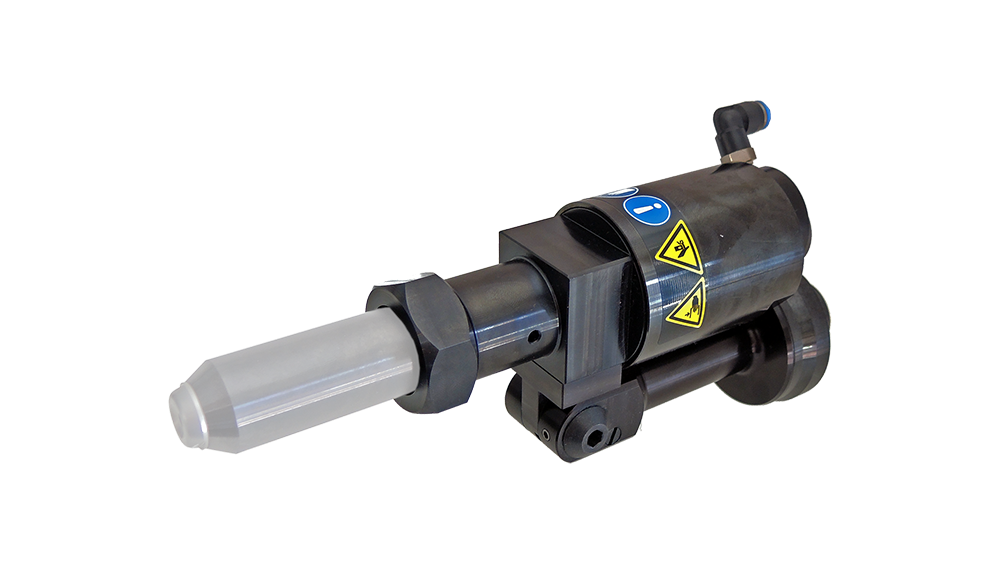

The Wieländer+Schill BR 80 Blind Rivet Adapter (Part No: 700112) is a key component of the XSeries professional riveting technology, serving as a basic pulling unit for numerous high-demand applications. This robust and precise tool delivers excellent performance, especially when processing high-strength fasteners.
The BR 80 adapter is designed to reliably handle even the toughest jobs, thanks to its industry-recognized technology and patented design.
The BR 80 adapter is designed to provide maximum flexibility and power to the user:
Outstanding Pulling Force: The adapter features impressive, 80 kN maximum pulling force, which enables the safe and efficient installation of extremely high-strength (Ultra-high-strength) blind rivets and blind rivets.
Patented Swivel Joint: The built-in, patented swivel joint significantly increases the flexibility of operation, enabling tool positioning even in tight or hard-to-reach areas.
Versatile Application: The BR 80 is the ideal choice for numerous fasteners, including high-strength blind rivets, Pulling pins, Bolts, and Magna Grip systems.
Long-Life Construction: Thanks to its steel material and surface treatment (burnished), the adapter resists corrosion and mechanical stress, ensuring long-term reliability.
Professional Integration: The tool is part of the XSeries – Professional Riveting Technology product family, guaranteeing system compatibility with other WS tools.
The table below details the critical technical parameters of the BR 80 Blind Rivet Adapter:
| Property | Value | Note |
|---|---|---|
| Part number | 700112 | |
| Pulling Force (Force) | 80 kN | Maximum Tensile Force |
| Material | Steel | High load-bearing structure |
| Surface Treatment (Coating) | Burnished | Corrosion Protection |
| Length x Width x Height | 180 x 126 x 60 mm | Compact dimensions |
| Weight | 2.600 kg | Robust design |
| Swivelling angle | 120° | The range of motion of the swivel joint |
| Locking | 30° | |
| Content (Content) | 1 piece (1 piece) |
The BR 80 adapter primarily delivers outstanding performance in the following areas where the installation of high-force fasteners is essential:
Ultra-high-strength blind rivets and rivet nuts: Ideal for structural elements where conventional fastening methods are insufficient.
Automotive (Body and Vehicle Industry): For the professional and durable fastening of modern vehicle body elements.
Pulling pins: For special fastening tasks.
Bolts: For high-load riveting operations.
Magna Grip systems: Compatibility with special Magna Grip fastening systems.
Important Note: The images in the product description may occasionally depict accessories that are not part of the standard scope of delivery.

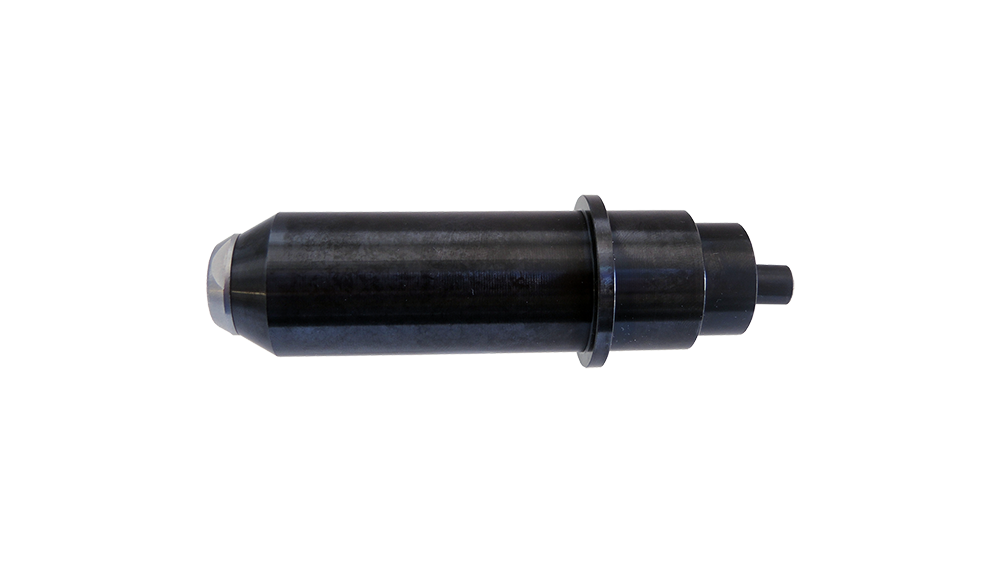

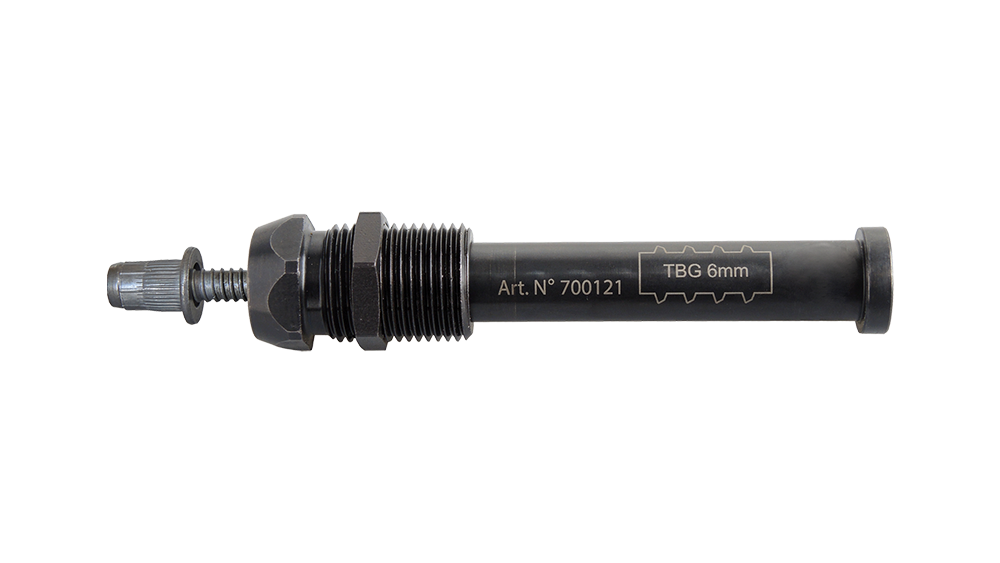

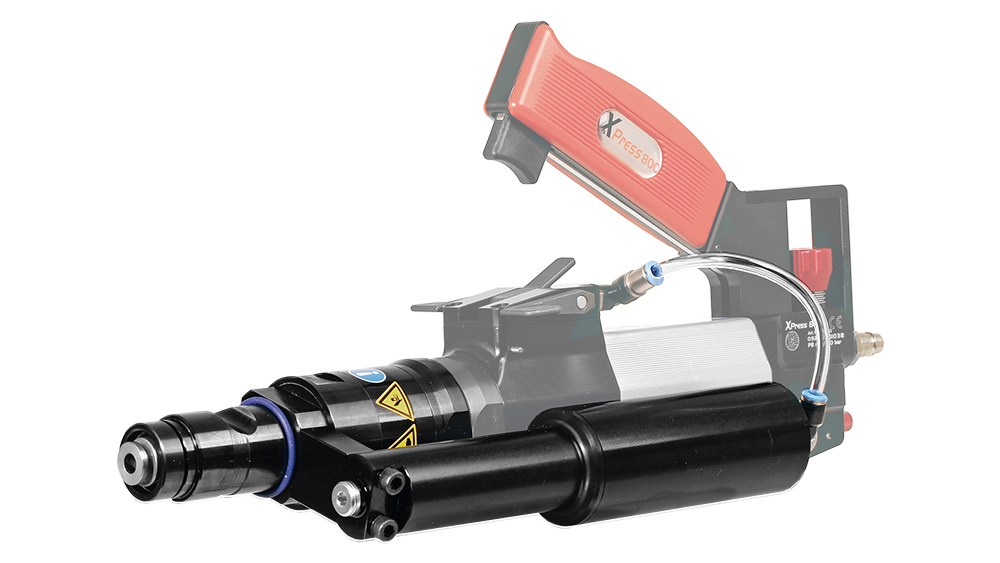

The functionality of the BR 80 adapter can be further expanded with accessories offered by Wieländer+Schill:
Taking into account user requirements and different force demands, other adapters are also available besides the BR 80:
BR 20 Blind Rivet Adapter (Part No.: 700100):
Excellent accessibility for heavy riveting tasks.
20 kN pulling force.
Freely rotating and pivoting.
Suitable for rivets with an axial diameter between 2.0 mm and 4.2 mm.
Scope of delivery: 1 pc BR 20 adapter, 1 pc tool box 700204, 4-piece nozzle set.
BR 50 Blind Rivet Adapter (Part No.: 700101):
Excellent accessibility.
50 kN pulling force.
Freely rotating and pivoting.
Suitable for rivets with an axial diameter between 2.0 mm and 5.0 mm.
Scope of delivery: 1 pc BR 50 adapter, 1 pc tool box 700215, 7-piece nozzle set.
The BR 80 adapter is an integral part of the Wieländer+Schill portfolio of professional automotive body repair tools, guaranteeing the highest level of quality and reliability in vehicle repair and metalworking.
