This detailed product description presents the Wieländer+Schill F-Electrode, specifically designed for resistance spot welding applications, particularly for hard-to-reach areas such as around wheel arches. This component is an essential accessory for professional body repair technologies.
The F-Electrode is a specially designed welding electrode used during spot welding processes. The „finger shape” design allows for the precise access of welding spots in locations where conventional, straight, or standard shaped electrodes cannot reach. This feature is critically important when repairing complex body elements of modern vehicles.

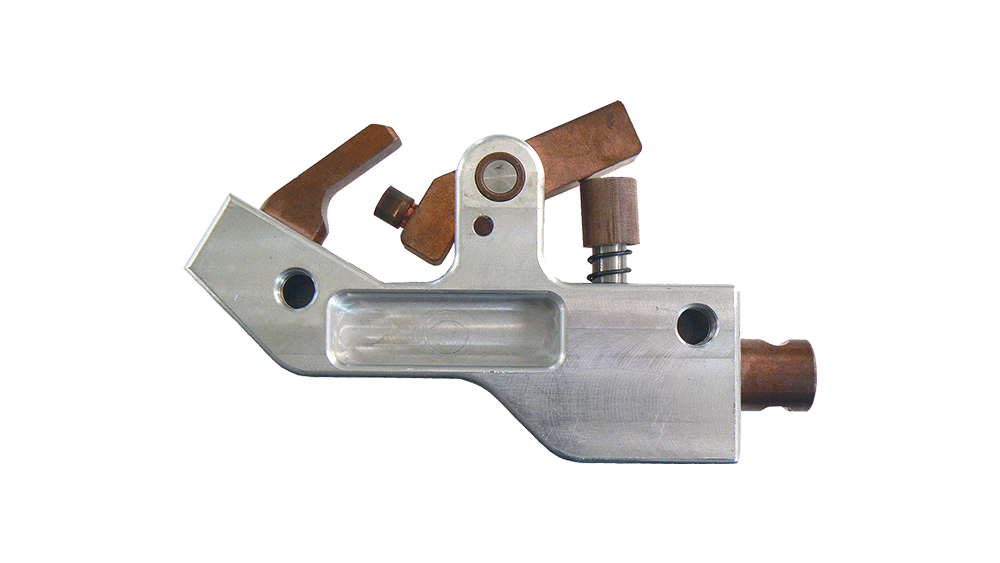

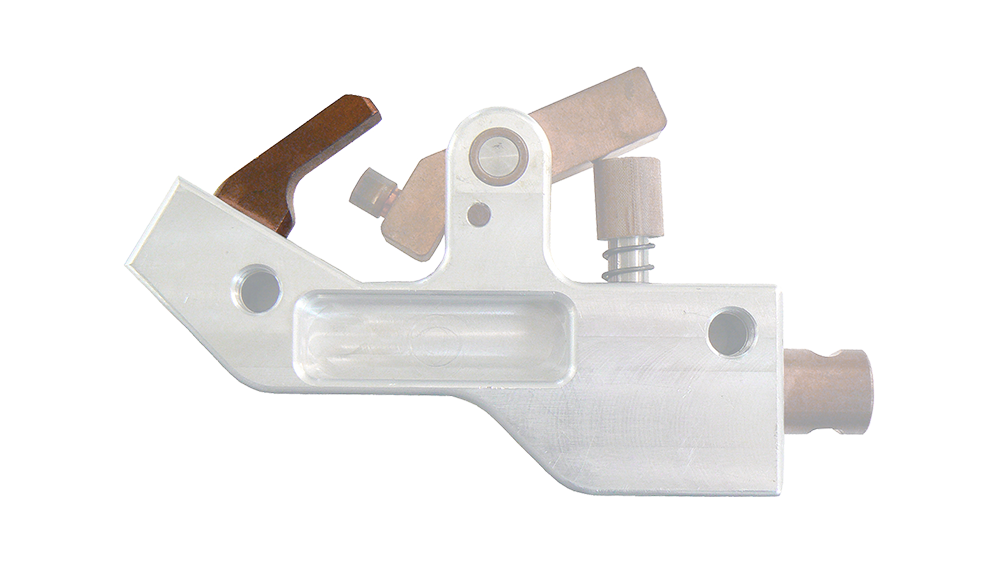

This electrode is ideally used together with the corresponding C-Arm electrode holder (Part No: 495604), which features a rocking mechanism, facilitating work around wheel arches. The system guarantees the full functionality of the automatic mode, ensuring consistent and reliable welding quality.
The F-Electrode is part of the Wieländer+Schill welding technology range, focusing on durability and precision work execution.
| Property | Value |
|---|---|
| Part number | 497073 |
| Designation | Electrode F |
| Construction | Finger shape (Type F) |
| Length × Width × Height | 25 x 25 x 52.25 mm |
| Material | Copper-zirconium (CuZr) |
| Weight | 0.170 kg |
| Package contents | 1 piece (1 stück) |
The electrode is made of a copper-zirconium alloy. This material provides excellent electrical conductivity and high thermal resistance, which is essential for fast and efficient welding cycles. The addition of zirconium increases the material's strength and resistance to softening at high temperatures, thus significantly extending the electrode's lifespan, even under intensive use.
The Type F, finger-shaped tip design is crucial for solving accessibility issues. The height of 52.25 mm and base dimensions of 25x25 mm ensure an optimal balance between stability and maneuverability in tight spaces.
For maximum efficiency and flexibility for special applications, the use of the F-Electrode is recommended with the following accessory:
Part number: 495604
Description: This holder features a rocker mechanism and includes a finger-shaped electrode (like 497073) and a flat electrode.
Előnyök: Specifically designed to facilitate welding tasks around wheel arches. It is suitable for any welding task where conventional electrodes do not provide the necessary access. It guarantees the full range of operation for automatic welding functions.
This component is part of the broader product portfolio of Wieländer+Schill, which focuses on the following main areas:
XSeries – Professional Spot Welding Technology: High-performance welding equipment and accessories.
Welding Technology: This includes resistance spot welding electrodes, such as the F-Electrode.
Separating Tools
Dent Removal Technology & Metalworking
The F-Electrode offers an outstanding solution in the field of spot welding technology for body repair professionals, ensuring quality work even in areas with the most difficult geometries.
