This detailed product description presents the Wieländer+Schill professional body repair specialty, high-quality hole punching and calibrating tool set, specifically designed for the preparatory phase of setting 6.0 mm flow form rivets. This set is essential for precise and durable fastening tasks during automotive repairs and metalworking.
The tool set with part number 700352 is part of the Wieländer+Schill XSeries professional riveting technology, which guarantees reliable and OEM-compatible results. The goal of the set is to prepare the joint surface before rivet insertion, ensuring the perfect hole size and optimal seating of the rivet. The precision design minimizes material damage and maximizes the strength of the joint.
This tool set is the ideal choice for any professional performing repairs that meet the highest quality standards, especially in areas where the structural integrity of the body is critical.

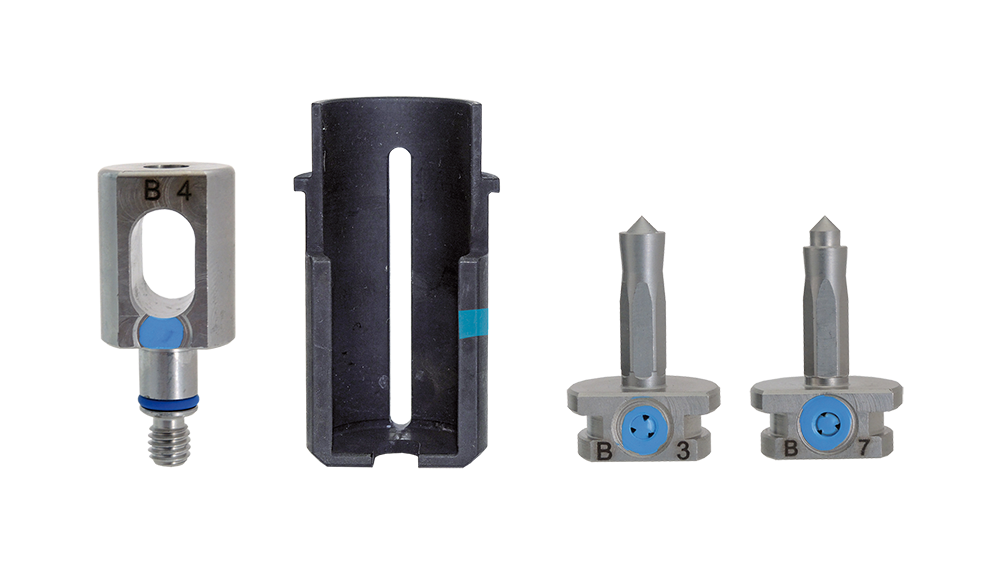

The set with part number 700352 contains four key components that collectively ensure full coverage of the hole punching and calibrating process required for 6.0 mm flow form rivets.
| Part number | Designation | Function | Diameter |
|---|---|---|---|
| 700264 | B4 | Punching & extraction die | Ø 6 mm |
| 700273 | G1 | Counterholder for die plate | Ø 6 mm |
| 700343 | B3 | Punch | Ø 6 mm |
| 700345 | B7 | Punch with punching crowns | Ø 6 mm SKR |

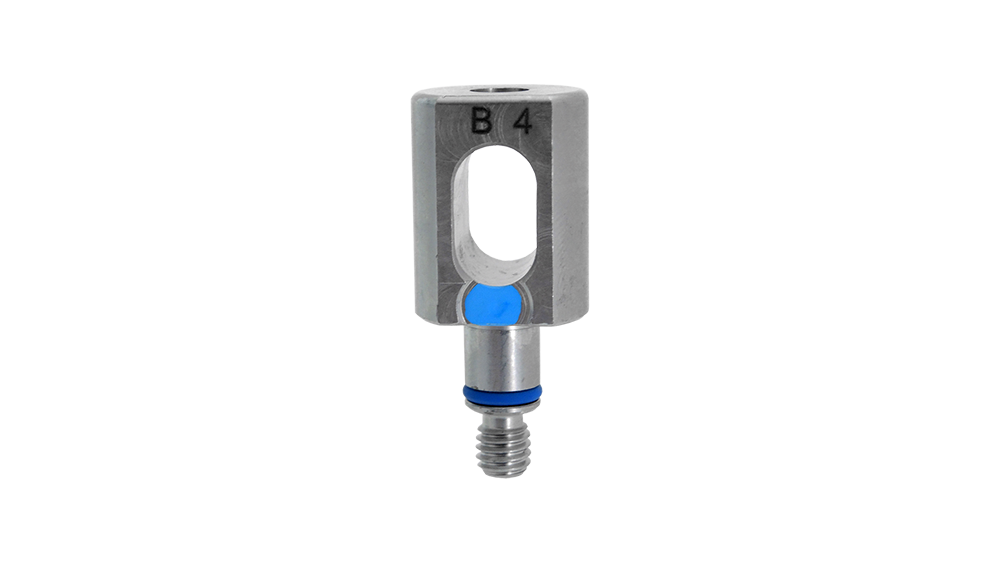

1. 700264 B4 | Punching & Extraction Die (Ø 6 mm)
This tool is responsible for creating the initial hole and removing excess material during the punching process. The precision design ensures that the hole walls are smooth, which is essential for subsequent calibration and riveting.

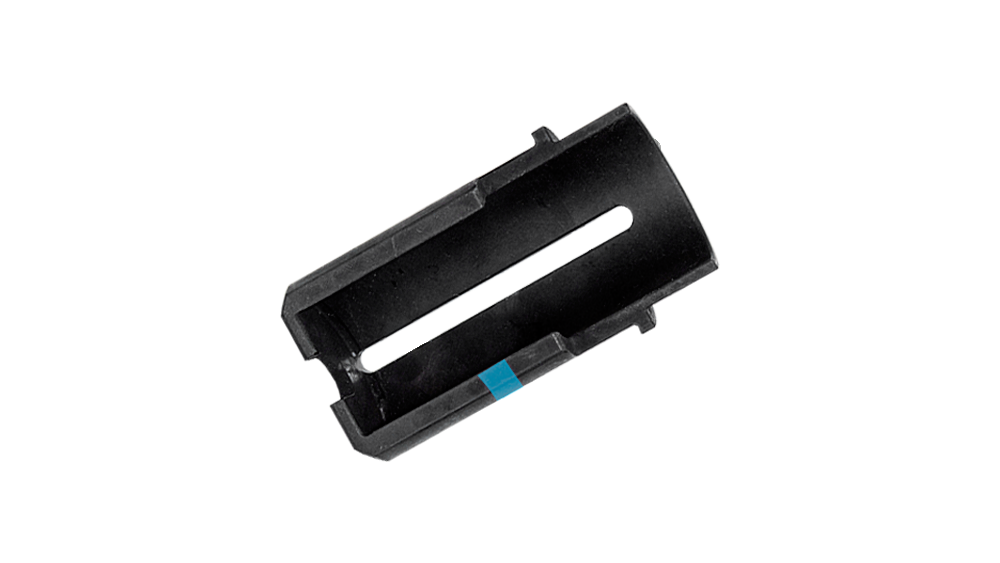

2. 700273 G1 | Counterholder for Die Plate (Ø 6 mm)
The counterholder plays a critical role in the hole punching process. This component provides the necessary resistance against the punch, preventing deformation of the plate and ensuring the creation of a clean, burr-free hole on both sides. It is specifically optimized for mounting onto the die plate.

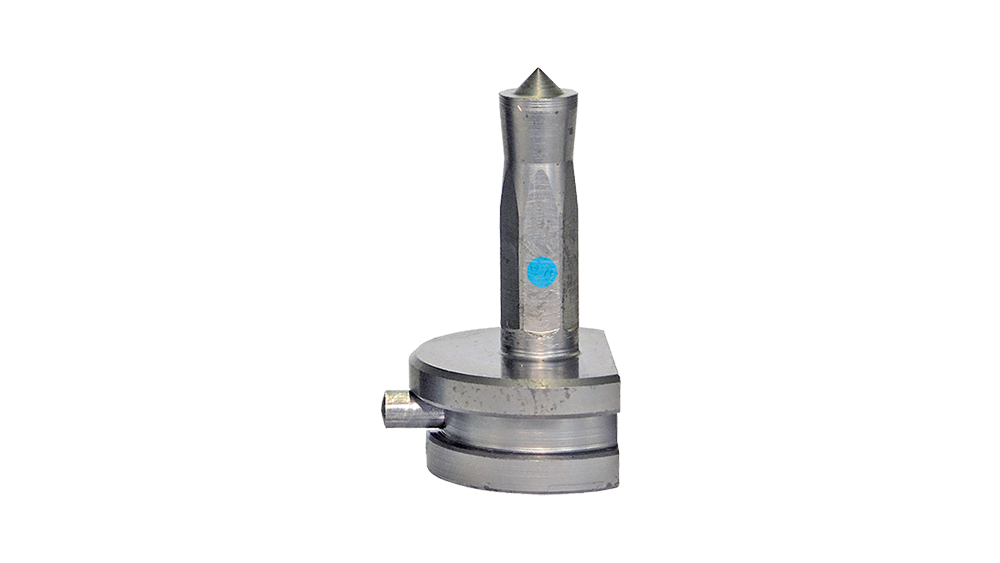

3. 700343 B3 | Punch (Ø 6 mm)
This standard punch element is used in one phase of hole calibration, ensuring the precise dimension before rivet insertion. The high-quality alloy steel provides long service life and consistent performance.

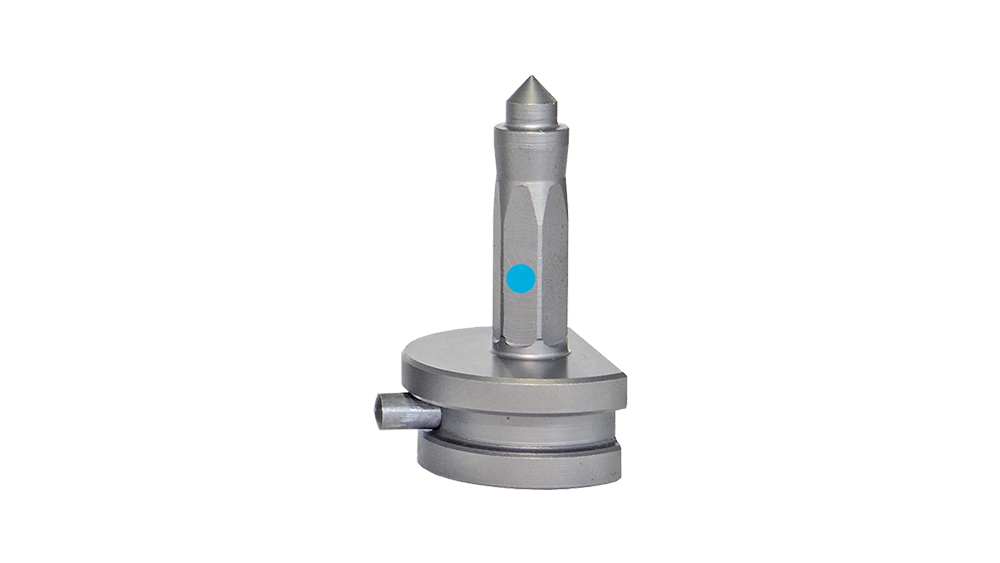

4. 700345 B7 | Punch with Punching Crowns (Ø 6 mm SKR)
The B7 punch has a special design featuring punching crowns (SKR – Stanzkrone, i.e., perforating crown). This design aids in cutting through the sheet metal and creating a clean edge, especially in cases of thicker or multi-layered materials, minimizing tearing and burr formation. This calibration step ensures that the hole diameter precisely matches the 6.0 mm flow form rivet.
The product belongs to the Wieländer+Schill XSeries professional riveting technology, manufactured according to the highest industrial standards.
| Property | Value |
|---|---|
| Product Name | Punch and Calibration Tool Set |
| Part number | 700352 |
| Field of application | Preparation for Flow Form Rivet Insertion |
| Target Rivet Diameter | 6.0 mm |
| Set Contents | 4 tools (B4, G1, B3, B7) |
| Compatibility | XSeries Professional Riveting Systems |
| Material Quality | High-strength, wear-resistant tool steel (for drilling elements) |
By using the Wieländer+Schill tool set, users benefit from the following advantages:
OEM Compliance: The tools are designed to meet the stringent requirements of major automotive manufacturers, ensuring factory-quality repairs.
Long Lifespan: High-quality steel alloys and precision machining guarantee a long service life for the tools, even under heavy use.
Precise Hole Forming: The multi-stage drilling and calibration process (using B3 and B7 drills) ensures the perfect tolerance of the 6.0 mm diameter, which is essential for optimal rivet seating.
Efficiency: The tool set allows for quick and reliable preparation, reducing repair time.
Related to set 700352, additional parts are available for separate purchase, ensuring a smooth workflow and replacement of tools:
700264 B4: Punch and Extractor Tool (Ø 6 mm) – Spare Part.
700273 G1: Counter Tool for Tool Plate (Ø 6 mm) – Spare Part.
700343 B3: Drill (Ø 6 mm) – Spare Part.
700345 B7: Drill with Hole Cutter (Ø 6 mm SKR) – Spare Part.
These accessories enable quick restoration of the tool set if any component wears out or gets damaged, minimizing downtime.
This punch and calibration tool set reflects Wieländer+Schill's commitment to professional, durable, and precise body repair solutions.
