Part number: 851028NV

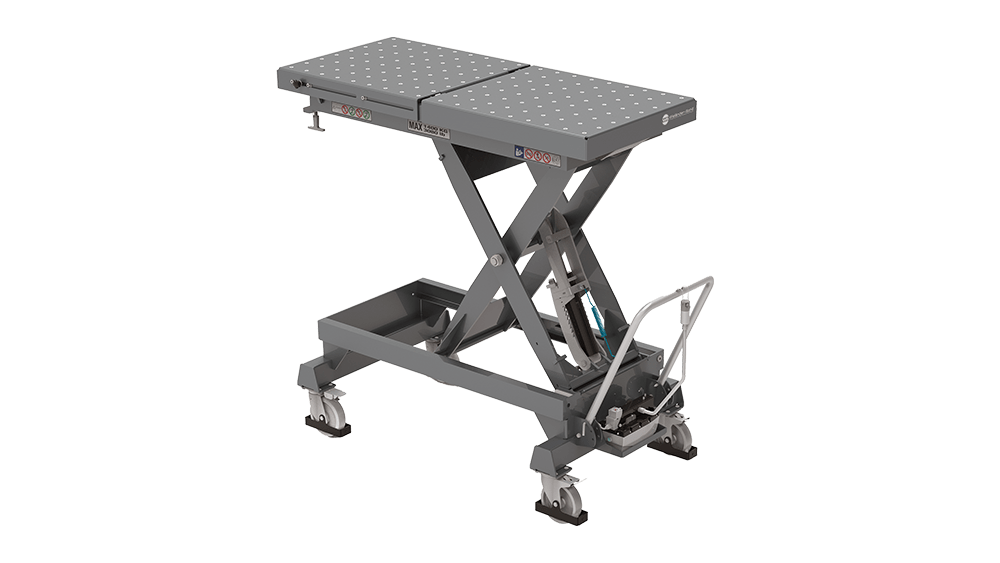

The WS Lifter 1.0T is an extremely versatile, mobile lifting table specifically designed for the safe disassembly and storage of electric vehicle (EV) components, such as batteries, motors, and gearboxes. This equipment not only serves for lifting but also provides an ideal solution for transporting components and for use as a temporary work surface in the workshop environment.
The structure's hydraulic cylinder is powered by a pneumo-hydraulic pump, which ensures reliable and precise lifting performance. For safe operation, the system is equipped with a hydraulic safety device that guarantees slow and controlled lowering of the load. The convenience and efficiency of operation are completed by the included remote control.
This lifting table is a crucial tool for modern service centers, where the spread of EV technology increasingly demands the safe handling of heavy, sensitive components.
The WS Lifter 1.0T features several functions that optimize workflows and increase safety:
Capacity: Maximum load capacity of 1.0 ton (1000 kg).
Lifting Height: Maximum lifting height up to 1800 mm.
Safety: Mechanical anti-fall system ensures stability during work.
Ergonomics: Adjustable handle, positionable in 3 stages, for easier maneuverability.
Tiltability: Fine-tuning options for adjusting the inclination angle of the work surface:
Longitudinal axis tilt angle: +/- 1°
Transverse axis tilt angle: +/- 4.5°
Surface dimensions: The length of the work surface can be extended from 792 mm to 1820 mm (telescopic design).
Mobilitás: Excellent maneuverability thanks to the 360° swivel casters:
2 pcs 360° swivel casters with directional lock.
2 pcs 360° swivel casters with parking brake.
| Characteristic | Value | Note |
|---|---|---|
| Part number | 851028NV | |
| Maximum Load Capacity | 1.0 t (1000 kg) | |
| Maximum lifting height | 1800 mm | |
| Drive | Pneumo-hydraulic pump | |
| Control | Remote control | |
| Safety system | Hydraulic and mechanical anti-fall | |
| Handle | Adjustable, 3 levels | |
| Longitudinal tilt angle | +/- 1° | |
| Transverse inclination angle | +/- 4.5° | |
| Surface length (min-max) | 792 mm – 1820 mm | Extendable |
| Casters (With directional lock) | 2 pcs 360° | |
| Casters (With parking brake) | 2 pcs 360° |
Important note: The lifting table itself is not suitable for handling EV batteries, motors, or gearboxes. For the safe securing and lifting of these components, optional accessories are required, which are not part of the basic delivery package:
Optional Accessory Part Number: 851026NV
Accessory Name: JIGS | adapter set | new version
With this adapter kit, the lift table can be fully utilized for the precise and safe handling of electric drivetrain components.
The WS Lifter 1.0T is the ideal choice for:
Electric Vehicle Services: Safe removal and installation of batteries, motors, and gearboxes.
General Body Repair Shops: Moving and positioning heavy, large parts.
Storage and Logistics: Temporary, safe storage of parts during work processes.
As a workbench: The extended surface is also ideally suited for performing smaller assembly tasks.
More detailed information and technical drawings are available in the following document:
This mobile lifting system represents the professional quality of Wieländer+Schill, ensuring heavy-duty yet precise movement even in the most modern service environments.
