This product is a high-quality puller adapter, part of the Wielander + Schill professional riveting technology (XSeries), specifically designed for BRN 50 blind rivet adapters. This component is essential for the precise and reliable installation of blind rivets, ensuring professional fastening in the most demanding industrial and automotive applications.
The M8 puller adapter, part number 700327, is an integrated element of the Wielander + Schill XSeries systems, guaranteeing compatibility and maximum performance during the blind rivet pulling process.
This puller adapter is connection to the BRN 50 rivet nut adapter made, and specifically for a 25 mm thread length blind rivet optimized. The precise design ensures that the pulling force is applied evenly and effectively during rivet installation, minimizing the risk of workpiece damage.
The product is made of high-quality steel, which guarantees a long service life and high load capacity during frequent, heavy-duty use. The surface treatment (blackened coating) increases resistance to corrosion, maintaining the tool's reliability.
Precise Compatibility: Designed exclusively for use with the BRN 50 adapter, ensuring a perfect fit.
Robust Design: All-steel construction for maximum durability.
Optimized Thread Length: Ideal specifically for blind rivets with a 25 mm thread length.
Easy Operation: The puller adapter allows for quick and easy changes between blind rivets of different sizes or types.
The table below details all important technical parameters of the M8 puller adapter, part number 700327:
| Property | Value | Note |
|---|---|---|
| Part number | 700327 | Unique Identifier |
| Compatibility | BRN 50 blind rivet nut adapter | |
| Thread Size | M8 | Metric standard |
| Thread Length (for Adapter) | 25 mm | Length of the rivet to be inserted |
| Material | Steel | High-strength structural material |
| Surface Treatment | Burnished | Corrosion Protection and Increased Durability |
| Length (L) | 114.0 mm | Total adapter length |
| Dimensions (L x W x H) | 116 x 21 x 21 mm | External Contour Dimensions |
| Weight | 0.130 kg | Easy handling |
| Package contents | 1 piece (1 stück) |
This puller adapter is an integral part of the Wielander + Schill professional riveting technology (XSeries). XSeries systems offer reliable solutions in the field of vehicle repair, metal construction, and general structural fastening. M8 blind rivets create high-load fastening points, which are ideal for screw connections in areas where access to the backside is limited.
Blind rivets M8 with a thread length of 25 mm are often used for reinforcing body panels or in areas where thicker materials need to be fastened, and the threaded connection must be extremely stable. The puller adapter ensures that the rivet fully expands and fastens correctly into the base material during installation.
For maximum efficiency, it is recommended to use it together with the appropriate blind rivet and the BRN 50 puller head. The system can also be supplemented with puller adapters of different sizes and types required for blind rivets with different thread lengths and pitches.
Recommended Accessory (Example):
| Product | Part number | Description |
|---|---|---|

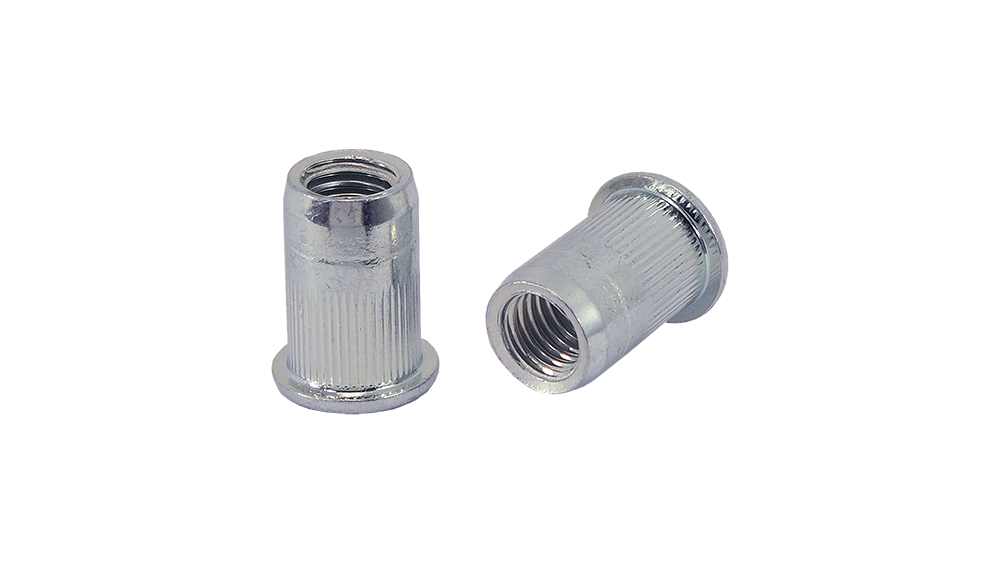

| Blind Rivet, Steel, M8 | 777206 | Steel blind rivets for screw fastening points. Package quantity: 10 pcs. |
Similar Pull Adapters (The Full Range):
In addition to the 700327 M8 adapter, the entire M-series is available to cover all fastening requirements:
M4 Pull Adapter (700324): For 25 mm thread lengths.
M5 Pull Adapter (700325): For 25 mm thread lengths.
M6 Pull Adapter (700326): For 30 mm thread lengths.

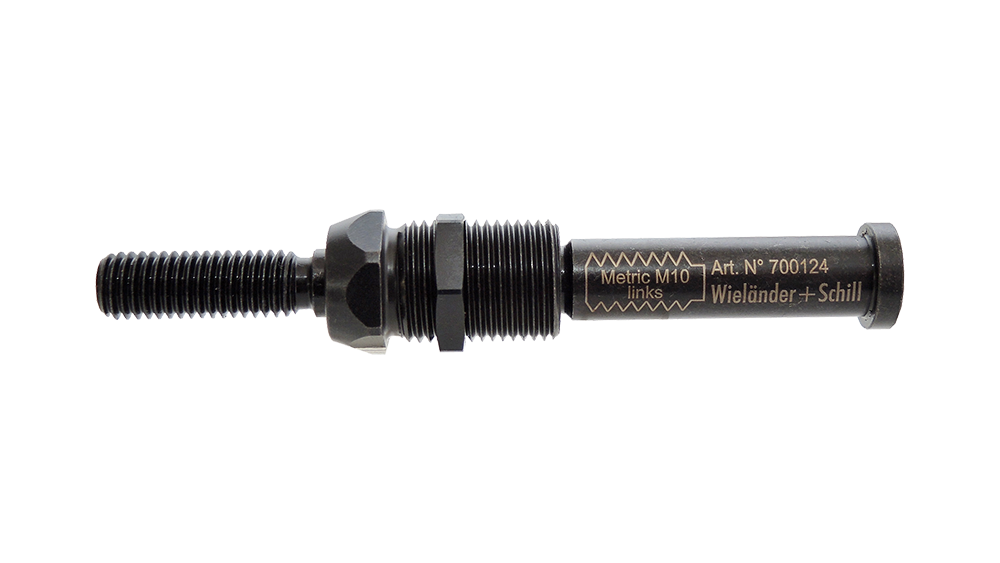

M10 Pull Adapter (700328): For 25 mm thread lengths.
M12 Pull Adapter (700305): For 30 mm thread lengths.

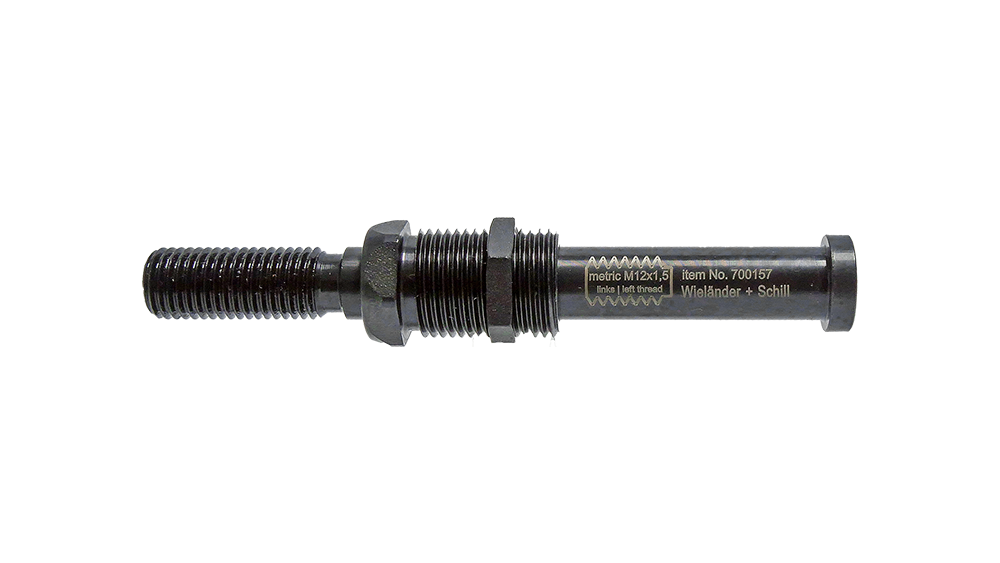

Special Threads: Left-hand thread (LHT) and special pitch (e.g., M12 x 1.5 LHT, 700157) adapters are also available separately for the BRN 50 system.
This versatile accessory ensures that the installation of every M8 rivet nut with the Wielander + Schill XSeries pulling system is fast, safe, and carried out to the highest professional standard.
