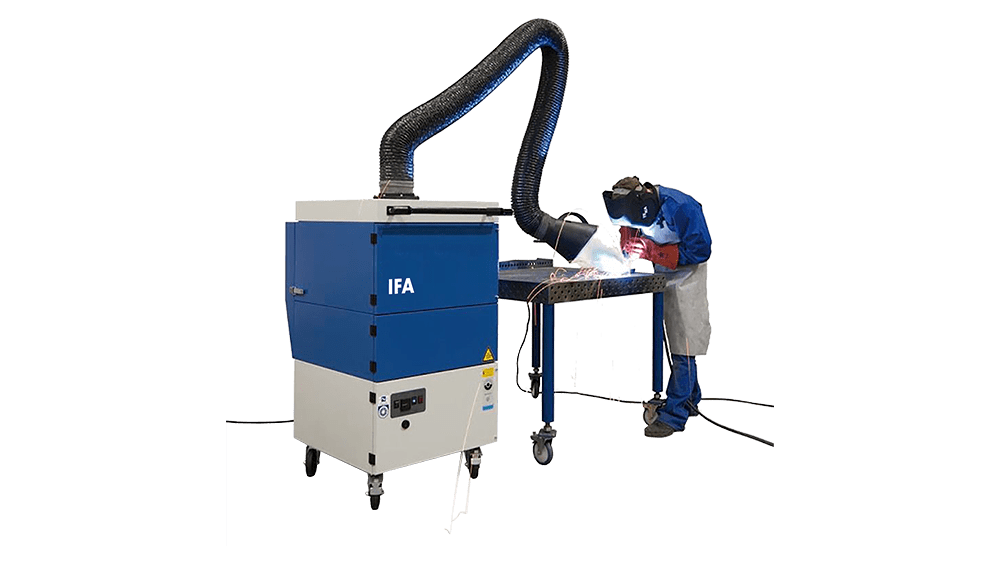

Wieländer+Schill presents the Strongmaster IFA Welding Fume Extractor, a professional solution for the effective extraction and filtration of fumes and dust generated during welding processes. This device is ideally suited for workshop environments where ensuring clean air and compliance with health regulations is of paramount importance.
One of the main advantages of the device is the low operating cost, thanks to the durable, cleanable filter cartridge, which remains in the system during cleaning, preventing dust from escaping into the work area.
The robust design and advanced filtration technology of the Strongmaster IFA Fume Extractor guarantee reliable performance even under high demand:
Cleanable Filter Cartridge: The M-class filter cartridge has a large filter surface area and remains in the system during cleaning, minimizing maintenance costs and contamination of the work area.
Pre-separator (Baffle Plate): The built-in baffle plate effectively separates coarse particles, thereby protecting the main filter cartridge and increasing its lifespan.
Surface Filtration: The remaining fumes and dust are almost completely separated on the surface of the filter cartridge.

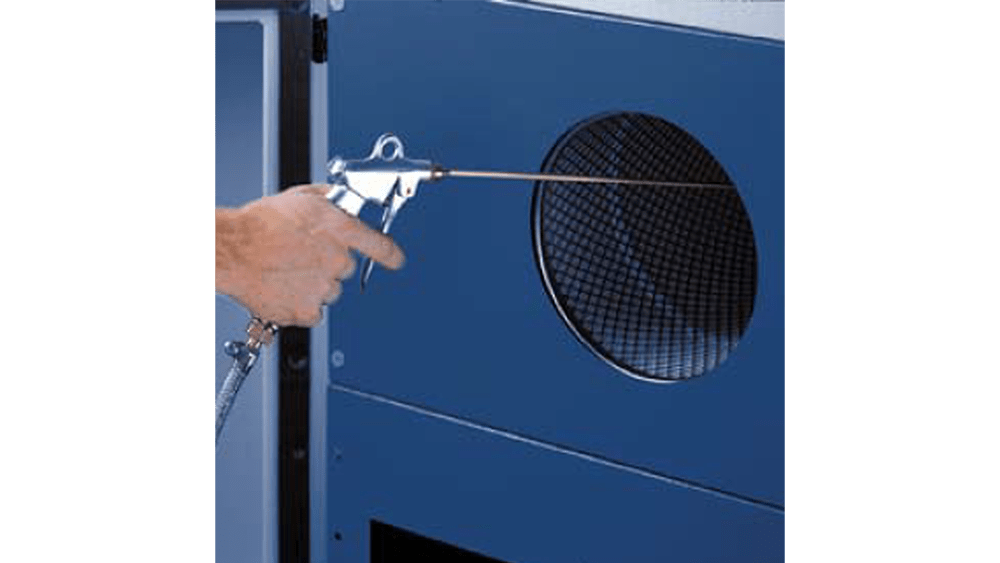

Maintenance: Filter cleaning can be performed through the maintenance door using a compressed air gun, from the clean air side.
Dust Collection: The separated particles collect in a dust collector that is easy to remove and empty.
High-Performance Screw Fan: The device is equipped with an extremely powerful screw fan, which ensures high negative pressure. This guarantees a high volumetric flow rate even when the filter is already saturated.
Intelligent Monitoring: Optical and acoustic filter monitoring indicates when the filter needs cleaning or replacement.
Convenient Handling: A tool-free filter cartridge lifting device (Seal seat lifting device) and a built-in operating hours counter (Operating hours counter) facilitate efficient work.

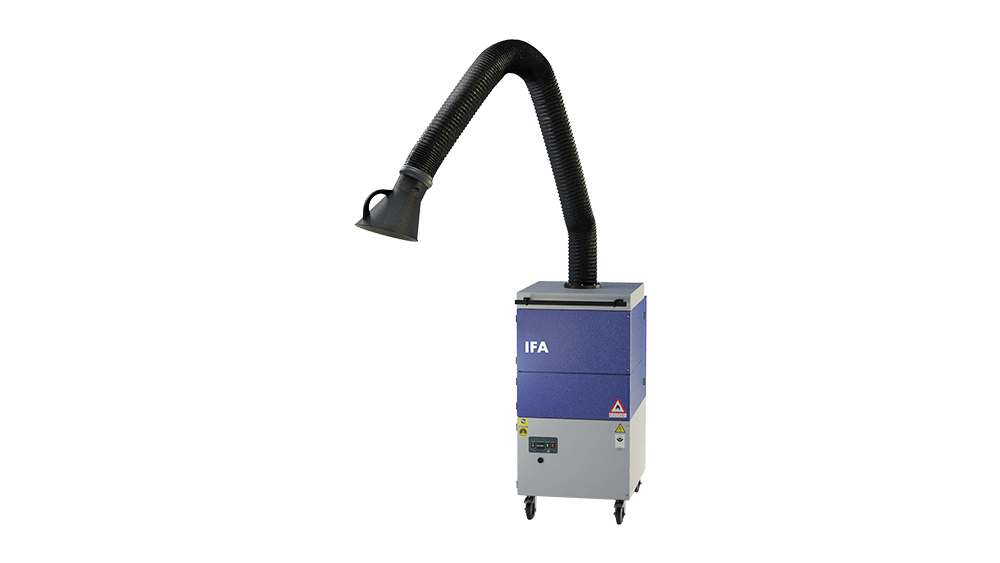

Flexible Placement: The extraction arm has a diameter of 150 mm, which ensures an optimal extraction zone.
The detailed technical parameters of the Strongmaster IFA Fume Extractor are as follows:
| Characteristic | Value | Note |
|---|---|---|
| Part number | 882072 | |
| Filter Surface Area | 10 m² | Large capacity, efficient filtration |
| Dust class | M | Complies with industrial standards |
| Frequency | 50 Hz | |
| Mains Voltage | 3 ~ 400 V | Three-phase connection |
| Power (Motor) | 1.1 kW | |
| Max. Volume Flow Rate | 1860 m³/h | Excellent extraction capacity |
| Max. Negative Pressure | 2900 Pa | Strong suction power |
| Dimensions (L x W x H) | 665 x 820 x 1365 mm | Compact yet stable construction |
| Weight | 165 kg | Robust design |
| Sound pressure level | 72 dB(A) | Ambient Noise Level |
| Protection Class | IP 54 | Dust and Splash Protection |
| Operating Temperature | 5° – 35 °C | |
| Moisture Content | max. 70% | |
| Mains Cable Length | 5 m | Allows for flexible placement |
| Accessory | PE bag for the dust collector | |
| Conformity Declaration | According to 2006/42/EC | CE Conformity |
This extractor is the ideal choice for all welding operations where harmful fumes are generated, and where the cleanability of the filter system and high suction performance are essential for safe and efficient work. The device belongs to the WS Arena – Professional Workbox Systems category, highlighting professional workshop integration.
Ensure workplace air quality, reduce health risks, and optimize your maintenance processes with the Strongmaster IFA Fume Extractor.
