Product Identifier: 297108

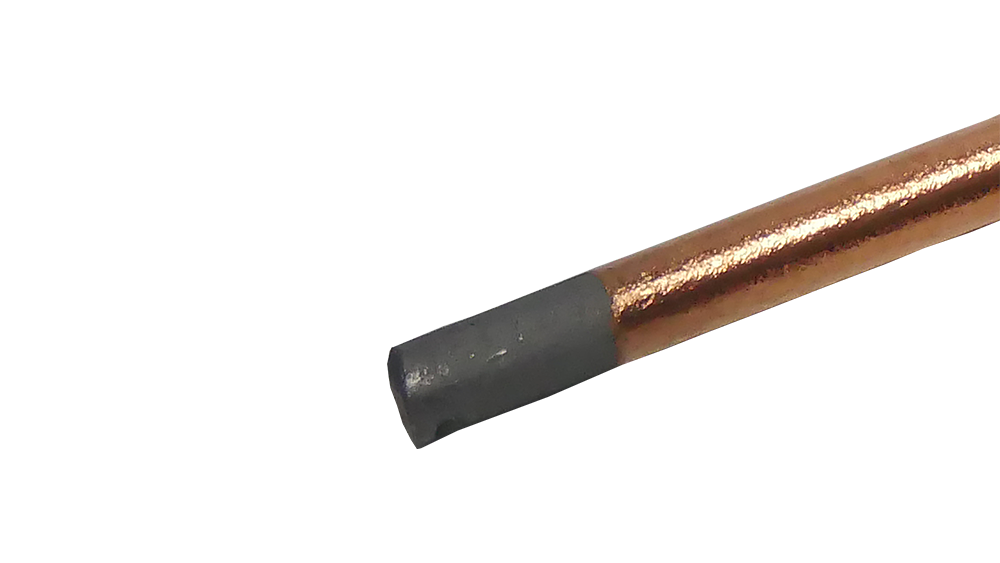

This high-quality carbon electrode is part of the Wieländer+Schill professional welding technology range, specifically designed for resistance spot welding applications. The product is an ideal choice for body repair work where precise and reliable results are required.
This carbon electrode is primarily for sheet metal upsetting and sheet metal drawing service. It is excellently suited for jobs requiring the thickening or shaping of the metal material during the welding process.
The electrode is compatible with single-sided spot welding guns, ensuring flexibility and wide usability in the workshop environment. The carbon material possesses excellent thermal and electrical properties, which guarantees efficient and uniform heat distribution on the workpiece.
The surface of the product is copper-plated, which significantly improves electrical conductivity, reduces resistance, and increases the service life of the electrode even under high current loads.
The 300 mm length provides sufficient maneuverability for various welding positions and areas with difficult access. The precisely machined diameter (10.0 mm) ensures a perfect fit in the corresponding holders and consistent weld quality.
Area of application: Excellently suitable for sheet metal upsetting and sheet metal drawing technologies.
Compatibility: Compatible with single-sided spot welding guns, increasing workshop flexibility.
Material quality: Made of synthetic graphite, which delivers optimal performance at high temperatures and loads.
Surface treatment: Copper coating ensures excellent electrical contact and longer service life.
Precise Sizing: The 10.0 mm diameter results in precise and reliable weld spots.
The following table details the critical technical parameters of the carbon electrode:
| Property | Value | Note |
|---|---|---|
| Product Identifier | 297108 | Factory Part Number |
| Material | Synthetic graphite | High temperature resistance material |
| Diameter (Ø) | 10.0 mm | Size of the welding face |
| Length | 300 mm | Total length |
| Coating | Copper Coating | Improves conductivity |
| Application | Sheet Metal Upsetting, Sheet Metal Drawing | Body Repair Technologies |
| Compatibility | Single-sided spot welding guns | Usable with special welding accessories |
| Overall Dimensions (L x W x H) | 305 x 10 x 10 mm | May refer to packaging or storage size |
The Wieländer+Schill carbon electrodes are the cornerstone of modern automotive repair technologies. During body repair, it is often necessary to replace damaged or missing material, or to thicken the sheets to reinforce the welding points. This electrode ensures the necessary resistance and thermal effect by contacting the workpiece during the spot welding process, resulting in the cohesion of the metals. Synthetic graphite is the material of choice because it resists high temperatures without eroding quickly, while the copper coating minimizes electrical resistance, allowing the welding energy to reach the workpiece more efficiently.
This 10 mm diameter electrode is ideal for standard-sized welding spots where precise dimensions and stable performance are crucial for guaranteeing the quality of the repair, especially during work compliant with OEM (manufacturer) specifications.
