This product is part of the professional welding technology range from Wielander + Schill, specifically designed for the VAS 6545B resistance spot welding machine recommended, and belongs to the workshop equipment category of Volkswagen AG. The VAS 6545B/6 C-arm electrode attachment with rocker mechanism is a special accessory designed for spot welding of extremely narrow metal sheets.
The VAS 6545B/6 C-arm electrode attachment with rocker mechanism (part number: 932015NG) is an optimized tool for reaching the most difficult-to-access welding points. Its key innovation is the use of concentric electrodes which position the welding point offset from the center. This design allows the user to precisely deliver welding energy even into the narrowest corners and hard-to-reach areas, ensuring a high-quality bond where conventional electrodes no longer fit.
The rocker mechanism further increases flexibility and maneuverability during body repair work, especially for spot welding in confined spaces. This tool is essential for the precise repair of modern vehicle bodies according to factory specifications.
Exceptional Accessibility: Due to the placement of the concentric electrodes, the welding point is offset from the center, making it possible to weld in the tightest corners and gaps.
Rocker Mechanism: The built-in tilt function increases the maneuverability and positioning accuracy of the C-arm on complex geometries.
Material Compatibility: The robust material composition (Aluminum, CuCrZr, Stainless Steel, Steel) ensures long service life and effective welding of different metals.
OEM Compliance: As workshop equipment for Volkswagen AG, it guarantees compliance with strict quality and performance requirements.
The table below details the most important specifications of the VAS 6545B/6 C-arm electrode attachment with rocker mechanism:
| Property | Value |
|---|---|
| Product Name | C-arm electrode attachment with rocker mechanism |
| Part number | 932015NG |
| Application | Welding for very narrow metal strips |
| Length × Width × Height | 275 x 95 x 40 mm |
| Weight | 2.17 kg |
| Materials | Alu (Aluminum), CuCrZr (Copper-Chromium-Zirconium), Stainless Steel, Steel |
| Electrode Type | Concentric (offsetting the welding point away from the center) |
| Accessories | 1 piece (1 stück) |
To ensure maximum welding performance and extend the service life of the electrodes, Wielander + Schill recommends the following accessories and maintenance tools for the VAS 6545B/6 unit:

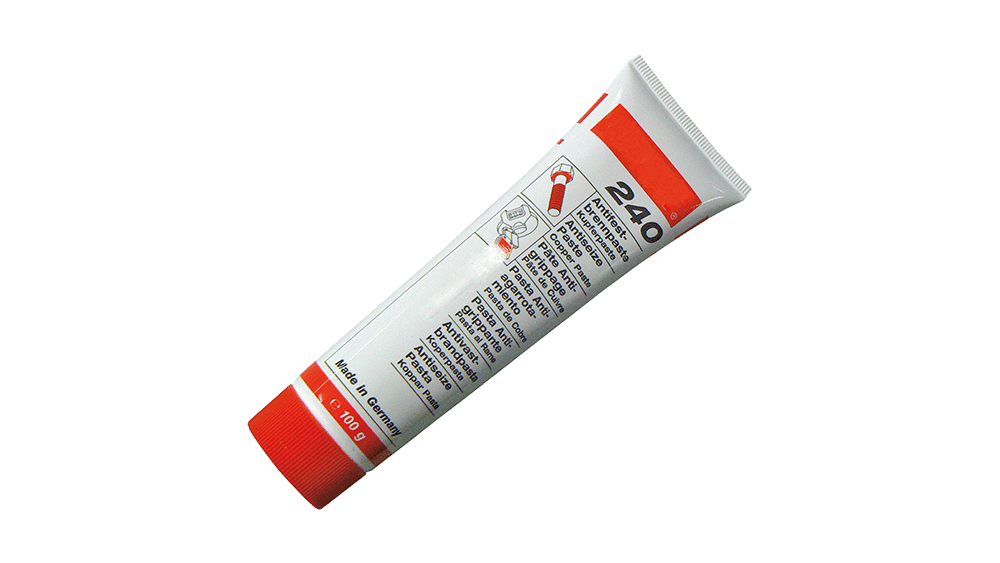

Part number: 497010
Description: Measurably reduces transitional resistances and improves the current-carrying capacity of the electrode arms. Excellent contact is essential for stable welding quality.

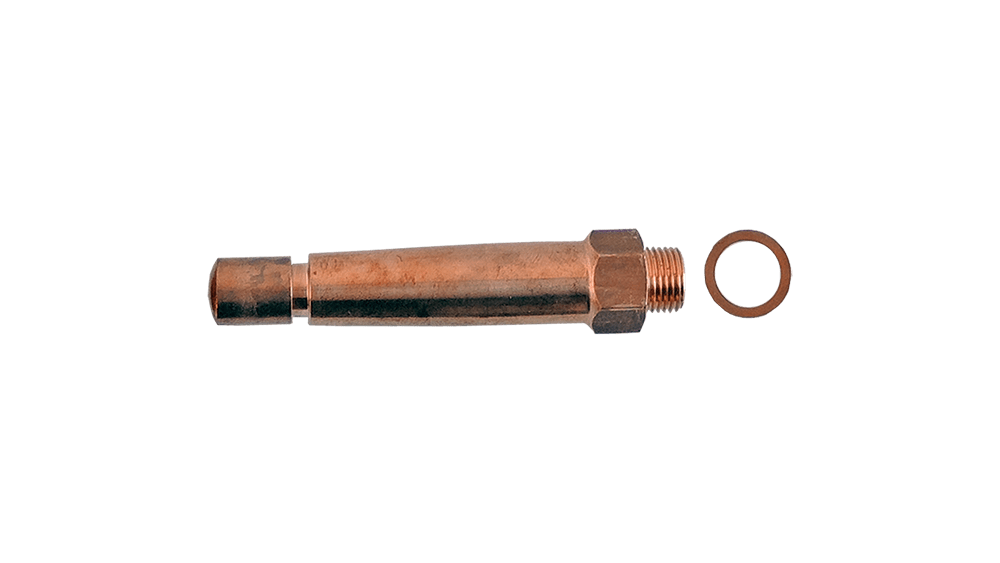

Part number: 495673
Description: 101.5 mm long electrode with electrode tip, usable for the older version (part number: 495664) of the tilting mechanism electrode holder.
Important Information: For the current version of the tilting mechanism electrode holder, the default 83 mm long electrode is used.
Part number: 495679
Description: Concentric electrodes specially designed for the C-arm electrode holder, which ensure an outward-pushing welding spot.

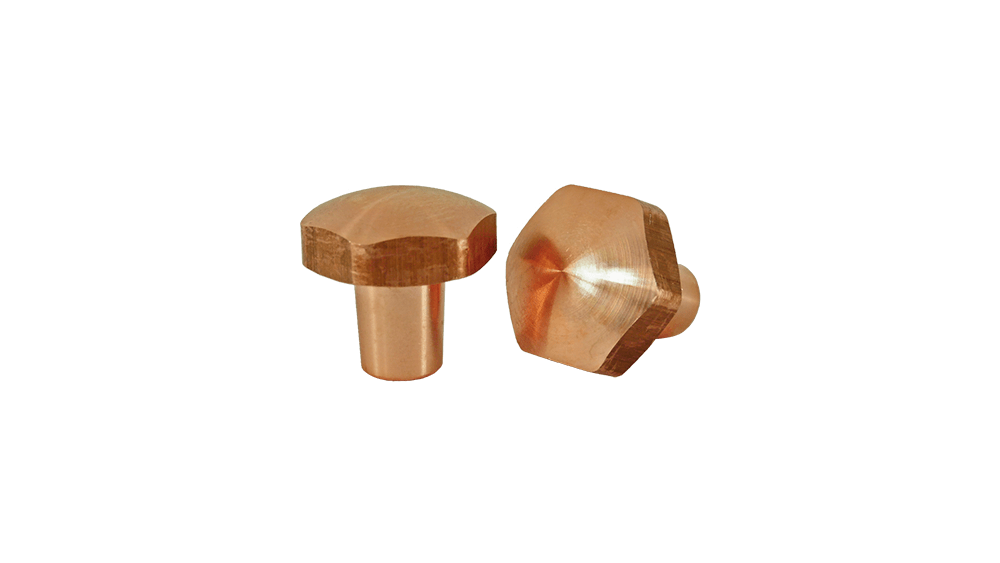

Part number: 495669
Description: Centric hexagonal electrodes for the C-arm electrode holder.
Part number: 298298
Description: Ideally suited for cleaning spot welding electrode tips when they become soiled. Only clean electrode tips guarantee correct spot welding results.

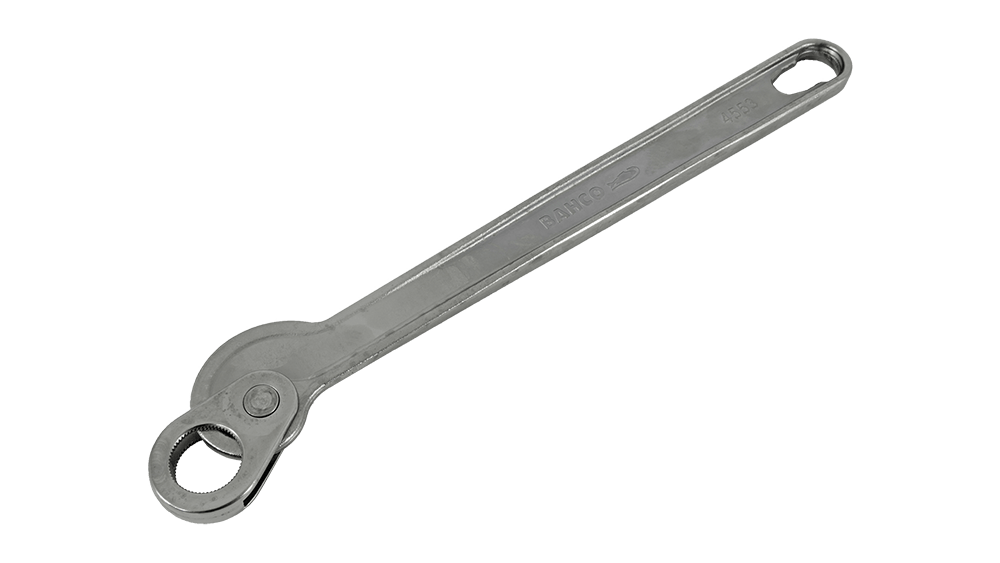

Part number: 498003
Description: Special tool for loosening and removing stuck, seized electrode tips during maintenance.
The VAS 6545B/6 C-arm electrode holder functions as official accessory for the VAS 6545B resistance spot welding machine accessory. Regarding product availability, please contact the official distributors of Wielander + Schill or the local Volkswagen importer.
This precision tool ensures that body repair technicians achieve the highest level of accuracy and reliability, even during the most critical welding tasks.
