Part Number: 495611
This detailed product description presents the high-quality C-arm electrode head designed for Wielander + Schill professional resistance spot welding systems, ensuring optimal performance and durability for the most demanding automotive body repair tasks.

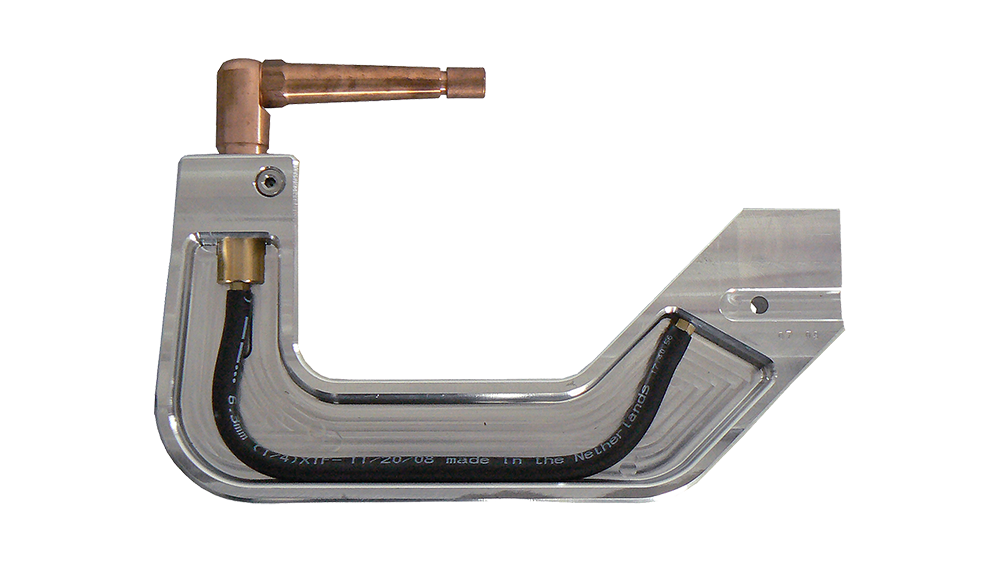

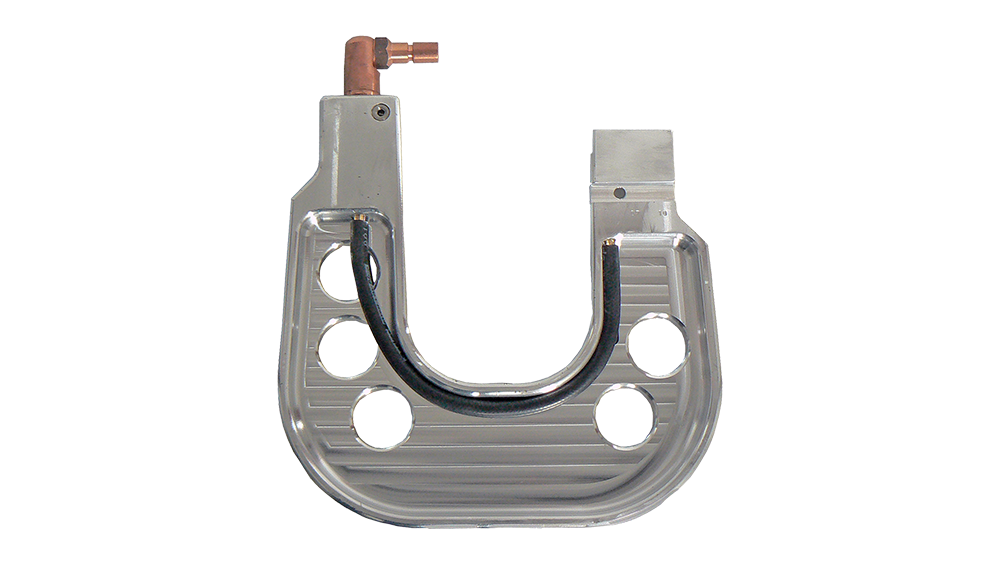

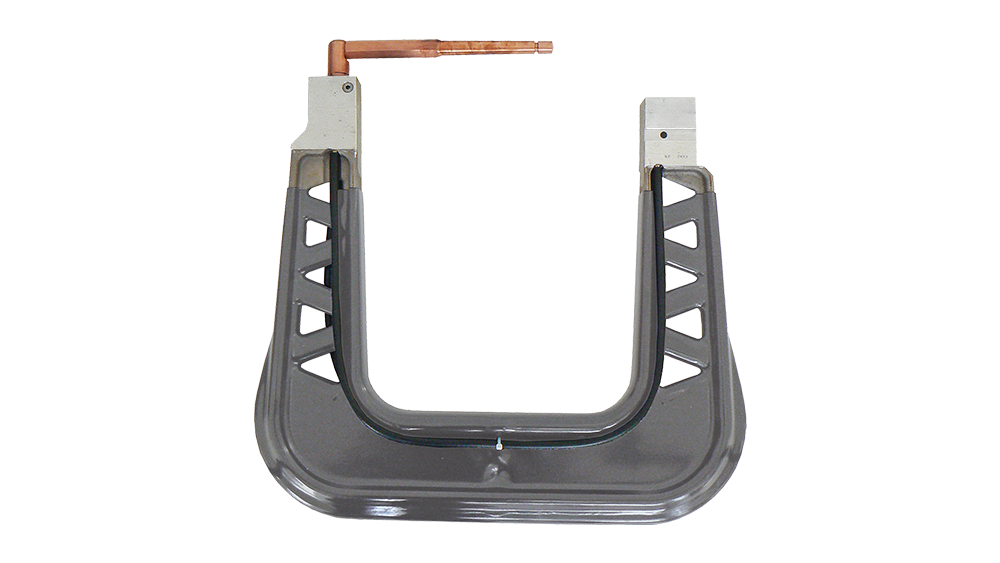

A C-Arm Electrode Head, Number 6 (GT) A water-cooled C-arm unit specifically developed for resistance spot welding technology. This model is an ideal choice for reaching weld points where standard tools offer limited access, while guaranteeing stable and reliable weld quality.
The C-arm design allows for precise positioning of weld points between body panels, while the built-in water cooling is critical during continuous, high-intensity operation. The cooling system prevents overheating of the electrodes and arm, significantly extending their service life and ensuring consistent welding parameters.

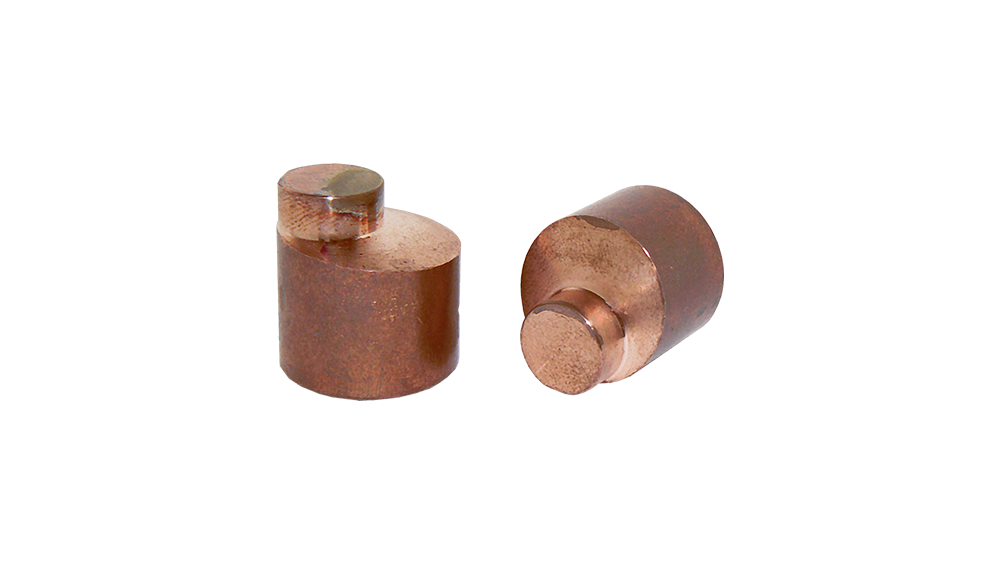

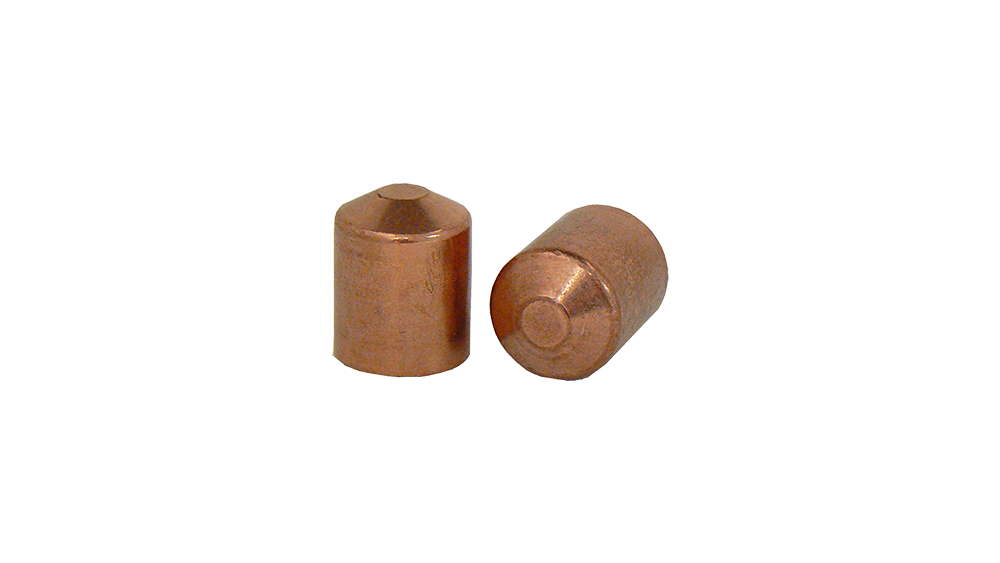

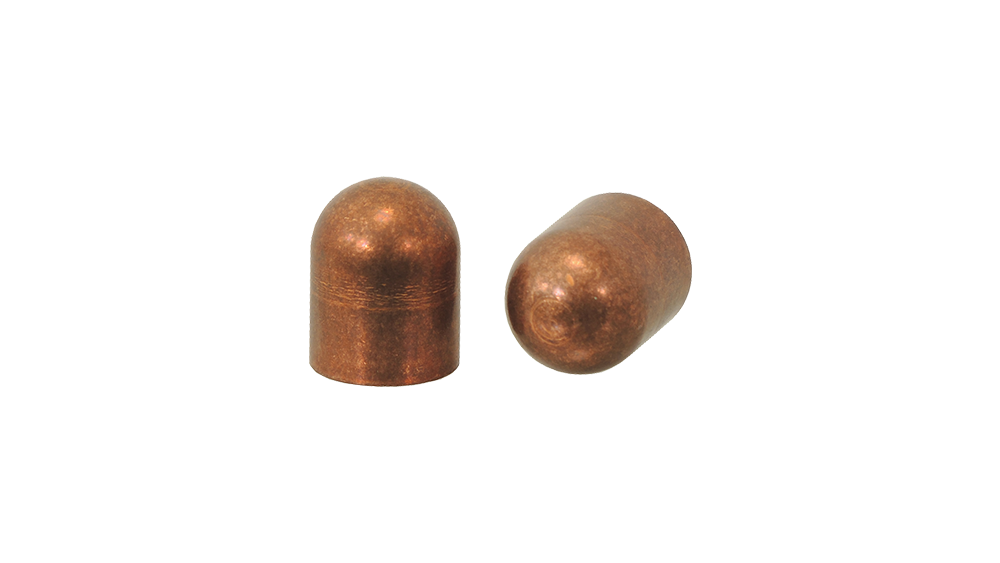

The product comes with a basic electrode and 16 mm diameter electrode tips, which are suitable for most standard spot welding applications. Robust material usage and careful manufacturing ensure this tool will be a reliable partner in your workshop long-term.
Water Cooling: The integrated water cooling ensures optimal tool temperature, increasing productivity and electrode lifespan.
Excellent Accessibility: The C-arm geometry allows for welding hard-to-reach areas, such as tight gaps and internal joints.
Durable Material Composition: A combination of multiple high-quality materials (Aluminum, CuCrZr, Stainless Steel, etc.) guarantees mechanical stability and excellent electrical conductivity.
PU Coating: The surface is coated with PU (polyurethane), which increases the tool's resistance to external influences and facilitates cleaning.
Working area: The 120 x 120 mm working block provides sufficient space for access to most body panels.
The table below summarizes the key technical specifications of the C-Arm Electrode Head Number 6 (GT):
| Property | Value | Note |
|---|---|---|
| Part number | 495611 | Unique Identifier |
| Típus | C-Arm Electrode Head (GT) | For Resistance Spot Welding |
| Cooling | Water-Cooled | Optimized for Continuous Use |
| Working Block Size | 120 x 120 mm | Maximum Distance Between Arms |
| Electrode Tip Diameter (Ø) | 16 mm | Size of the supplied electrode tips |
| Coating | PU (Polyurethane) | Surface protection |
| Materials | Alu, Aluminum, CuCrZr, Rubber, Stainless Steel, Steel | Composite structure for performance |
| Weight | 2.030 kg | Weight of the tool |
| Accessories | 1 electrode, 16 mm electrode tips | Standard equipment |
| Package contents | 1 darab | Unit Package |
This C-arm unit is an essential tool in modern auto repair shops, especially in the following areas:
Body Repair: Spot welding when replacing damaged panels where access is restricted (e.g., reinforcements, double-walled components).
Hard-to-Reach Spots: Ideal for welding points where conventional welding guns cannot reach.
Larger Diameter Welds: 16 mm electrode tips are suitable for medium and large diameter welding spots.
For maximum flexibility, we recommend viewing other C-arms and accessories compatible with the system, which meet various geometrical and dimensional requirements:

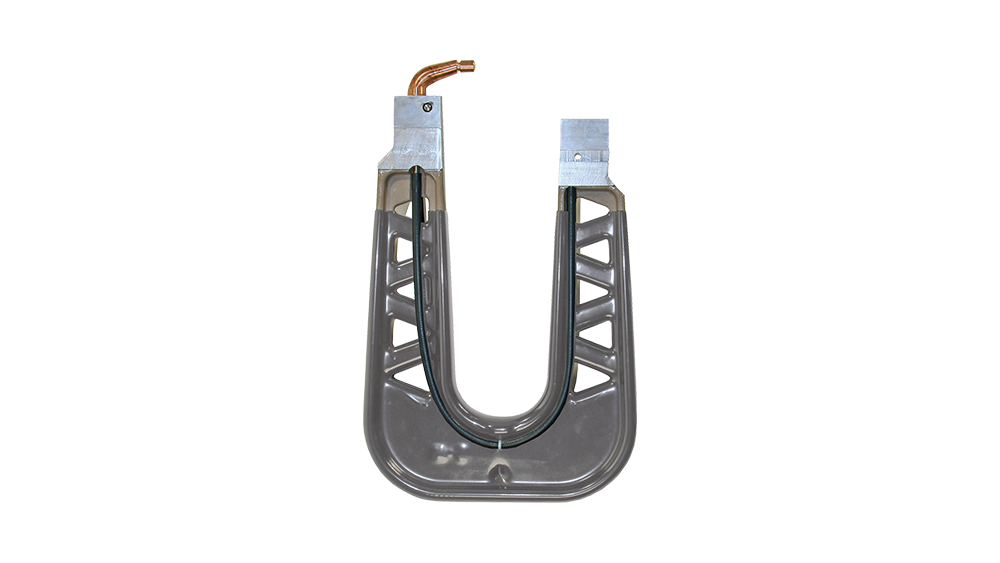

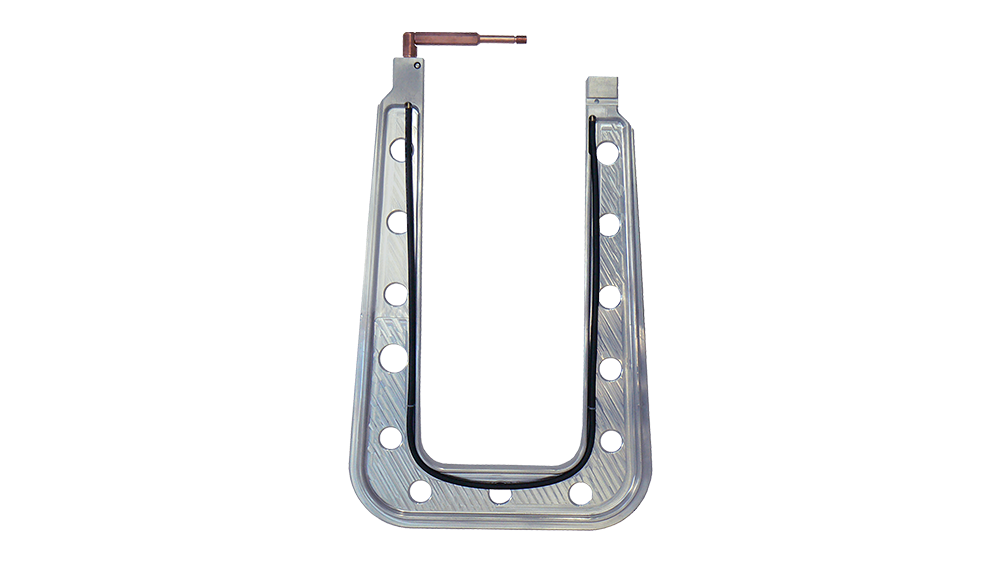

C-Arm Electrode Head, Number 9 (120 × 250 mm): For tasks requiring longer arm reach (Part No.: 495624).
C-Arm Electrode Head, Number 3 (GT) (150 × 450 mm): Significantly greater extension (Part No.: 495625).
C-Arm Electrode Head, Number 5 (GT) (205 × 550 mm): Extreme extension distance (Part No.: 495626).
C-Arm Electrode Head, Number 2 (For Wheel Arches): Specially designed shape for repairing wheel arches (Part No.: 495602).
C-Arm Set (Numbers 2 and 3): Combination of the two most frequently used C-arms (Part No.: 495630).

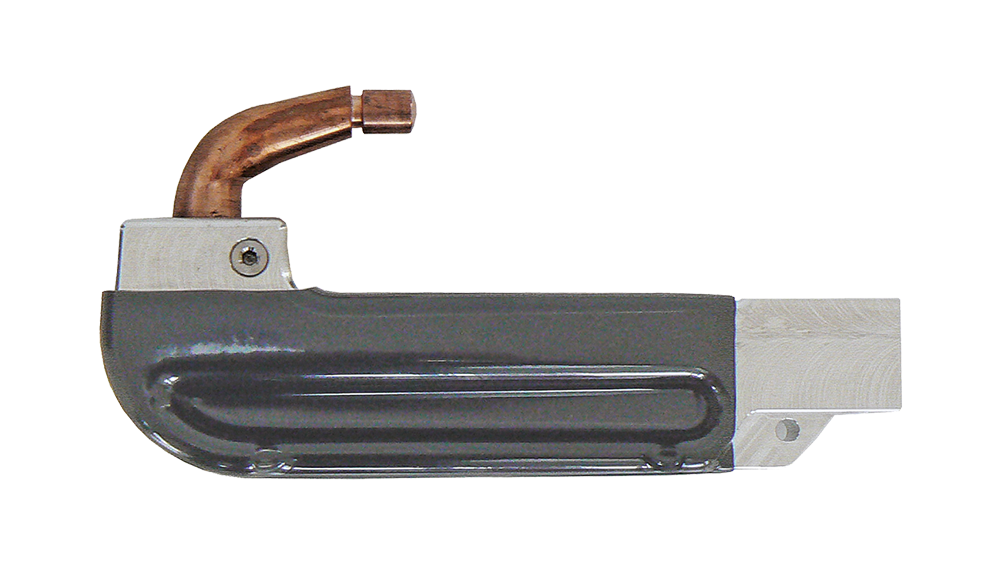

C-Arm Electrode Holder Mechanism with Tilt (Number 10): Equipped with a finger electrode and a flat electrode, ideal for wheel arches where conventional electrodes cannot fit (Part No.: 495604).
C-Arm Electrode Holder Mechanism with Tilt: For welding narrow seams, with a concentric electrode to reach corners (Part No.: 495688).
Note: The C-arm electrode head, number 8 (290 × 760 mm, Item No.: 495614) is a custom-made product to which exchange and return do not apply.
This C-arm unit, number 6, is an integral part of the Wielander + Schill welding technology portfolio, meeting even the highest industrial requirements.
