C-Arms | 4-piece set with case

C-Arms | 4-Piece Set with Case (C-Arms | 4-piece set with case)

Part number: 700080SC

This professional C-arm set is specifically designed for the XSeries riveting technology systems, including accessories and a robust carrying case that ensures optimal mobility and protection for the tools. The set contains essential elements for accessing various body structure parts and performing precise work.

Product Description and Key Features

The set with article number 700080SC serves as an extension for the Wieländer+Schill XSeries professional riveting technology. The set includes four crucial components that enable users to flexibly adapt to different repair situations, especially in hard-to-reach areas. The included carrying case guarantees secure storage and transport of the tools inside or outside the workshop.

C-Arms are used to optimize access to body structure parts, making it possible to perform riveting or other fastening operations on the inner side of the body structure without damaging the outer surface.

Scope of Delivery

The 4-piece set includes the following precision components, each compatible with the XSeries system:

Detailed Component Description

1. S700071 C-Arm GC 80/130:

This C-arm represents the basic size for access to standard body structure parts. The „GC” designation likely refers to the arm's design and maximum opening range, which is ideal for smaller and medium-sized repair tasks.

2. S700072 C-Arm GC 140/240:

This higher capacity C-arm offers a wider opening range (from 140 mm to 240 mm), which is essential for thicker or longer-distance components where greater force or a larger working area is required for the riveting head.

3. 700153 Extension for PushPull PP 90 (60 mm):

This accessory is specifically optimized for use with PushPull PP 90 type tools. The 60 mm extension allows the riveting head to reach deeper fastening points, especially in reinforced or double-walled structures.

4. 700517 Extension for SSC 35/25 (93 mm):

This extension is designed for combination with the SSC 35/25 short-stroke cylinder. The 93 mm length can be critical in areas where standard settings are insufficient, ensuring proper pressure and positioning when used with the GC 140/240 C-arm.

5. Transport Case (Carrying Case):

The robust carrying case included with the set ensures that precision tools are protected from physical damage, dust, and moisture. The dedicated interior design helps with quick and error-free identification and organization of the components.

Compatibility and Application Areas

This set belongs to the XSeries – Professional Riveting Technology product line, which is essential in modern vehicle repair.

Main application areas:

• Body Repair: Ideal for the repair and replacement of body parts (e.g., doors, hoods, fenders) where factory-quality riveting is essential.

• Lightweight Vehicles: Especially useful in workshops working with aluminum or high-strength steel structures, where accuracy and adequate fastening force are crucial.

• Hard-to-Reach Areas: The different sizes of C-arms and extensions allow access to internal reinforcements and sandwich structures.

Accessory Parts (Zubehör)

Additional accessories supporting the use of C-arms are also available on the product page, which increase the efficiency and safety of the workflow:

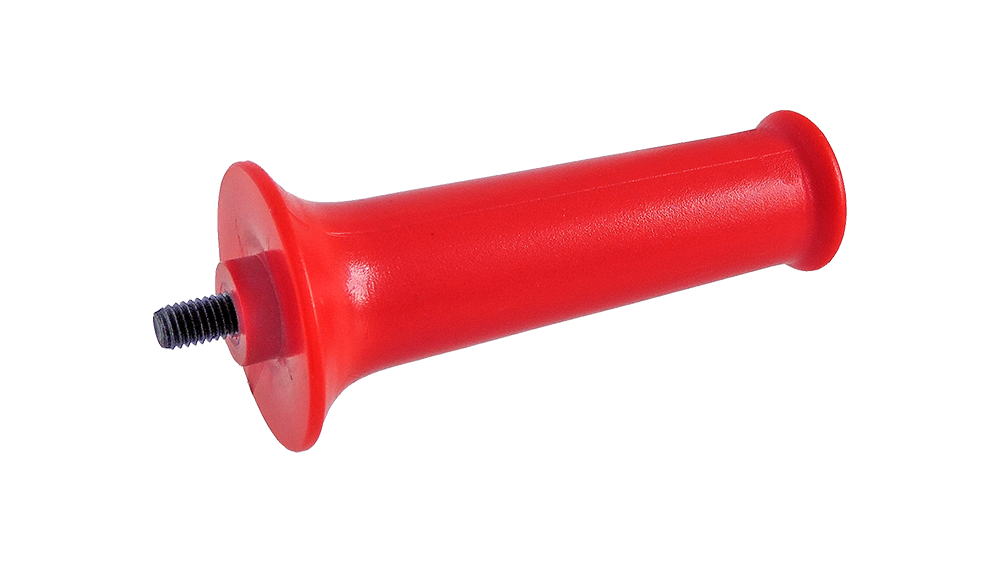

• 881341 Handle for Fixed Magnets and C-arms (Red): This red handle facilitates the quick and convenient fastening of accessories and protective mats.

• 700153 Extension PushPull for PP 90 (60 mm): (Also included in the set, but available separately for replacement or further configurations.)

• 700517 Extension for SSC 35/25 (93 mm): (Also included in the set, but available separately for replacement or further configurations.)

These accessories ensure that the user can choose the most optimal setting for the specific repair task.

Technical Data Summary

This 4-piece C-arm set reflects the quality of Wieländer+Schill, ensuring body repair professionals have the necessary precision and flexibility for the professional repair of the most modern vehicles.
