The Wieländer+Schill Long Measuring Rod (Part No.: 874026) is an essential tool for body repair and metalworking processes. This high-quality tool enables the extremely precise and reliable measurement of structural damage, as well as the verification of dimensions after straightening. Precise measurements are crucial for professional and OEM-compatible repairs, ensuring the restoration of the vehicle's original geometry.
This long measuring rod is the ideal choice for situations where longer distances or less accessible points on the vehicle's frame structure or body panels need to be measured.
The Long Measuring Rod is a member of the Wieländer+Schill measuring tool family, designed with durability, precision, and ease of use in mind.
Precíz Mérés: It allows for the verification of structural deviations and post-repair dimensions with the highest level of accuracy.
Excellent Material Utilization: Made from durable aluminum, ensuring light weight and a long service life.
Wide Measuring Range: The scale ranges from 20 mm to 280 mm, providing flexibility for various size corrections.
Modular System: Compatible with the entire measuring system, including holders and different types of measuring rods, making it adaptable to specific tasks.
Könnyű Kezelhetőség: Its extremely low weight (only 45 grams) minimizes user fatigue during prolonged measurement sessions.
The table below details the technical parameters of the Long Measuring Rod (874026):
| Property | Value | Note |
|---|---|---|
| Part number | 874026 | Unique Identifier |
| Length | 320 mm | The total length |
| Dimensions (L x W x H) | 320 x 10 x 10 mm | The physical extension of the rod |
| Material | Alu | Lightweight and durable construction |
| Measuring Scale | 20 – 280 mm | The readable range |
| Weight | 0.045 kg (45 g) | Extremely light |
To achieve maximum efficiency with the Long Measuring Rod, Wieländer+Schill offers several accessories that support various aspects of the measuring process. These tools ensure the secure mounting of the rod and the accuracy of measurements, even at the most critical points.

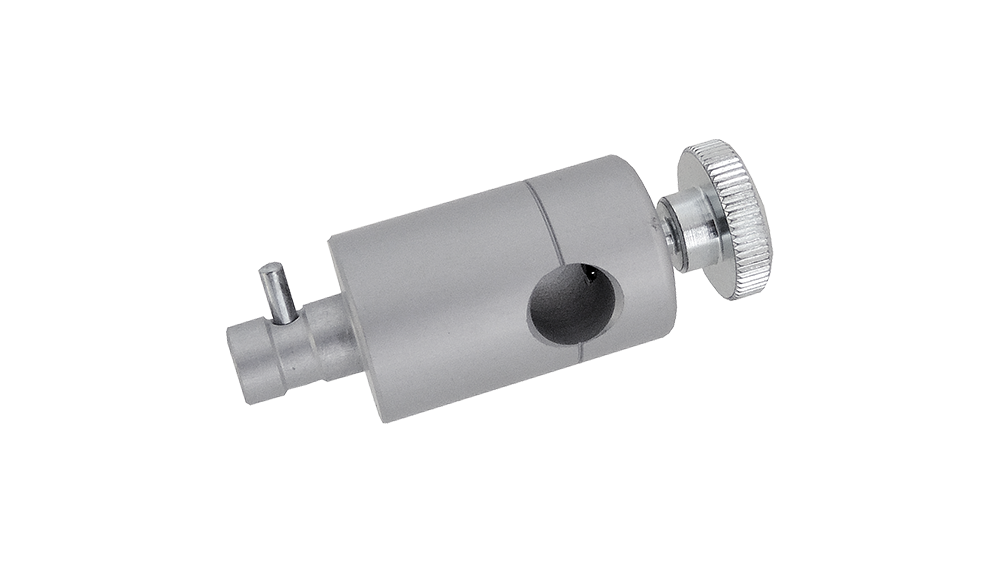

This accessory is essential for the stable mounting of the measuring rods. The holder ensures that the measuring rod remains in place during measurement, preventing accidental displacement that could distort the results.
Function: Precise support for the measuring rods for accurate measurements.
Part number: 874027

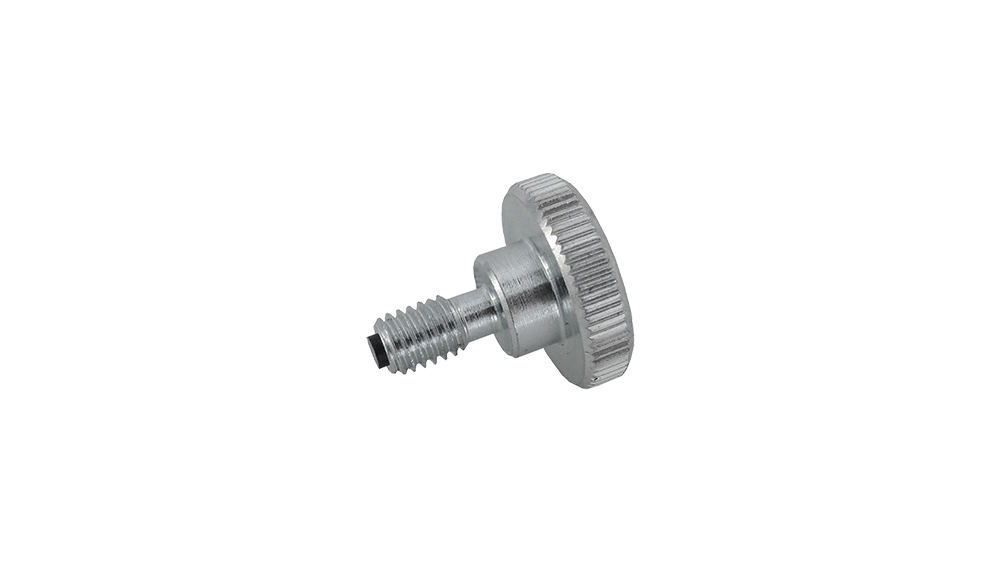

The purpose of the fixing screw is to mechanically secure the measuring rods in the desired position. This is especially important if the measuring instrument is subjected to vibration or external impact during measurements, thus preventing unwanted displacement of the rods.
Function: For fixing the measuring rods and preventing displacement.
Part number: 874024
Depending on the measurement location and surface conditions, various tips can be used for the measuring probe:

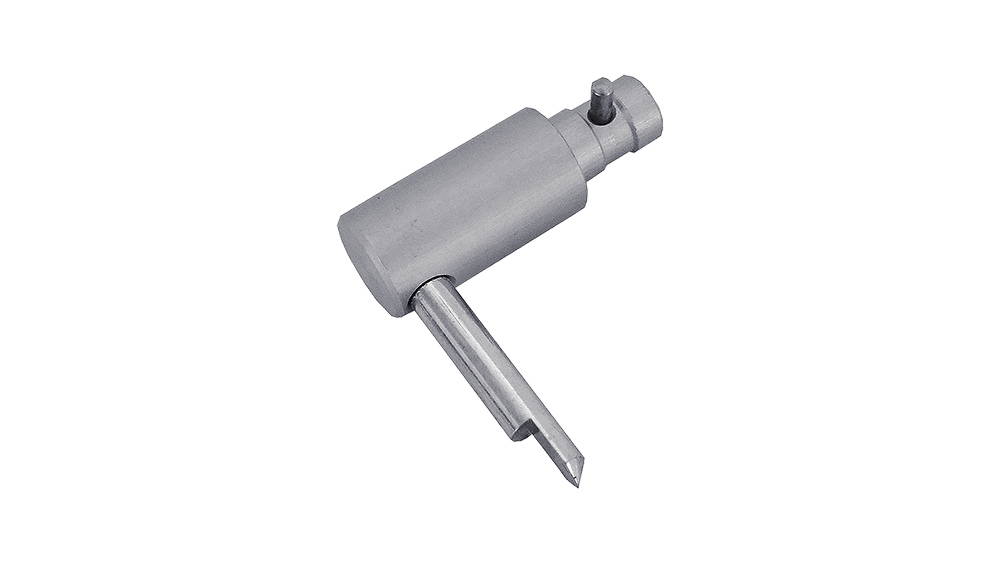

This special, angled measuring probe allows measurements to be taken in hard-to-reach places, as well as determining distances between non-flat surfaces. The angular design provides access to points where right-angled or straight probes cannot be used.
Application: Hard-to-reach areas, narrow gaps.
Part number: 874021

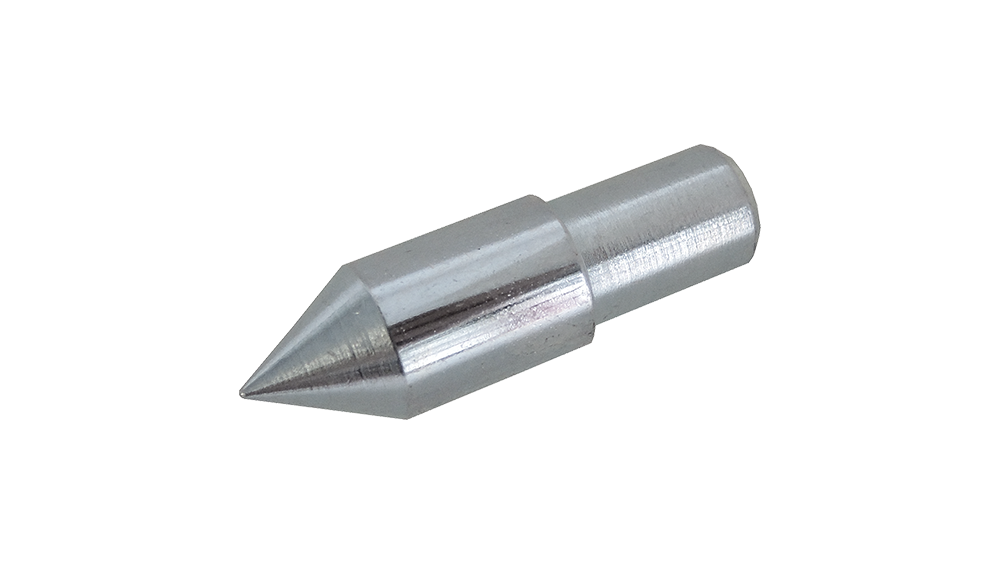

The short, straight measuring probe is ideal for measurements between standard, easily accessible points, where direct, perpendicular contact guarantees the most accurate result.
Application: Direct measurements on narrow or easily accessible surfaces.
Part number: 874020
The Long Measuring Probe provides indispensable assistance in the following areas:
Body Repair: Checking the dimensions of structural elements (e.g., A-, B-pillars, chassis points) to assess damage after an accident.
Straightening Verification: Checking dimensional accuracy after stretching and straightening performed during the repair process, ensuring the vehicle regains its factory geometric parameters.
Quality Assurance: Final check of repair work for compliance with OEM (Original Equipment Manufacturer) specifications.
Metalworking: General precision measurements requiring a measuring tool with a length of 320 mm.
This measuring tool is part of the broad portfolio of professional body repair specialist tools from Wieländer+Schill, which meet quality requirements supported by ISO 9001 and ISO 14001 certifications. Precision measurement is the basis for successful and durable body repair.
