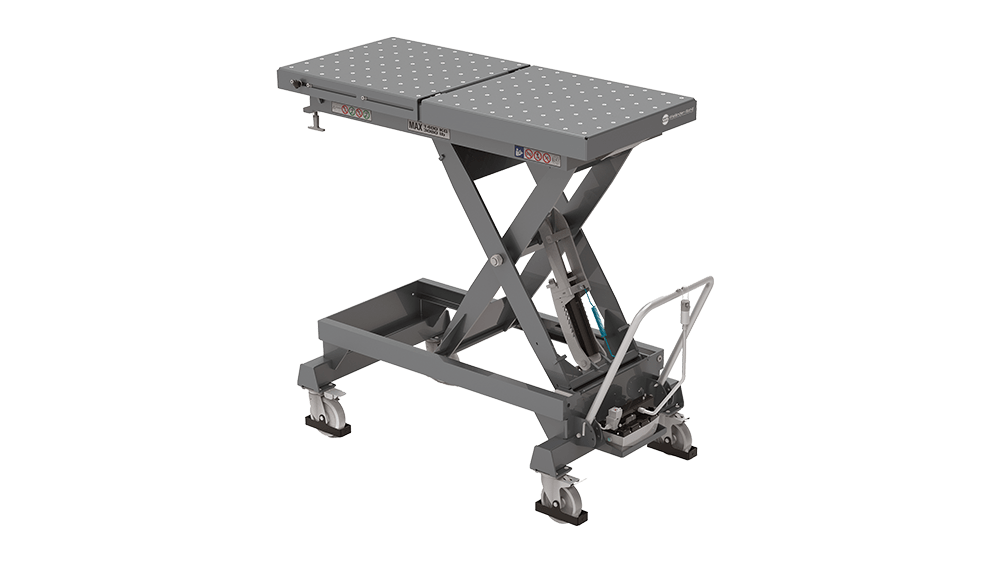

The Wieländer+Schill WS Lifter 1.4T is a versatile, mobile lifting table specifically designed for the safe disassembly and storage of electric vehicle (EV) components such as batteries, motors, and gearboxes. This robust equipment not only provides a lifting function but is also excellently suited for transporting components and serving as a temporary work surface in the workshop environment.
This model allows for convenient operation via remote control, ensuring precise positioning and safe work execution when handling heavy components.
The WS Lifter 1.4T features several functions that optimize bodywork and service work, especially in the field of electric mobility:
High Load Capacity: Maximum load capacity of 1.4 tonnes (1400 kg), making it ideal for handling large and heavy EV components.
Extensive Lifting Height: Provides a lifting height of up to 1800 mm, facilitating access to components underneath the vehicle or those placed higher up.
Safe Operation: Equipped with a mechanical anti-fall safety system, which guarantees the safe and controlled lowering of the load even in the event of a power failure.
Pneumohydraulic Drive: The hydraulic cylinder is operated by a pneumohydraulic pump, which provides reliable and powerful lifting performance.

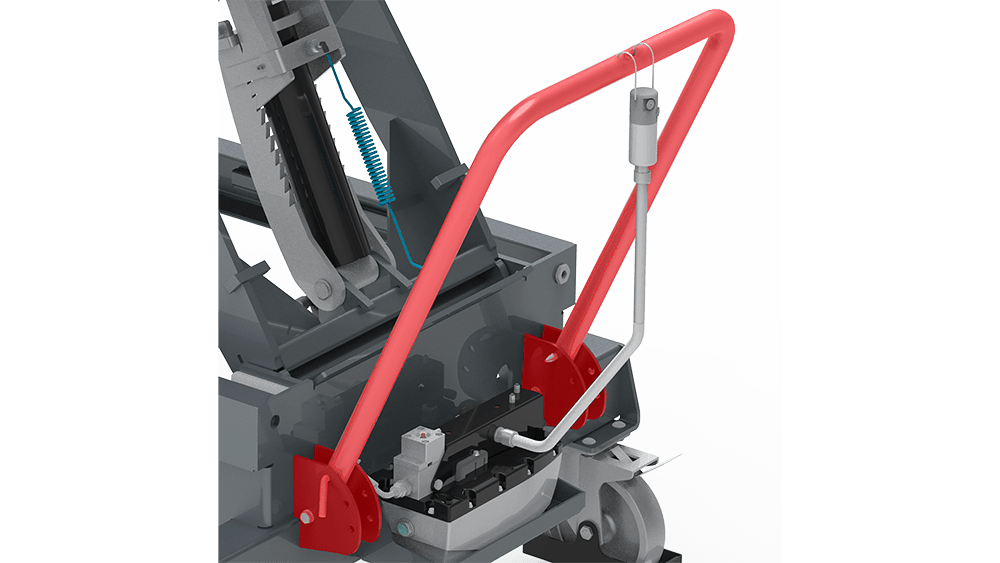

Ergonomic Handling: In addition to convenient control via remote control, the adjustable, 3-stage handle assists with maneuvering.
Tilting Capability: Enables fine-tuning for precise adjustment of the workpiece:
Longitudinal axis tilt angle: +/- 1°
Transverse axis tilt angle: +/- 4.5°
Extendable Work Surface: The dimensions of the surface can be flexibly adapted to different component sizes.
The detailed specifications of the product ensure compliance with the requirements for professional use:
| Property | Value | Note |
|---|---|---|
| Part number | N851025-NV | |
| Maximum Load Capacity | 1.4 t (1400 kg) | |
| Maximum lifting height | 1800 mm | |
| Work surface width | 800 mm | |
| Work surface length (base) | 1830 mm | |
| Work surface length (extended) | 2130 mm | Extendable design |
| Longitudinal axis tilt angle | +/- 1° | |
| Transverse axis tilt angle | +/- 4.5° | |
| Drive | Pneumo-hydraulic pump | |
| Safety system | Mechanical fall arrestor | |
| Handling | Remote control | |
| Castors | 2 pcs 360° rotating casters with directional lock | |
| Castors | 2 pcs 360° rotating casters with locking brake | |
| Handle | Adjustable, 3 levels | |
| Dimensions (L x W x H) | 1860 x 980 x 590 mm | In transport/folded condition |
| Operating pressure | 6 – 8 bar | Compressed air required |
| Weight | 550 kg | |
| Content | 1 darab |
Important Note: Use of the lift table for disassembling and storing batteries, motors, or gearboxes of electric vehicles with optional accessories (not part of the scope of delivery) possible. For this 851026NV JIGS | adapter set | new version required. Always observe the relevant OEM workshop instructions and repair manuals when using the tool.
JIGS | adapter set | new version (Part No.: 851026NV)
This 7-piece adapter set comes with auxiliary bits that allow for adjusting various motor and gearbox heights. This ensures the reliable execution of service and maintenance work.
If you require a different load capacity category, please check out the remote-controlled version of the WS Lifter 1.0T (Part Number: 851028NV), which offers similar functions but has a maximum load capacity of 1.0 ton.
The WS Lifter 1.4T is a reliable, high-load capacity solution for the challenges of modern vehicle repair, increasing workshop efficiency and work safety.
