This detailed product description presents the Wieländer+Schill BTR/BOR Z3 series drill bit, specifically developed for the most demanding metalworking and body repair tasks. This tool is an excellent choice for the precise and efficient machining of high-strength (HSS) and ultra-high-strength (UHSS) steels.
The BTR/BOR Z3 drill bit belongs to the Wieländer+Schill Separating Tools category, specifically strengthening the Drilling Tools segment. Its design and material guarantee a long service life and reliable performance even when drilling the hardest materials.

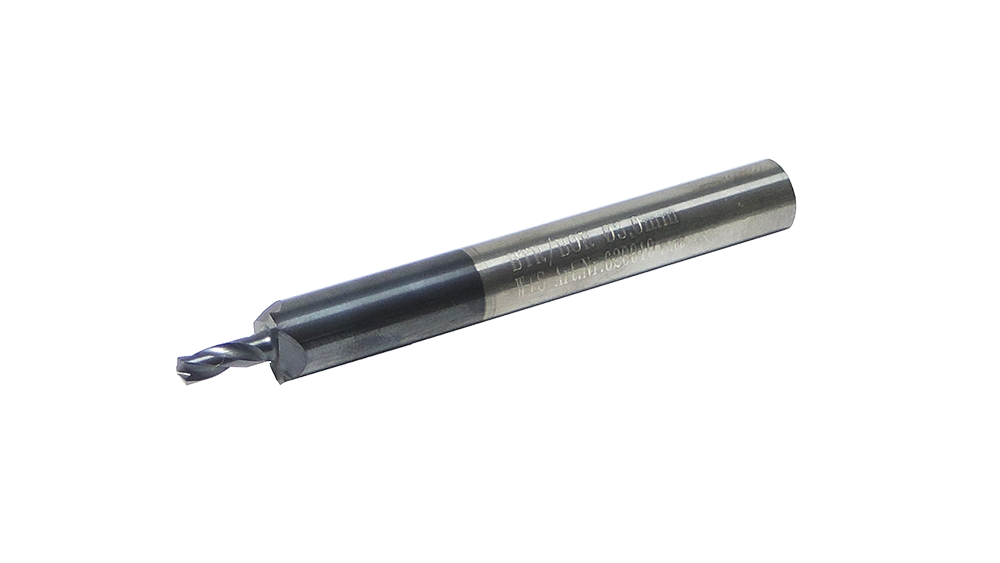

This specific model (part number: 620010) is the 3.0 mm diameter, 70 mm length version, which is ideal for creating precision holes in structural elements where traditional drills quickly wear out or break due to the high strength of the materials. The 3-edge design (Z3) ensures optimal chip evacuation and stability during the drilling process.
Material quality: The drill bit is made from a combination of HSS (High-Speed Steel) and VHM (Tungsten Carbide), which provides unparalleled hardness and wear resistance. This composite material usage enables the drilling through high-strength steels (e.g., modern vehicle body components).
Configuration: The Z3 designation means three cutting edges, which is ideal for harder materials. This design increases the rigidity of the drill and improves chip evacuation, thereby reducing the risk of overheating and increasing hole accuracy.
Hossz: The 70 mm length provides sufficient depth for most body and structural applications while maintaining tool stability.
Precision Drilling: Specifically tailored to the requirements of the body repair industry, where hole size and positioning are critical.
The table below summarizes the specifications for the BTR/BOR Z3 drill bit (part number: 620010):
| Parameter | Value | Note |
|---|---|---|
| Part number | 620010 | Unique Identifier |
| Diameter (Ø) | 3.0 mm | Nominal diameter of the drilled hole |
| Length | 70.0 mm | Total length |
| Number of Flutes | 3 (Z3) | Optimal for hard materials |
| Material | HSS, VHM | High-speed steel with Tungsten Carbide reinforcement |
| Shank diameter | 8.0 mm | The holder diameter |
| Package contents | 1 darab | Package Contents |
| Overall Dimensions (L x W x H) | 77.5 x 16 x 13 mm | Overall dimension of the packaging or the tool |
| Weight | 0.035 kg | Lightweight yet robust design |
The 70 mm long BTR/BOR Z3 drill bit series is also available in several other diameters to meet every specific requirement. The available sizes are as follows:
Ø 3.0 × 70 mm (This product)
Ø 3.2 × 70 mm
Ø 3.5 × 70 mm
Ø 4.0 × 70 mm
Ø 4.2 × 70 mm
Ø 4.8 × 70 mm
Ø 5.0 × 70 mm
Ø 6.0 × 70 mm
Ø 6.5 × 70 mm
Ø 6.7 × 70 mm
Ø 7.0 × 70 mm
Ø 8.0 × 70 mm
Wieländer+Schill is committed to the highest quality standards. Manufacturing processes are carried out under strict quality control, which is supported by the company's ISO 9001 (Quality Management System) and ISO 14001 (Environmental Management System) certifications. This drill bit belongs to the category of professional body repair technologies, ensuring the reliability and durability of the tools in daily, high-demand workshop environments.
This tool is the ideal complement to XSeries professional riveting technologies and other precision disassembly tools, ensuring a complete and efficient repair process.
