Product Identifier: 474005NG
This detailed product description presents the water-cooled accessory C-Arm No. 5 type manufactured by Wielander + Schill, which is specifically designed for InvertaSpot NexGen resistance spot welding machines. This C-arm is an excellent choice for the highest load and most demanding welding applications, where consistent perfect welding results and maximum stability are essential.
The C-Arm No. 5 is an essential accessory for modern automotive repair and semi-industrial work. Its design emphasizes high load capacity, ensuring it maintains its precision and reliability even under intensive, continuous use. The cooling function is crucial for effectively managing the heat load generated during the welding process, thereby extending the electrode life and guaranteeing the quality of the weld spots.
The optimal working range of the arm is 205 mm (height) and 550 mm (width), providing wide accessibility to different points on vehicles, especially the hard-to-reach areas of the bodywork. The combination of a robust structure and carefully selected materials (Aluminum, CuCrZr copper alloy, stainless steel) guarantees long-term, trouble-free operation.
High Load Capacity: A design specifically optimized for high loads, ideal for workshops with high utilization rates.
Consistent Weld Quality: Efficient cooling prevents overheating, which is essential for stable resistance spot welding.
Excellent Accessibility: The 205 x 550 mm working area enables precise access to hard-to-reach points.
Compatibility: Exclusively for the InvertaSpot NexGen designed for use with resistance spot welding machines of the series.
Durable Material Use: Made using Aluminum, CuCrZr (Copper-Chromium-Zirconium), stainless steel, and steel for maximum lifespan.
The precise specifications of the C-Arm No. 5 ensure perfect integration into the existing welding system.
| Property | Value |
|---|---|
| Product Identifier | 474005NG |
| Compatible System | InvertaSpot NexGen |
| Working Area (Width x Height) | 550 mm x 205 mm |
| Length x Width x Height (Overall Dimensions) | 700 x 420 x 70 mm |
| Weight | 7.68 kg |
| Materials | Alu (Aluminum), CuCrZr (Copper Alloy), Rubber, Stainless Steel, Steel |
| Coating | PU (Polyurethane) |
| Content | 1 pc fully assembled C-Arm No. 5 |
| Included Electrode | 1 pc 495667 Electrode (135 mm, with Ø 16 mm electrode holder) |
The C-Arm No. 5 is shipped fully assembled, ready for immediate use, including the following essential component:
1 pc Assembled C-Arm No. 5

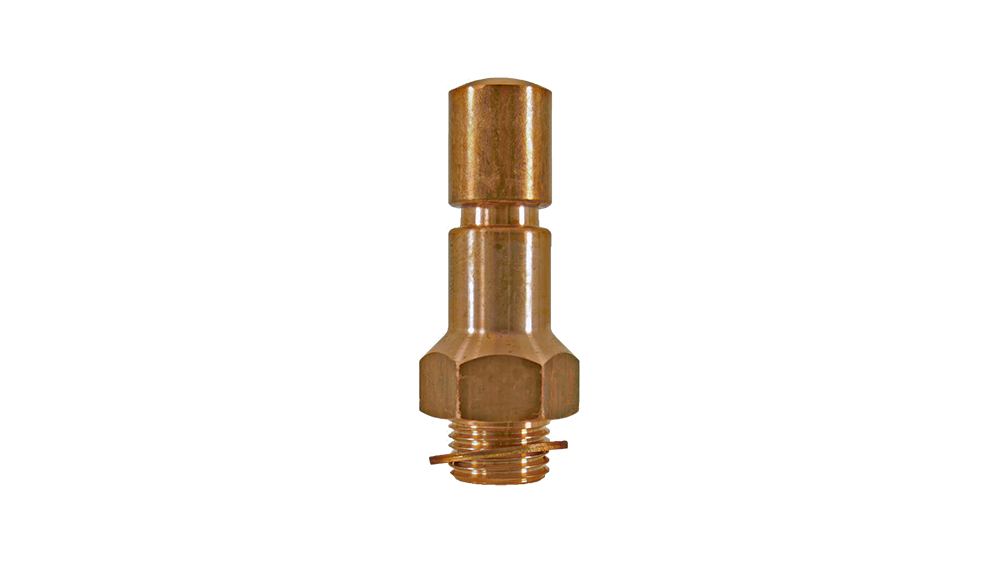

1 pc Electrode Type 495667: 135 mm long, with Ø 16 mm electrode tip.
For maximum flexibility and adaptability to different welding tasks, several accessory electrodes and maintenance tools are recommended for the C-Arm No. 5. These accessories allow for fine-tuning welding parameters and quick replacement of electrode tips.

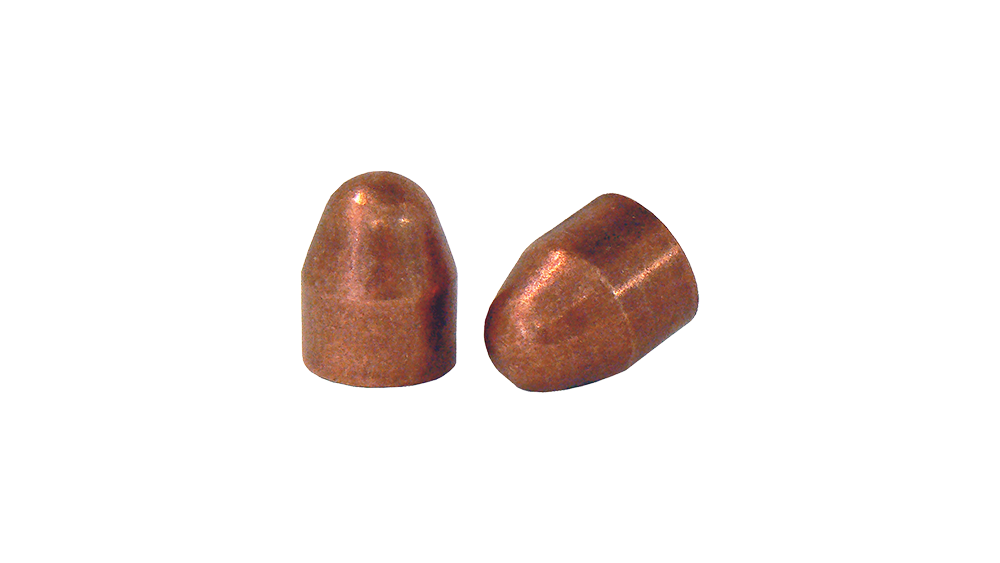

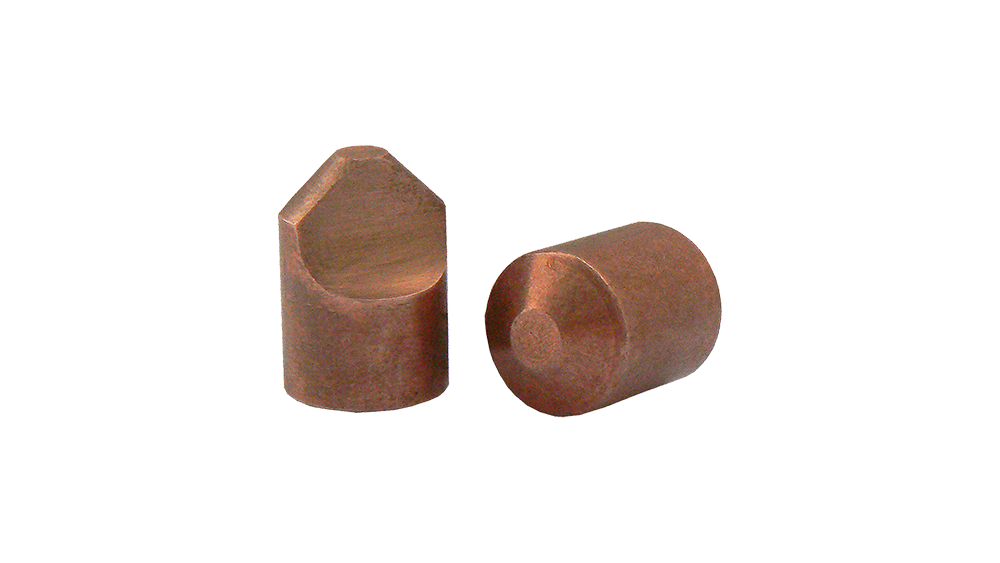

Due to the variety of welding tasks, electrode tips of different geometries are available, all with a Ø 16 mm diameter:
| Product Identifier | Típus | Geometry | Package contents | Description |
|---|---|---|---|---|
| 497102 | Form B + Form H Set | Various | 2 pcs B + 2 pcs H | Electrode tip set for versatile use. |

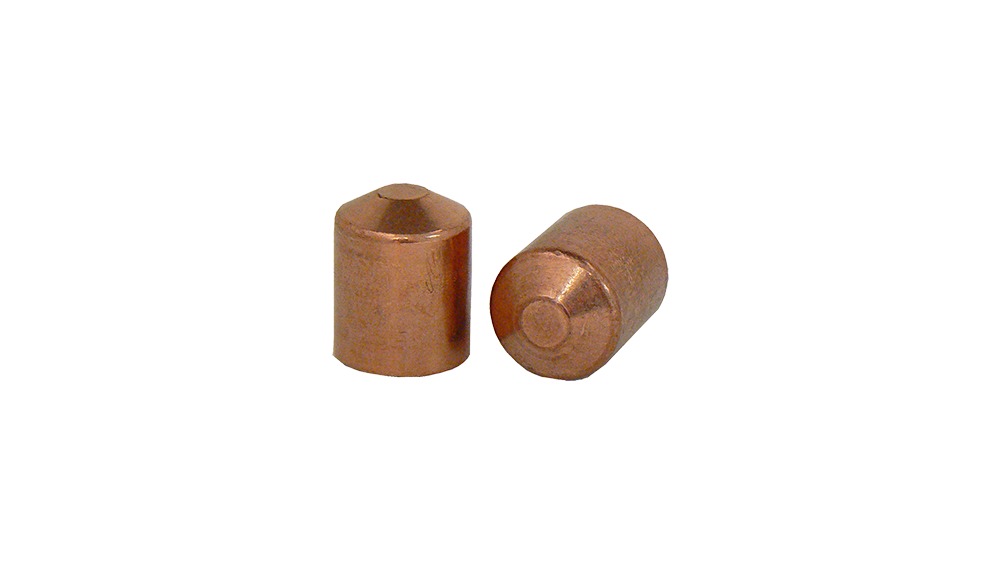

| 497079 | Type B | Flat-Faced | 4 pcs/pack | 20 mm long, dome-flat design. |
| 497081 | Type E | straight | 4 pcs/pack | 20 mm length, E type design. |

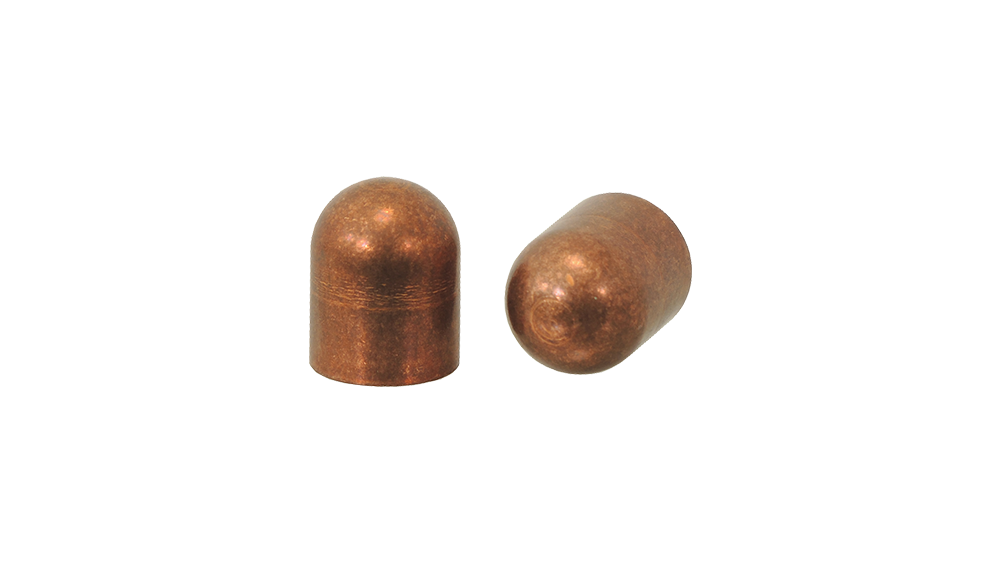

| 497075 | Type F | Round | 4 pcs/pack | 20 mm length, rounded shape. |
| 497076 | Type P | Eccentric | 4 pcs/pack | 20 mm length, eccentric design. |
| 497096 | Type A-32 | Special | 6 pcs/pack | 20 mm length, for automatic programs, exclusively for C-Trafogun GT-V6. |
Regular cleaning of the electrode tips is essential for maintaining weld quality.
This cooled C-Arm No. 5 is an integral part of Wielander + Schill's quality welding technology, meeting even the highest level body repair requirements.
