Product Identifier: 495620
This product is a key component of Wielander + Schill resistance spot welding technology, specifically designed for body repair work. The C-Arm Electrode Holder No. 1 is a high-quality, water-cooled standard C-arm that ensures optimal performance and durability even in the most demanding workshop environments.

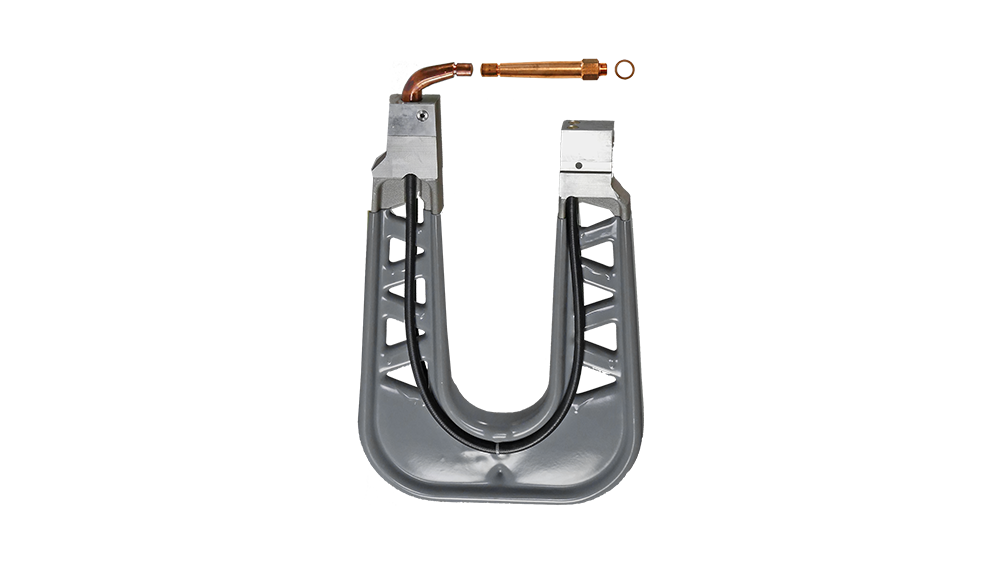

A C-Arm Electrode Holder No. 1 (GT) A robustly designed, water-cooled C-arm ideal for precise resistance spot welding tasks. The device comes standard with a curved C-electrode and 16 mm diameter electrode tips that guarantee welding accuracy.
The water-cooled design is critical during continuous, high-intensity welding cycles as it effectively prevents overheating of the electrode holders. This not only extends the service life of the electrodes but also ensures consistent weld quality throughout the entire work process.
The C-arm design allows access to areas where traditional welding guns would be difficult to position, especially on the internal structural elements of vehicles. The 150 x 70 mm working aperture is ideal for standard spot welding applications where both access and stability are essential.
The product surface features a PU (polyurethane) coating, which increases mechanical resistance and protects the component against corrosion and chemical agents present in the workshop environment.
This standard C-arm prioritizes reliability and efficiency:
Water Cooling: Continuous, optimal temperature regulation for the welding electrodes, which increases productivity and reduces downtime.
Curved C-Electrode: Specially designed shape that improves accessibility for more complex bodywork elements.
Standard Working Area: The 150 x 70 mm window is ideal for satisfying most standard spot welding requirements.
Durable Material Use: The materials used (Aluminum, CuCrZr, Stainless Steel, Steel) guarantee long service life and high load capacity.
PU Coating: Protective layer to increase durability.
The table below details the exact technical specifications of the C-Arm Electrode Holder No. 1 (GT):
| Characteristic | Value | Note |
|---|---|---|
| Product Identifier | 495620 | Factory Part Number |
| Típus | Standard C-arm | For general-purpose welding applications |
| Cooling | water-cooled | Maximum performance and service life |
| Electrode Type | Curved C-electrode | Provides special accessibility |
| Electrode Tip Diameter (Ø) | 16 mm | Accessory for 16 mm electrode tips |
| Working Aperture (Width x Height) | 150 x 70 mm | Weld area size |
| Total Dimensions (L x W x H) | 285 x 144 x 55 mm | Overall physical reach of the arm |
| Material composition | Alu, Aluminum, CuCrZr, Rubber, Stainless Steel, Steel | Combination of robust and durable materials |
| Surface treatment/Coating | PU (Polyurethane) | Excellent protection and durability |
| Weight | 1.640 kg | Net weight of the tool |
| Package Contents | 1 stück | 1 piece C-arm |
This C-arm is an ideal choice for professional body repair shops, especially in the following areas:
Structural Spot Welding: Reinforcement of vehicle chassis structures, stiffeners, and panels.
Hard-to-Reach Areas: The design of the C-arm allows welding in interior corners and narrow gaps where standard welding heads cannot reach.
High-Volume Shops: Water cooling ensures continuous operation without welding parameters degrading due to thermal load.
The optimal accessories and alternatives for the C-Arm Electrode Head No. 1 (495620) are the following products, adapted to different welding requirements:
C-Arm Electrode Head No. 9 (495624): Water-cooled C-arm with a working opening of 120 × 250 mm, equipped with 16 mm electrode tips.
C-Arm Electrode Head No. 3 (495625): A water-cooled version with a larger reach, featuring a 150 × 450 mm working opening.
C-Arm Electrode Head No. 5 (495626): A large-size option of 205 × 550 mm, which also includes 1 pc of electrode 495667 in the scope of delivery.
C-Arm Electrode Head No. 7 (495650): Water-cooled C-arm with dimensions 150 × 200 mm, equipped with 13 mm electrode tips.
C-Arm Electrode Head No. 2 (495602): C-arm specifically designed for wheel arches, with 13 mm electrode tips.
C-Arm Electrode Head No. 6 (495611): Compact, water-cooled model of 120 × 120 mm with 16 mm tips.
C-Arm Electrode Head No. 8 (495614): Custom-made (manufactured to individual order) C-arm with dimensions 290 × 760 mm, with 16 mm tips. Please note that the exchange and return of custom-made products are excluded.
C-Arm Electrode Head No. 4 (495615): Larger version, water-cooled, 350 × 450 mm with 16 mm tips.
C-Arm Set No. 2 + No. 3 (495630): Two-piece set containing the 495602 C-arm ideal for wheel arches and the 495625 C-arm measuring 150 × 450 mm.
C-Arm Electrode Holder with Mechanism, No. 10 (495604): This accessory features a tilting mechanism and includes a finger-shaped electrode and a flat electrode. It is specifically optimized for wheel arches where traditional electrodes do not fit, while guaranteeing the full functionality of the automatic mode.
C-Arm Electrode Holder with Mechanism (495688): It features concentric electrodes that push the welding spot outwards from the center, enabling welding on very narrow metal strips and in every corner.
This C-Arm Electrode Head No. 1 is the cornerstone of the Wielander + Schill welding technology portfolio, providing reliable performance for modern automotive repair requirements.
