The Wieländer+Schill measuring rod holder, part number 874027, is a precision instrument specifically developed for body measurements and inspection of repair processes. This high-quality holder ensures stable and precise positioning of the measuring rods, essential for reliable assessment of structural damage and for post-straightening dimension checks.
This accessory is part of the Body Repair Technology and Metal Processing belongs to the category and is an integral part of precision measurement systems.
The fundamental function of the measuring rod holder is to rigidly fasten the attached measuring rods, thereby minimizing the potential for measurement inaccuracy that even the slightest displacement can cause. It is excellently suited for comparing the original dimensions of body parts when assessing the post-damage condition, as well as for documenting the results achieved during the repair process.
The holder's design guarantees a long service life and reliable operation even under intense workshop conditions.
The table below details the specifications for the measuring rod holder, part number 874027:
| Property | Value |
|---|---|
| Part number | 874027 |
| Length | 65 mm |
| Overall dimensions (Length x Width x Height) | 23.8 x 23.8 x 67 mm |
| Material | Alu |
| Weight | 0.062 kg |
Precision: Rigid fastening is crucial for millimeter-accurate measurements, which are essential for professional body repair.
Durability: The aluminum construction provides excellent resistance to the physical demands typical in a workshop environment.
Compatibility: Optimized specifically for elements (measuring rods) of the Wieländer+Schill measurement system.
For optimal use of the measuring rod holder and to complete the measurement system setup, the following accessories are recommended, which are necessary for performing precision measurements:

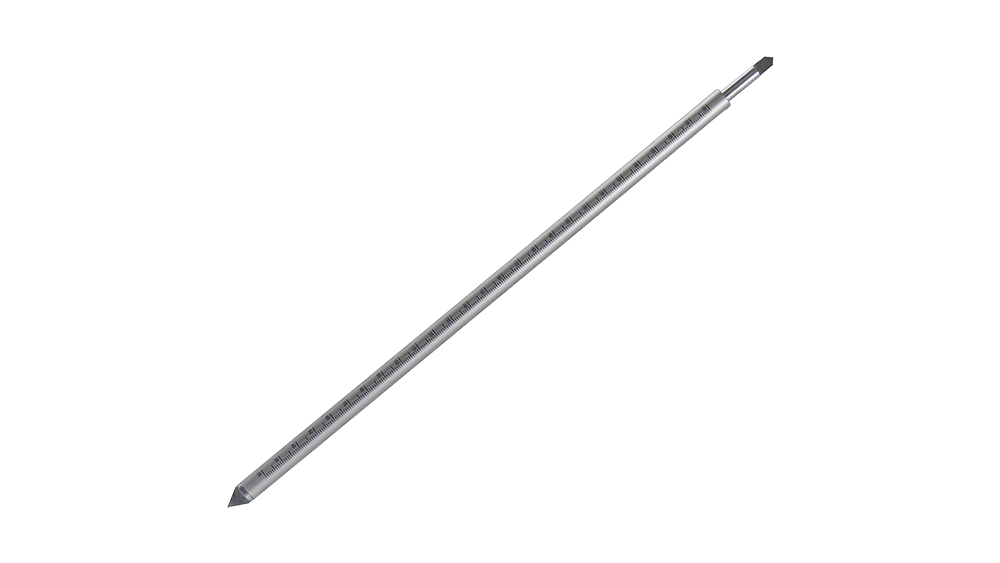

This longer measuring rod allows access to more distant points and the measurement of larger body panels. The measuring rod enables accurate and reliable measurement of structural damage, as well as dimension verification after straightening.
The purpose of the fixing screw is to rigidly secure the measuring rods to the holder, preventing accidental displacement or misalignment of the rods during measurement. This small component ensures the integrity of the system.
This specially designed measuring tip allows measurements to be taken in hard-to-reach areas and to determine distances between points on non-flush surfaces. It is ideal for working in tight gaps and complex geometric areas.

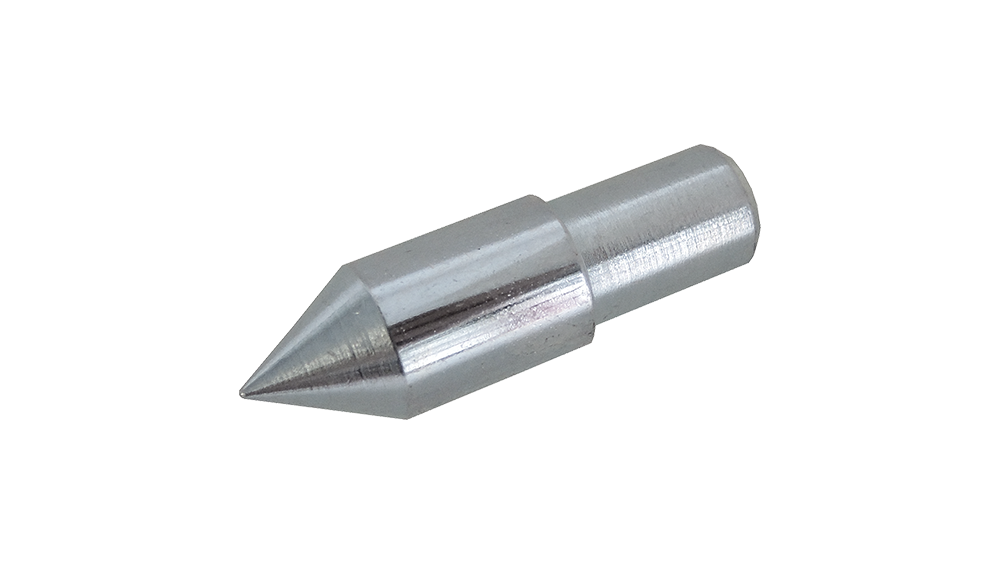

Similar to the angled version, this short, straight measuring tip is also used for measuring hard-to-reach points, but it offers an optimal solution for straight-line measurements where access is limited.
In summary: The Measuring Rod Holder, part number 874027, is a robust base piece made of aluminum, essential for the precise operation of the Wieländer+Schill measurement system. The 65 mm length and compact dimensions of 23.8 x 23.8 x 67 mm ensure easy handling, while the weight of only 0.062 kg places minimal load during measurement. This tool guarantees that all dimensional data is recorded with the highest accuracy during body repairs.
