This product description presents a specially designed cutting disc, which is part of the Wieländer+Schill professional body repair tool range, and is ideal as an accessory for the LaserCutter LC 04 system. This high-quality tool ensures precise machining and a long service life for the most demanding automotive body repair tasks.
A Cutting Disc No. 1 an extremely precise cutting tool, specifically designed for the efficient and clean separation of body panels. The disc is made of special hard metal (carbide) material, which guarantees excellent cutting performance and tool durability even under high load.
The surface of the disc is provided with a duplex grind (duplex grind), which optimizes the cutting process, reduces friction, and ensures a smooth, burr-free cutting surface. This design is particularly important when machining modern high-strength steels (HSS) and other body materials where precision is crucial.
This cutting disc is optimized for the Wieländer+Schill LaserCutter LC 04 separator tool, and can be used with the corresponding mandrels (e.g., part numbers 640005 or 640010) to achieve the desired cutting depth.
Precision Machining: The hard metal material and the duplex grind guarantee extremely precise and clean cuts.
Long Lifespan: The special material composition is resistant to high thermal stress and mechanical wear.
System Compatibility: Perfectly fits the LaserCutter LC 04 system, ensuring smooth operation.
Optimized Performance: Specifically developed for separating body panels, minimizing the risk of damage to surrounding areas.
The table below details the exact physical and material characteristics of the cutting disc:
| Property | Value | Note |
|---|---|---|
| Part number | 640025 | Product Identifier |
| Name | Cutting Disc No. 1 | |
| Diameter (Ø) | 25 mm | The outer diameter of the disc |
| Thickness (Width) | 4 mm | The width of the cutting line |
| Material | Hard Metal (Carbide) | High hardness and wear resistance |
| Grinding Type | Duplex Grind | Optimized cutting profile |
| Weight | 0.030 kg | Extremely lightweight design |
| Dimensions (Length x Width x Height) | 30 x 30 x 10 mm | Refers to the packaging or storage size |
| Package contents | 1 darab | Contents of the package |
For maximum efficiency and achieving different cutting depths, we recommend the following accessories for the 25 mm diameter cutting disc:
The cutting disc must be mounted on a mandrel (pin), which determines the cutting depth.
| Accessory Part Number | Description | Maximum Cutting Depth |
|---|---|---|

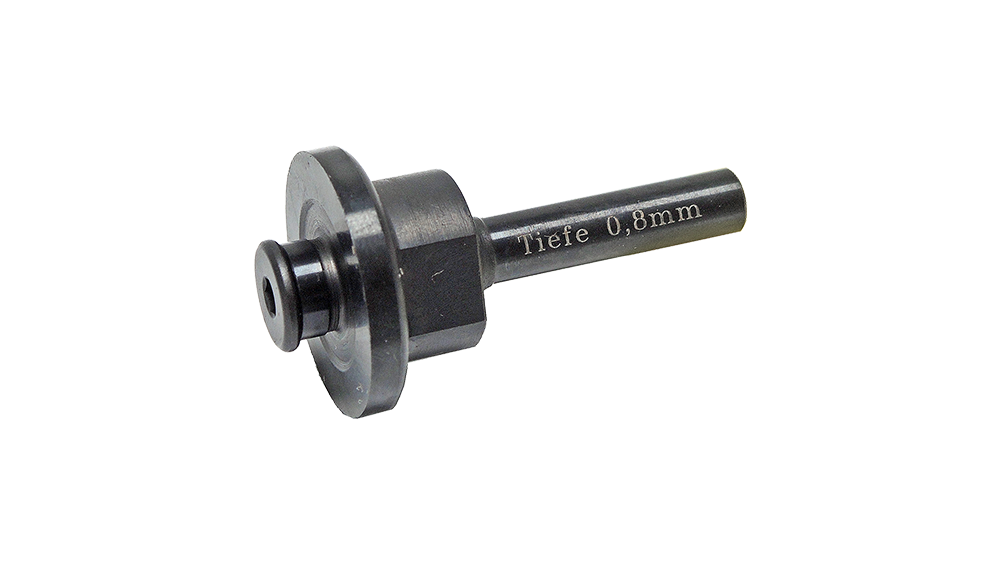

| 640005 | Mandrel for Ø 25 mm cutting disc | 0.8 mm |
| 640010 | Mandrel for Ø 25 mm cutting disc | 1.0 mm |
For safe operation, the use of appropriate protective equipment is essential.
| Accessory Part Number | Description | Compatibility |
|---|---|---|

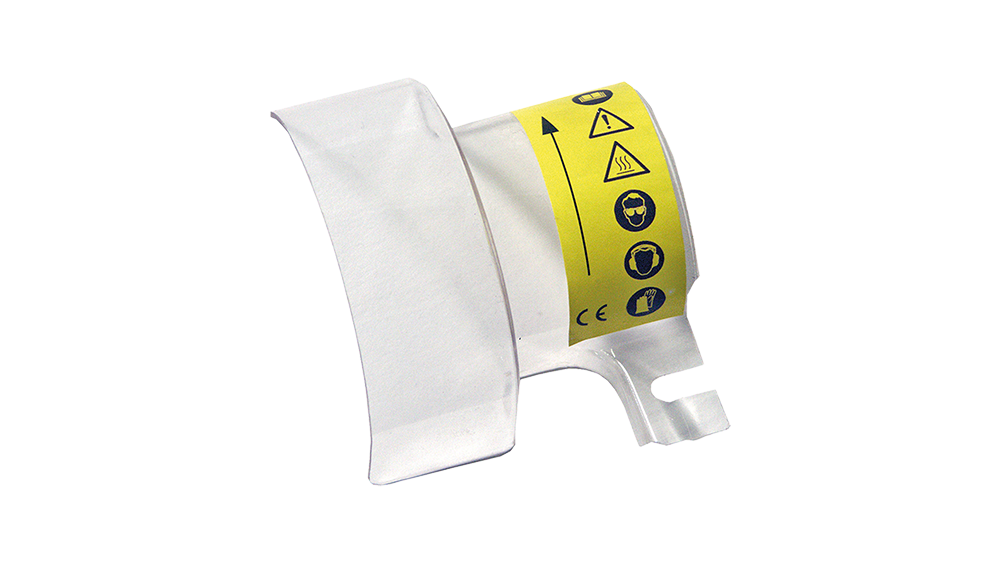

| 648000 | Protective shield for LC 04 | For 25 mm cutting discs |
The protective shield is made of transparent glass, which ensures excellent visibility of the cutting surface while providing maximum protection.
To increase cutting performance and extend tool life, the use of silicone-free cutting oil is recommended, especially when machining high-strength automotive steels.
| Accessory Part Number | Product | Package contents | Advantages |
|---|---|---|---|

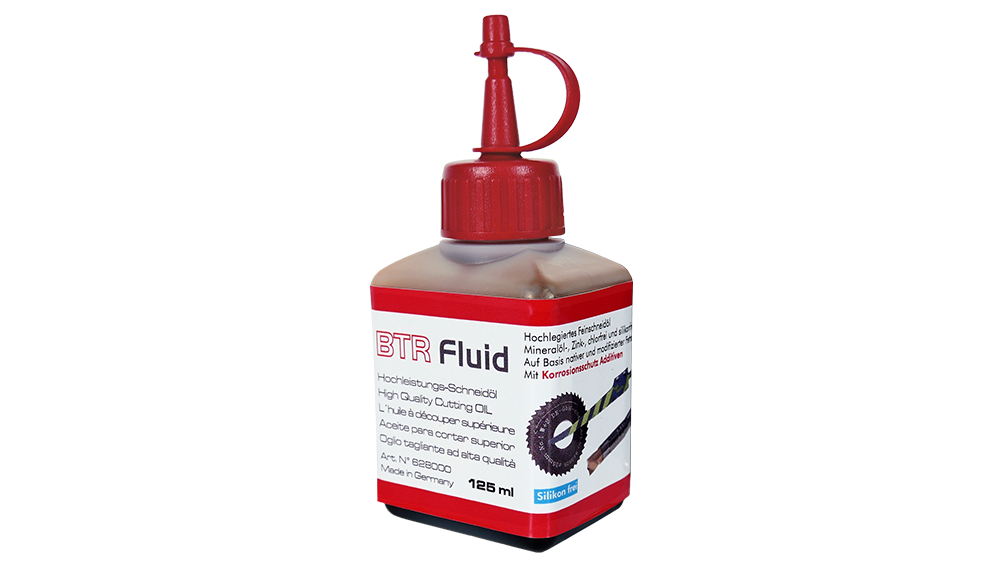

| 628000 | BTR/BOR Fluid | 125 ml | Increases the service life of cutters, drills, and saws, ensuring optimal cutting performance. |
This cutting disc is primarily used for the Wieländer+Schill LaserCutter LC 04 to be used together with the separation system. Ideal choice for:
For the precise cutting of body parts for repair purposes.
For cutting high-strength steels, high-strength steel alloys, and other special metals.
In applications where minimal heat impact and maximum precision are required.
The product belongs to the Wieländer+Schill category of „Separating Tools”, reinforcing the company's commitment to professional body repair technologies.
