This detailed product description presents the Wieländer+Schill premium quality oval punch plier, specifically developed for body repair work, especially for MIG welding preparations. This tool offers an ideal solution for quickly and precisely creating oval holes in body panels, significantly speeding up the work process.

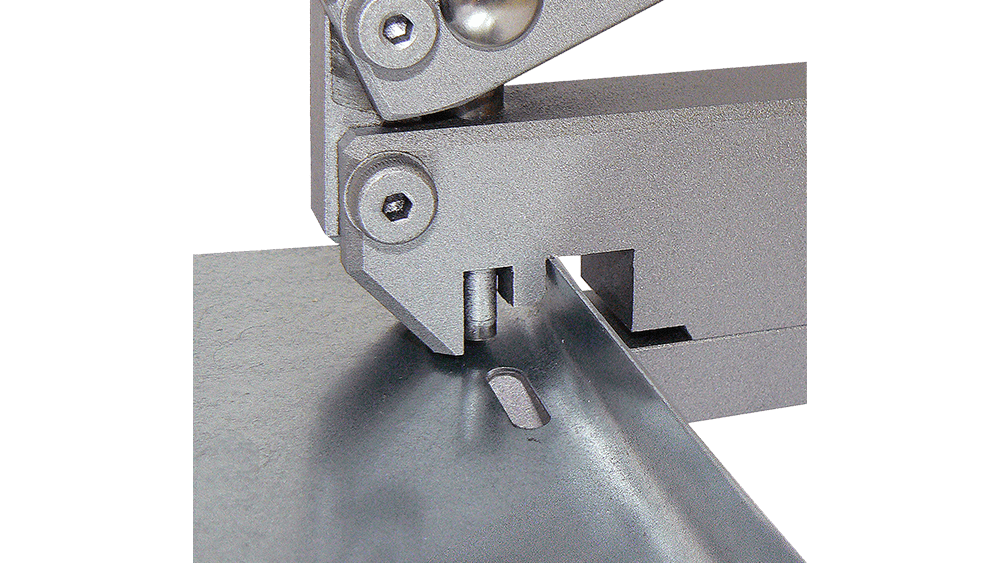

The oval punch plier (Slot punch) with article number 561002 belongs to the category of body building and metalworking tools, and is an essential device for preparing body components. It is specifically designed to quickly and easily create 6 x 20 mm oval holes, which is essential during MIG brazing work where overlapping and fixing sheets requires precise holes.
Main Advantages:
Efficiency: Enables quick and effortless work, significantly reducing the preparation time for body components.
Excellent Quality Cut: Creates precise, clean oval holes, eliminating the need for previously required double holes.
Robust Construction: Cutting elements made from HSS (High-Speed Steel) ensure long service life and reliable performance.
Wide Applicability: Ideal for „steel 37” type sheets.
The table below summarizes the critical technical parameters of the product, which guarantee professional use and durability.
| Property | Value | Note |
|---|---|---|
| Part number | 561002 | Unique Identifier |
| Function | Oval hole punching | Preparation for MIG welding |
| Hole Size (Ø Stanzlangloch) | 6 x 20 mm | Precise oval size |
| Maximum Sheet Thickness | 1.5 mm | Recommended maximum material thickness |
| Applicable Material | Steel type 37 sheet | Optimized specifically for this steel grade |
| Clamping Range (Clamping range) | 0 – 1.5 mm | Tool clamping capacity |
| Work window (Work window) | 2 x 30 mm | The working area of the tool |
| Total Length (Length) | 430 mm | Ergonomic handles for appropriate power transmission |
| Total Dimensions (Length x Width x Height) | 345 x 83 x 26 mm | Physical dimensions of the tool |
| Material | HSS, Steel | Material of the cutting elements and the body |
| Weight | 2.200 kg | Robust, stable weight for precise work |
| Package Contents | 1 piece (1 stück, 1 piece) | One unit per package |
This punch plier is an indispensable tool in metalworking and body repair, especially in situations where sheets need to be overlapped and welded. .
In modern body repair, MIG brazing (instead of spot welding) is an increasingly common technique. For perfect adhesion of two overlapped sheets and for the quality of the weld seam, it is essential to have holes of appropriate size and shape at the connection points. The 6 x 20 mm oval shape is ideal for positioning the welding gun electrode, ensuring necessary access and a solid bond.
Unlike traditional methods, which often require multiple steps (e.g., drilling, then deburring), this plier creates the desired oval shape in a single, quick motion. This is particularly advantageous for a large volume of repairs or when access is limited. The 430 mm long levers ensure sufficient leverage for the effortless cutting of 1.5 mm thick sheet steel.
The tool is specifically calibrated for „steel 37” type sheets. This standard type of steel is common in automotive body parts. Adhering to the maximum thickness limit of 1.5 mm guarantees the integrity of the tool and the quality of the holes. HSS (High-Speed Steel) cutting edges provide exceptional hardness and wear resistance, even with frequent use.
Wieländer+Schill products are guarantees of professional quality. The tools comply with strict quality management standards, as confirmed by ISO 9001 certification. Precision manufacturing ensures that the tool performs its task accurately over the long term, minimizing maintenance requirements. The weight of 2.200 kg reflects the massive construction of the tool, which provides stability during the punching process.
This oval punch plier is an indispensable accessory for any workshop performing high-quality and fast body repair work.
