This product is a comprehensive accessory kit, specially developed for the PSP GT type single-sided spot welding gun. The goal of the kit is to ensure the immediate availability of essential and special consumables required for welding processes, thereby maximizing workflow efficiency and welding quality.
Offered by Wieländer+Schill, this selection is an ideal complement for professional body repair shops where spot welding technology is a key element. The carefully selected components of the kit guarantee compatibility and reliable performance with the PSP GT system.
Part number: 478002

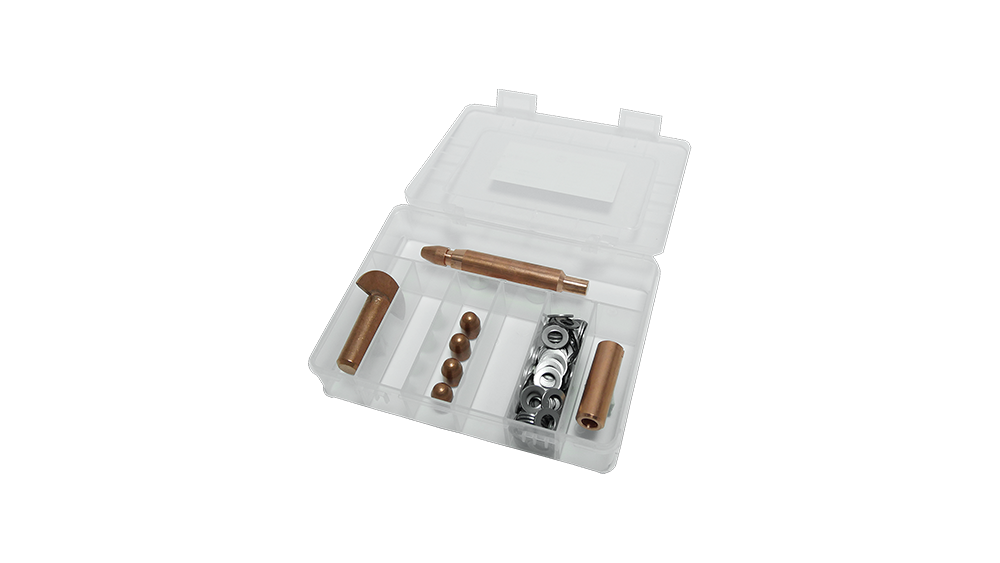

This assortment box (accessory kit) is designed for the PSP GT single-sided spot welding gun and contains the most frequently used consumables and accessories. The box ensures organized storage, facilitating quick access during repairs.
The kit contains the following items, ensuring quick and efficient maintenance and operation of the welding head:
| Quantity | Part number | Designation | Description / Specification |
|---|---|---|---|
| 1 stück | N/A | Assortment Box | An organized box for storing accessories. |
| 1 stück | 497014 | Electrode | Semi-circular electrode for wiggle wire. |
| 1 stück | 497015 | Electrode | Electrode dedicated to welding washers. |
| 1 stück | 297009 | Washers | Washers according to DIN 125 standard. Size: Ø 8.4/16 mm. Packaging: 100 pcs/PU. |
| 1 stück | 497016 | Electrode Caps | Electrode caps with a diameter of Ø 13 mm. Type E. Packaging: 4 pcs/PU. |
| 1 stück | 490007 | Electrode | Copper base material electrode, specifically for PSP GT guns. |
The quality of spot welding heavily depends on the condition and type of electrodes used. This kit provides support for the following surfaces:
The kit includes two special electrodes optimized for different fastening techniques:
Wiggle Wire Electrode (497014): This semi-circular electrode is ideal for temporarily or permanently fastening body panels when applying wiggle wire. The special shape ensures proper contact surface and stable arc formation along the wire.
Washer Welding Electrode (497015): This electrode is specifically designed for welding auxiliary washers (e.g., pulling tabs). The precise design minimizes damage to the workpiece while creating a strong, reliable bond.
The kit includes a basic, high-quality copper electrode (490007) designed for the PSP GT gun. The excellent electrical conductivity of the copper is crucial for efficient current transfer and creating fast, clean weld spots. This electrode is the cornerstone of standard spot welding tasks.
Type E electrode caps with a 13 mm diameter (4 pcs) protect the electrode body and ensure the optimal geometry of the welding surface. If the caps wear out, replacing them is essential for continuous, high-quality work. The set of 4 provides sufficient stock for quick replacement.
The set contains 100 pieces of DIN 125 standard washers, size Ø 8.4/16 mm. These washers are essential for dent pulling technologies, where the welded washer is later used with a pulling tool (e.g., a slide hammer) to pull out body elements. The standard size guarantees compatibility with pulling tools available on the market.
This assortment box is the ideal choice:
Body Repair: Especially recommended for repairing damaged panels where weld spots need to be created or special fixations performed.
Workshop Flexibility: Storing various types of consumables in one box increases workshop efficiency, as there is no need to search separately for the required parts.
Quality Assurance: Using original parts that comply with factory specifications ensures the welding quality guaranteed by Wieländer+Schill and maintains the tool's lifespan.
A PSP GT single-sided spot welding gun a professional tool whose performance is directly dependent on the quality of maintenance. This accessory kit ensures that critical consumables are always at hand, minimizing downtime.
In summary: The kit with item number 478002 is a well-thought-out solution that offers the essential consumables required for the PSP GT spot welding gun in a single, easy-to-handle package.
