This professional diagnostic tool has been specifically developed for the precise measurement of the return pressure of modern Common Rail (CR) injectors, especially piezoelectric injectors. The equipment is essential for the proper inspection and maintenance of diesel engine fuel supply systems, ensuring optimal injector performance and preventing damage.
In Common Rail systems, measuring the return flow rate is critically important for assessing the condition of the check valves and verifying system integrity. In the case of piezo injectors, deviations in return pressure can directly affect injection quantity and engine performance. This device enables workshops to quickly and accurately identify faulty injectors, minimizing unnecessary replacements and diagnostic time.
Precise Diagnostics: Enables the precise measurement of the return flow pressure of Common Rail injectors, which is crucial for assessing the health of the entire system.
Piezo Injector Compatibility: Specifically suitable for testing more complex piezo CR injectors where traditional methods are insufficient.
Robust Construction: The device has a durable design, resistant to the rigors of the workshop environment, guaranteeing a long service life.
Simple Operation: Thanks to its intuitive design, it can be quickly commissioned and used, even for complex measurements.
Integrated Measuring Tools: The set includes the necessary pressure gauges and connectors for wide-ranging compatibility.
The product possesses technical parameters that meet the highest professional requirements, guaranteeing reliable and repeatable measurement results.
| Parameter | Value | Note |
|---|---|---|
| Field of application | Common Rail (CR) systems | Especially suitable for Piezo injectors |
| Measured Parameter | Return Pressure (Return Pressure) | For checking the condition of the check valves |
| Display type | Analogue pressure gauge | High-precision, easily readable scale |
| Measurement range | Detailed specifications according to the included adapters and manual | Generally from 0 to 10 bar or higher range |
| Connections | Quick connectors of various sizes and types | For the most common CR injectors |
| Housing Material | In a heavy-duty plastic or metal carrying case | Provides protection during transport and storage |
| Accessories | Complete set of adapters, hoses, connectors | All necessary items found in the box |

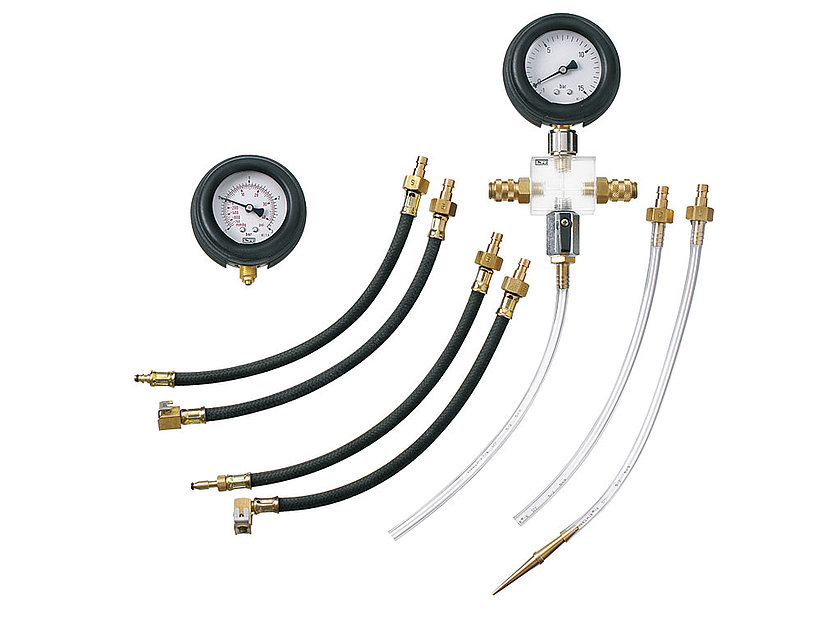

This return pressure gauge set offers a comprehensive solution for testing CR systems. The components included in the package enable quick and safe connection to the vehicle's fuel supply system.
1. Pressure Gauge Unit:
The central element is a high-precision, calibrated pressure gauge that visually displays the return pressure. This visual feedback allows the mechanic to immediately detect values outside the normal range.
2. Adapters and Connectors:
The kit contains several special adapters that ensure compatibility with Common Rail systems from various manufacturers (e.g., Bosch, Delphi, Denso). These connectors can be quickly and leak-free attached to the injector's return line.
3. Measuring Hoses:
The flexible yet durable pressure-resistant hoses ensure the correct distance to the pressure gauge while resisting diesel fuels and the pressure present in the system.
4. Carrying Case:

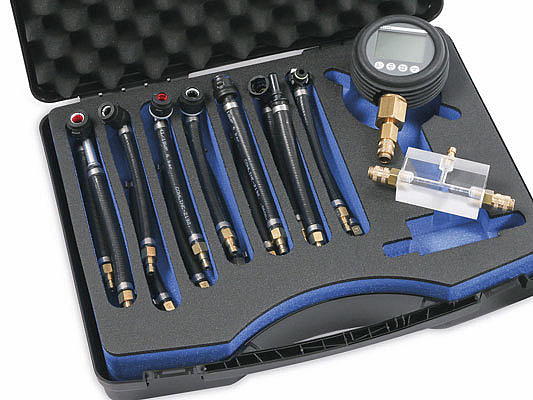

Every component is supplied in a robust, form-fitted carrying case. This not only simplifies storage but also protects the precision measuring tools from damage during movement within the workshop.
This test bench is the ideal choice for any service dealing with diesel Common Rail systems, with a particular focus on the higher added value piezo technology.
Significance of Measuring Return Flow:
In Common Rail systems, the injector return flow rate (or return pressure) indicates how efficiently the fuel returns to the fuel tank. If this flow rate is too high or too low, it may indicate the following problems:
Too high return pressure: Often indicates a malfunction or sticking of the return valve, which can cause inaccuracies in the injection timing.
Too low return pressure: May indicate a leak in the injector body or connections, leading to a drop in system pressure, thus resulting in reduced engine performance.
A quick check with the device helps prevent expensive injector replacements if the issue is just a simple sealing error or a stuck valve. Based on accurate measurement, the service can perform targeted repairs.
This product perfectly complements the following workshop equipment, also available:
Common Rail Injector Return Flow Testers: When used together with volumetric measuring devices, we can get a complete picture of the injectors' condition.
High-Pressure Test Benches: Devices for checking the maximum pressure of the system.
Fuel Identification Tools: For checking the correct fuel usage.
Digital Thermometers: For monitoring the system temperature, which also affects the accuracy of the measurements.
This high-pressure test bench is a cornerstone of the modern diesel technology diagnostic toolkit, bringing accuracy, reliability, and efficiency to workshop operations.
