Consul 1-Ram Inground (In-ground Installable) Lift, 1.40 MDA
The Consul 1-Ram 1.40 MDA is a high-quality, single-cylinder, in-ground installable vehicle lift, specifically designed to meet the demands of the most challenging workshop environments, especially car wash bays operational requirements. With a lifting height of 1800 mm and a slim design, it offers an ideal solution for lifting vehicles, even when existing cylinder pits have narrow dimensions.

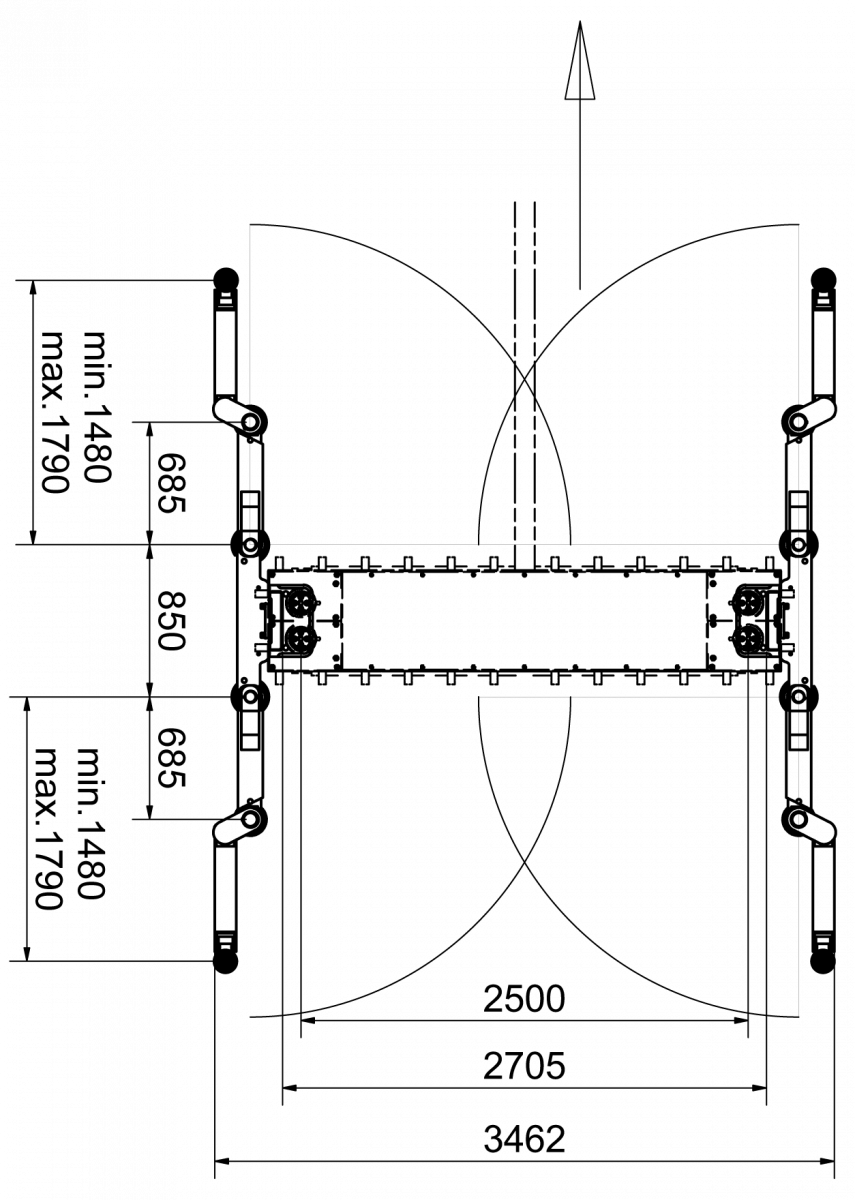

This lifting system provides maximum flexibility in handling vehicle weights, up to 4000 kg total weight, provided that the appropriate lifting frame (chassis) is selected for it. It is important to note that the lift must always be combined with a separate chassis usable.
Key Features and Advantages
This model prioritizes reliability, durability, and safety, making it an ideal choice for professional services:
- Specifically Designed for Car Wash Bays: The lift's design resists wet environments, ensuring long service life and reliable operation in areas exposed to high humidity or direct water contact.
- Compact and Slim Design: The design also allows for installation into older, narrower cylinder pits, minimizing modification requirements.
- Hard Chrome Plated Cylinder: The hydraulic cylinder surface is hard chrome plated, which guarantees excellent corrosion protection and smooth, wear-resistant operation.
- Electro-hydraulic Drive: The drive unit is housed in a separate oil reservoir, allowing for optimal heat dissipation and easy maintenance.
- Waterproof Control Unit: The control unit is located in a separate housing which has an IP65 protection rating ensuring guaranteed protection against splashing water and dust, ideal for wet locations.
- Anti-Rotation Mechanism: The built-in anti-rotation mechanism ensures that the raised vehicle remains stable during the lifting and lowering process.
- Full Compliance with Standards: The lift is equipped with with GS certification, meeting the DIN EN 1493 standard, and provides CE marked certification, which attests to compliance with the highest European safety and quality standards.
Technical Data
The table below details the critical technical parameters of the Consul 1-Ram 1.40 MDA lift:
| Characteristic |
Value |
Note |
| Item Number (SKU) |
266353 |
|
| Manufacturer Number (HAN) |
9553 |
|
| Category |
Single Cylinder In-Ground Lifts |
|
| Rated load capacity |
max. 4,000 kg |
Depending on the type of chassis used. |
| Lifting height |
1,800 mm (adjustable) |
|
| Lifting Time (loaded) |
approx. 40 seconds |
|
| Tápellátás |
400 V / 50 Hz |
Three-phase mains supply required. |
| Drive Power |
2.2 kW |
|
| Fuse Protection |
16 A slow-blow |
|
| Oil Requirement |
approx. 80 liters |
For 1,800 mm stroke length. |
| Cylinder Diameter |
ca. 180 mm |
|
| Control Unit Protection |
IP65 |
Suitable for wet areas. |
Accessories and Add-ons
For maximum functionality and to meet service requirements, numerous accessories are available for the lift (these must be ordered separately):
Basic Installation Components
- Fixing Rails: 1 set of fixing rails and fixing material is part of the scope of delivery.
- Installation Cassette: Installation cassette designed for 1,800 mm stroke length (available under a separate part number), which is essential for in-ground installation.
Optional Accessories
- Cantilever Grid Covering: Grid covering available in a 2 x 4 meter size, including sub-structure, which allows for the restoration of the full floor surface when the lift is not in use.
- Cantilever Hydraulic Oil (5-liter tank): HLP 22 quality hydraulic oil, suitable for all Consul hydraulic drive lifts. The required quantity depends on the type of lift.
- Leakage Oil Display: Can only be used in conjunction with the installation cassette part number 28707.8, serving for the visual monitoring of hydraulic system leakage.
- Control Unit According to OEM Standard: Special control unit that complies with OEM (Original Equipment Manufacturer) industry standards. The OEM designation is required upon ordering.
Documentation
Detailed technical and installation documentation is available for the product in PDF format:
- Product Information Brochure: Detailed overview of the lift's functions.
- Foundation Plan: Precise installation drawings and dimensions for professional installation.
This Consul 1-Ram 1.40 MDA is a robust, reliable solution that meets even the strictest industrial requirements, significantly increasing the efficiency of your workshop, especially during vehicle washing and maintenance processes.
