The Consul 4-post lift 4.55 is a robust and reliable lifting system specifically designed for lifting passenger cars and commercial vehicles, as well as for wheel alignment. It is also excellently suited for handling vehicles with long wheelbases, with a maximum load capacity of 5,500 kg. This model combines reliability, precise operation, and user-friendly design, making it an ideal choice for modern workshops.
The Consul 4.55 lift incorporates several design elements that enhance safety, efficiency, and usability:
Low Noise Hydraulic System: The in-oil hydraulic drive operates extremely quietly, contributing to a more pleasant working environment.
Electro-hydraulic Control: A precise and easily operable control system ensures smooth lifting and lowering processes.
Operating Direction: The control is located on the rear left side, corresponding to the vehicle's entry direction, optimizing the operator's position.
Safety Features:
Detachable Main Switch: It features a main switch lockable according to CE requirements for the safe disconnection of the main power supply.
Acoustic Foot Protection: An audible warning signal ensures safe operation underneath the lift.
Hydraulic Tensioning Cylinder: The fundamental element of the system for stable lifting.
Slack Cable, Cable Break Safety, and Anti-Fall Protection: A redundant mechanical and hydraulic safety system guarantees vehicle stability in every position.

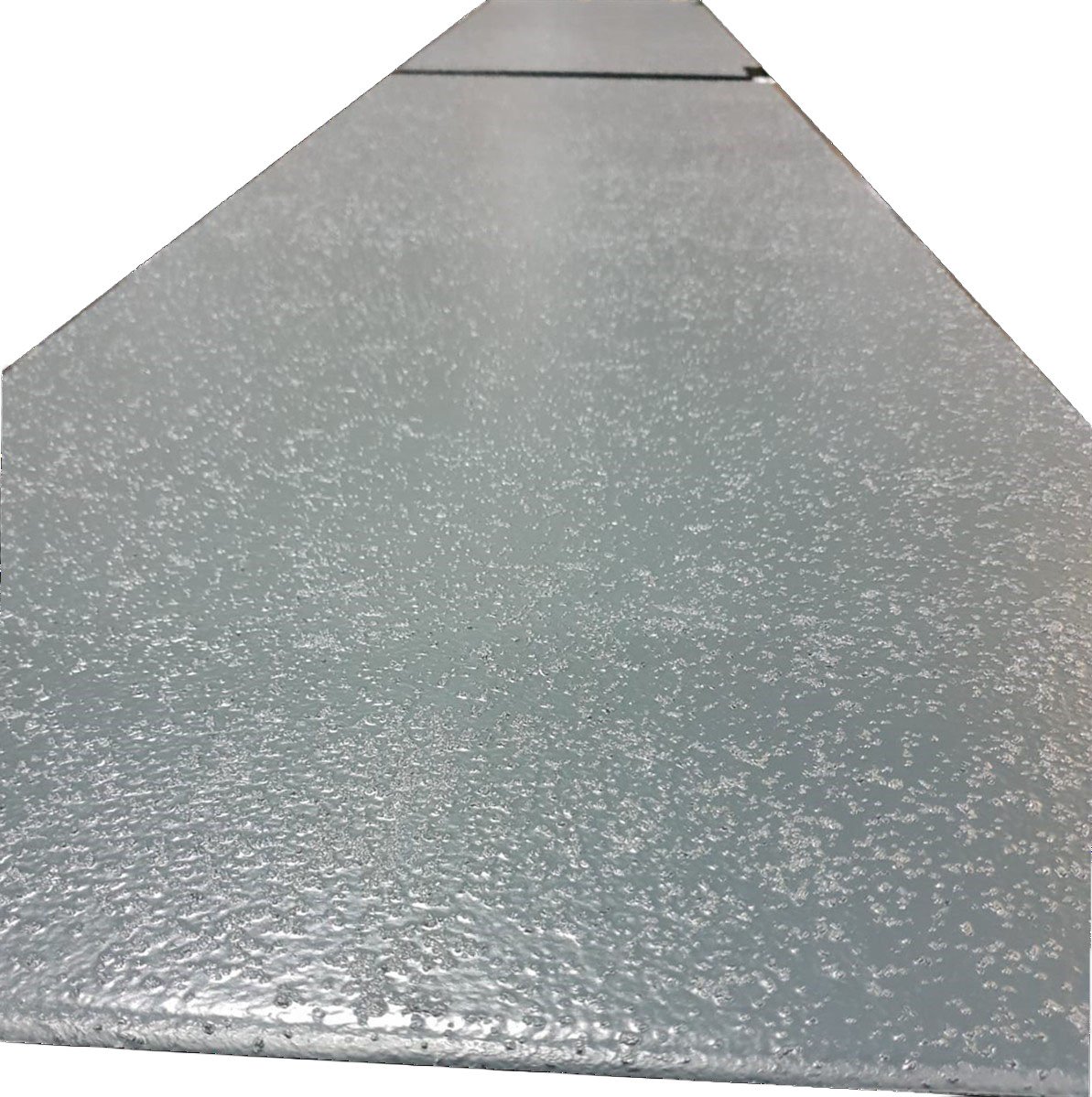

Platform Design:
Long Approach Ramps: 1,500 mm long approach ramps ensure the safe approach of sporty, low-profile vehicles.
Adjustable Platform: One platform is fully adjustable, equipped with a locking mechanism. Optionally available in a version with roller guide.

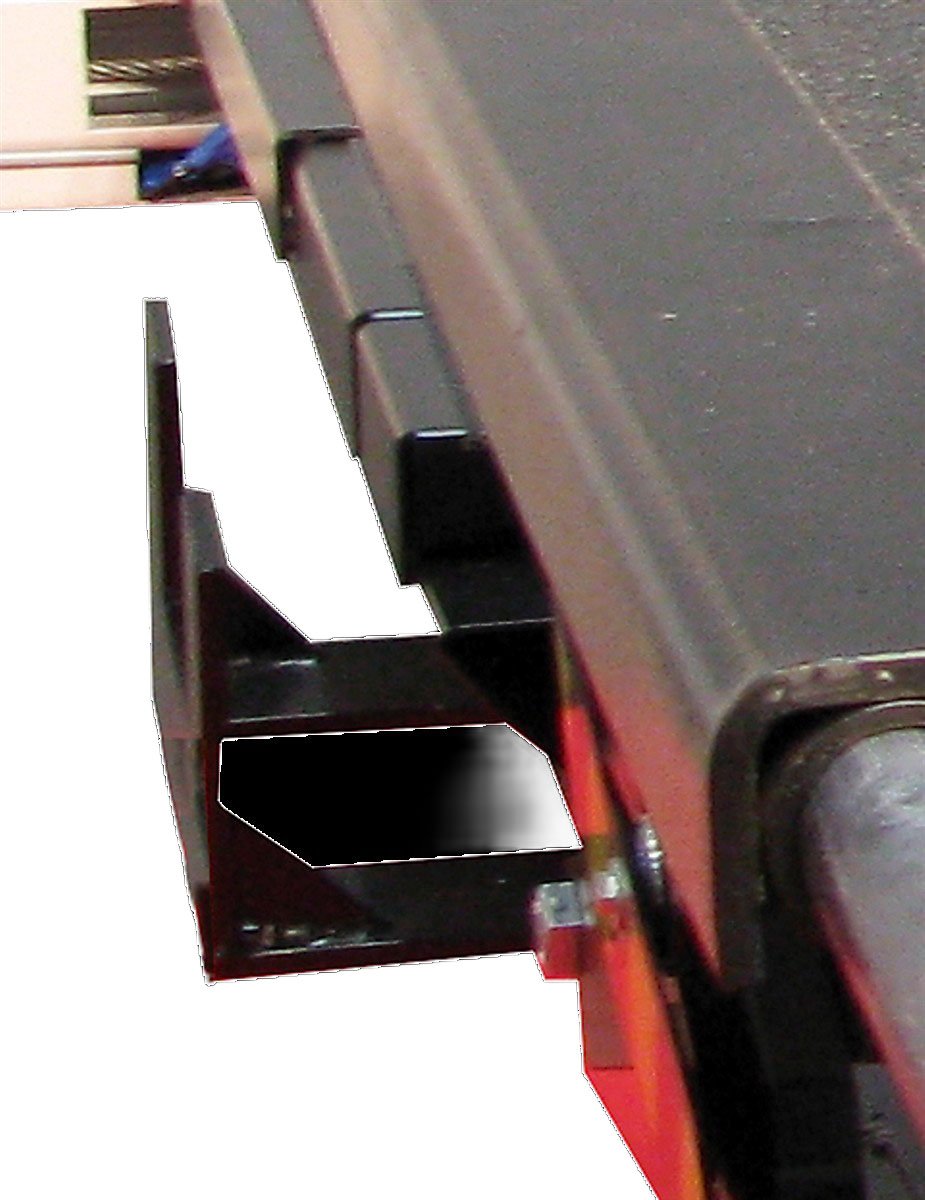

Integrated Rail: A rail integrated into the platform is available for the jacking beam, facilitating work under the wheels.
Pneumatic Locking: Central control for the pneumatic locking system (8 bar pressure required). Locking rods can be positioned every 100 mm over the entire lifting height.
Certifications: It has GS certification, DIN EN 1493, and CE approval, guaranteeing compliance with the highest industrial standards.
If the lift is ordered for wheel alignment, the following functions will be integrated:
Integrated Full-Length Sliding Plates: They allow for precise lateral movement required for wheel alignment.
Turntable System: System suitable for turntables up to 50 mm high, with a continuous turntable cover plate.
The technical parameters of the Consul 4-post lift 4.55 in detail:
| Characteristic | Value | Note |
|---|---|---|
| Item Number (SKU) | 730119 | |
| Manufacturer Number (HAN) | 473156 | |
| Category | 4-Post Lifts | |
| Rated load capacity | 5,500 kg | For passenger and light commercial vehicles |
| Lifting height | ca. 1.980 mm | |
| Lifting Time (loaded) | approx. 55 seconds | |
| Set-up width | 3,505 mm | |
| Drive-up height | approx. 185 mm / approx. 235 mm (with AM option) | |
| Clearance between tracks | ca. 2.945 mm | |
| Power supply | 400 V / 50 Hz | Three-phase mains |
| Drive Power | 3.0 kW | |
| Fuse Protection | 20.0 A slow-blow fuse | |
| Oil quantity | approx. 9 liters | |
| Rail width | 630 mm | |
| Rail length | 5,500 mm | |
| Rail distance (adjustable) | approx. 690 – 1,140 mm | |
| Overall height | ca. 2.610 mm | |
| Installation length with ramp | 7,120 mm | |
| Protection class | IP 54 | Dust and Splash Protection |
Detailed documentation and numerous optional accessories are available for the product to maximally satisfy the workshop's needs:
Catalogue (Brochure): Detailed overview of the C-Line 4-post lift (link to PDF).
Installation plan: Precise guide for the professional installation of the lift (link to PDF).
The Consul 4.55 lift can be flexibly expanded for workshop-specific requirements:
Specifically designed for lifts without wheel-free access.
Compatible with 630 mm rail width and 5,500 mm rail length.
Includes the necessary sliding plates and turntables for the complete wheel alignment system.
Retrofit adapters for 3D wheel alignment systems.
1 set = 2 pieces.
For built-in version (in case of wheel-free lift): Set of 2.
For wheel alignment version (for built-in version): Set of 2.
Straight, extended ramps: Approx. 1,500 mm long, in a set of 2.
The Consul 4-post lift 4.55 is the ideal choice for workshops looking for a reliable, heavy-duty, and versatile lift system for daily high-volume tasks.
