The Consul HD FLEX® II 2.35 EV Easy Slide two-post lift is a state-of-the-art solution specifically developed for the needs of modern service centers, with particular regard to the maintenance of electric vehicles (EV). The lift's revolutionary design, thanks to the movable support arm points, allows for picking up vehicles even in cases of hard-to-reach lifting points. Servicing the batteries and chassis of electric vehicles becomes significantly easier thanks to the free access provided.
This model enhances safety and reduces maintenance requirements by eliminating traditional hydraulic hoses and steel cables, while also guaranteeing universal compatibility with internal combustion engine vehicles.
The HD FLEX® II 2.35 EV Easy Slide lift incorporates numerous innovative design elements that optimize workflows and increase safety:
Movable Support Arm Points: The pivot points of the support arms are movable, which is a critical advantage for vehicles with different wheelbases and chassis geometries, especially in the case of EVs where special lifting points are required due to the batteries.
Cable-Free Design: No hydraulic hoses and no steel cables, which minimizes the possibility of failures and maintenance costs.
High-Quality Columns: The support columns are made from certified, high-quality special rolled profiles, without a rigid connection, ensuring flexibility and a long service life.
6-way Roller Bearing Palletizer: Enables precise and smooth movement.
High-Pressure Hydraulic Drive: Two high-pressure cylinders ensure reliable lifting performance.
Softline Push-Button Control with Electronic Synchronization: Enables intuitive and precise control, while electronic synchronization guarantees perfect parallelism of the arms.
Safety Features:
Lockable main switch directly on the control column (CE compliant).
Automatic swing arm lock, which automatically engages from a lifting height of 300 mm.
Safety buzzer during lowering in the foot space.
Motors equipped with thermal protection.
Pneumatic Connection: Quick coupling for compressed air connection on both sides.
Sliding Support Arm Base: Ensures optimized access to batteries and the chassis.
Universal Applicability: Excellently suitable for both electric and internal combustion engine vehicles.
The table below details the critical technical parameters of the Consul HD FLEX® II 2.35 EV Easy Slide lift:
| Characteristic | Value | Note |
|---|---|---|
| Rated load capacity | 3,500 kg | 3.5 tons |
| Lifting height | approx. 1,940 mm | *Indication adjusted to standard lifting points |
| Lifting/Lowering Time | approx. 23 seconds | Fast and efficient workflow |
| Bottom clearance | ca. 70 mm | **Indication for minimum rest height |
| Long arm extension range | approx. 480 – 880 mm | 2-piece design |
| Set-up width | ca. 3.600 mm | Outer Size |
| Installation Height | approx. 4,065 mm | Overall height |
| Distance Between Arms | approx. 3,030 mm | Internal clearance |
| Drive-through width | approx. 2,260 mm | |
| Power supply | 400 V / 50 Hz | Three-phase mains |
| Drive Power | 2 x 2.2 kW | Total 4.4 kW |
| Fuse Protection | 16 A slow-blow |
The lift allows the vehicle to be lowered or held in position during work using a pressureless hydraulic system. This function can be particularly useful for longer maintenance tasks where the vehicle needs to be held stably but free from hydraulic pressure.
The high-quality columns are made of special rolled profiles, which connect without rigid bracing, ensuring the structure's dynamic load capacity and long-term reliability. The entire inner part of the column is covered, which protects the internal components from contamination.
To increase flexibility, several options are available for the lift:
Self-supporting Base Frame (Optional): Allows installation of the lift even in locations where the floor is not suitable for direct anchoring (appropriate preparation required).
Second Control Unit (Slave Column Control Box): Available for HD Flex & HD Pro series, with Softline push-button control and air connection, which facilitates operation in large workshops.

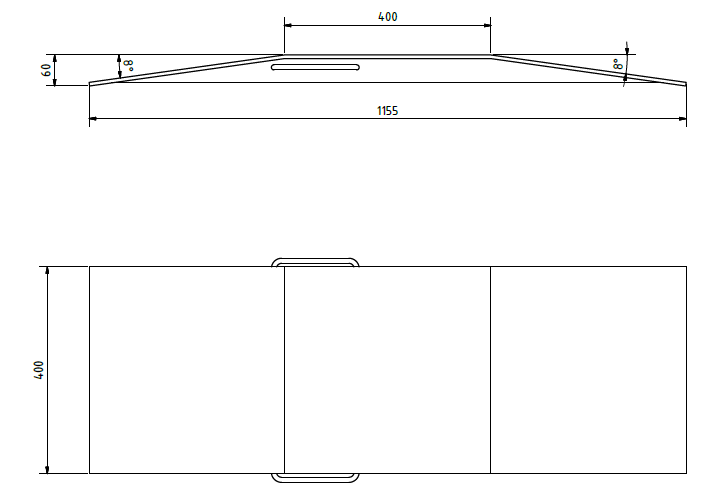

Drive-on Ramps: Available as a set (4 pcs) for easier vehicle jacking.
Lifting Supports with Rotating Plates: Set of 4, with supports of Ø 100 mm diameter (instead of standard Ø 130 mm).
Fastening Material: Anchoring kit available for every 3,500 kg capacity Consul two-post lift (with 12 M12 anchor bolts, threaded rods, and plates).
Limit Switches: Light or manual limit switches for maximum safety to regulate ceiling height.
Spacer Sleeves (100 mm): 1 set = 4 pcs, for Consul swing-arm lifts up to 4 tons.
The Consul HD FLEX® II 2.35 EV Easy Slide is the ideal choice for any service preparing for the challenges of the future, especially electric mobility, without sacrificing the efficient maintenance of conventional vehicles.
Product Identifiers:
SKU: 736801
HAN: 502839
Category: Two-Post Lifts
