The Consul 2-post lift Premium EL® 2.40 model represents the highest quality and reliability in the workshop equipment market. This professional, frameless (floor-mounted) two-post lift is the ideal choice for lifting smaller vehicles, such as smart cars, and medium-sized vans with long wheelbases (up to 4025 mm). Consul's engineering precision and robust design guarantee safe and efficient operation even in the most intensive workshop environments.
The Premium EL® 2.40 series has been optimized for durability and user-friendly operation. Special attention was paid to safety functions and long service life during the design process.
Design Features:
Special Rolled Column Profiles: The columns are made from special high-strength rolled profiles, which ensure maximum stability and load-bearing capacity.
Installation Orientation: The columns are installed rectangularly in relation to the vehicle's lifting direction, optimizing the working area.
Carriage Guide: The load-bearing carriages are precisely guided by 6 rollers, ensuring a smooth and even lifting/lowering process.
Load Screw and Safety Nut: The critical lifting mechanism is equipped with a bronze load screw and a cast light-metal safety nut, which is the basis for safety and a long service life.
Lubrication Dispenser: Built-in oil lubrication system for the support slide, minimizing maintenance requirements.
Broken Nut Release System: A special safety function that ensures safe lowering even in the event of a broken or damaged nut.
Acoustic Foot Protection: Built-in acoustic signal during lowering, which warns against danger.
Softline Push-Button Control: Softline push-button control unit equipped with a modern, computer-controlled leveling system, enabling extremely precise positioning.
Main Switch: Lockable main switch located directly on the column for maximum safety.
Column Inner Covering: The interior of the column is completely covered, protecting the mechanical elements from contamination and external influences.
Bumper and Lifting Pad: Door collision buffer and adjustable lifting pad (approx. 25 mm), providing flexibility for different vehicles.
Arm Locking System: Easily adjustable arm locking mechanism that locks in 300 mm increments.
Standards and Certifications:
Protection Class: IP 54
Approvals: GS approval, DIN EN 1493, CE approval.
Optional Accessories:
Self-supporting Base Frame: Optionally available accessory base frame, which increases flexibility regarding floor conditions.

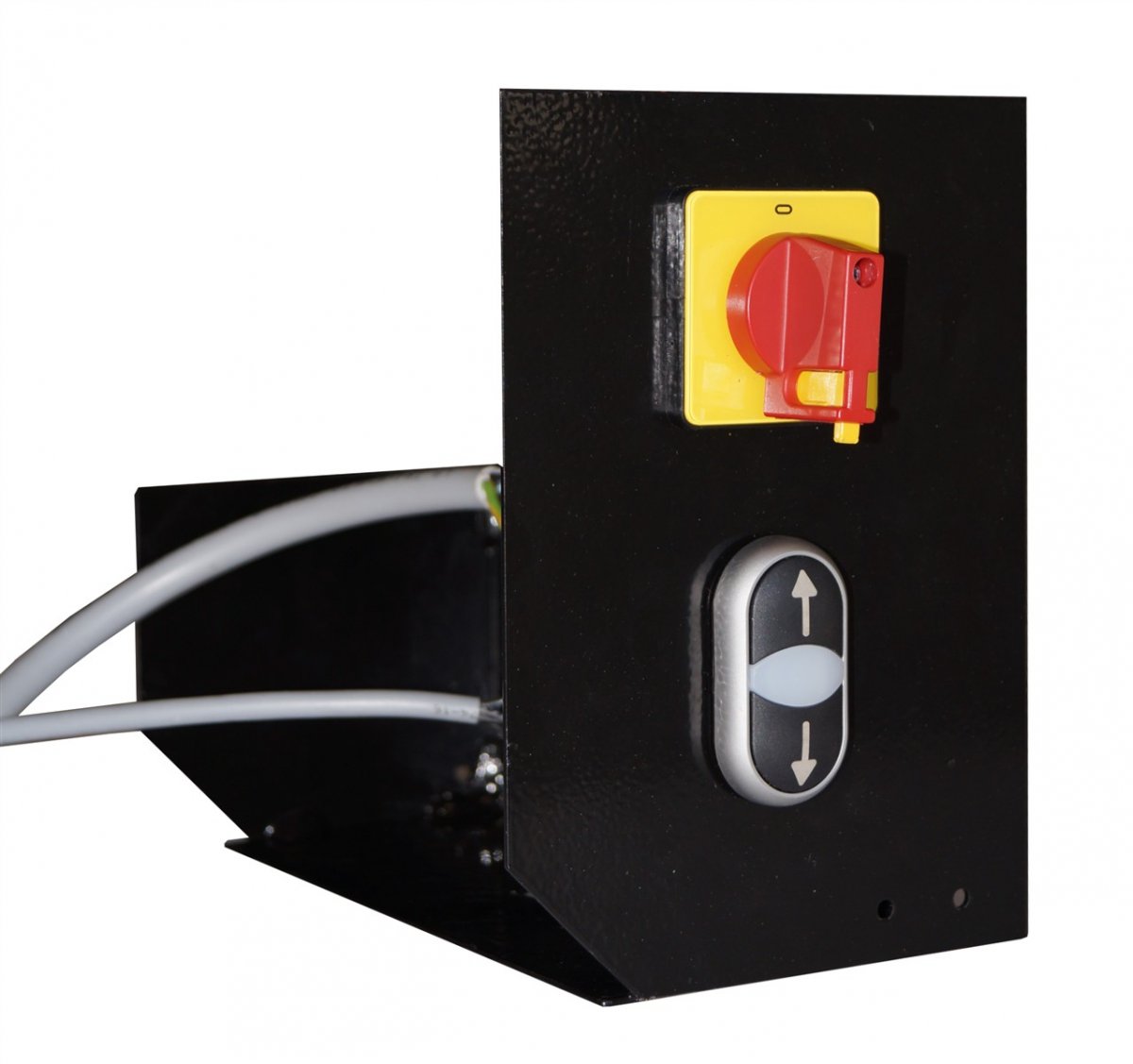

Second Control Unit: It is possible to install a second control unit on the „slave” column.
Important Note: Achieving maximum lifting heights may require the use of optional accessories in certain cases. The lowest access heights can be achieved with optimal floor conditions.
The detailed technical parameters of the Consul Premium EL® 2.40 lift ensure that it precisely matches the needs of your workshop.
| Characteristic | Value | Note |
|---|---|---|
| Item Number (SKU) | 540609 | |
| Manufacturer Number (HAN) | 421578 | |
| Category | 2-Column Lifts | |
| Rated load capacity | 4.000 kg | Ideal for passenger cars and smaller vans. |
| Lifting height | approx. 2,010 mm* | *Maximum height may depend on accessories. |
| Lifting/Lowering Time | approx. 35 seconds | Fast and efficient workflow. |
| Under-clearance | approx. 85 mm** | **Under optimal floor conditions. |
| Long arm extension range | approx. 712 – 1,557 mm | 4-part design. |
| Set-up width | approx. 3.400 mm | |
| Installation Height | ca. 2.560 mm | |
| Clearance between columns | approx. 2.830 mm | |
| Drive-through width | ca. 2.520 mm | |
| Tápellátás | 400 V / 50 Hz | Three-phase mains supply required. |
| Drive Power | 2 x 3.0 kW | |
| Fuse Protection | 20 A slow-blow |
Detailed documentation and numerous optional accessories are available for the product to further expand its functionality.
Downloadable Documents:
Catalogue (Brochure): Detailed overview of the C-Line Premium up to 2.45 series.
Installation plan: Precise guide for the installation of the Consul 2.40 Premium with identifier 54060.9, including the placement of the pick-up points.
Optional Accessories (Examples):
Second Operating Unit (Slave Column): Enables external control on the main column, ideal for longer vehicles.

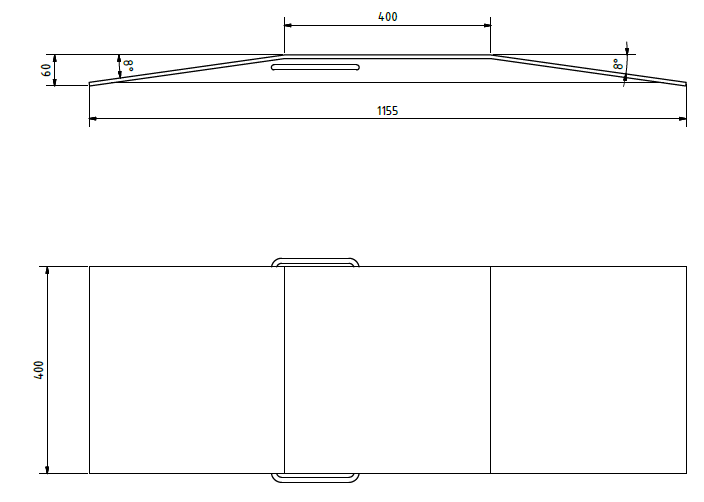

Drive-on Ramps (Drive-on ramps): 1 set = 4 pcs, facilitates vehicle drive-on.
Pick up supports with turn tables: 4 supports with Ø 100 mm diameter (instead of the standard Ø 130 mm).
Fixing material up to 7.000 kg (Fixing material up to 7.000 kg): Set consisting of 12 pcs M16 reactive anchors, threaded rods, and washers for every 7,000 kg capacity Consul 2-post lift.
ConSoft Diagnostic Software: Maintenance and diagnostic software for 2-post lifts.
Ceiling limit switch with light barrier: An additional safety element to prevent exceeding the maximum lifting height.
Spacers 100 mm: 1 set = 4 pcs, can be used for 4-ton Consul swing arm lifts.
The Consul 2-post lift Premium EL® 2.40 represents the peak of precision lifting technology, ensuring the efficiency and safety of your workshop in the long run.
