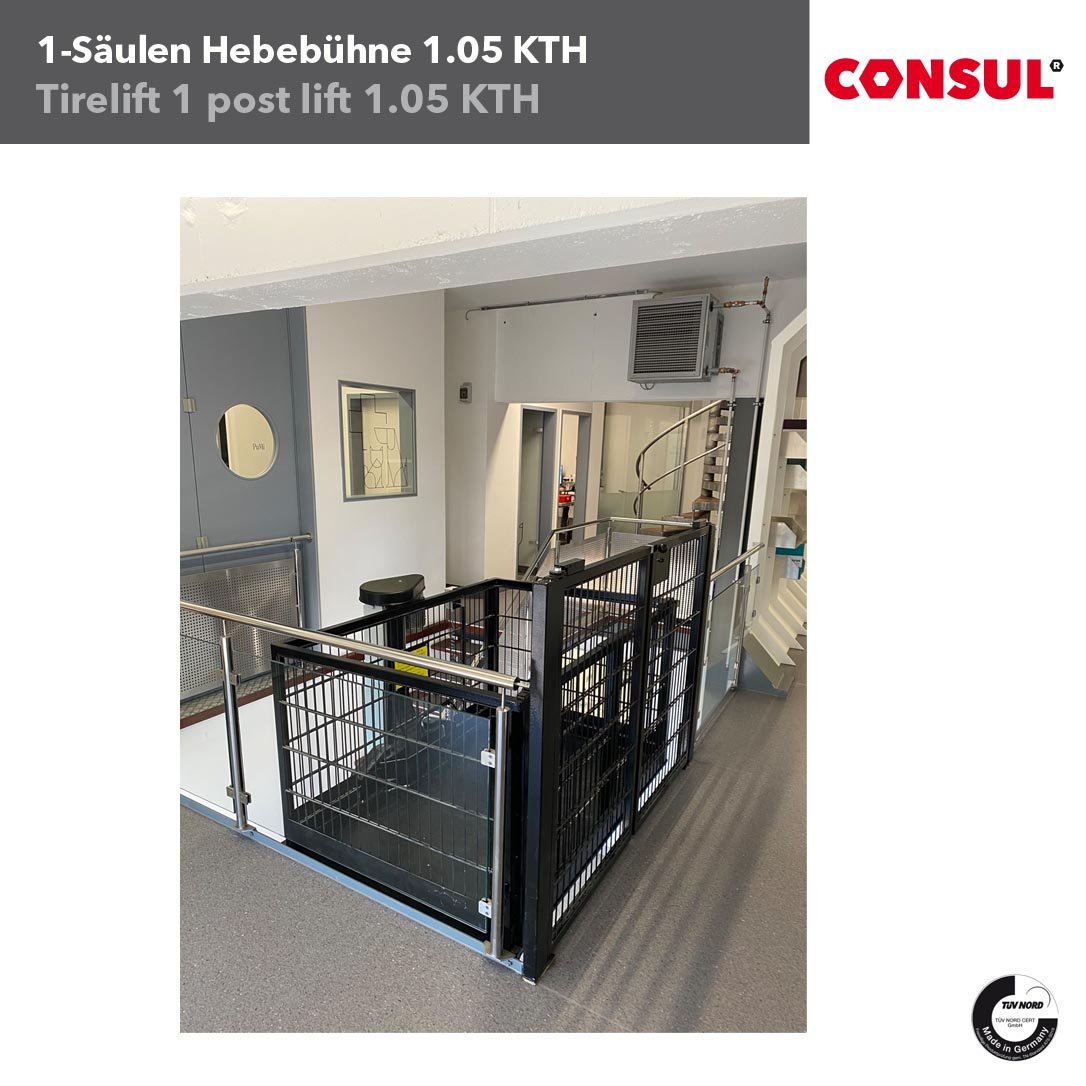

The Consul 1.05 KTH is a high-quality single-row tire lift designed for fixed installation, specifically developed to increase the efficiency and safety of workshops. This model provides an ideal solution for transporting tires and wheels between floors, ensuring fast and reliable material handling.
The Consul 1.05 KTH lift incorporates several design elements and safety features that guarantee a long service life and safe operation, even in the most intensive workshop environments.
Safety and Reliability:
Platform with Safety Switch: The lift platform, equipped with standard 4-sided fencing, can optionally have openings, which are fitted with a safety switch to prevent accidental dropping or accidents.
Locking Mechanism: For safe operation, a built-in locking mechanism ensures the maintenance of a stable position.
Anti-Slip Fixing: The load nut is made of bronze, and the safety nut is made of alloy, ensuring excellent durability and reliable operation.
Acoustic Foot Protection: Operator safety is enhanced by an acoustic warning system that provides protection during movements at ground level.
CE Conformity: The device complies with the DIN EN 1493 standard, has GS certification, and is CE marked. The lockable main switch on the control panel ensures compliance with local regulations.
Thermal Protection: The belt-driven motor is equipped with thermal protection, which prevents overheating during intensive use.
Excellent Construction and Operation:
Special Rolled Column: The lift column is made of a special rolled profile, which ensures excellent rigidity.
Roller Guidance: The carriage runs on six precision rollers, resulting in smooth movement with minimal friction.
Auxiliary Spindle Guide: Depending on the lifting height, an auxiliary spindle guide ensures stability throughout the entire range.
Grease Lubrication: An oil lubrication system is available for greasing the load nut to facilitate maintenance.
Push-button Control: Intuitive and simple operation is made possible via the push-button control panel.
Full Enclosure: The inner part of the column is fully enclosed, which protects against dust and contaminants, while also providing an aesthetic appearance.
Installation Notes:
It is important to note that the for non-continuous operation the fixing elements for the lift (ED100%), as well as the supplementary fixing materials required for the upper floor connection, must be provided and installed by the customer. The foundation plan (Fundamentplan) required for installation is available.
The following table details the critical technical parameters of the Consul 1.05 KTH tire lift:
| Characteristic | Value |
|---|---|
| Item Number (SKU) | 359117 |
| Manufacturer Number (HAN) | 9583 |
| Category | 1-Post Lifts: |
| Rated load capacity | 500 kg |
| Lifting height | ca. 3000 mm |
| Tápellátás | 400 V / 50 Hz |
| Drive Power | 3.0 kW |
| Fuse Protection | 16 A slow-blow fuse |
| Lifting speed | 0.06 m/s |
| Motor data | S3 10% ED (Intermittent operation) |
| Self-weight (approx.) | 600 kg |
| Protection class | IP 54 |
For flexible use, several accessories are available which optimize the lift's performance and fit individual workshop needs:
External Control Unit (Consul External control unit): Allows the control panel to be placed away from the column, specifying the installation distance.
Fixing Material Set (Consul Fixing material incl. 1L spindle oil): Includes the necessary 6 pieces of M12 anchor bolts and threaded rods for secure fixing, as well as 1 liter of spindle oil.
Guide Bar (Consul Guide bar): Recommended for wider lift platforms to increase stability and protect against vibrations.
Consul Exit for 1.05 KTH Exit A/B/C: Limiting bars of different designs (A, B, C) are available for all levels, ensuring safe entry and exit between levels.
Documentation:
Detailed technical documentation is available for the product in PDF format:
Catalogue (Brochure): Detailed overview of the C-Line single-post lifts.
Foundation plan: Precise guide for professional installation and foundation work.
The Consul 1.05 KTH single-post tire lift is the ideal choice for professionals looking for a reliable, space-saving, and safe solution for vertically transporting wheels in multi-level service areas.
