The Consul 2-Ram 2.55 MKK type inground lift was designed for modern service centers and workshops where maximum space-saving and high load capacity are essential. This twin-cylinder, chrome-plated guide cylinder lift offers an ideal solution for lifting passenger cars and certain light commercial vehicles, up to a total weight of 5500 kg.
Thanks to the long lifting arms and the special chassis design, this lift is excellently suited for lifting longer-wheelbase vans (e.g., LT2 or Sprinter types), ensuring stable and safe work performance. Important note: The lift can only be operated together with the associated chassis (installation cassette).
This model combines reliability, long service life, and compliance with strict safety regulations, making it an ideal choice for professional vehicle maintenance.
The Consul 2.55 MKK lift incorporates several design elements that guarantee excellent performance and durability:
Robust Structure: The installation cassette features a galvanized steel frame, providing excellent corrosion protection and stability for the in-ground unit.
Premium Quality Hydraulics: The hydraulic system is powered by a hard-chrome-plated, twin guide cylinder system, which enables an extremely smooth and reliable lifting/lowering process.
Electro-Hydraulic Drive: The power unit is located externally to the lifting unit, which facilitates maintenance and optimizes the installation space.
Mechanical Synchronization: Mechanical synchronization occurs via a torsion bar, which also functions as a safety device, guaranteeing perfect coordination between the two cylinders.
Lowering Synchronization: During lowering, adjustable check valves ensure a precise and even descent.
Electronic Control: The electronic control unit has a built-in stop valve for increased safety.
Excellent Ventilation and Duct System: It features a connection stub for a DN 100 size PVC duct system, which serves for cassette ventilation and routing of the hydraulic lines.
Protected Cassette Cover: The cassette cover is fully galvanized, resisting environmental effects.
Safety Certifications: The lift has an IP54 protection rating, GS certification, and DIN EN 1493 and CE approvals, complying with the strictest European safety standards.
The following table summarizes the critical technical parameters of the Consul 2.55 MKK inground lift:
| Parameter | Value | Note |
|---|---|---|
| Part Number (SKU) | 590091 | |
| Manufacturer Number (HAN) | 474765 | |
| Category | Twin-cylinder inground lifts | |
| Rated load capacity | 5,500 kg | Maximum Permissible Vehicle Weight |
| Lifting height | ca. 1.990 mm | |
| Lifting Time (loaded) | approx. 45 seconds | |
| Power supply | 400 V / 50 Hz | Three-phase mains |
| Drive Power | 3.3 kW | Electric motor performance |
| Power supply voltage (electrical) | 400 / 50 V / Hz | |
| Fuse Protection | 16 A slow-blow fuse | |
| Oil quantity | approx. 20 liters | Quantity required to fill the system |
| Distance between columns | 2,500 mm | Center distance between the two lifting cylinders |
| Plunger diameter | 2 x 130 mm | |
| Operating pressure | 150 bar |
For maximum efficiency and long-term maintenance, Consul recommends the following accessories for the system:
This 5-liter HLP 22 type hydraulic oil is suitable for all hydraulic Consul lifts. The required quantity may vary depending on the type of lift. The use of high-quality oil with the specified viscosity is essential for the proper functioning of the system.

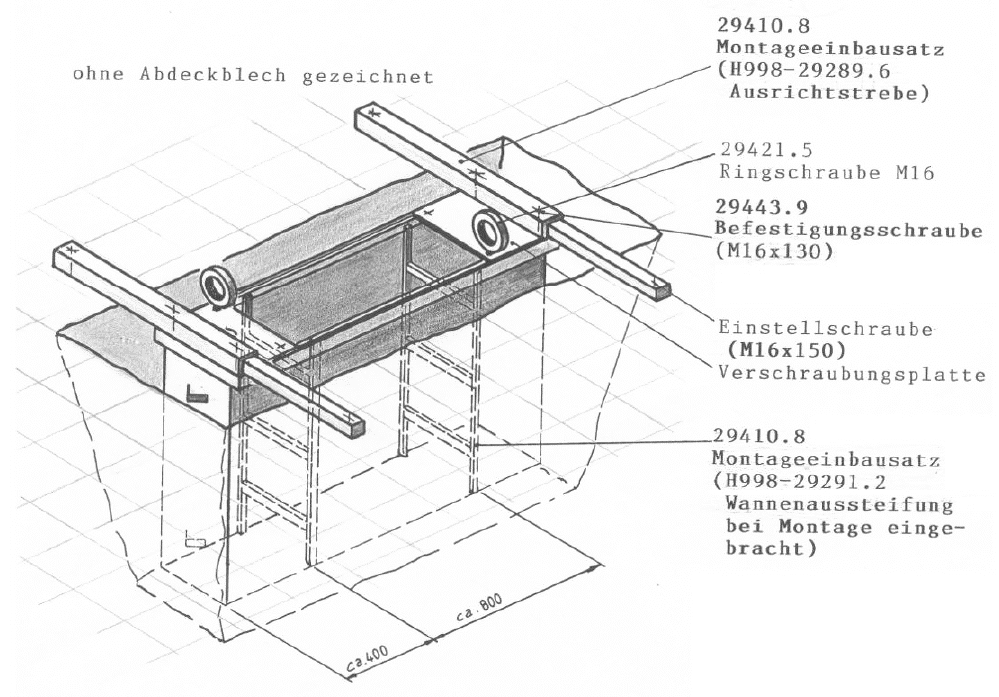

A dedicated installation kit is essential for professional and safe installation. This ensures that all fasteners and connecting elements comply with the manufacturer's specifications.
A control unit manufactured according to OEM (Original Equipment Manufacturer) industrial standards is optionally available. The specific OEM specification must be provided when ordering.
Detailed technical documentation is available for the product:
Product Brochure: Detailed description and illustrations are available in PDF format.
Installation Guide: Detailed instructions required for professional installation.
The Consul 2.55 MKK in-ground lift is the perfect synergy of reliability, high load capacity, and space-saving design for professional automotive environments.
