A Consul HD FLEX® II 2.65 two-post hydraulic lift designed for professional vehicle repair workshops, especially optimized for servicing commercial vehicles. This model offers a combination of flexible installation and high capacity while minimizing the maintenance points required by traditional lifts.
The main feature of the HD FLEX® II series is the revolutionary new design, which significantly reduces maintenance requirements and increases reliability.
This lift represents the latest technology, prioritizing workshop efficiency and safety:
Hydraulic System: No hydraulic hoses or steel cables are required, which drastically reduces the number of wear parts and maintenance costs.
Special Column Design: The columns are made of special hot-rolled profiles, without a fixed connecting element. This design allows for flexible installation width without reducing load capacity.
Carriage Guide: The load-bearing carriages are guided by 6 rollers, ensuring a smooth and stable lifting/lowering process.
High Pressure Hydraulics: The drive is provided by 2 high-pressure hydraulic cylinders, which ensure high lifting force.
Softline Push-Button Control: User-friendly control unit with electronic synchronization.
Safety Features:
Automatic Arm Lock: The arms lock automatically, with a manual release function.
Pressure-Free System: Allows locking/resting even when the hydraulic system is depressurized.
Acoustic Foot Protection: Warns about dangerous zones.
Motor Protection: The motors are equipped with thermal protection.
Installation Flexibility: The installation width can be varied without reducing the nominal load capacity.
Convenience Features: Padded door impact protection and full column interior covering for a clean appearance.
Air Requirement: Quick connectors for air supply on both sides.
The precise specifications of the Consul HD FLEX® II 2.65 lift ensure reliable and safe operation, even in the most demanding workshops.
| Parameter | Value | Note |
|---|---|---|
| Item Number (SKU) | 547794 | |
| Manufacturer Number (HAN) | 421584 | |
| Category | 2-Column Lifts | |
| Rated load capacity | 6,500 kg | Heavy Duty Construction |
| Lifting height | approx. 1,895 mm* | *Only available with optional accessories |
| Lifting/Lowering Time | approx. 23 seconds | Fast Operation |
| Lowest Free Height | approx. 100 mm** | **Under optimal floor conditions |
| Arm extension range | approx. 870 – 1,675 mm | 3-part design |
| Set-up width | ca. 3.600 mm | Flexibly Adjustable |
| Installation Height | ca. 4.380 mm | |
| Clearance between columns | approx. 2,730 mm | |
| Drive-through width | ca. 2.290 mm | |
| Power supply | 400 V / 50 Hz | Three-phase mains |
| Drive Power | 2 x 2.2 kW | Two Motors |
| Fuse Protection | 16 A slow-blow fuse | |
| Protection class | IP54 | Dust and splash-proof |
| Specifications | GS-approved, DIN EN 1493, CE-approved | Complies with European standards |
The minimal installation height and extremely low setup height (approx. 100 mm with optimal floor conditions) make this lift ideal for workshops with varying floor thicknesses.
Important: The maximum lifting height is only achievable with the use of optional accessories. For proper anchoring and maximum safety, the use of suitable fastening materials (e.g., fastening sets with a load capacity of up to 7,000 kg) is recommended.
The flexibility of the HD FLEX® II 2.65 lift is further increased by the available accessories:
Self-supporting base frame: Optionally available if the floor is not suitable for direct mounting.

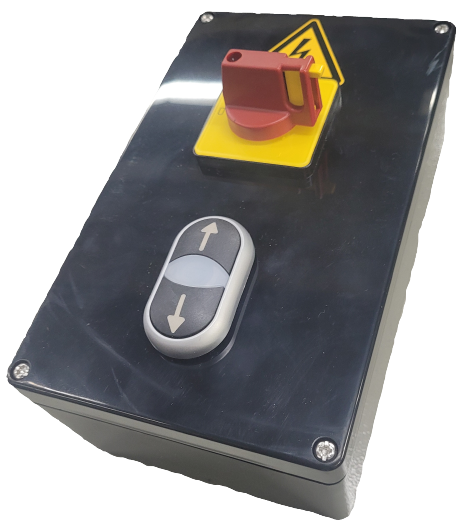

Second Control Unit: Allows control from the second column as well (a second control box for the slave column is available).

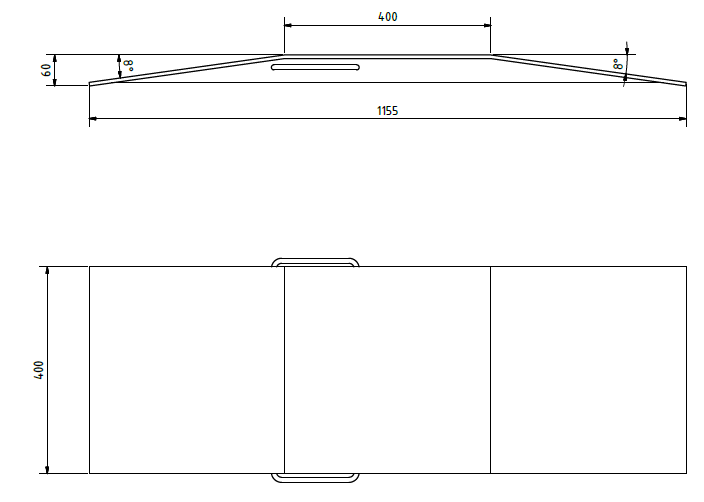

Drive-on Ramps: Available as a set (4 pcs) for easier vehicle boarding.
Spacers: Spacers of different sizes (e.g., 100 mm, 12 mm) are available for cantilever lifting arms, increasing the adjustment range.
Limit Switches: Ceiling limit switch with light barrier or manual pull switch to prevent over-lifting.
Fastening Material: Materials required for anchoring the 7,000 kg capacity lifts (12 pcs M16 anchor bolts, threaded rods, and washers) can be ordered separately.
Diagnostic Software: Consul ConSoft diagnostic software for maintenance and diagnostic purposes.
This model is part of the Consul HD FLEX® series, which combines reliability, minimal maintenance requirements, and excellent ergonomics in line with the demands of modern workshops.
Documentation:
Detailed Brochure (PDF) available for technical data.
Installation Plan (PDF) for precise installation.
