The Consul HD FLEX® II 2.35 EV „Jumping Jack” two-post lift is a modern, high-capacity lifting system specifically designed to meet the lifting requirements of today's vehicle fleet, especially electric vehicles (EVs). Thanks to the patented design, the pivot points of the support arms are located further apart, significantly improving access to hard-to-reach lifting points, especially the batteries and chassis of electric vehicles. This lift combines reliability, safety, and flexible usability.
In contrast to conventional hydraulic systems, this model offers several innovative solutions:
Cable-free and Hose-free Design: No hydraulic hoses or steel cables are required, which reduces maintenance requirements and increases reliability.
Excellent Accessibility: The outwardly positioned pivot points of the support arms provide ideal access to the chassis and batteries of electric vehicles, thus facilitating service work.
High-Performance Hydraulics: Two high-pressure hydraulic cylinders ensure stable and powerful lifting.
Electronic Synchronization: Softline push-button control with electronic synchronization guarantees perfect parallelism of the arms over the entire lifting height.
Automatic Arm Lock: The support arms automatically lock from a lifting height of 300 mm, ensuring maximum safety.
Safe Lowering: The system allows the vehicle to be lowered and supported using a pressure-free hydraulic system, which is ideal for longer work periods.
Robust Columns: The high-quality columns are made from certified special rolled profiles, without rigid bracing.
Integrated Safety Functions: The motors are equipped with thermal protection, and a safety sound is audible in the footwell during lowering.
The following table details the critical technical parameters of the Consul HD FLEX® II 2.35 EV „Jumping Jack” lift:
| Characteristic | Value | Note |
|---|---|---|
| Rated load capacity | 3,500 kg | Ideal for passenger cars and light commercial vehicles. |
| Lifting height | approx. 1,930 mm | The maximum working height. |
| Lifting/Lowering Time | approx. 23 seconds | Fast and efficient workflows. |
| Lowest Free Height | approx. 85 mm | Minimum height between the bottom of the vehicle and the lift. |
| Long arm extension range | See drawing | The arms are flexibly adjustable. |
| Set-up width | ca. 3.600 mm | The required space for installation. |
| Installation Height | approx. 4,065 mm | The total vertical space requirement. |
| Distance between columns | approx. 3,030 mm | Width of the clear passage area. |
| Drive-through width | ca. 2.265 mm | The maximum width of the vehicle. |
| Power supply | 400 V / 50 Hz | Three-phase mains connection. |
| Drive Power | 2 x 2.2 kW | Powerful motors for fast lifting. |
| Fuse protection | 16 A slow-blow fuse | Adequate network protection. |
In designing the HD FLEX® II series, great emphasis was placed on user comfort and durability:
6-way roller bearing pallet: Ensures smooth and precise movement of the arms.
Disconnectable main switch: CE-compliant safety element located directly on the control column.
Air connection: Quick coupling for compressed air connection on both sides, which can be useful for pneumatic tools or additional functions.
Resilient door buffers: Protect the doors from damage.
Full column interior cladding: Protects the internal mechanisms from contamination and external influences.
For maximum flexibility, several accessories are available (based on the raw text):
Self-supporting Base Frame (Optional): Enables the installation of the lift even in places where the floor is not suitable for direct fixing (with appropriate preparation).

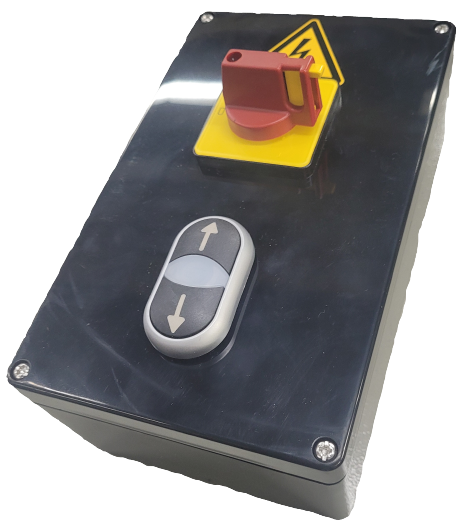

Second Control Unit (For Slave Column): Separately available accessory control box for the „slave” (secondary) column, with Softline push-button control and air connection, for HD Flex & HD Pro series.

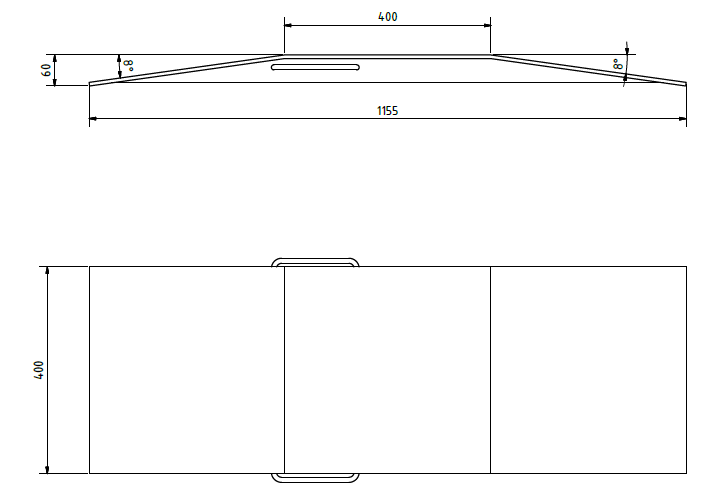

Drive-on Ramps: Ramps available in a set (4 pcs) that facilitate the driving up of vehicles.
Lifting Support Pads with Rotating Plates: Set of 4 pieces, with Ø 100 mm supports (instead of the standard Ø 130 mm).
Fixing Materials: Securing kit for 3,500 kg capacity Consul two-post lifts, containing 12 M12 anchor bolts, threaded rods, and base plates.
Spacer Sleeves (100 mm): Set of 4 spacers available for Consul articulated arm lifts up to 4 tons.
Limit Switch with Light Beam: Ceiling limit switch with light beam function.
Manual Limit Switch: Manually operated ceiling limit switch.
ConSoft Diagnostic Software: Maintenance and diagnostic software for two-post lifts.
The Consul HD FLEX® II 2.35 EV „Jumping Jack” is the ideal choice for every modern service center where high load capacity, excellent accessibility, and cable-free, safe operation are essential.
Product Identifiers:
SKU: 736660
HAN: 502821
Category: 2-Post Lifts
