The Consul 1.05 KTH 4000 single-column tire lift is an excellent choice for workshops that require a reliable, fixed-installation lifting solution for moving tires and light vehicles. This robust structure offers maximum safety and efficiency during daily workshop operations.
This lift is designed with a focus on durability and safe operation, ideal for environments characterized by continuous, non-stop use (S3 10% ED).
Design and Safety Features:
Column and Carriage: Specially rolled profile column, guided by 6 rollers for precise and stable carriage movement.
Loading System: A combination of a bronze load nut and a cast alloy safety nut ensures a long service life and reliable load-bearing capacity.
Lubrication: Lubrication system for continuous lubrication of the load-bearing elements, minimizing friction and wear.
Safety Locking: Built-in anti-raise lock-down safety device guarantees that the lift cannot be unintentionally raised.
Control: Push-button control for easy handling.
Main Switch: Lockable main switch (in accordance with CE requirements) to prevent unauthorized use.
Foot Protection: Acoustic foot protection to increase operator safety during the lowering phase.
Drive: Belt-driven motor equipped with thermal protection.
Design: The internal part of the column is fully covered, providing protection against dust and contamination.
Auxiliary Guide: Auxiliary screw guide depending on the lifting height to increase stability.

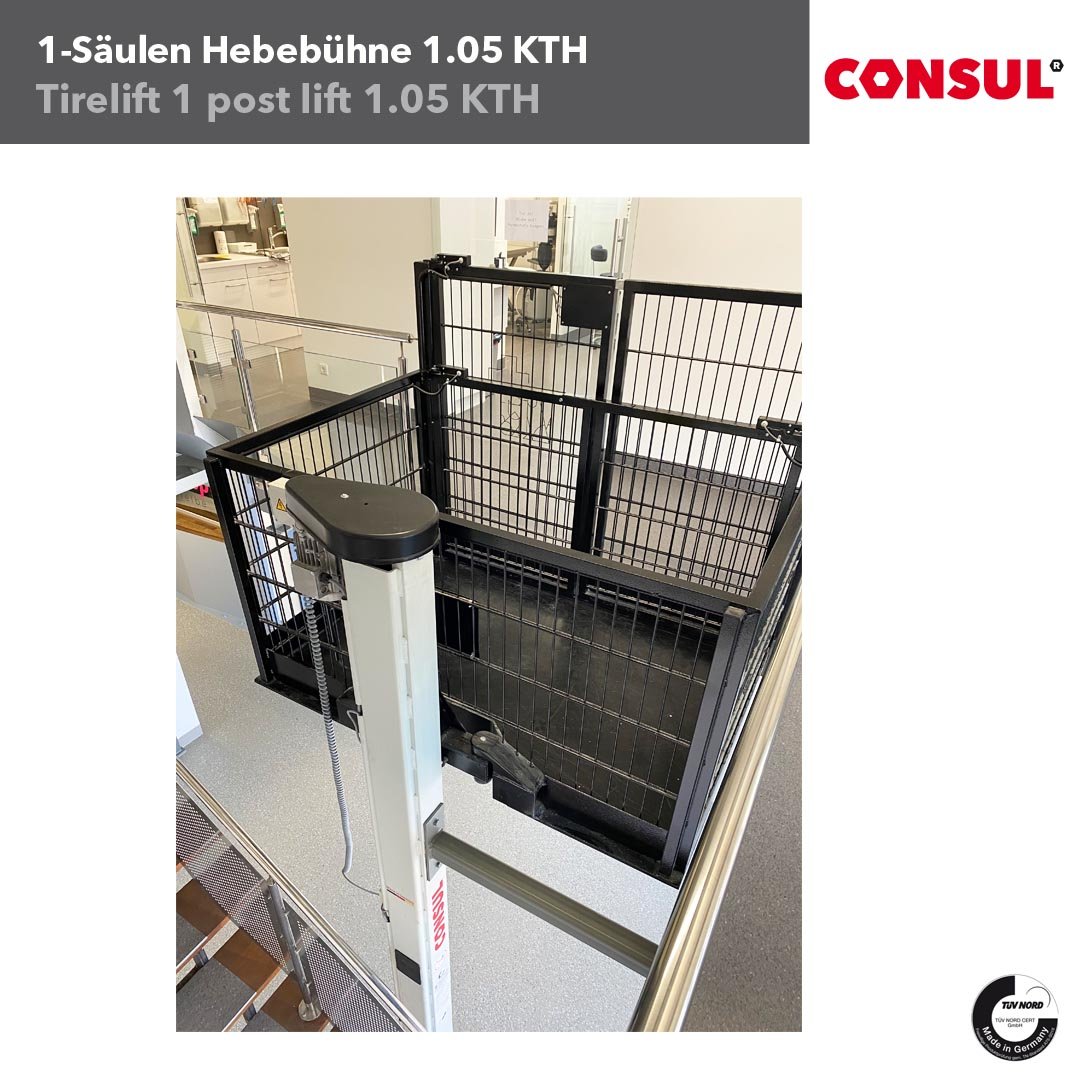

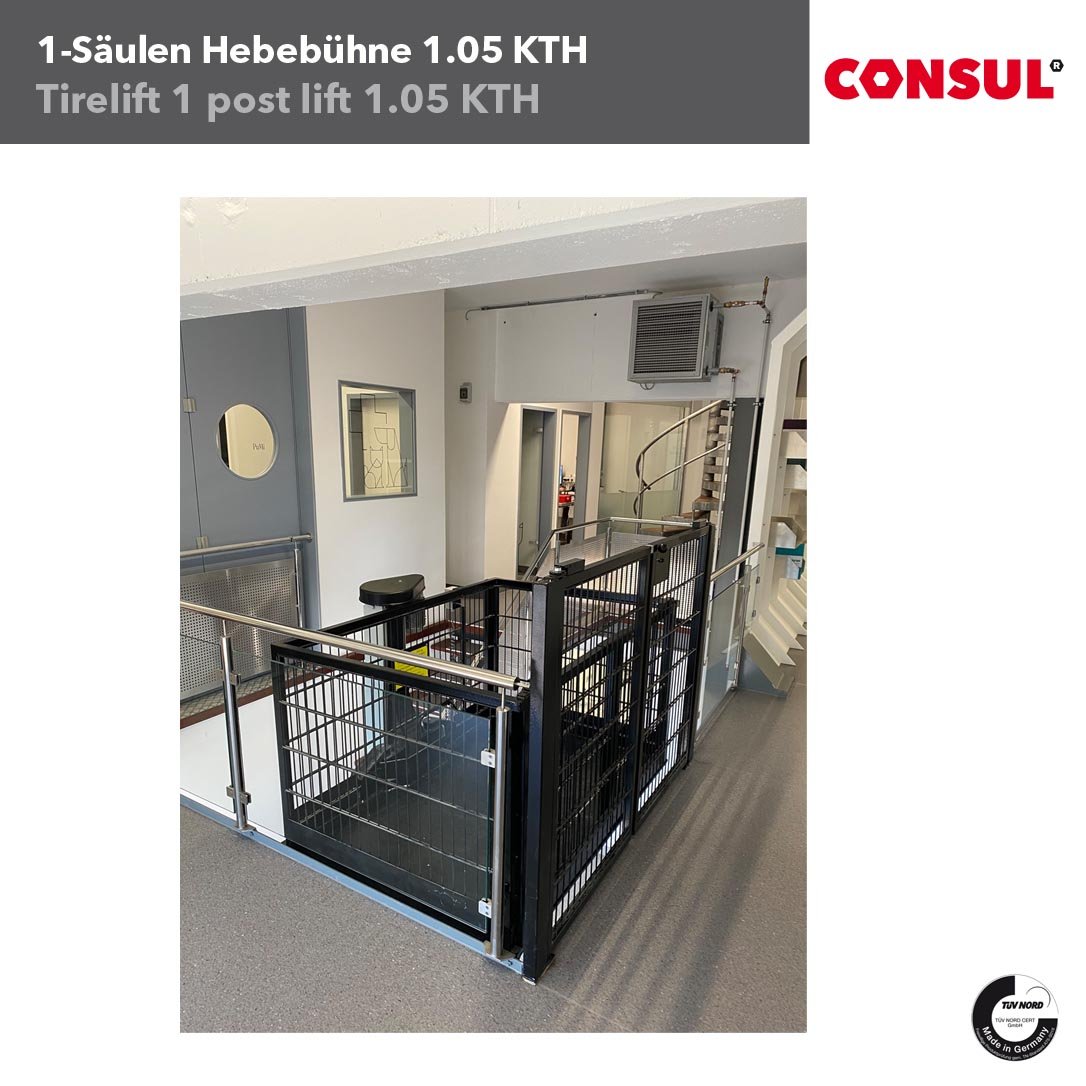

Lift Cage: The machine comes standard with a lifting cage equipped with 4 side railings, optionally with openings (e.g., doors) for easier access.
Floor Protection: Protective railing is provided at every level.
Important Notes for Installation:
Customer Responsibility: The customer must install and adapt further anchoring elements, as well as the connection to the site at the upper level (if necessary).
Safety Mechanisms: Additional safety mechanisms for secure anchoring are available upon request.
Operating Time: The device not suitable for continuous operation (ED100%). Motor data is rated S3 10% ED.
The precise technical parameters of the Consul 1.05 KTH 4000 lift ensure reliable performance within the specified load range.
| Parameter | Value | Note |
|---|---|---|
| Item Number (SKU) | 423970 | |
| Manufacturer Number (HAN) | 9585 | |
| Category | 1-Column Lifts | |
| Rated load capacity | 500 kg | |
| Lifting height | ca. 4000 mm | 4 méter |
| Power supply | 400 V / 50 Hz | Three-phase mains |
| Drive Power | 3.0 kW | |
| Fuse Protection | 16 A slow-blow fuse | |
| Lifting speed | 0.06 m/s | |
| Motor data | S3 10% ED | For non-continuous operation |
| Weight (approx.) | 650 kg | |
| Protection Class | IP 54 | Dust and splash-proof |
| Approvals | GS-approved, DIN EN 1493, CE-approved | Complies with European standards |
Detailed documentation is available for the product to facilitate installation and maintenance, and several optional accessories can enhance functionality.
Catalogue (Broschüre): Detailed overview of the C-Line 1-column KTH lift.
Foundation plan: Precise guidance for the required foundation specifications.
Specifically designed for the 1.05 KTH type.
Allows the control unit to be placed further away from the column, adapted to the layout of the workshop. The installation distance must be specified at the time of order.
Suitable for types 1.05 and 1.06.
Contents: 6 pcs M12 anchor bolts and threaded rods for secure fastening.
The Consul 1.05 KTH 4000 single-column lift is a reliable, CE-certified device with a load capacity of 500 kg and a lifting height of 4 meters, ideal for tire changes and other light lifting tasks in a fixed installation environment. Carefully designed safety features and robust mechanical elements guarantee long-term, safe operation in the workshop.
