This detailed description introduces the Consul 0.42 S BE model, a flush-mounted (in-ground installation) scissor lift designed for high-load workshop and service tasks. The outstanding quality construction and advanced hydraulic system guarantee reliable and safe operation.
The Consul 0.42 S BE is an electro-hydraulic, flush-mounted (BE – Bodeneinbau) scissor lift with a nominal load capacity of 4,200 kg. It features a design optimized specifically for servicing vehicles, especially for wheel alignment, but is also excellently suited for general lifting tasks. The Master/Slave hydraulic system ensures stable and synchronized lifting.
During the design, great emphasis was placed on durability and user safety. The platforms are made from special rolled profile steel, which provides exceptional rigidity. During lowering, a pneumatic push-button release aids in quick and controlled descent.
The device complies with the strictest European standards, ensuring maximum occupational safety:
DIN EN 1493 and CE Approval: Full compliance with relevant safety regulations.
IP 54 protection class: Adequate protection against dust and splashing water.
Acoustic foot protection: Warns about dangerous zones during lowering.
Mechanical locking system: 17-stage mechanical locking ensures the vehicle is held at the desired height.
Detachable, lockable main switch: Safety measure compliant with CE regulations.
The table below summarizes the critical technical parameters of the Consul 0.42 S BE lift:
| Characteristic | Value | Note |
|---|---|---|
| SKU | 732412 | Product Identifier |
| HAN | 500436 | Manufacturer Code |
| Category | Star Wheel Lifts | |
| Rated load capacity | 4.200 kg | |
| Lifting height | approx. 1,830 mm | |
| Lifting Time (loaded) | approx. 35 seconds | |
| Set-up width | approx. 2,260 mm | |
| Installation length | ca. 5.530 mm | |
| Drive Power | 5.5 kW | |
| Tápellátás | 400 V / 50 Hz | Three-phase mains |
| Fuse Protection | 20 A slow-blow | |
| Width of longitudinal rails | ca. 650 mm | |
| Length of longitudinal rails | 4,560 mm | |
| Control | Electro-hydraulic | Master/Slave System |
| Design | Flush-mounted (BE) | In-ground installation |
| Bearing | Split, 20 mm thick fixed and sliding bearing (series hot-dip galvanized) |
The runways (platforms) are made of high-quality rolled steel profiles, guaranteeing stability under high loads. In the standard version, the length of the rails is 4560 mm, and their width is approximately 650 mm.
Drive-through version: The platforms are equipped with drive-through ramps (approach ramps), which facilitate the entry and exit of vehicles.
Hydraulic System: The Master/Slave system ensures precise synchronization of the two lifting arms, minimizing deviations resulting from load distribution.
Wheel Alignment Calibration: Optional calibration available for the vehicle lift, utilizing the precise design of the rails.
User experience and service efficiency are improved by several optional features:
Integrated lifting jack rail: An integrated rail is located in the runways, allowing for easy positioning and use of hydraulic lifting jacks (jacking beams).
Connectors: The unit is equipped with a 230V socket to power workshop tools.
The Consul lifting system can be flexibly expanded to suit workshop requirements. The following accessories can be ordered separately:

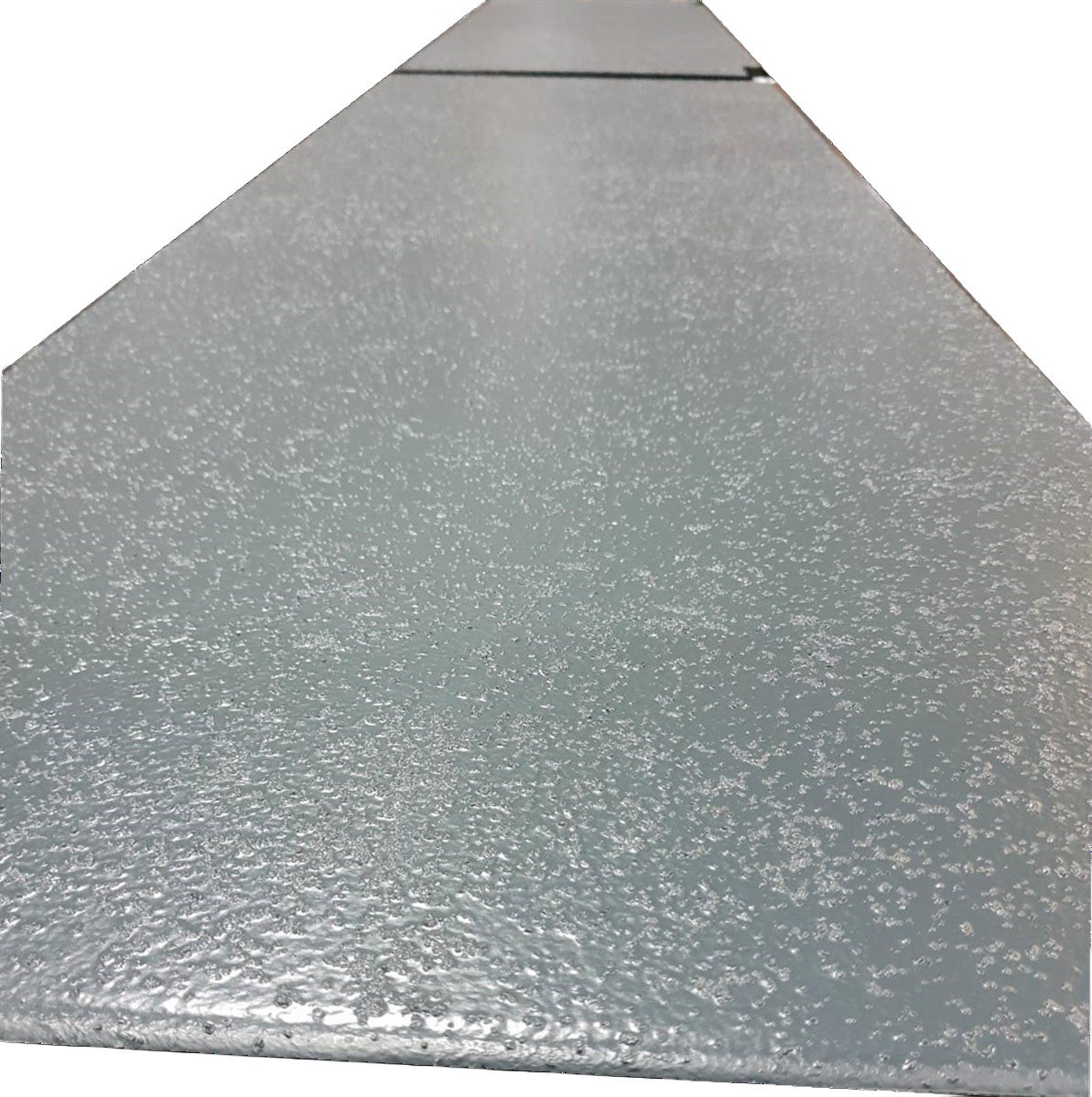

Anti-slip coating for the runways: This is an option that cannot be retrofitted but can be selected at the time of order for maximum grip.
Control box right-side placement (Surcharge): Control unit position that can be adapted to the workshop layout.

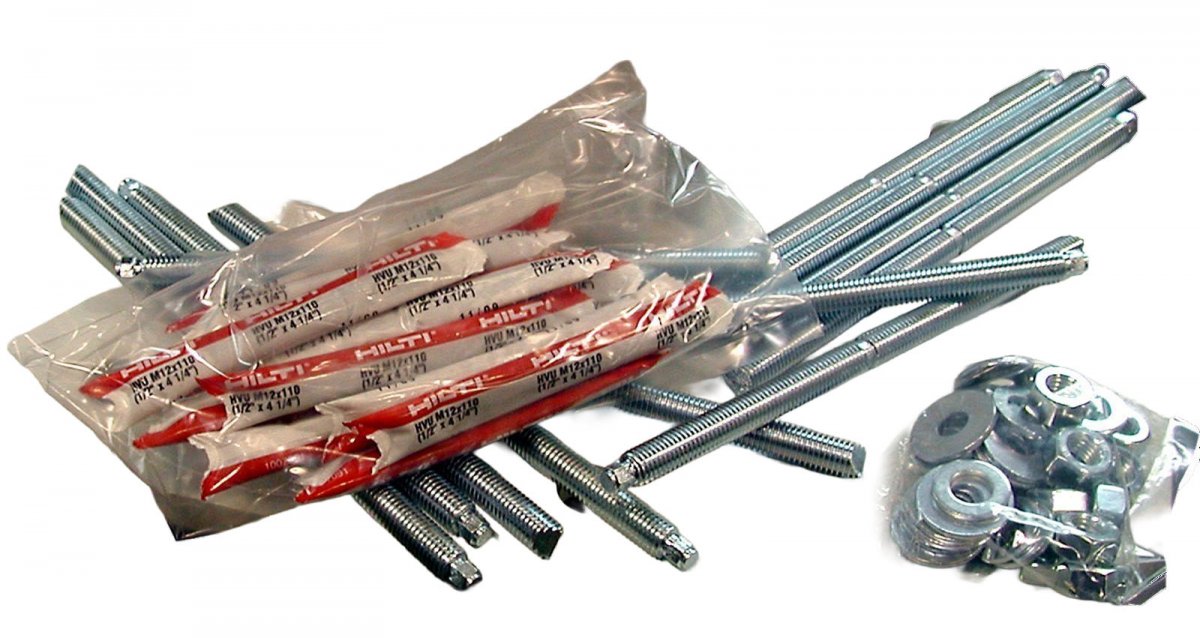

Fastening material (for 0.35/0.40 series): A set containing the necessary 28 M16 anchor bolts and screws for secure installation.
Lighting (Surcharge, factory installed): Optional lighting package containing 4 LED lamps (1235 mm long, at a 45° angle) and the necessary switch/cables.
Platform extension 250 mm: One 250 mm extension element is available to service wider or longer vehicles.
Hydraulic Wheel Aligner/Play Detector Set (Set 630): This hydraulic system offers 18 directions of movement (longitudinal/transverse) for vehicles up to 2,000 kg capacity. It can be integrated into rails and has an installation height of 50 mm.
Hydraulic Play Detector Set (Low Installation Height): Another hydraulic play detector option, with an installation height of only 50 mm.
The Consul 0.42 S BE scissor lift is the ideal choice for professionals looking for an extremely robust, submersible solution for high-level service work, especially concerning wheel alignment and diagnostics.
