A Consul 2-Post Lift Premium EL® 2.65 EV a professional, floor plate-free (chassis-free) lift system specifically designed for the safe and efficient lifting of large commercial vehicles, such as long-wheelbase vans (e.g., VW Crafter RS3 or MB Sprinter with long wheelbase, up to 4.325 mm). With a construction width of 3,600 mm, it is extremely versatile for servicing the most diverse vehicles.
This lift combines Consul's engineering precision and durability, ensuring reliable and long-term operation for workshops.
The Premium EL® 2.65 EV model incorporates several design elements that increase safety, ease of use, and service life:
Special Rolled Profile Columns: The columns are made from an extremely robust, specially rolled profile, which guarantees the stability and load-bearing capacity of the structure.
Installation Direction: The installation of the columns takes place in a rectangular shape in the direction of the ramp, optimizing the available space.
Carriage Movement: The load-bearing carriages run on six rollers, ensuring smooth and precise lifting/lowering movement.
Load and Safety Nuts: Bronze load and safety nuts ensure exceptional durability and secure locking during lifting.
Lubrication Dispenser: Integrated oiling system for lubricating the support elements, facilitating periodic maintenance.
Shear Nut Locking Function: The locking function of the shear safety nut provides an extra layer of security during the lift's descent.
Acoustic Foot Protection: Acoustic signal during lowering, which warns of hazards, increasing personal safety.
Softline Push-Button Control: Modern, user-friendly control panel with a microprocessor-controlled leveling system for precise positioning.
Lockable Main Switch: A lockable main switch located directly on the column for complete power disconnection during unauthorized use or maintenance.
Buffered Door Contact: Adjustable stop plate (approx. 25 mm) and a cushioned door contact for vehicle protection.
Internal Column Covering: The interior of the columns is fully covered, protecting the mechanics from contamination and external influences.
Automatic Arm Locking: Automatic arm lock system with manual release function for fast and safe vehicle lowering.
Capacity-independent Installation Width: The installation width can be varied without reducing the load capacity.
Optional Accessories: Self-supporting floor frame (optional) and second control unit (optional) available.
Protection Class: IP 54 protection class.
Certifications: GS-approval, compliant with standard DIN EN 1493, CE-approved.
Note: Maximum lifting heights can be achieved with optional accessories. The lowest installation heights are achievable with optimal floor conditions.
The detailed technical parameters of the Consul Premium EL® 2.65 EV lift are as follows:
| Characteristic | Value | Note |
|---|---|---|
| Item Number (SKU) | 763680 | |
| Manufacturer Number (HAN) | 421580 | |
| Category | 2-Column Lifts | |
| Nominal Load Capacity | 6,500 kg | Ideal for vans and light trucks. |
| Lifting Height | approx. 1,895 mm* | *Maximum height achievable only with optional accessories. |
| Lifting/Lowering Time | approx. 45 seconds | Fast and efficient workflow. |
| Bottom Clearance | approx. 100 mm** | **In case of optimal floor conditions. |
| Arm Extension Range | approx. 870 – 1,675 mm | 3-piece design. |
| Installation Width | ca. 3.600 mm | |
| Installation Height | ca. 2.900 mm | |
| Distance Between The Two Columns | approx. 2,730 mm | |
| Clearance Width | ca. 2.290 mm | |
| Power supply | 400 V / 50 Hz | Three-phase connection. |
| Drive Power | 2 x 5.0 kW | Two independent hydraulic units. |
| Safety Protection | 25 A slow-blow |
For maximum flexibility and to meet special requirements, the following accessories are available (can be ordered separately):
Consul 2. Operating Unit – Factory Installation Surcharge: Surcharge for factory installation of the second operating unit.

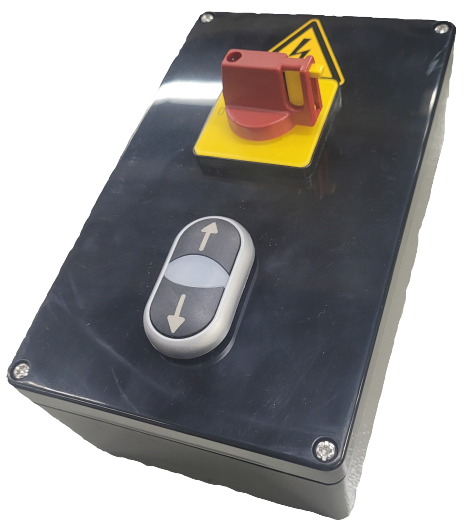

Consul 2. Operating Unit from 5.5 t: Secondary control column with suction-push button control and air connection. (The lift type must be specified when ordering.)

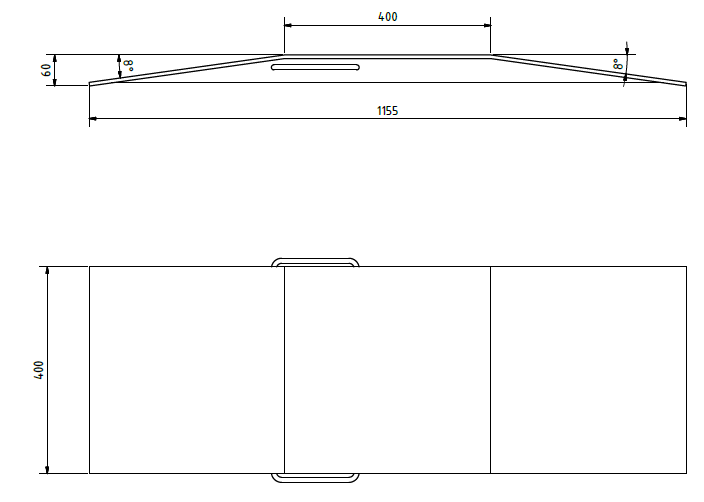

Consul Drive-on Ramps: 1 set = 4 ramps, facilitates the positioning of low-chassis vehicles.
Consul Fastening Material up to 7,000 kg: Fastening set for every 7,000 kg capacity Consul 2-post lift. Contents: 12 pcs M16 anchor bolts, threaded rods, and washers. (2 sets required for 2.65 EL.)
Consul ConSoft Diagnostic Software: Maintenance and diagnostic software for 2-post lifts.
Consul End Stop Switch with Light Barrier: Ceiling end stop switch with light curtain function for safe operation.
Consul End Stop Switch Manual: Manually operated ceiling limit switch.
Consul Spacers 100 mm, 12 mm, 150 mm, 200 mm: Spacer sets (1 set = 4 pcs) for Consul rotational arm lifts with capacities greater than 4.5 t, enabling optimal alignment for different vehicles.
The Consul Premium EL® 2.65 EV lift is the ideal choice for any workshop requiring a high-capacity, reliable, and pit-free lifting solution for servicing modern vehicle fleets.
