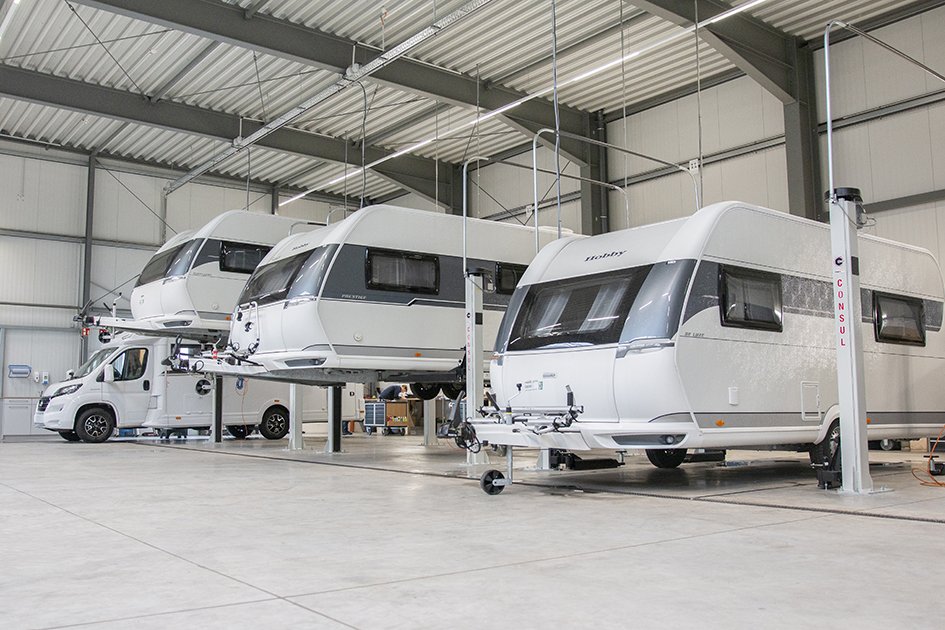

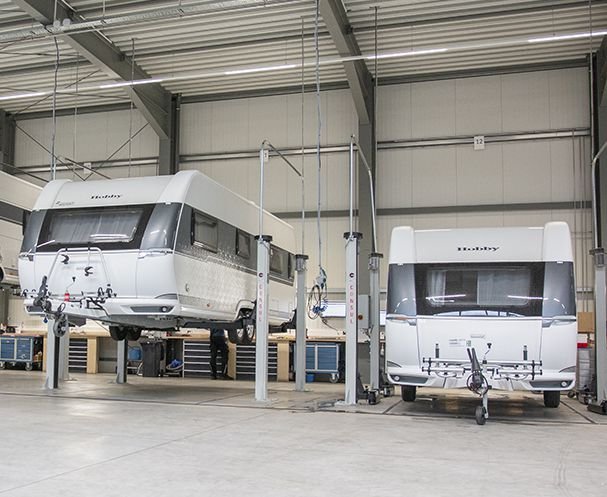

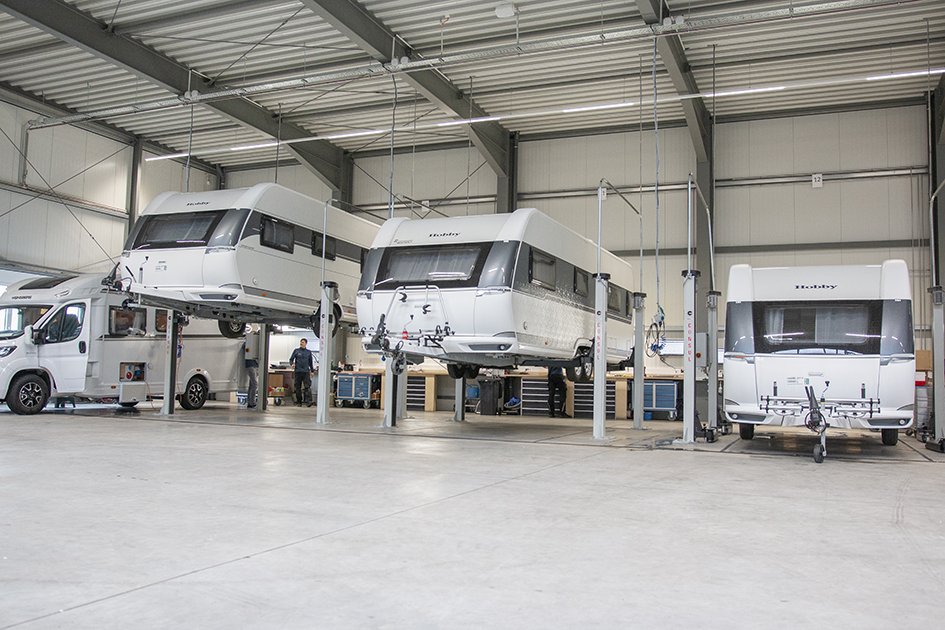

A Consul Caravan 2x 2.65 EL A specially designed, high-capacity lifting device, engineered for the professional and safe lifting of trailers and semi-trailers. This fully electronic lift is an ideal choice for service centers and workshops where the maintenance of heavy, large-sized vehicles is required. The 6,500 kg load capacity and advanced four-motor control guarantee precise and reliable operation.
This model is part of the Consul C-Line series, which prioritizes reliability and long service life. The equipment offers variable installation options, flexibly adapting to the workshop's specific conditions.
For maximum stability and safety, the lift is equipped with several premium components:
Four Special Rolled Profile Columns: These ensure the structural integrity of the lift and the even distribution of the load.
Carriage Drive: The load-bearing carriages run on 6 rollers, whose lifting and safety nuts are made of bronze material, ensuring smooth movement and wear resistance.
Lubrication Dispenser: A built-in oil dispensing system ensures supported lubrication at necessary points, thereby extending the service life.
Broken Nut Lifting Stop Function: This critical safety system prevents unintended lowering in case of a broken lifting nut.
Acoustic Foot Protection: During operation, an audible alarm warns of hazards, increasing personal safety.
Manually Release Rotary Arm Locking Mechanism: Enables the safe locking of the arms, while also providing a manual release option in case of necessity.
The soul of the 2x 2.65 EL model is its sophisticated electronic control system:
Four V-Belt Motors: Lifting is performed by four separate V-belt motors, which use computer synchronization to ensure perfect parallelism and smooth lifting, even under asymmetrical loads.
Touch Control: Operation is simple and intuitive via the touch control panel.
CE Conformity: In compliance with CE requirements, it features a separate, lockable main switch for safely interrupting the main power supply.
Lifting Pads: Lifting pads equipped with hard rubber profiles are located under the vehicle, whose fine adjustment can be performed with a threaded spindle (25 mm stroke), thus optimally adjusting to different chassis heights.
Protection Class: It has an IP 54 protection rating, GS certification, DIN EN 1493 approval, and CE marking, meeting the highest industrial safety standards.
Important Note: Maximum lifting heights can be achieved with optional accessories. Minimum installation heights are achievable under optimal floor conditions.
The following table details the critical technical parameters of the Consul Caravan 2x 2.65 EL lift:
| Characteristic | Value | Note |
|---|---|---|
| Item Number (SKU) | 568170 | |
| Manufacturer Number (HAN) | 251469 | |
| Category | Car and Trailer Lifts | |
| Rated load capacity | 6,500 kg | Maximum Load Capacity |
| Lifting height | approx. 1,965 mm* | *Available with optional accessories |
| Lifting/Lowering Time | approx. 45 seconds | |
| Bottom clearance | approx. 115 mm** | **Under optimal floor conditions |
| Arm extension range | approx. 830 – 1,675 mm | The width of the arms is adjustable |
| Set-up width | ca. 4.660 mm | Outer Size |
| Installation Height | ca. 2.900 mm | |
| Drive-through width | ca. 2.900 mm | |
| Power supply | 400 V / 50 Hz | Three-phase mains |
| Drive Power | 4 x 5.0 kW | Total motor power 20 kW |
| Fuse Protection | 80 A slow-blow fuse |
Detailed documentation and numerous optional accessories are available for the product to maximize installation and safe operation:
Catalogue (Brochure): Detailed overview of the product family.
Installation plan: Precise guide for professional installation.
The following accessories are recommended for maximum functionality and safety:
Consul Anchoring Material up to 7,000 kg: Anchoring set suitable for all 7,000 kg capacity Consul 2-post lifts. Contents: 12 pcs M16 anchor bolts, threaded rods, and washers. (2 sets must be ordered for the 2x 2.65 EL type.)
Consul Ceiling Limit Switch with Light Barrier: Safety limit switch that detects ceiling proximity with the help of a light barrier, preventing over-lifting.
Consul Ceiling Limit Switch Manual: Manually operated ceiling limit switch.
Consul Spacers 100 mm, 12 mm, 150 mm, 200 mm: Different sized spacers (1 set = 4 pcs) are recommended for Consul swing arm lifts from 4.5 tons upwards, enabling fine adjustment for various vehicle heights.
The Consul Caravan 2x 2.65 EL lift is the professional solution for high-load, special lifting tasks, combining Consul's quality and safety standards with the needs of caravan services.
