The Consul 2 Column Lift Premium EL® 2.65 model is a professional lift without a base frame (without base plate), designed specifically for the most demanding workshop environments. It is also excellently suited for lifting vans (e.g., VW Crafter RS3 or MB Sprinter with long wheelbase, up to 4,325 mm), thanks to the 3,600 mm installation width. This lift is capable of handling an extremely wide range of vehicles, ensuring maximum flexibility in the workshop.
The Consul EL® 2.65 series offers a combination of reliability, safety, and modern technology, making it an ideal choice for high-traffic service centers.
This premium category lift includes several design elements that increase durability, operability, and safety:
Special Rolled Profile Columns: The columns are made from an extremely robust, specially rolled profile, which guarantees the stability of high load capacity and long service life.
Installation Direction: The installation of the lift is done in a rectangular shape relative to the vehicle approach direction, optimizing the available space.
Carriage Guide: The lifting carriages are guided by six (6) rollers, ensuring smooth and precise lifting/lowering movement.
Load and Safety Nuts: Load-bearing and safety nuts made of bronze ensure mechanical safety and long-term reliability.
Lubrication Dispenser: Accessory oil dispenser for lubricating the support elements, facilitating regular maintenance.
Split Nut Locking: The split nut features a lift-lock function for enhanced safety.
Acoustic Foot Protection: Integrated acoustic protection for the operator's feet during lifting/lowering.
Softline Push-Button Control: Softline push-button control unit equipped with a modern, computer-controlled leveling system for extremely precise positioning.
Main Switch: Lockable main switch directly on the column to prevent unauthorized use or shutdown.
Additional Convenience Features: Padded door stop and adjustable pick-up plate (approx. 25 mm) that adapts to different vehicles.
Full Column Cladding: Full cladding of the inner parts of the column protects the mechanics from contamination and improves aesthetics.
Automatic Arm Locking: Automatic arm locking system with manual release function.
Capacity Flexibility: The installation width can be varied without reducing the load capacity.
The flexibility of the system is further enhanced by optional accessories:
Self-supporting Base Frame: Optionally available self-supporting base frame if floor conditions do not allow for a completely base-frame-less installation.
Second Control Unit: Possibility to install a second control unit as well.
The Consul EL® 2.65 lift complies with the strictest industrial requirements:
Protection Class: IP 54
Approvals: GS approval, DIN EN 1493, CE approval.
Important Note: Achieving the maximum lifting heights indicated may require the use of optional accessories in certain cases. The lowest lift-off heights are achieved under optimal floor conditions.
The following table summarizes the critical technical parameters of the Consul 2 Post Lift Premium EL® 2.65:
| Characteristic | Value | Note |
|---|---|---|
| Nominal Load Capacity | 6,500 kg | Ideal for vans and larger passenger cars. |
| Lifting Height | approx. 1,895 mm* | *The exact value may depend on the accessories. |
| Lifting/Lowering Time | approx. 45 seconds | Fast and efficient workflow. |
| Lower Clear Height | approx. 100 mm** | **In case of optimal floor conditions. |
| Arm Extension Range | approx. 870 – 1,675 mm | 3-piece design. |
| Installation Width | ca. 3.600 mm | Enables the servicing of vans with long wheelbases. |
| Installation Height | ca. 2.900 mm | The height of the entire structure. |
| Clear Distance Between | approx. 2,730 mm | The distance between the two posts. |
| Clearance Width | ca. 2.290 mm | The width available for the vehicle. |
| Power supply | 400 V / 50 Hz | Three-phase mains connection. |
| Drive Power | 2 x 5.0 kW | Two independent hydraulic units. |
| Safety Protection | 25 A slow-blow | Ensures adequate current protection. |
Detailed documentation and several accessories are available for the product to facilitate installation and expansion:
Catalogue (Brochure): Detailed overview of the C-Line Premium series.
Installation Plan: Precise guide for the professional installation of the Consul 2.65 Multi XXL lift.
To increase workshop efficiency, the following accessories are recommended:

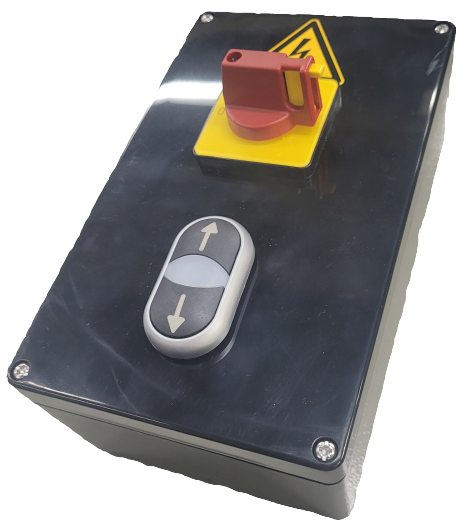

Second Control Unit (with Ex Works Installation): Second control unit available with factory installation for an extra charge.
Second Control Unit (Slave Post): Second control unit with slave post, Softline push-button control, and air connection. The type of lift must be specified when ordering.

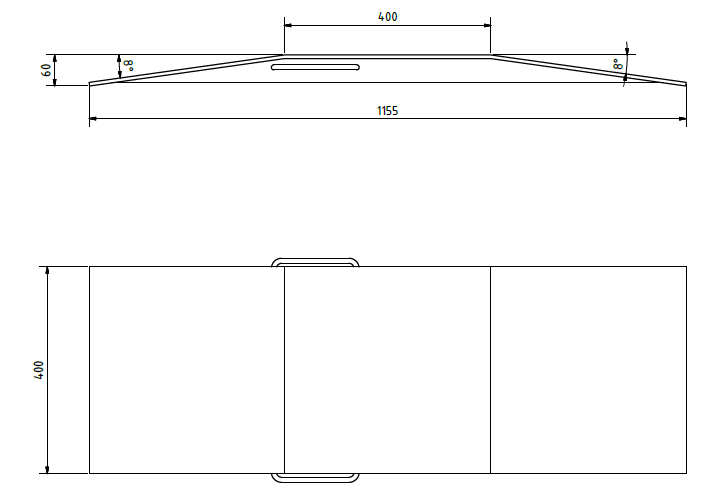

Drive-on Ramps: 1 set = 4 ramps, facilitates the driving up of vehicles.
Fixing Material (Fixing Material up to 7,000 kg): Set of anchors with 12 pcs M16 anchor bolts, threaded sleeves, and support plates for Consul 2-post lifts with 7,000 kg load capacity. (For 2.65 EL, 2 sets must be ordered).
ConSoft Diagnostic Software: Maintenance and diagnostic software for 2-post lifts.
Ceiling Limit Switch with Light Barrier: Safety limit switch with light barrier protection.
Manual Ceiling Limit Switch: Manually operable limit switch.
Spacers: Spacers of various sizes (e.g., 100 mm, 12 mm) are available for Consul swing arm lifts over 4.5 tons (1 set = 4 pcs).
The Consul Premium EL® 2.65 lift represents the pinnacle of high-load, base-frame-free lifting technology, guaranteeing long-term, safe, and efficient vehicle servicing.
