The Consul PneuLift® 0.30 BA is a high-quality, pneumatically operated compact scissor lift, specifically designed to support flexible and efficient work in body repair and paint shops. This model combines reliability and ease of handling, offering an ideal solution for wheel-free vehicle lifting.
The design of the PneuLift® 0.30 BA focuses on maximum user comfort and workshop efficiency:
Pneumatic Drive: The lift operates entirely on compressed air, thus eliminating the need for an electrical connection for operation. This increases flexibility regarding placement within the workshop and removes the risk of electrical failures.
Robust Construction: Manufactured using high-quality components, which guarantees a long service life and reliable operation even under high demand.
Compact Design with Pivoting Arms: The base body features pivoting arms that allow for safe pick-up at the vehicle's designated lift points, ensuring wheel-free lifting.
Manual Arm Locking: The arms can be manually locked, providing extra safety during the work process.
Bearing and Bushing System: The bearings and screws are series-bushed, which minimizes wear and ensures smooth, precise movement.
Safety Locking System: Equipped with a self-locking mechanism that guarantees secure holding during lifting.
Automatic Latch Release: The safety latch releases automatically, facilitating the lowering of the vehicle.
Flexible Versions: This model is available in a recess-mounted (BE) version as well as a mobile version, making it adaptable to workshop requirements.
The precise and detailed technical parameters of the Consul PneuLift® 0.30 BA ensure professional application:
| Characteristic | Value | Note |
|---|---|---|
| Item Number (SKU) | 707000 | |
| Manufacturer Number (HAN) | 500450 | |
| Category | Pneumatic Scissors Lift Tables | |
| Rated load capacity | 3,000 kg | Ideal for passenger cars |
| Lifting height | ca. 935 mm | Optimal working height |
| Drive-up height | ca. 110 mm | Very low profile for easy access |
| Length (Support Surface) | ca. 1.675 mm | |
| Width (Support Surface) | ca. 1.185 mm | |
| Maximum air pressure | 8 bar | Compressed air required for operation |
The PneuLift® 0.30 BA is excellently suited for all body repair and paint shop tasks where fast, reliable, and wheel-free lifting is required, such as:
Brake and running gear repairs
Wheel change and tire fitting
Undercarriage and bodywork repairs
General maintenance tasks
Detailed documentation is available for the product to support installation and use:
Product Brochure: Detailed description of functions and advantages.
Installation plan (Installation plan): Precise guidance for professional installation.
Optional Accessories (Available Separately):
For maximum customization, the following accessories are available:
Consul Cover Plate: 1-meter long cover plate for covering the air connection lines, including fastening materials.

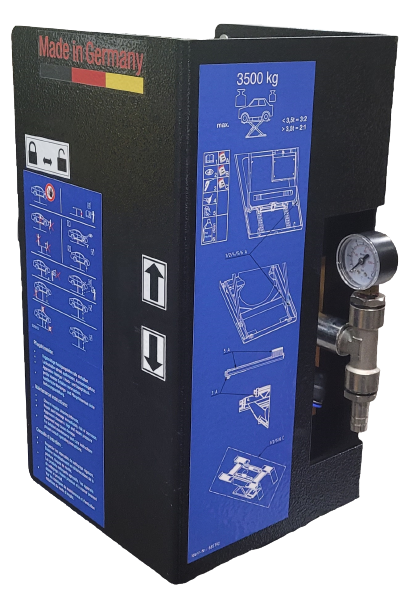

Consul Control unit ex ante: External control unit for managing pneumatic functions.

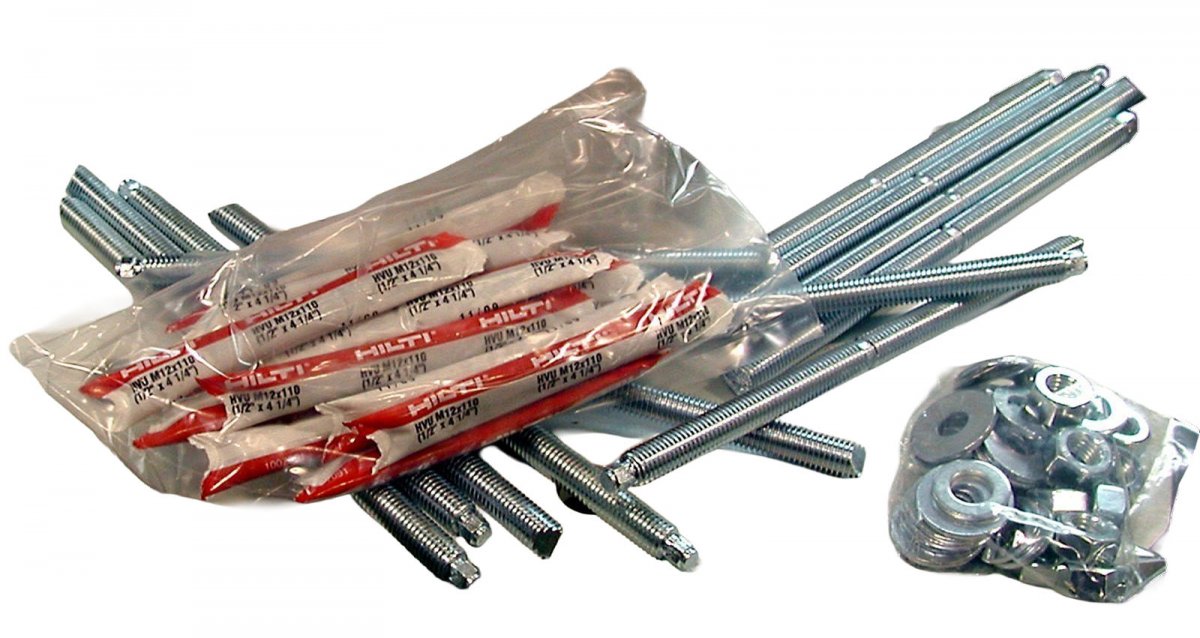

Consul Fixing material: Kit equipped with 4 M12 reaction bolts and screws for secure fastening of the lift.
Consul Special Painting: Custom painting option based on RAL color code, adapted to the workshop's corporate identity.
The Consul PneuLift® 0.30 BA is a device that leverages the advantages of pneumatic technology to increase the efficiency and safety of your workshop while ensuring minimal space requirements.
