This detailed product description serves to present the extremely flexible and robust VARIO pick-up chassis designed for the Consul 2-Ram Inground Lift (Twin-Ram, Inground). This accessory offers an ideal solution for workshops where vehicles of various sizes and types need to be lifted safely and efficiently.
The VARIO pick-up chassis is specifically optimized for the 2.35 MK Optima type inground lifts, but thanks to its universal design, it can be used for extremely wide as well as extremely narrow vehicles, including long-wheelbase models. The main advantage of the system is its excellent adjustability, which allows for the precise positioning of the pick-up points on the vehicle chassis.
The entire construction hot-dip galvanized version, which guarantees excellent corrosion resistance and long service life even in the most aggressive workshop environments. The surfaces Power-Grip-Coating are coated, which increases friction and ensures the stable securing of the vehicle during lifting.
A key component of the VARIO chassis is the two pick-up beams, which are continuously adjustable both longitudinally and transversely. This dual adjustability enables perfect adaptation to almost any vehicle geometry.
Longitudinal Adjustability: The pick-up points can be flexibly positioned along the length of the vehicle.
Transverse Adjustability: The transverse adjustment range ensures that even vehicles with very wide or very narrow tracks can be securely fastened.
The precise technical parameters of the product ensure safe and reliable operation in compliance with the highest industrial standards.
| Characteristic | Value | Note |
|---|---|---|
| Item Number (SKU) | 433011 | |
| Manufacturer Number (HAN) | 9747 | |
| Category | Twin Ram Inground Lifts | |
| Rated load capacity | 3,500 kg | Maximum safe load. |
| Lifting height | ca. 2.045 mm | The maximum lifting height. |
| Distance between columns | 1.380 mm | The internal distance between the hydraulic columns of the lift. |
| Drive-over height | 55 mm | Extremely low profile, ideal for easy drive-on of vehicles. |
| Pick-up Area (Longitudinal) | approx. 1,430 – 2,200 mm | The longitudinal adjustment range of the pick-up beams. |
| Pick-up Area (Transverse) | approx. 780 – 1,980 mm | The transverse adjustment range of the pickup points. |
The VARIO pickup frame includes several design elements that serve functionality and durability:
Pickup Beams: Two pickup beams are installed, each equipped with two sliders adjustable in both longitudinal and transverse directions. This 2×2 adjustment capability ensures exceptional adaptability.
Corrosion Protection: The entire structure hot-dip galvanized (completely hot-dip galvanized), which provides excellent protection against moisture and corrosive agents.
Sliders: The sliders enable precise positioning for the vehicle's lifting points.
Surface Treatment: Power-Grip-Coating coating for maximum grip.
Standard Equipment: The delivery package includes:
4 elastomer adapters (size 150 x 250 x 20 mm).
All fastening materials required for the installation of the frame (Installation material for chassis).
Consul products comply with the strictest European safety regulations, guaranteeing the safety of workshop personnel and vehicles:
GS-approved (Geprüfte Sicherheit – Tested Safety).
DIN EN 1493 certified according to standard.
with CE certification with.
For maximum flexibility, elastomer adapters (rubber pads) of various sizes are also available for the system, which are ideal for lifts equipped with integrated auxiliary lifts. These adapters absorb vibrations and ensure stable contact for the vehicle.

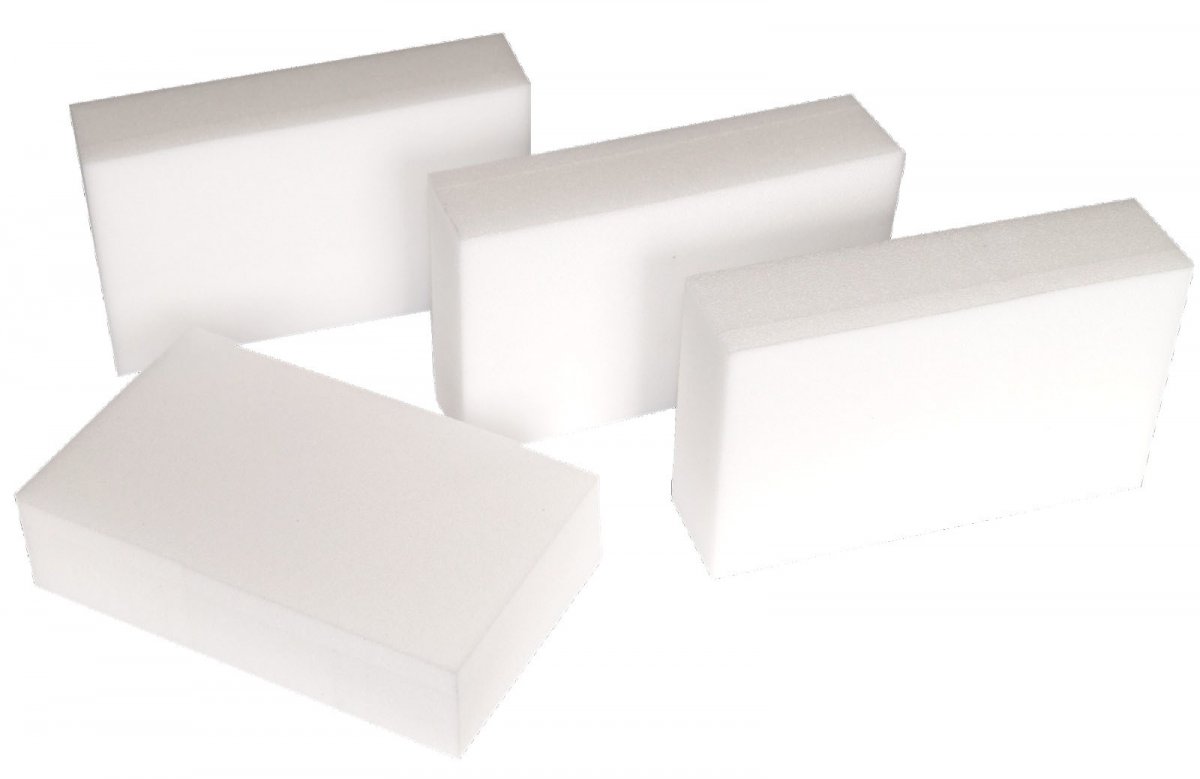

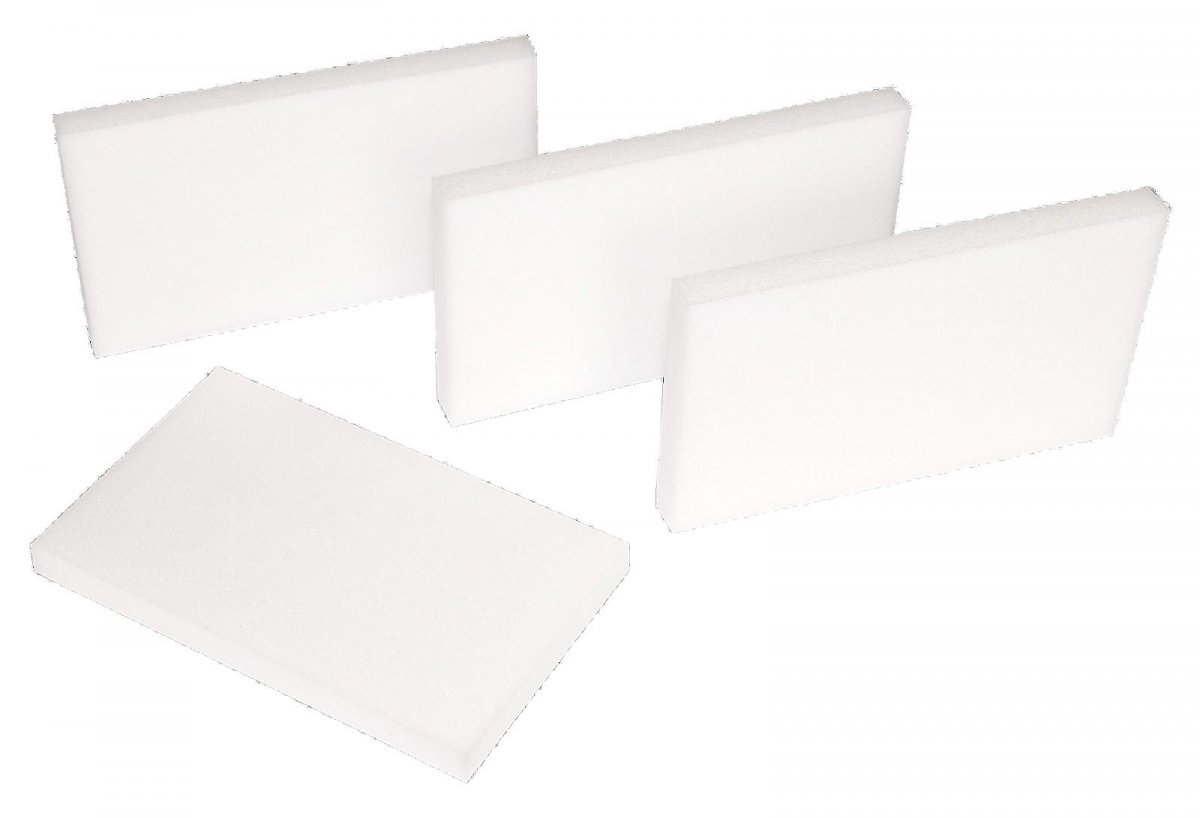

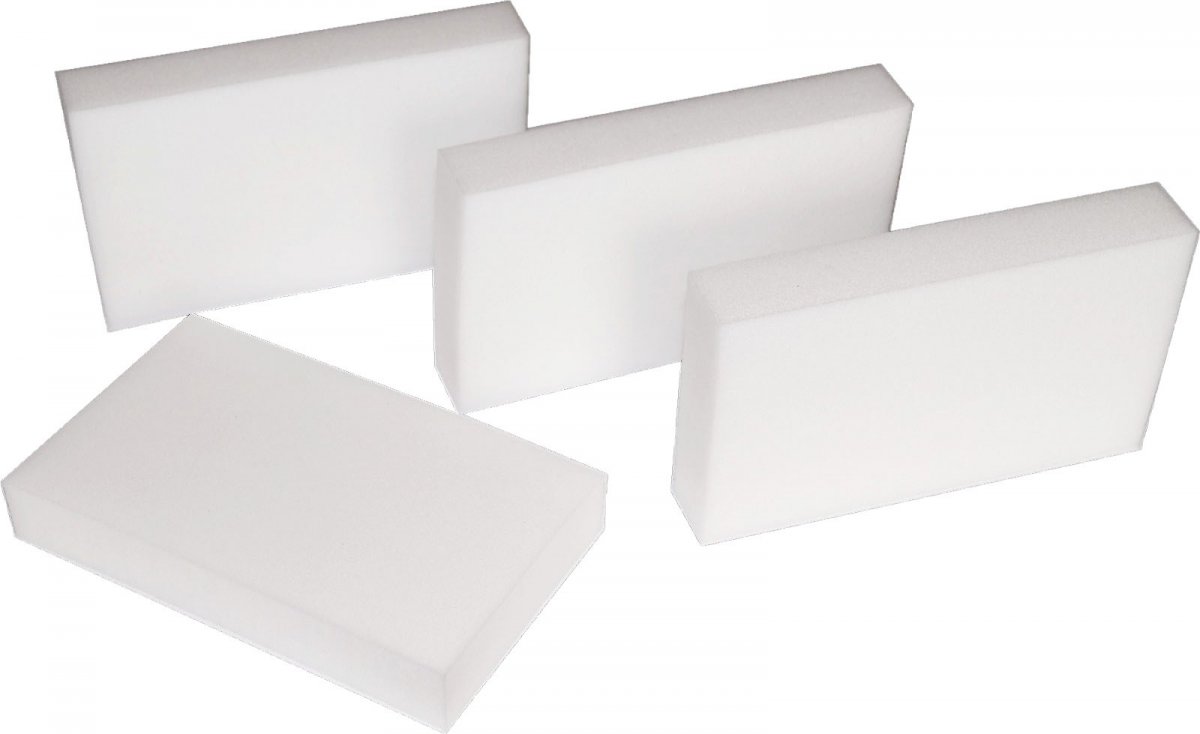

Available Elastomer Adapter Sets (1 set = 4 pieces):
| Size (Width x Length x Height) | Purpose |
|---|---|
| 250 x 150 x 20 mm | For standard auxiliary lifts |
| 250 x 150 x 40 mm | For accessory lifting jacks |
| 250 x 150 x 60 mm | For accessory lifting jacks |
| 250 x 150 x 90 mm | For accessory lifting jacks |
These adapters can be ordered separately, allowing the workshop to adjust the support height and surface hardness to the specific lifting task and vehicle type.
The Consul 2-Stempel VARIO In-Ground Lift Support Base is a premium, heavy-duty (3.5 tons) and highly adjustable solution that significantly increases the versatility of in-ground lifts. The hot-dip galvanized version and the Power-Grip coating guarantee long-term, reliable operation, while the wide adjustment ranges ensure that the workshop can safely lift any modern vehicle. The product complies with the highest international safety regulations.
