A Consul Compact Hydraulic Lift 0.35 HP an extremely versatile, ultra-low profile scissor lift suitable for both mobile and fixed installation, specifically developed for servicing passenger vehicles, with a maximum load capacity of 3500 kg. This model is an ideal choice for workshops where space-saving and fast, efficient vehicle lifting are essential.
Its main advantage is that the integrated electro-hydraulic drive uses a double-tube hydraulic system in every scissor, thus no compressed air connection is required for operation. This significantly increases flexibility and installation freedom within the workshop. Thanks to the optimized design, the lift provides full load capacity starting from the „Zero Point” (floor level).
This compact lift prioritizes reliability and safety while ensuring maximum access to the vehicle undercarriage:
Ultra-low Profile Design: Extremely low approach height (approx. 105 mm), which facilitates the lifting of most vehicles, especially low-profile sports cars.
Integrated Electro-hydraulic Drive: No external compressor is needed. The drive is carried out by double cylinders located in each scissor, ensuring stable and even lifting.
Full Load Capacity from Zero Point: The construction allows the use of the maximum 3500 kg load capacity even in the lowest position.
Safety Features: Safe operation is guaranteed by several elements, including the safety audible alarm in the foot area, the dead-man control, as well as the built-in overload protection and emergency lowering device.
Anti-slip Platforms: The lifting bridges are made of sheet metal with a non-slip tread pattern. Optionally available in hot-dip galvanized version Also available for increased corrosion protection.
Adjustable Track Width: The lifting platforms are adjustable longitudinally with a tilting mechanism that can also be controlled from the side, allowing for flexible adaptation to different axle distances and track widths.
Mechanical Synchronization: Mechanical synchronization is provided for precise and synchronized lifting.
Standard Equipment: Includes 4 pieces of 40 mm elastomer adapters for gentle support of the vehicles.
Durability: The base frame and the ramps of the lifting platforms are hot-dip galvanized, which provides excellent protection against corrosion, especially in the case of in-ground installation.
Certifications: Protection class IP54, with GS certificate, DIN EN 1493, and CE approval.
The detailed technical parameters of the Consul 0.35 KH scissor lift are as follows:
| Parameter | Value | Note |
|---|---|---|
| Part Number (SKU/HAN) | 766667 | |
| Category | Compact Scissor Lifts | |
| Rated load capacity | 3,500 kg | Maximum Load Capacity |
| Lifting height | ca. 950 mm | |
| Drive-up height | ca. 105 mm | Ultra-flat design |
| Lifting/Lowering Time (under load) | approx. 30 seconds | The time may vary depending on the load |
| Power supply | 400 V / 50 Hz | Three-phase mains |
| Drive Power | 2.2 kW | |
| Fuse Protection | 16 A slow-blow fuse | |
| Hydraulic oil capacity | approx. 10 liters | |
| Width of approach ramps | ca. 450 mm | |
| Lifting Platform Length (adjustable) | approx. 1,400 – 2,030 mm | Longitudinal Adjustment Range |
| Protection class | IP54 |
The Consul 0.35 KH can be flexibly expanded according to the specific needs of the workshop:
Mobile set (Optional): Includes 1 connecting rod and 2 mountable guide rollers, which allow easy positioning of the lift within the workshop if it is not permanently installed.
Hot-dip galvanized base frame: The standard hot-dip galvanized base frame provides excellent protection against corrosion.
Ramps for flush installation (Optional): Optionally available accessory ramps (1 set = 4 pcs) to facilitate flush installation into the floor.
Foundation frame: A frame usable for flush installation, which can also be applied without further accessories.
Hot-dip galvanized Platforms (Optional surcharge): The platforms are also available in a hot-dip galvanized finish for an extra charge to ensure maximum service life.

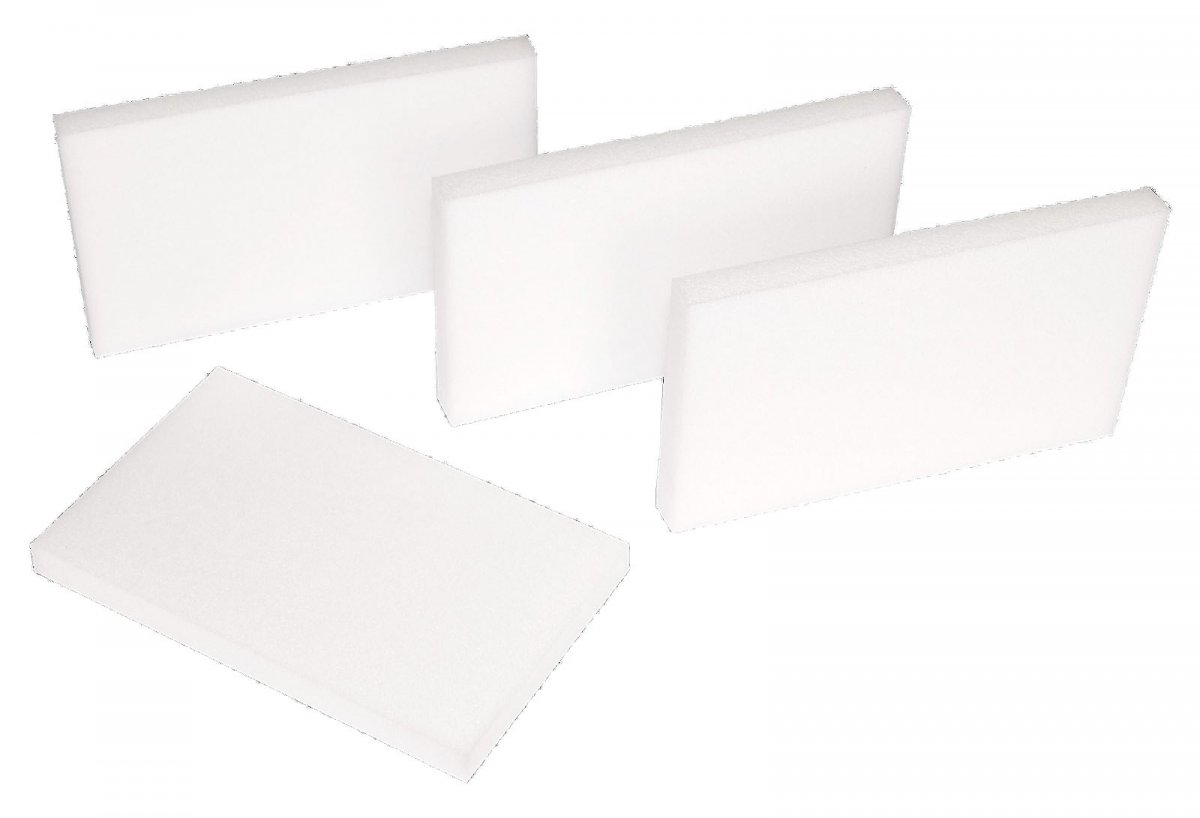

Elastomer adapters: The set contains 4 pcs of 40 mm elastomer adapters. Adapters of different heights are also available for the specific support of vehicles (e.g., sets with 20 mm, 60 mm, 90 mm thickness).
A Consul Compact Hydraulic Lift 0.35 HP ideal solution for fast, safe, and flexible lifting tasks where space-saving and reliable hydraulic performance are crucial.
