The Consul 1-Column Lift 1.30 is an extremely reliable and space-saving solution, specially developed for body repair work, vehicle preparation, and workshops with limited space. This model is part of the Consul C-Line series, combining precise mechanics and safe operation.
This single-column lift provides excellent access to the underside of the vehicle, especially for reaching sills and chassis areas, which is essential during precise bodywork. Due to its design, it is also ideal for preparing damaged vehicles where flexibility and quick access are crucial.
The Consul 1.30 lift incorporates several design elements that guarantee a long service life, safe operation, and user-friendly handling:
Special Rolled Steel Column: The column of the lift is made from a specially rolled profile, ensuring maximum stability and rigidity under load.
Roller Carriage Guide: The carriage (the unit supporting the vehicle) is guided by six precision rollers inside the column, ensuring smooth and even lifting/lowering movement.
Load and Safety Nuts: Load-bearing and safety nuts made of bronze ensure mechanical safety and durability at critical points.
Lubrication Dispenser: A built-in oil dosing system ensures lubrication of the support, minimizing friction and wear.
Over-lowering Safety Device: An integrated safety system prevents accidental sinking, increasing workplace safety.
Push-button Control: Enables simple and intuitive operation via the push-button control panel.
Lockable Main Switch: Features a main switch lockable according to CE requirements, preventing unauthorized use.
Acoustic Foot Protection: An acoustic signal warns of hazards, especially during lowering, increasing personal safety.
Belt-Driven Motor with Thermal Protection: The reliable belt-driven motor is equipped with thermal overload protection.
Lifting Pads: Features hard rubber profiled lifting pads that offer a 25 mm height adjustment possibility for optimal fitment to different vehicles.
Swivel Telescopic Support Arms: The arms have a swivel design and are partly adjustable externally, which greatly facilitates positioning.
Arm Locking System and Door Stop: The mechanism for locking the arms and the integrated door stop provide additional comfort and protection.
Floor Plate-Free Design: The device without base frame supplied outside, which allows completely unobstructed access under the vehicle. This creates ideal conditions for underfloor work.
Protection Class and Certificates: IP 54 protection class, with GS certificate, compliant with DIN EN 1493 standard and CE marking.
The detailed technical parameters of the Consul 1-Column Lift 1.30 are as follows:
| Parameter | Value | Note |
|---|---|---|
| SKU | 661207 | Part number |
| HAN | 475381 | Manufacturer Identifier |
| Category | 1-Column Lifts | |
| Nominal Load Capacity | 3000 kg (3.0 tons) | |
| Lifting Height | ca. 1942 mm | |
| Lifting Time (loaded) | approx. 45 seconds | |
| Under-lift height (Drive height) | 115 mm | Starting height above the floor |
| Lower Clear Height | 85 mm | |
| Short Arm Extension Range | 610 – 890 mm | |
| Long Arm Extension Range | 665 – 1,050 mm | |
| Installation Width | ca. 2.460 mm | |
| Installation Length | ca. 2.890 mm | |
| Installation Height | ca. 2.900 mm | |
| Power supply | 400 V / 50 Hz | Three-phase mains |
| Drive Power | 3.0 kW | |
| Safety Protection | 16 A slow-blow |
The Consul 1.30 lift can be flexibly expanded according to workshop requirements with various accessories that optimize work execution and maintenance:
Detailed documentation is available for the product:
Catalogue (Brochure): Detailed overview of the C-Line series.
Installation plan: Precise instructions for professional installation.
For maximum flexibility, the following accessories are available:
Fixing Material (Consul Fixing material): Mounting set for types 1.15 and 1.25, which includes anchor bolts (M16) and threaded rods for stable fastening.

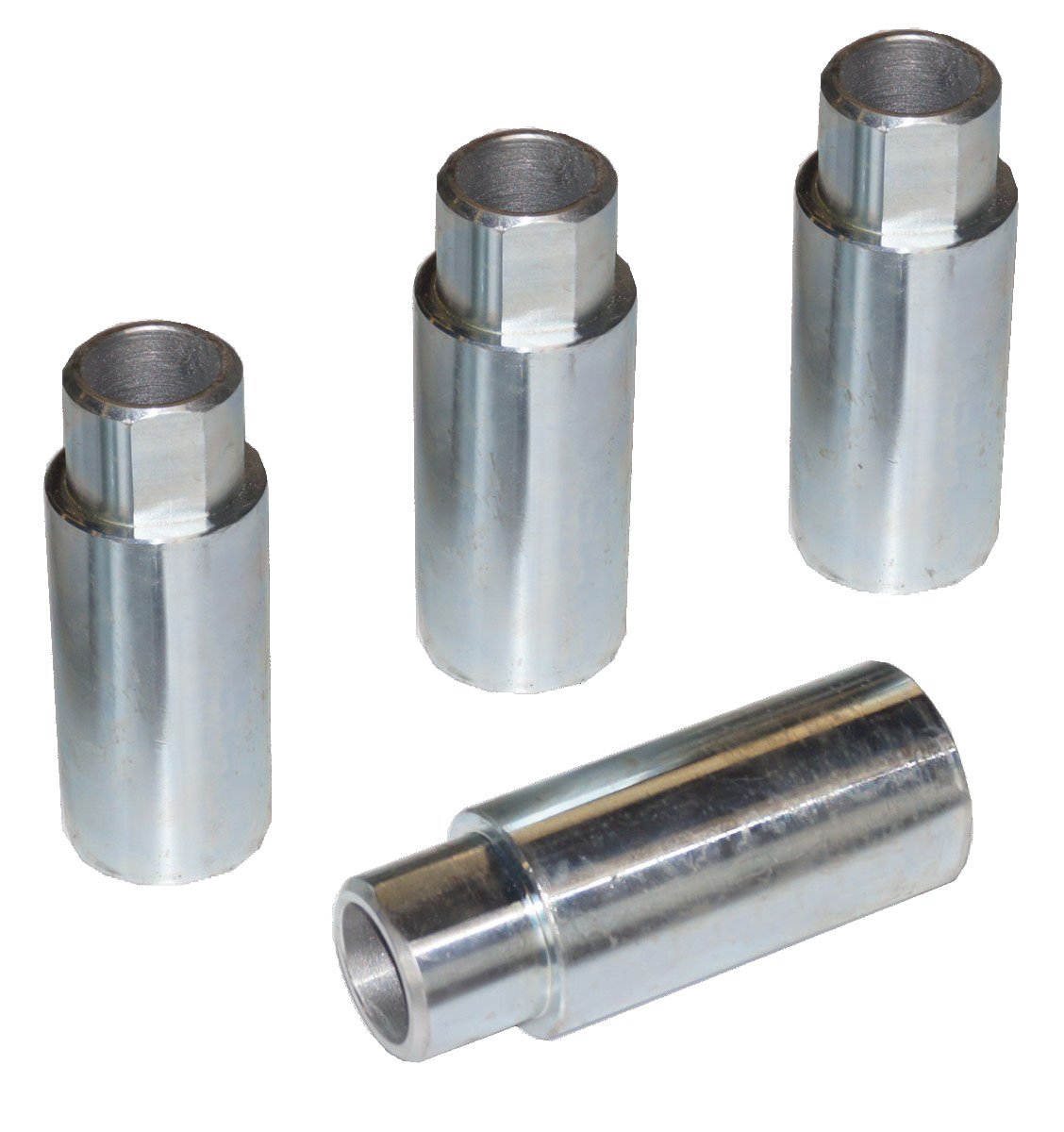

Spacers: Spacers of various sizes (100 mm, 12 mm, 150 mm, 200 mm, 35 mm, 50 mm) are available for Consul swing arm lifts with a load capacity of up to 4 tons (1 set = 4 pcs). These help in the precise positioning of vehicle jacking points.
Spacer Holders: Storage set for mounting the spacers (1 set = 4 pcs).
Base plate fixing bars: Specifically for types 1.15 BRM and 1.25, they provide extra stability when the concrete floor thickness is between 150-210 mm.
Self-supporting Base frame: Optional self-supporting base frame that increases the drive-on height by 50 mm and allows the lift to be installed even in locations where floor reinforcement is not ideal.
Special painting: Custom color finish is available by specifying the RAL color code.
Spindle oil (Spindle oil in 1L-container): Special spindle oil for lubricating the lift's screw/nut systems, supplied in a 1-liter container.
The Consul 1-Column Lift 1.30 is the ideal choice for professionals looking for a compact yet high-capacity and extremely safe lifting device for bodywork and technical preparation tasks.
