This detailed description presents the Consul 0.42 SN BA – 4800 mm refers to the floor-installation type (BA) scissor lift, which features an integrated auxiliary lift (with a 3,500 kg load capacity) and offers an ideal solution for lifting vehicles with a total weight of 4,200 kg. The product is a highlight of the Consul C-Line series, combining reliability, a high level of safety, and flexible usability.
The Consul 0.42 SN BA lift is specifically designed for workshop environments where vehicle servicing, especially wheel alignment and full chassis work, requires a precise and stable lifting solution.
Design Features:
Floor-Installation Design (BA): This configuration means the lift can be installed sunken into the floor, or placed on the floor (at the level of the runways), with minimal installation height, facilitating vehicle approach.
Integrated Auxiliary Lift (Wheel Free Lift): The lift comes standard with an extendable auxiliary lift on both sides, featuring a 3,500 kg load capacity. This allows for complete freeing of the wheels regardless of the main lifting height, which is essential for wheel changes, brake, and suspension repair work.
Electro-hydraulic Control: The reliable and fast lifting/lowering processes are ensured by an electro-hydraulic system.
Master/Slave Hydraulic System: For synchronized operation, the main lifting mechanism is equipped with a Master/Slave hydraulic system.
Pneumatic Release During Lowering: For safe and easy lowering, the locking pawls can be released pneumatically, controlled by a push button.
Mechanical Locking System: A 17-position mechanical locking device provides mechanical support alongside the hydraulic system, increasing safety.
Acoustic Foot Protection: User safety is enhanced by acoustic (audible signaling) protection during the lowering phase.
Runways: The runways are manufactured from special cold-formed steel profiles, ensuring high rigidity and durability.
Bearing: The runways feature split, 20 mm thick fixed and sliding bearings (series galvanized finish). Optional calibration for wheel alignment is available.
Approach Ramps and Roll-Back Protection: The platforms are equipped with approach ramps and anti-roll-back protection.
Jacking Beam Rail: An integrated rail is available for jacking beams, further increasing operational flexibility.
Rubber Pad Adapters: The delivery package includes 40 mm elastomer adapters.
Safety and Electrical Specifications:
Protection Class: IP 54 protection class.
Power supply: 230 V socket built-in.
Approvals: Has GS mark, complies with standard DIN EN 1493, and features CE marking.
The following table details the critical technical parameters of the Consul 0.42 SN BA – 4800 mm lift:
| Parameter | Value | Note |
|---|---|---|
| SKU | 732909 | |
| HAN | 500446 | |
| Category | Star Wheel Lifts | |
| Rated Capacity (Main Lift) | 4.200 kg | |
| Lifting Height (Main Lift) | ca. 2.100 mm | |
| Lifting Time (loaded) | approx. 35 seconds | |
| Set-up width | ca. 2.240 mm | |
| Installation length | approx. 5,910 mm | |
| Drive-up height | ca. 240 mm | |
| Tápellátás | 400 V / 50 Hz | |
| Drive Power | 5.5 kW | |
| Fuse Protection | 20 A slow-blow | |
| Width of runways | ca. 650 mm | |
| Length of runways | ca. 4.800 mm | |
| Clearance Height (SN) | ca. 50 mm | |
| Auxiliary lift load capacity | 3,500 kg | |
| Auxiliary lift lifting height | ca. 450 mm | |
| Auxiliary lift length | approx. 1,440 – 1,940 mm | Extendable |
| Auxiliary lift lifting time | 15 seconds | |
| Auxiliary lift width | ca. 670 mm |
The Consul 0.42 SN BA lift can be flexibly expanded with various accessories that optimize workshop workflows. Although these are ordered separately, it is important to mention the compatible and frequently used options:
Hot-Dip Galvanized Auxiliary Lift (for a surcharge): The auxiliary lift is also available in a hot-dip galvanized version, which provides enhanced corrosion protection.
3D Wheel Balancer Adapter Set: Special adapters for retrofitting, for example, Beissbarth Easy 3D systems.

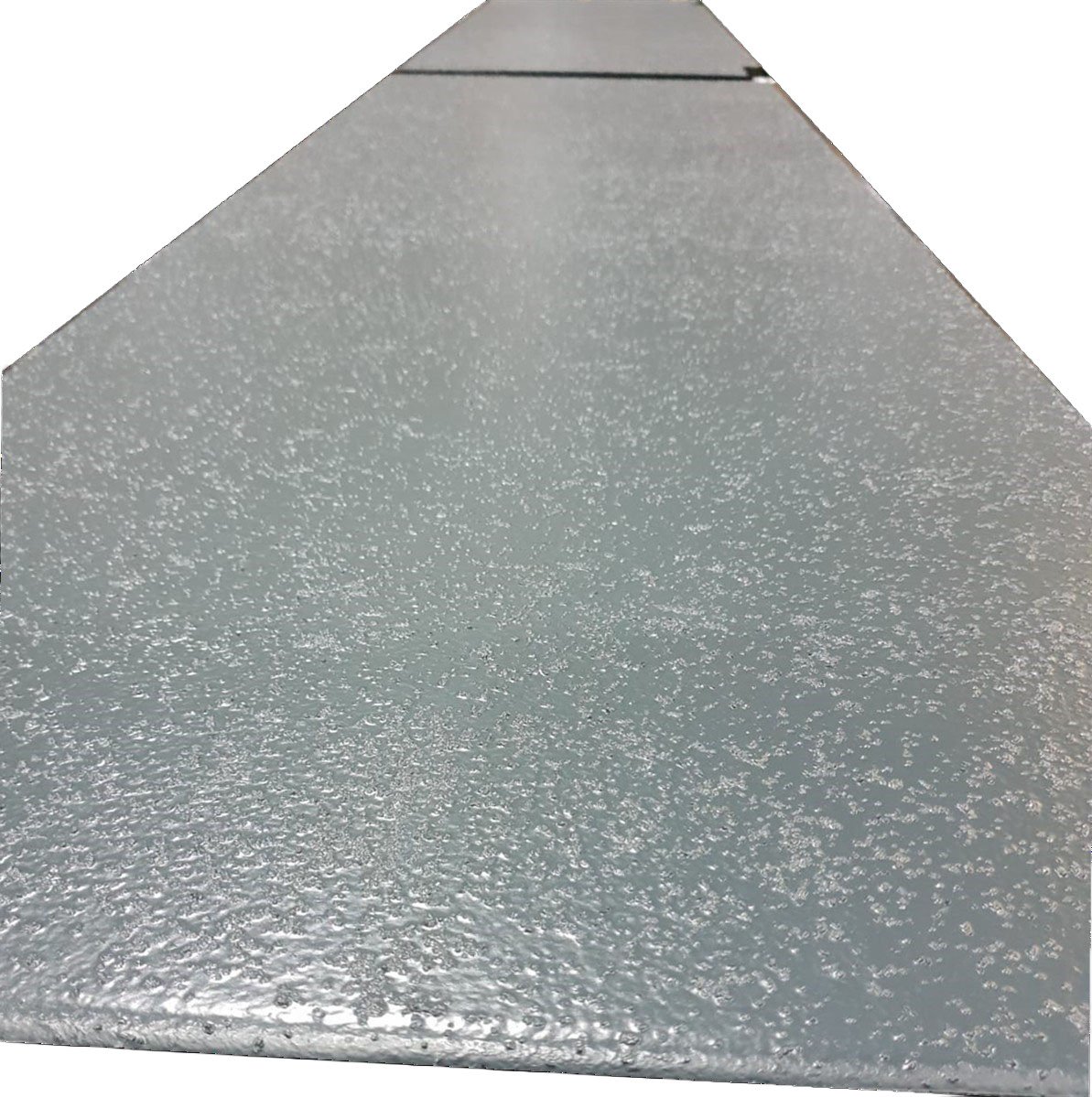

Anti-Slip Coating on Tracks: Anti-slip coating for the surface of the tracks (Note: this is not a retrofit option).
Lifting and Lowering Ramps: Ramps of various lengths (e.g., 1,000 mm or extended 1,500 mm) equipped with anti-rollback protection.
For Pit Frame Lifts: Special adapter bridge with movable adapters and screw jack, up to 3,000 kg, specifically for frame chassis vehicles (e.g., 4.45 series, twin scissor, scissor, 2- and 4-piston recessed lifts).
Leveling Set: Compensation kits (e.g., for 650 mm width, 50 mm height) for levelling the runways.
Control Console Placement on the Right Side (Surcharge): Modification of the control unit's placement according to workshop requirements.
Fastening Material: Fastening material kit for the 0.35/0.40 series (consisting of 28 reaction elements).
A 0.42 SN BA The floor-installable model (BA) is an ideal choice for workshops where vehicle lifting is the main requirement. The 240 mm lifting height ensures easy access even with minimal ramps.
Safety is guaranteed by strict adherence to DIN EN 1493 standards, the mechanical locking system, and CE conformity. The separate, lockable main switch (in accordance with CE directives) provides an additional layer of safety.
This Consul scissor lift combines reliable hydraulic performance with convenient and versatile auxiliary lifting functions, creating a professional and efficient work environment for vehicle service.
