The Consul Z230 Comfort two-post lift is designed for modern workshops where efficiency, safety, and user comfort are paramount. It is specifically engineered to provide optimal vehicle access, even with models featuring long doors or smaller commercial vehicles. The Z230 Comfort is perfectly suited for lifting everything from micro-vehicles up to smaller SUVs and vans, with a load capacity of 3000 kg.
Consul's engineering solutions guarantee a long service life and reliable operation, thanks to columns made of robust, hot-rolled steel profiles, which are not sheet metal constructions.
The Z230 Comfort model prioritizes the user experience with several features that facilitate daily work:
Optimized Column Design: The offset column placement allows for the problem-free opening of the driver's side door of the vehicles, thus increasing the comfort of the workspace.
Space-Saving Installation: Thanks to the closely spaced, offset columns, the lift can be installed in a space-saving manner.
High-Quality Components: The load nut is made of bronze, and the safety nut is made of alloy casting, ensuring maximum durability and safety.
Automatic Arm Locking: An automatic locking mechanism equipped with a manually releasable function ensures the secure fastening of the vehicle.
Acoustic Foot Protection: Integrated acoustic protection shields the operator's feet during lifting and lowering.
Computer-Controlled Leveling: The Softline push-button control is equipped with a computer-supported leveling system for precise positioning.
Full Column Interior Cladding: The interior part of the columns is fully clad, providing protection against dirt and external influences.
Adjustable Lifting Arms Pads: The lifting arm pads are adjustable in a range of approx. 25 mm to adapt to different vehicle heights.

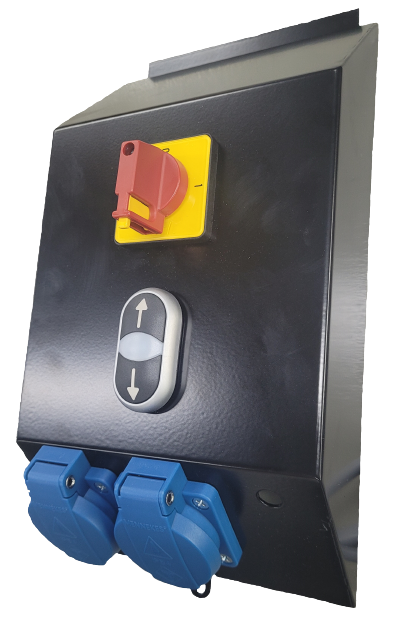

Integrated Convenience Features: On the lift's control column, there is an integrated oil dispenser for support lubrication, as well as a lockable main switch.
Work Environment Support: The lift includes an air connection and a 230 V socket on the control column for workshop tools.
Safety Certifications: The lift has an IP54 protection class, GS certification, complies with the DIN EN 1493 standard, and bears the CE marking.
Note: The stated minimum lifting heights are achievable under optimal floor conditions, and certain lifting heights are only reachable with optional accessories.
Detailed specifications for the Consul Z230 Comfort lift are as follows:
| Characteristic | Value | Note |
|---|---|---|
| Part Number (SKU) | 723007 | |
| Manufacturer Number (HAN) | 500434 | |
| Category | 2-Post Lifts | |
| Rated load capacity | 3,000 kg | |
| Lifting height | approx. 1,975 mm* | *Heights available with optional accessories also exist. |
| Lifting/Lowering Time | approx. 55 seconds | |
| Under-clearance | approx. 85 mm** | **Under optimal floor conditions. |
| Short arm extension range | approx. 480 – 880 mm | 3-part design |
| Long arm extension range | approx. 670 – 1,315 mm | 3-part design |
| Set-up width | ca. 3.300 mm | |
| Installation Height | ca. 2.550 mm | |
| Clearance between columns | approx. 2,508 mm | |
| Drive-through width | approx. 2,177 mm | |
| Tápellátás | 400 V / 50 Hz | |
| Drive Power | 2 x 2.5 kW | |
| Fuse Protection | 20 A slow blow |
You can increase the flexibility of the Z230 Comfort lift with several accessories that optimize workshop processes:
Consul Comfort Package ONE: Includes the 2nd control unit and a wheel nut holder.
Consul Comfort Package PLUS: Includes the 2nd control unit, impact wrench holder, and a brake motor (the latter cannot be retrofitted).
Consul 2nd control unit for subsequent factory installation (Surcharge): Enables factory installation of the second control unit.
Consul 2nd control unit for the Slave Column: Second control unit for the slave column, specially designed for the Consul Z235 – Z245 Edition models.
Consul ConSoft Diagnostic Software: Maintenance and diagnostic software for 2-post lifts.
Consul Drive-on Ramps: 1 set = 4 pcs, facilitates vehicle drive-on.
Consul Pickup Pads with Swivel Plates: 4 pcs, 100 mm diameter support pads (instead of the standard 130 mm).
Consul Anchoring Material up to 3,500 kg: 12 pcs with M12 anchor bolts, threaded rods, and washers, for every Consul 2-post lift with a capacity of 3,500 kg.
Consul Ceiling Limit Switch with Light Beam: Further safety measure to indicate reaching the maximum lifting height.
Detailed technical and installation documentation is available for the product:
Brochure (PDF): The Comfort Line 2024 catalog is available.
Installation Plan (PDF): Specific installation guide for the Z230 Comfort (723007).
The Consul Z230 Comfort two-post lift is the ideal choice for all professional workshops seeking a reliable, comfortable, and precise lifting solution in the 3-ton category.
